Plan 11757HZ
3-Bedroom Split Layout House Plan
Heated S.F.
1,300
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 11757HZ

Main Level
slide image 0
Main Level - Basement Version
slide image 1

Plan 11757HZ

1-800-854-7852

1-262-521-4596

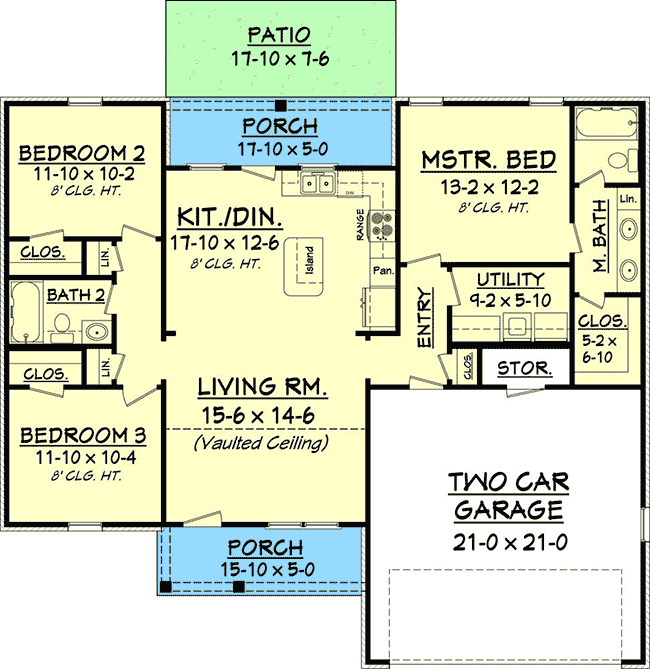

Main Level
floor plan image Main Level

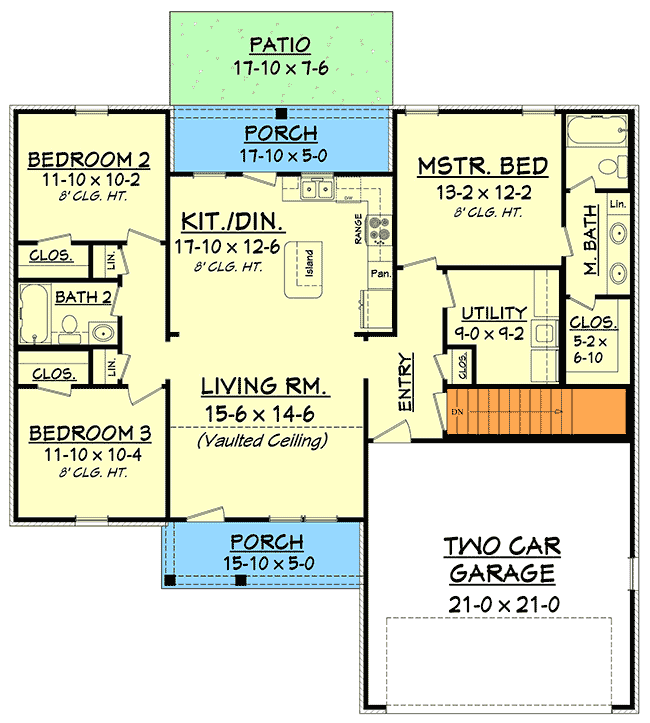

Main Level - Basement Version
floor plan image Main Level - Basement Version
Plan Details
  • Enjoy one-story living with this three bedroom, two bath house plan. With its split bedroom layout, the center portion is made for entertaining and your privacy is maximized.

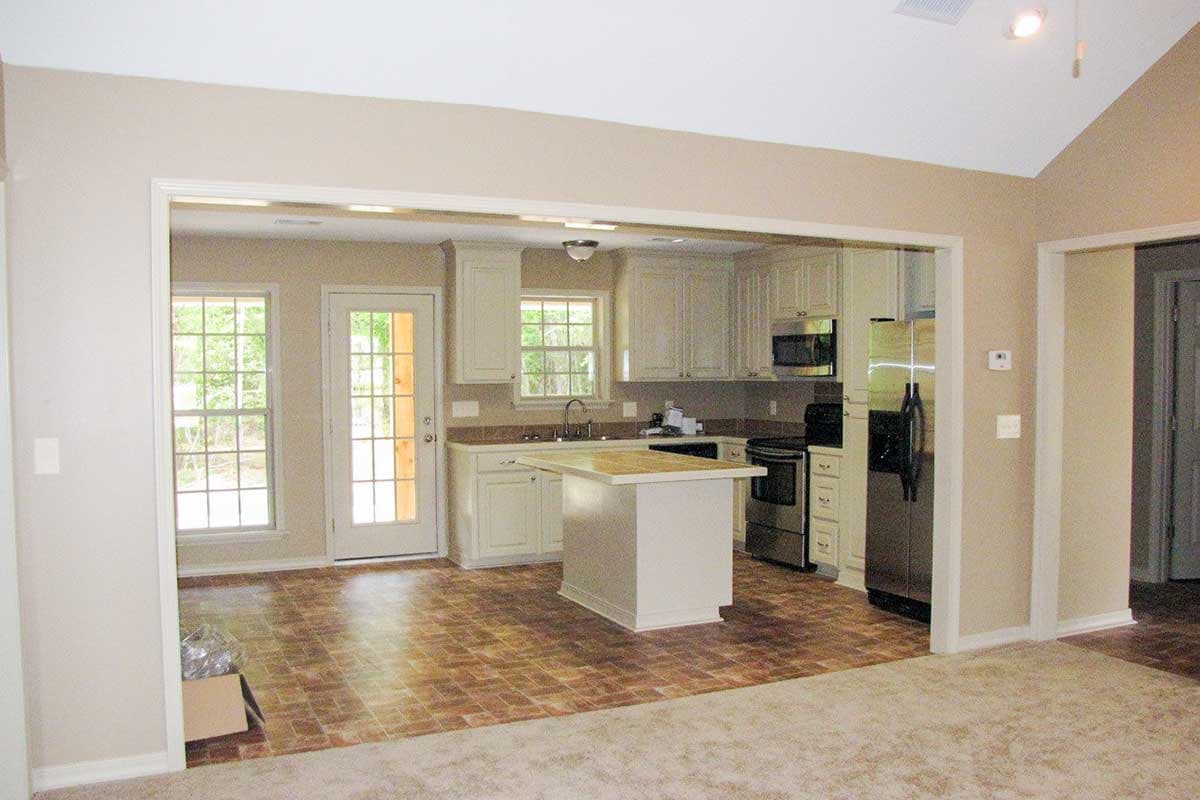

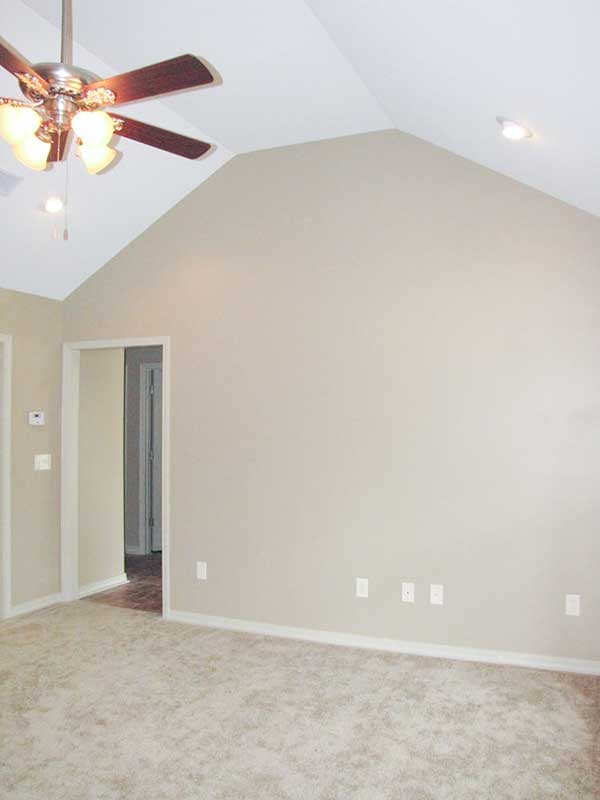

  • The living room has a vaulted ceiling and blends seamlessly into the kitchen and dining area.
  • A door on the back wall takes you to your covered porch which extends to an open air patio.
  • Laundry is located in the large utility room off the two car garage and near the master suite with walk-in closet.
What's Included
  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

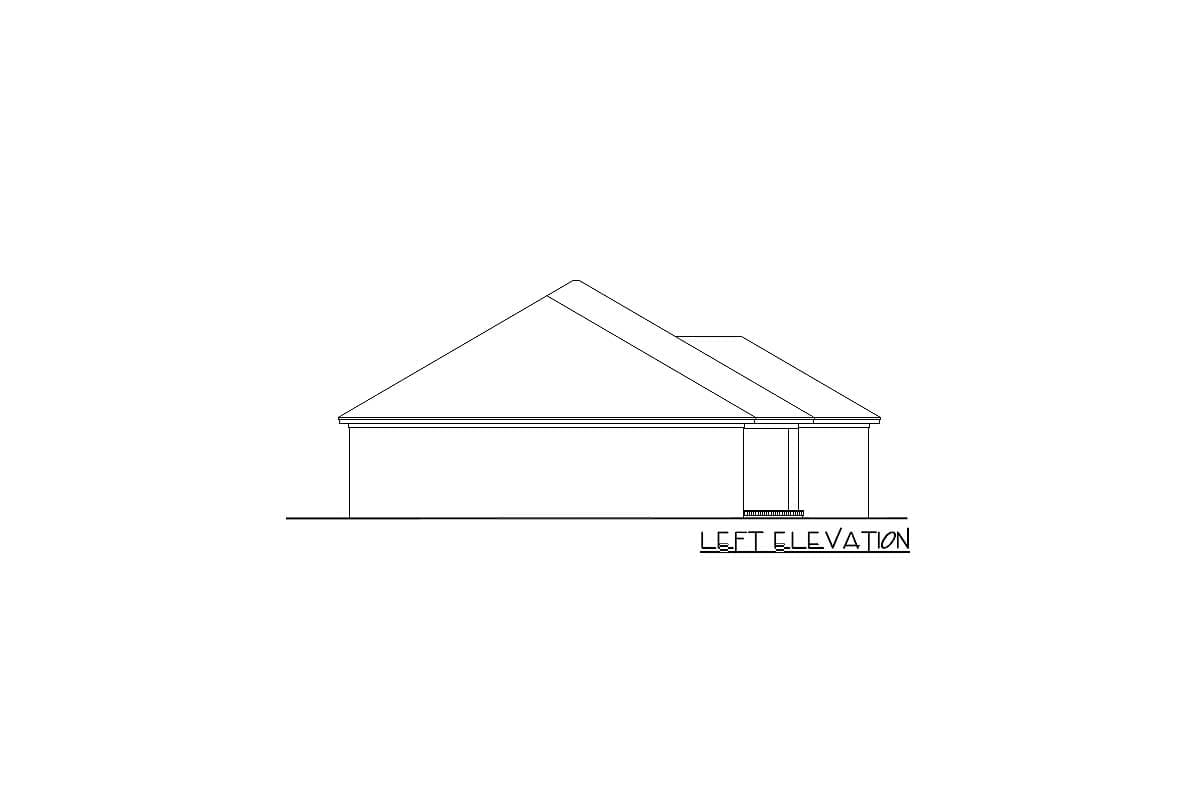

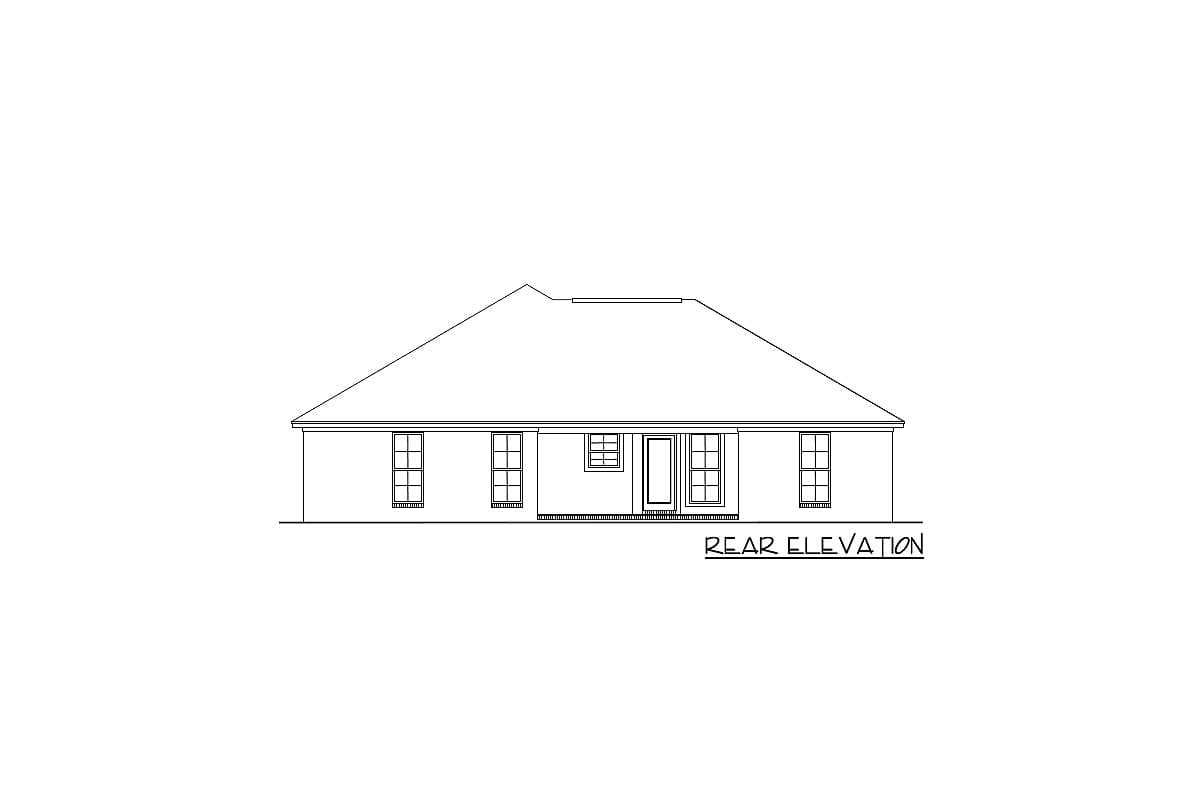

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,300 sq. ft.

1st Floor

1,300 sq. ft.

Porch, Front

79 sq. ft.

Porch, Rear

89 sq. ft.

Storage

22 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 8"

Depth

43' 8"

Max Ridge Height

19' 4"

Garage

Type

Attached

Area

459 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9' 4"

First Floor

8'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Country

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery

USDA Approved

Square Footage Breakdown

Total Heated Area

1,300 sq. ft.

1st Floor

1,300 sq. ft.

Porch, Front

79 sq. ft.

Porch, Rear

89 sq. ft.

Storage

22 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 8"

Depth

43' 8"

Max Ridge Height

19' 4"

Garage

Type

Attached

Area

459 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9' 4"

First Floor

8'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Country

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery

USDA Approved
