Plan 21909DR
3 Bedroom Split Level House Plan - 1390 Sq Ft
Heated S.F.
1,390
Beds
3
Baths
1
Stories
1
Cars
1
Floor Plan

Plan 21909DR

Main Level
slide image 0

Plan 21909DR

1-800-854-7852

1-262-521-4596

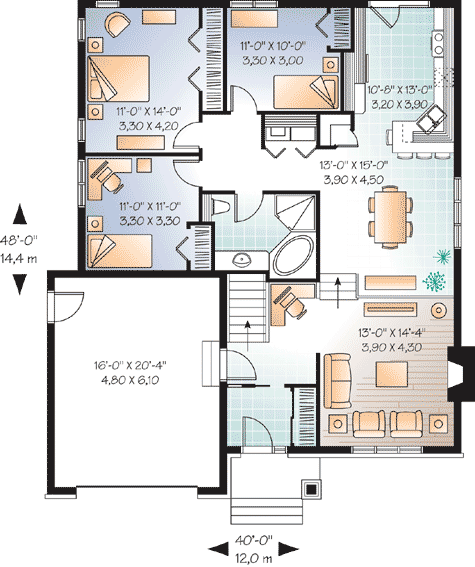

Main Level
floor plan image Main Level
Plan Details
  • The main floor is entirely open with the dining room a few steps above the living room.
  • The living room features a fireplace and 10' ceilings.
  • A work corner near the living room features a built-in desk - a nice touch.
  • Three bedrooms have ample storage. The bathroom has a large counter, 51" x 34" shower. Laundry is tucked away in the hall behind bi-fold doors.
  • Related Plan: Get a 2-bedroom version with house plan 21908DR (1,279 sq. ft.).
What's Included
  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,390 sq. ft.

1st Floor

1,390 sq. ft.

Bonus

252 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

48' 0"

Max Ridge Height

24' 1"

Garage

Type

Attached

Area

358 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Split Level

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

1,390 sq. ft.

1st Floor

1,390 sq. ft.

Bonus

252 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

48' 0"

Max Ridge Height

24' 1"

Garage

Type

Attached

Area

358 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Split Level

Plan Collections

Canadian House Plans

Metric
