Plan 81848AB
3 Bedroom Transitional House Plan with Circular Powder Room - 3955 Sq Ft
Heated S.F.
3,955
Beds
3
Baths
2.5
Stories
1
Cars
3
Floor Plan

Plan 81848AB

Main Level
slide image 0
Lower Level
slide image 1

Plan 81848AB

1-800-854-7852

1-262-521-4596

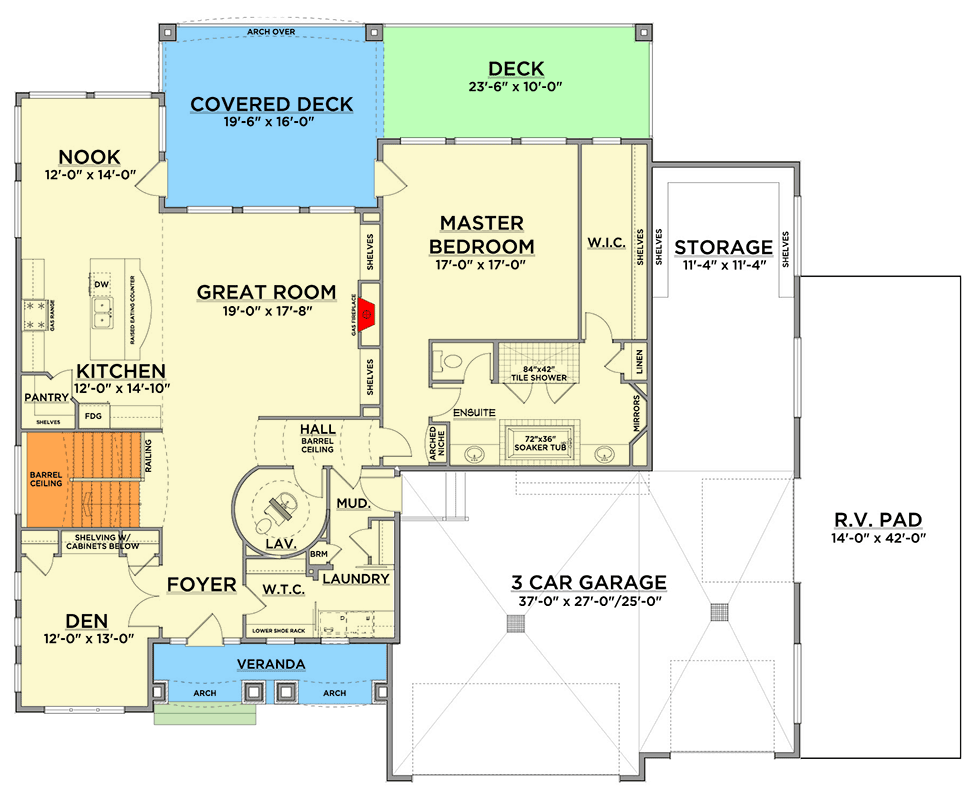

Main Level
floor plan image Main Level

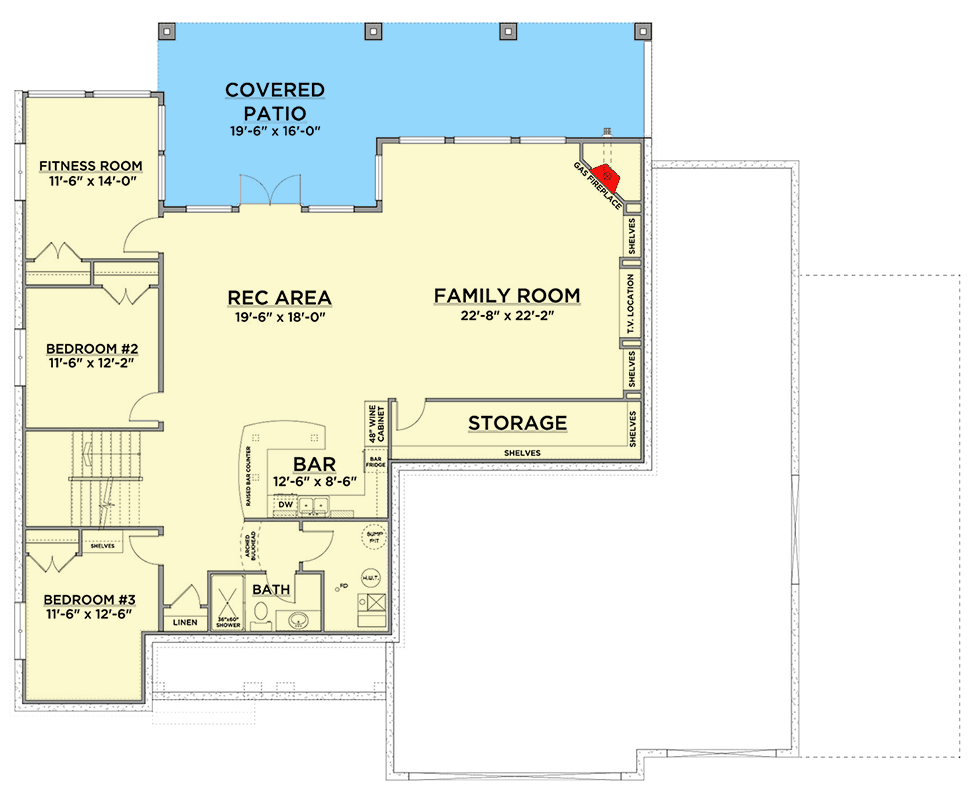

Lower Level
floor plan image Lower Level
Plan Details
  • This 3 bedroom transitional house plan gives you 3,955 square feet of heated living space with the master on the main floor and two additional bedrooms in the finished walkout basement.
  • The powder room on the main floor is circular and is centrally located for your convenience.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

View Sample Plan
What's Not Included
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,955 sq. ft.

Lower Level

1,830 sq. ft.

1st Floor

2,125 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

68' 6"

Depth

66' 0"

Max Ridge Height

34' 6"

Garage

Type

Attached

Area

1274 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8' 9"

First Floor

10' 1"

vault

12' 1''

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

European

Transitional

Special Features

Breakfast Nook

Den

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Wet Bar

Workshop

Plan Collections

Canadian House Plans
