Plan 9833SW
3 Bedroom Vacation Retreat
Heated S.F.
1,538
Beds
3
Baths
2
Stories
2
Floor Plan

Plan 9833SW

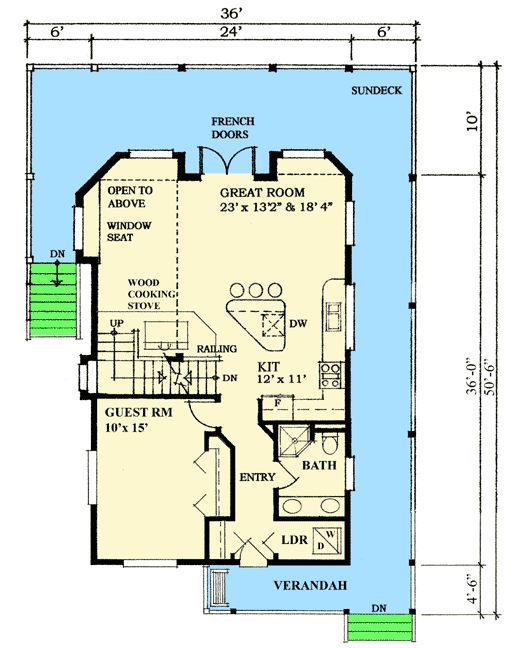

Main Level
slide image 0

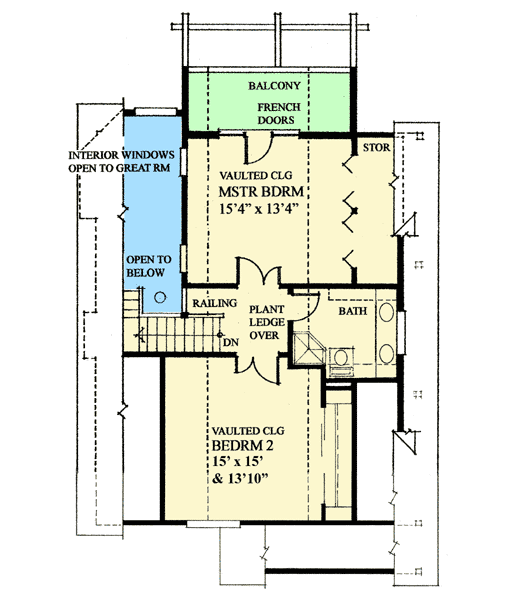

2nd Floor
slide image 1

Plan 9833SW

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

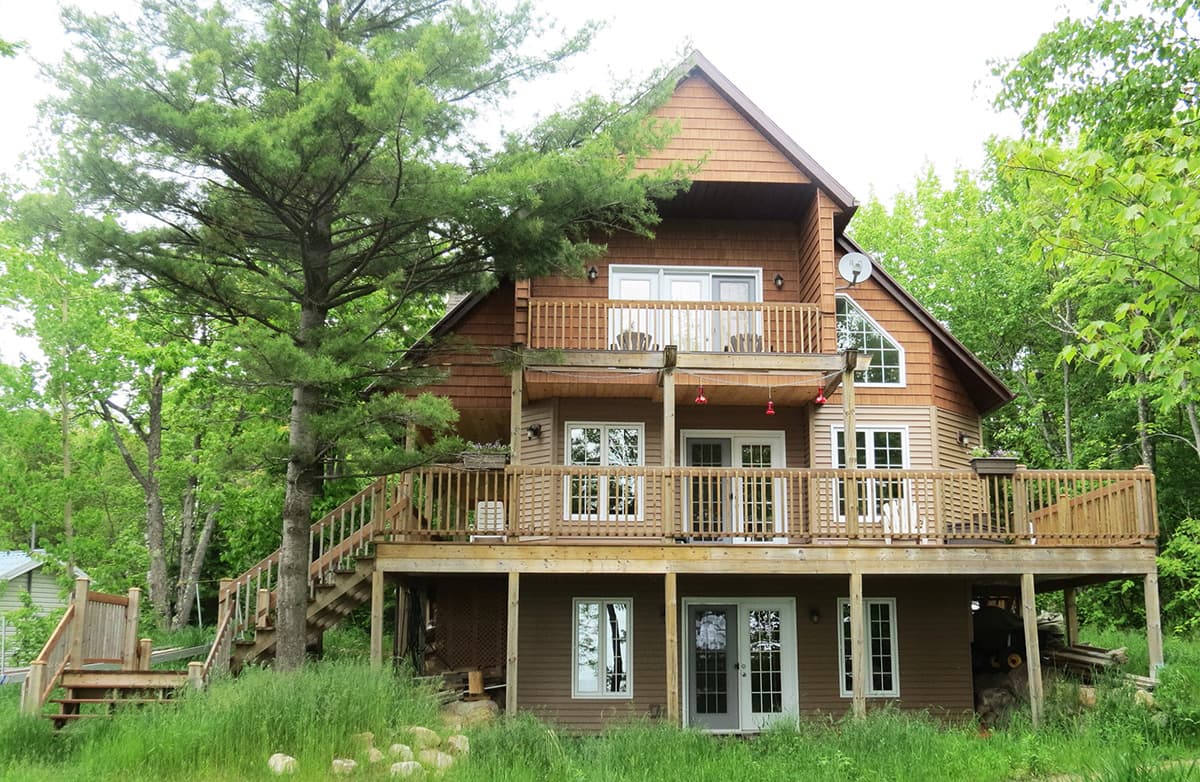

  • This 3 bedroom vacation retreat boasts a free-standing wood cooking stove in the great room that opens up to an inviting wrap around multi-purpose deck through double French Doors.
  • The large main floor guest bedroom is naturally lit with two large windows and has ample closet space.
  • The upstairs master bedroom has two interior functionally opening windows that overlook the great room below creating a unique look and feel to this suite. A rear-facing private balcony is accessed via triple French doors.
  • The plans are designed with a walkout basement foundation plan. The walk-out is located under the rear facing sundeck.
  • The roof has a 12:12 pitch.
  • Related Plans: Downsize with house plans 9812SW (1,370 sq. ft.) and 9801SW (1,154 sq. ft.).
What's Included
  • Cover sheet with rendering
  • General notes and specifications
  • Foundation plan
  • Fully dimensioned floor plan - windows are called out as generic sizes
  • Structural floor/roof information either on the floor plans or separate framing plans for more complex designs
  • Electrical
  • Cross sections
  • Details as required
  • Elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
  • Interior Cabinet Elevations or Window Schedules
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,538 sq. ft.

1st Floor

902 sq. ft.

2nd Floor

636 sq. ft.

Deck

586 sq. ft.

Entry

88 sq. ft.

Balcony / Veranda

96 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

50' 6"

Max Ridge Height

31' 0"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cottage

Mountain

Special Features

Laundry - Main Level

Master Suite - 2nd Floor

Master Suite - Sitting Area

Two Story Great Room

Wrap Around Porch
