3 Beds and a Plus-Sized Bonus Room
Heated S.F.
2,151
Beds
3
Baths
2
Stories
1-2
Cars
2
Floor Plan

Plan 72842DA

Main Level
slide image 0
Bonus
slide image 1

Plan 72842DA

1-800-854-7852

1-262-521-4596

Main Level

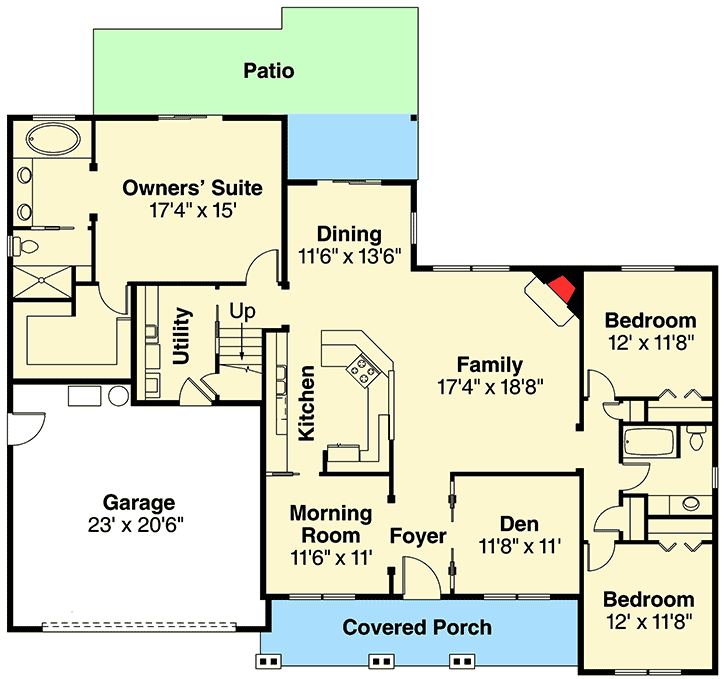

floor plan image Main Level
Bonus
floor plan image Bonus
Plan Details
  • Craftsman windows, gables and posts give the ranch-style house plan an inviting look. Shingled gable fronts and stone veneer add to the curb appeal.
  • Family living spaces fill the heart of the home. A den is to the right of the foyer, and a breakfast nook is to the left. The nook links with the kitchen through a sliding door. The foyer flows into a large family room with a mess-free gas fireplace tucked into the back corner.
  • Standing at the kitchen’s cooktop, you can face out into the family room and serve up snacks or informal meals on the angled eating bar.
  • The owners’ suite is well isolated from the secondary bedrooms as well as from noisy activities in the family room. Notable features include a spa tub, roomy walk-in closet, two-section bathroom and direct patio access.
  • Stairs leading up to the bonus room are next to a large utility room that links with the garage.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,151 sq. ft.

1st Floor

2,151 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

66' 0"

Depth

48' 0"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

520 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Split

Bonus Room

Breakfast Nook

Den

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,151 sq. ft.

1st Floor

2,151 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

66' 0"

Depth

48' 0"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

520 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Split

Bonus Room

Breakfast Nook

Den

Master Suite - 1st Floor
