Plan 20042GA
3-Car Carriage House Plan
Heated S.F.
838
Beds
1
Baths
1
Stories
2
Cars
3
Floor Plan

Plan 20042GA

Main Level
slide image 0
2nd Floor
slide image 1

Plan 20042GA

1-800-854-7852

1-262-521-4596

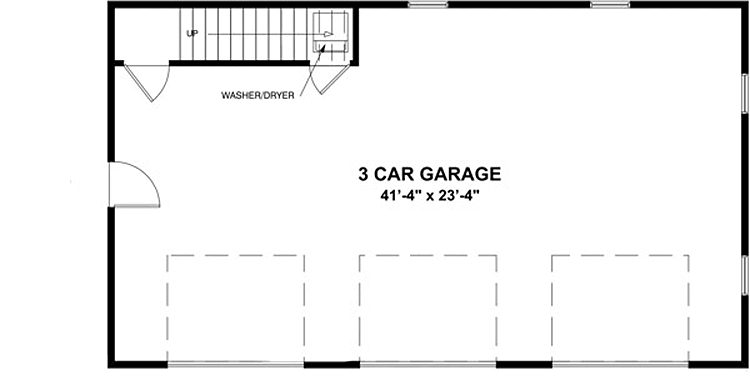

Main Level
floor plan image Main Level

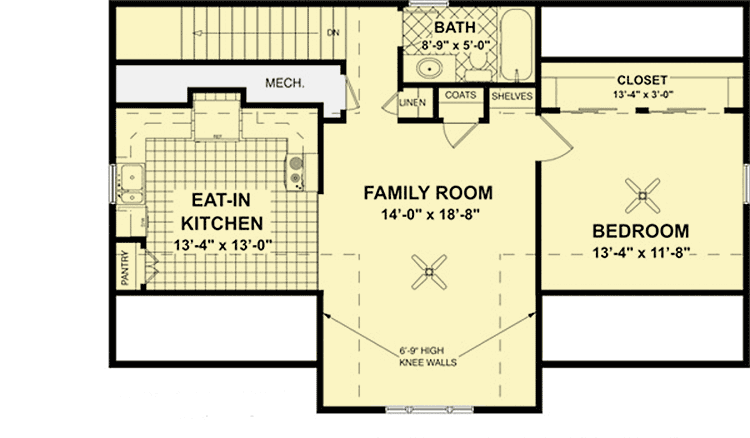

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This carriage house plan is a 3-car garage design featuring 838 square feet of living space above. The attractive styling is highlighted by stacked stone accents.
  • In the efficient living quarters are a spacious family room, an eat-in kitchen, a bedroom with a wide closet and a bathroom. Extra storage is found in a coat closet, linen closet and kitchen pantry.
  • Laundry appliances are located beneath the stairs on the garage level.
  • This carriage house plan would be an ideal temporary residence during construction of your primary home. Or, use it as an apartment for in-laws, a nanny, college students, etc.
  • The garage doors are 7' high and the garage ceiling is 8' high. The garage window on the right is 2'8"x5'2".
  • Related Plan: Get a narrower 38'-wide version with carriage house plan 20041GA.
What's Included
  • Digital exterior rendering cover page

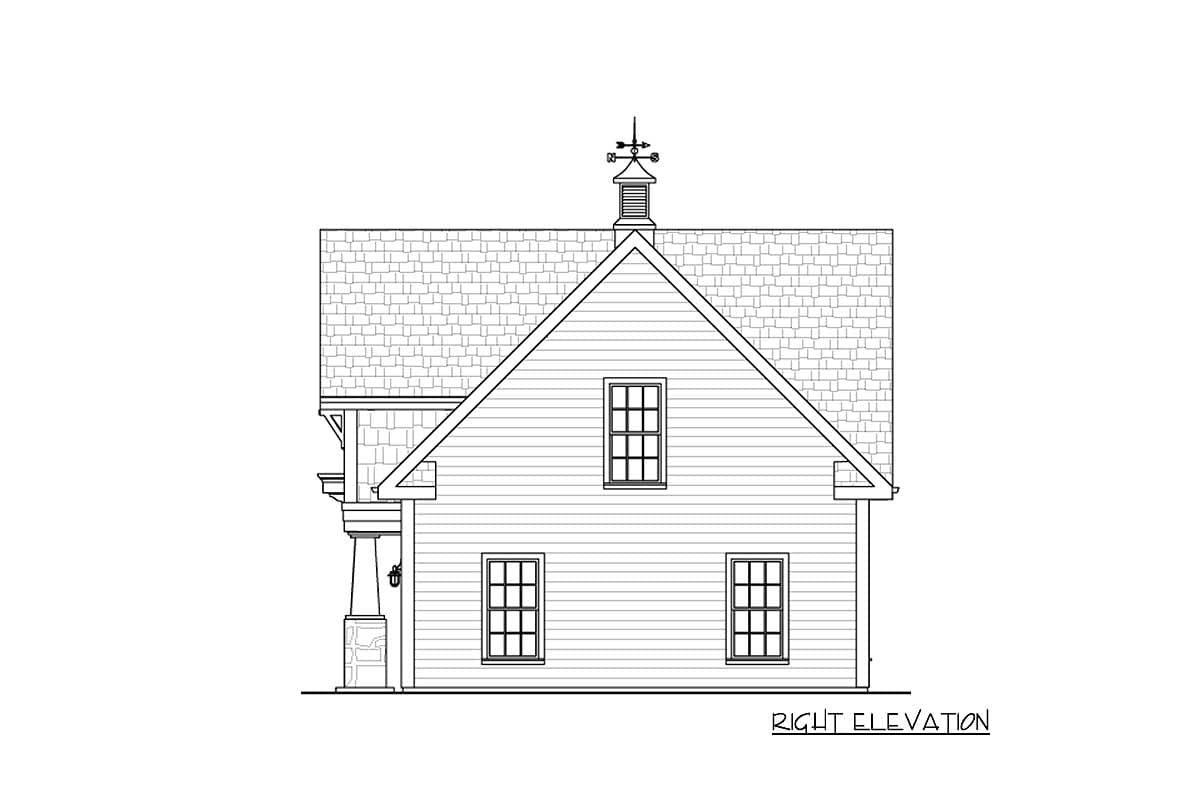

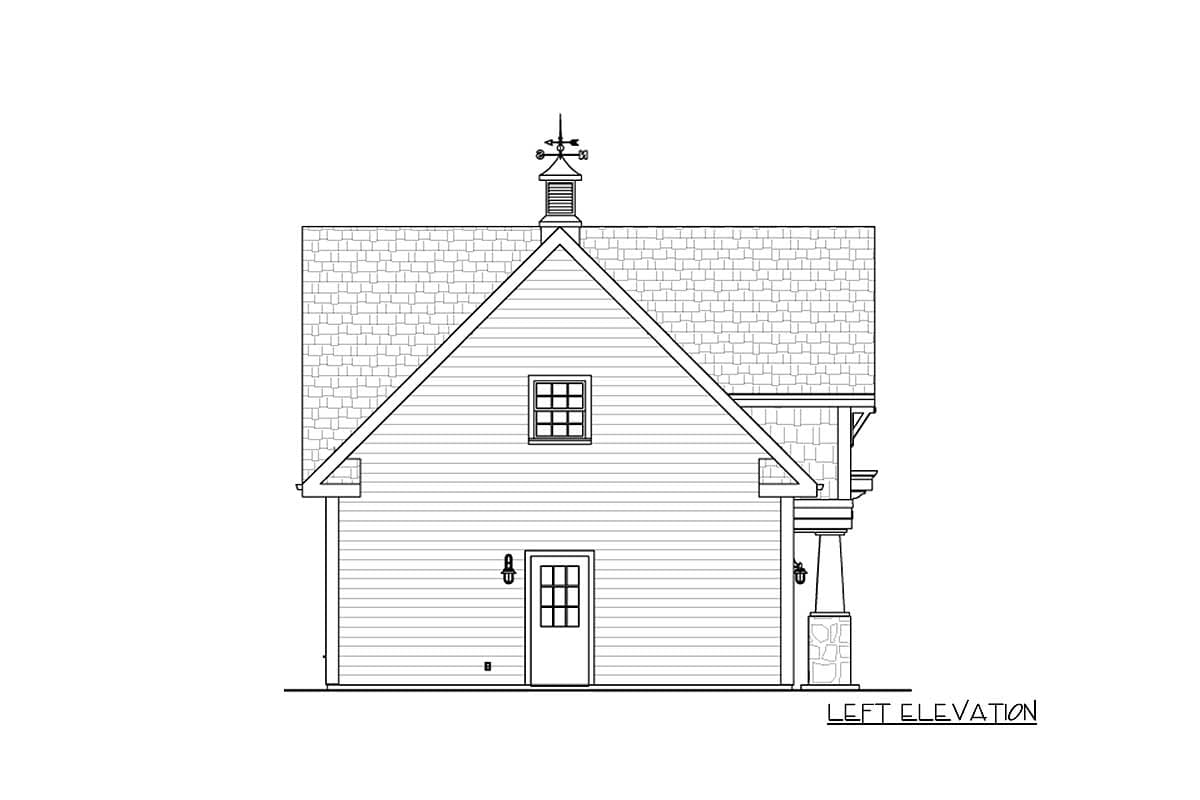

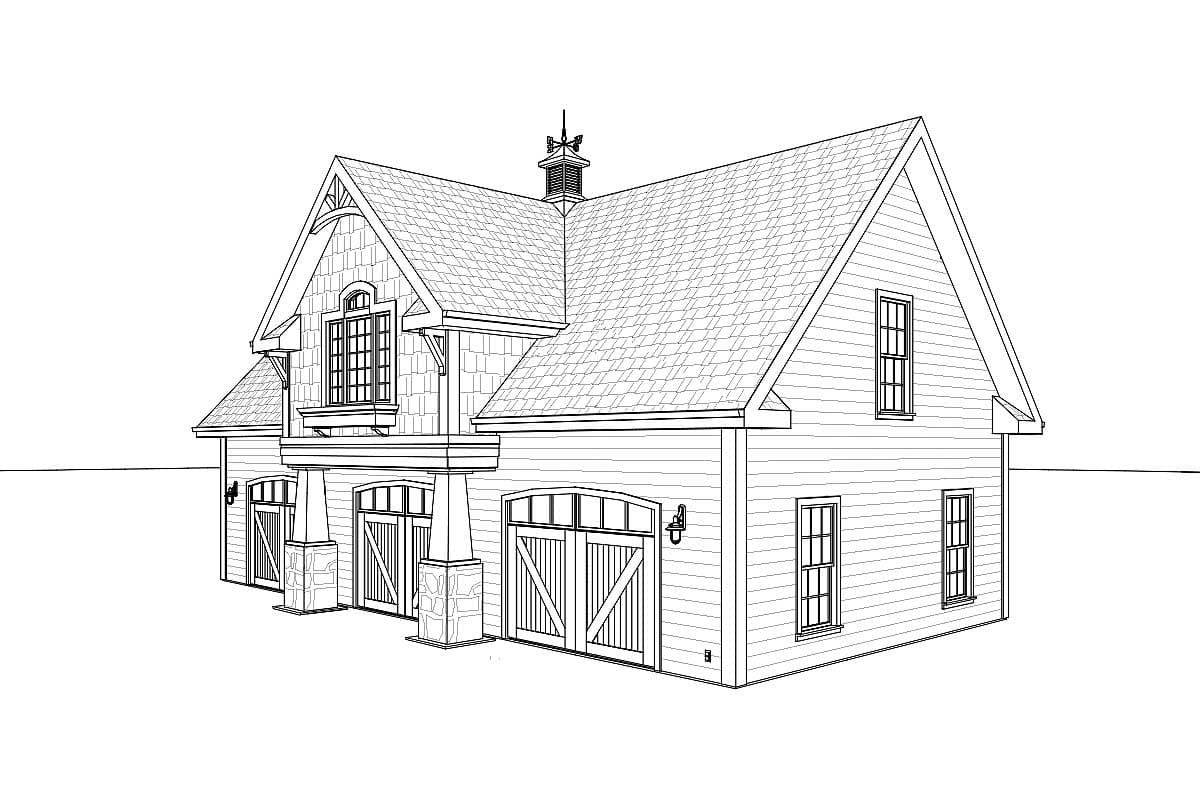

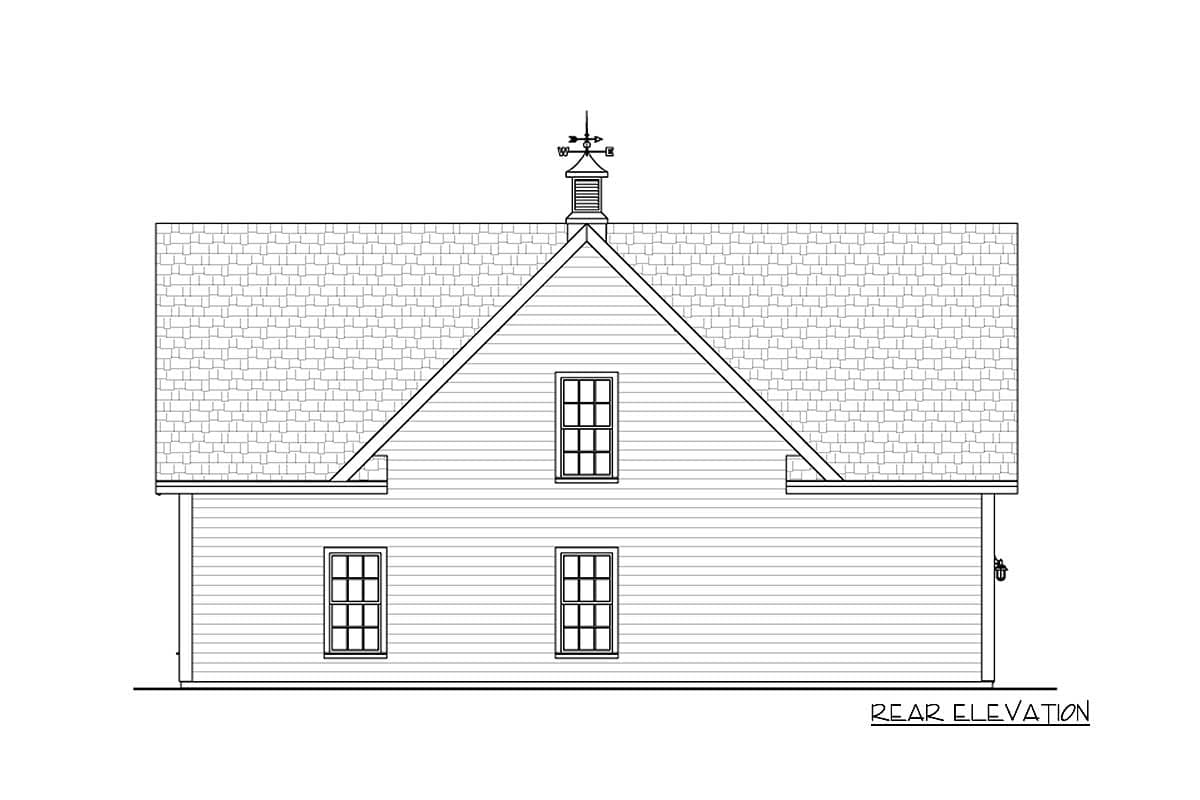

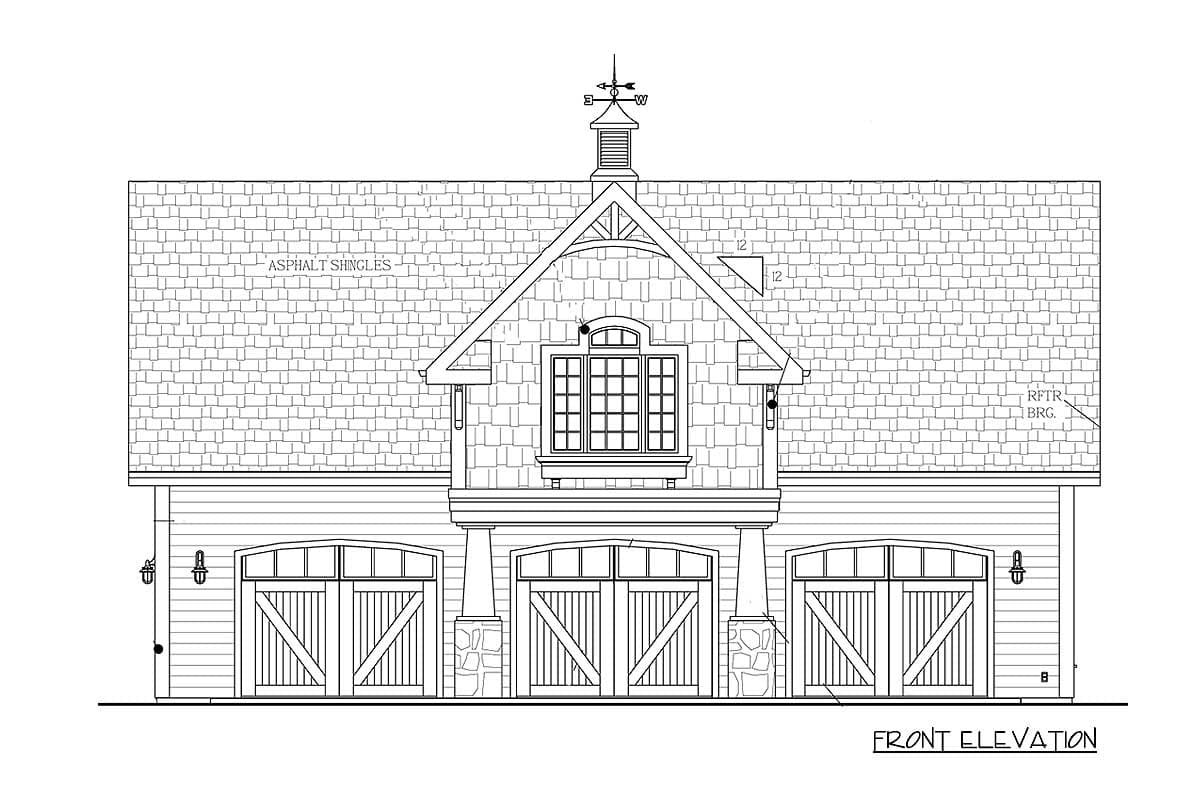

  • Exterior elevation page
  • Main floor plan page with electrical, 3-D floor plan, and window and door schedule
  • Upper level floor plan page with upper floor framing schematic, and 3-D floor plan
  • Cross sections and interior elevation page
  • Roof framing plan with 3-D roof framing schematic
  • IRC code specifications and methodologies
  • General construction details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

838 sq. ft.

2nd Floor

838 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

42' 0"

Depth

24' 0"

Max Ridge Height

23' 9"

Garage

Type

Detached

Area

954 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Carriage

Special Features

Master Suite - 2nd Floor

Square Footage Breakdown

Total Heated Area

838 sq. ft.

2nd Floor

838 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

42' 0"

Depth

24' 0"

Max Ridge Height

23' 9"

Garage

Type

Detached

Area

954 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Carriage

Special Features

Master Suite - 2nd Floor
