Plan 62911DJ
3-Car Carriage House Plan with 2-Bedroom Upstairs Apartment
Heated S.F.
2,176
Beds
2 - 3
Baths
2
Stories
2
Cars
3
Floor Plan

Plan 62911DJ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 62911DJ

1-800-854-7852

1-262-521-4596

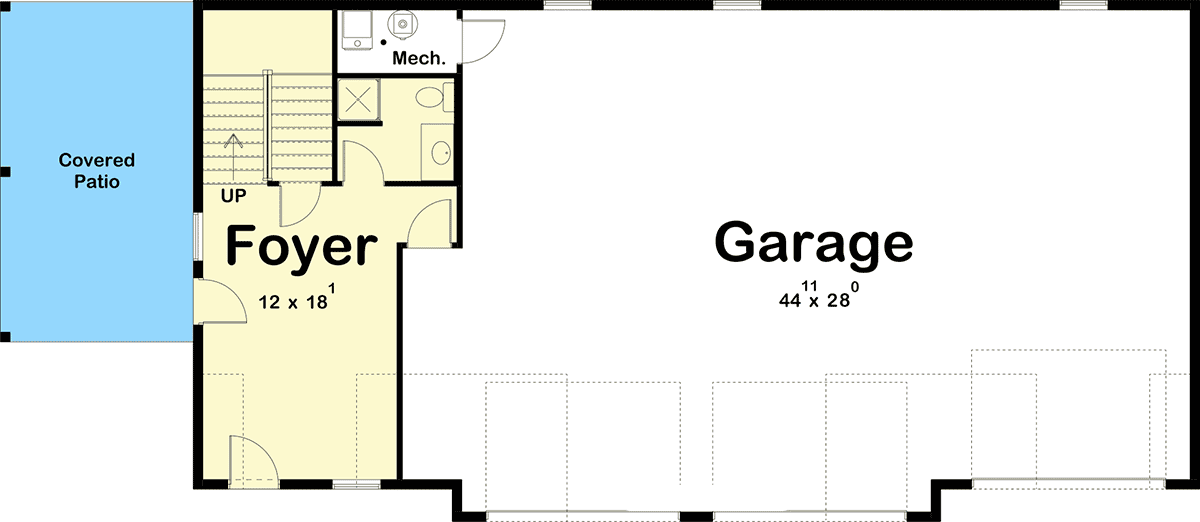

Main Level
floor plan image Main Level

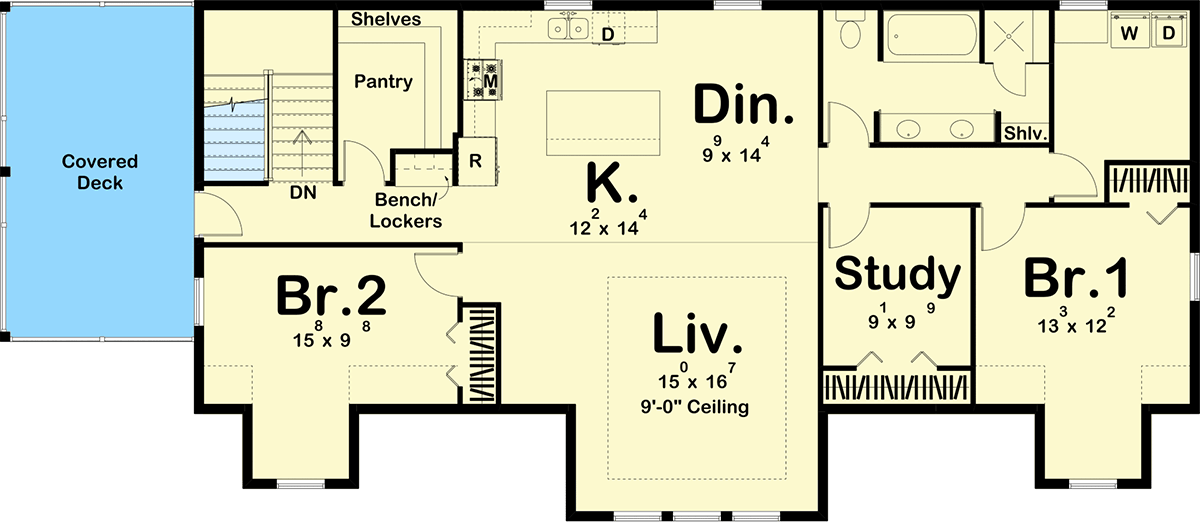

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This traditional-style carriage house plan features a large 2-bedroom apartment above a 3-car garage.
  • The ground level includes 3 single car bays and a large foyer with a bathroom.
  • Upstairs, you'll find a 2 bedroom apartment. The full kitchen includes a large kitchen island and a massive walk-in pantry. The kitchen, dining room, and living room flow seamlessly together in an open layout.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,176 sq. ft.

1st Floor

398 sq. ft.

2nd Floor

1,778 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

74' 0"

Depth

34' 0"

Garage

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

6 on 12

Architectural Style

Carriage

Country

Craftsman

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,176 sq. ft.

1st Floor

398 sq. ft.

2nd Floor

1,778 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

74' 0"

Depth

34' 0"

Garage

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

6 on 12

Architectural Style

Carriage

Country

Craftsman

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom
