Plan 25824GE
3-Car Craftsman Garage Plan with Apartment Above - 1544 Sq Ft
Heated S.F.
1,544
Beds
1
Baths
1
Stories
2
Cars
3
Floor Plan

Plan 25824GE

Main Level
slide image 0
2nd Floor
slide image 1

Plan 25824GE

1-800-854-7852

1-262-521-4596

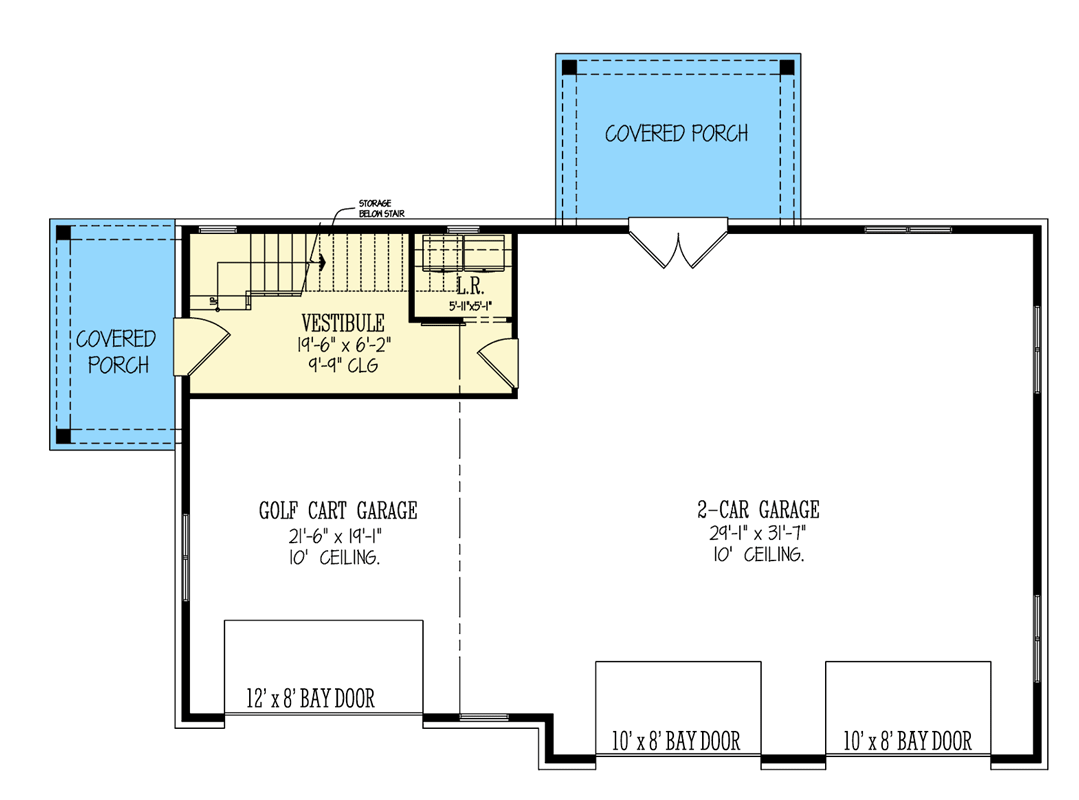

Main Level
floor plan image Main Level

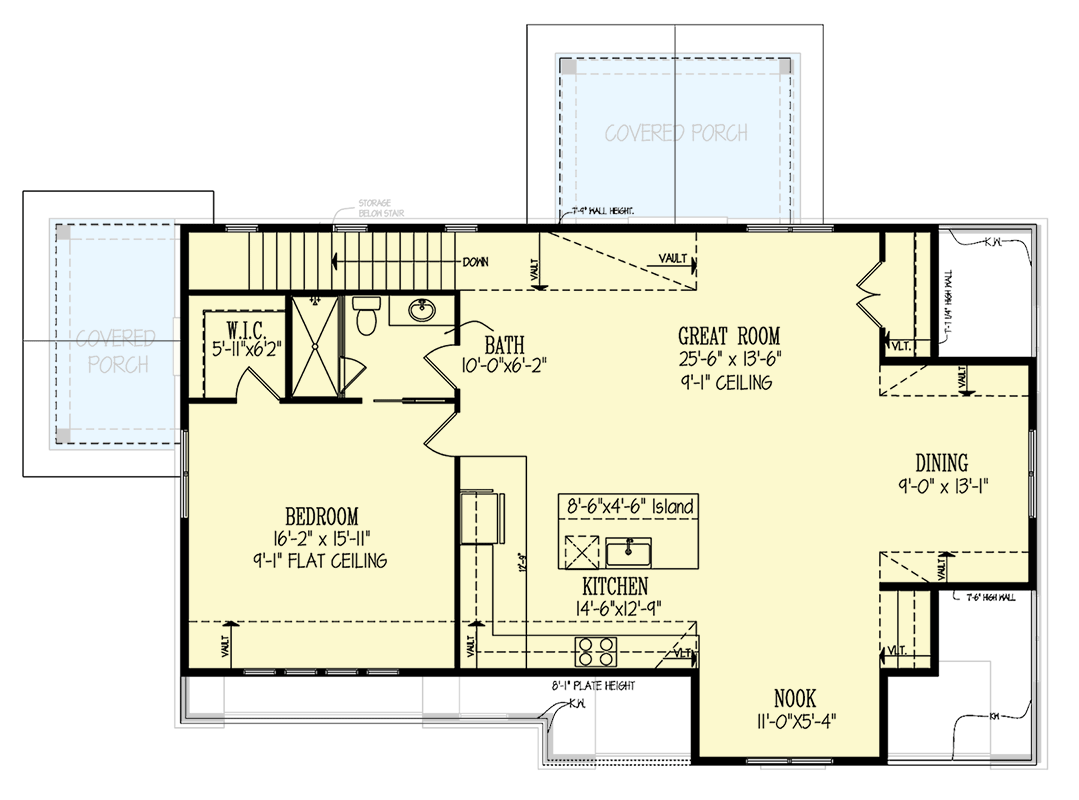

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This craftsman garage plan with 1,544 sq. ft. of heated living featuring 1 bedroom, 1 bathroom, and a 3-car garage (1,423 sq ft.) below it.
  • The open floor plan connects the kitchen, dining, and living areas for a seamless flow.
  • The master suite offers a luxurious ensuite bathroom and a walk-in closet for privacy and comfort.
  • Enjoy the outdoor living spaces with a charming covered porch, ideal for entertaining or soaking in the natural surroundings.
  • Related Plan: Get a version with the upstairs unfinished with garage plan 25691GE.
What's Included
  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,544 sq. ft.

1st Floor

212 sq. ft.

2nd Floor

1,332 sq. ft.

Porch, Rear

155 sq. ft.

Side Porch

112 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

42' 11"

Max Ridge Height

28' 3"

Garage

Type

Detached

Area

1423 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Craftsman

Modern Farmhouse

Traditional

Special Features

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 2nd Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,544 sq. ft.

1st Floor

212 sq. ft.

2nd Floor

1,332 sq. ft.

Porch, Rear

155 sq. ft.

Side Porch

112 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

42' 11"

Max Ridge Height

28' 3"

Garage

Type

Detached

Area

1423 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Craftsman

Modern Farmhouse

Traditional

Special Features

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 2nd Floor

Mudroom
