Plan 68843VR
3-Car Detached Garage Plan with Upstairs Open-Air Balcony
Heated S.F.
0
Beds
Baths
0.5
Stories
2
Cars
3
Floor Plan

Plan 68843VR

Main Level
slide image 0
Upper Level
slide image 1

Plan 68843VR

1-800-854-7852

1-262-521-4596

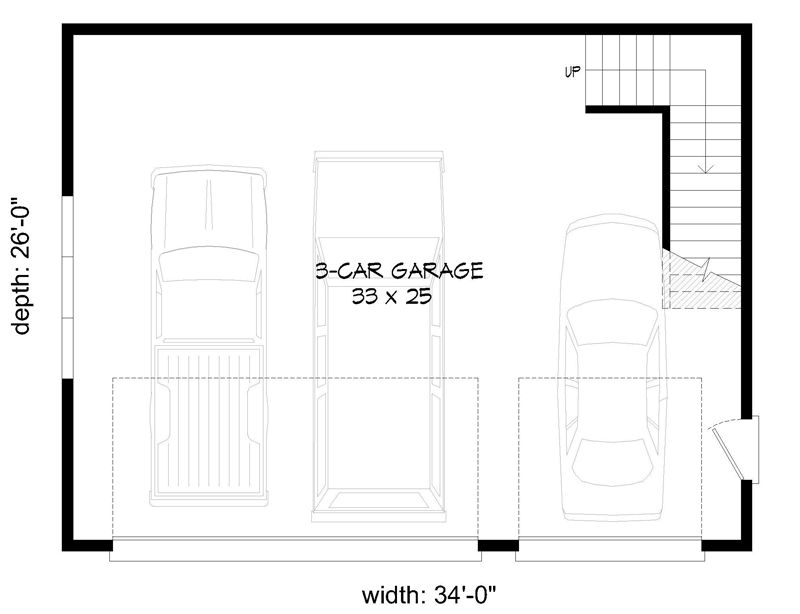

Main Level
floor plan image Main Level

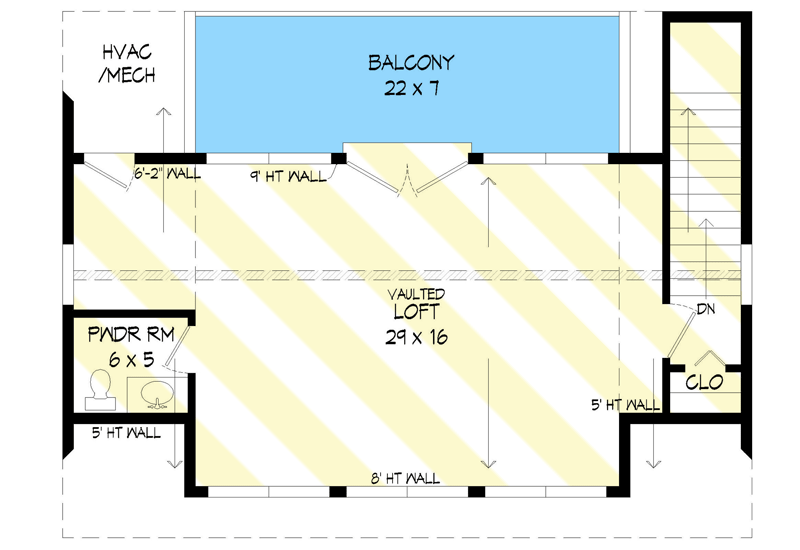

Upper Level
floor plan image Upper Level
Plan Details
  • This detached garage plan has two garage doors - one 16'-wide, the other 8'-wide - giving you room to park three cars. In back, a single door gives you the ability to drive through the garage.
  • Stairs inside go to a large, open loft with a powder room tucked into an eave.
  • French doors open to a balcony open to the sky.
  • Related Plans: Get a non-drive-through version with plan 68619VR. Get a 4-car version (40'-wide) and eliminate the balcony with plan 68620VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Bonus

482 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

26' 0"

Max Ridge Height

23' 8"

Garage

Type

Detached

Area

952 sq. ft.

Count

3 Cars

Entry Location

Front, Side, Rear

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Bonus

482 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

26' 0"

Max Ridge Height

23' 8"

Garage

Type

Detached

Area

952 sq. ft.

Count

3 Cars

Entry Location

Front, Side, Rear
