Plan 680369VR
3-Car Detached Garage with RV Bay - 1062 Sq Ft
Heated S.F.
0
Beds
Baths
0
Stories
1
Cars
3
Floor Plan

Plan 680369VR

Main Level
slide image 0

Plan 680369VR

1-800-854-7852

1-262-521-4596

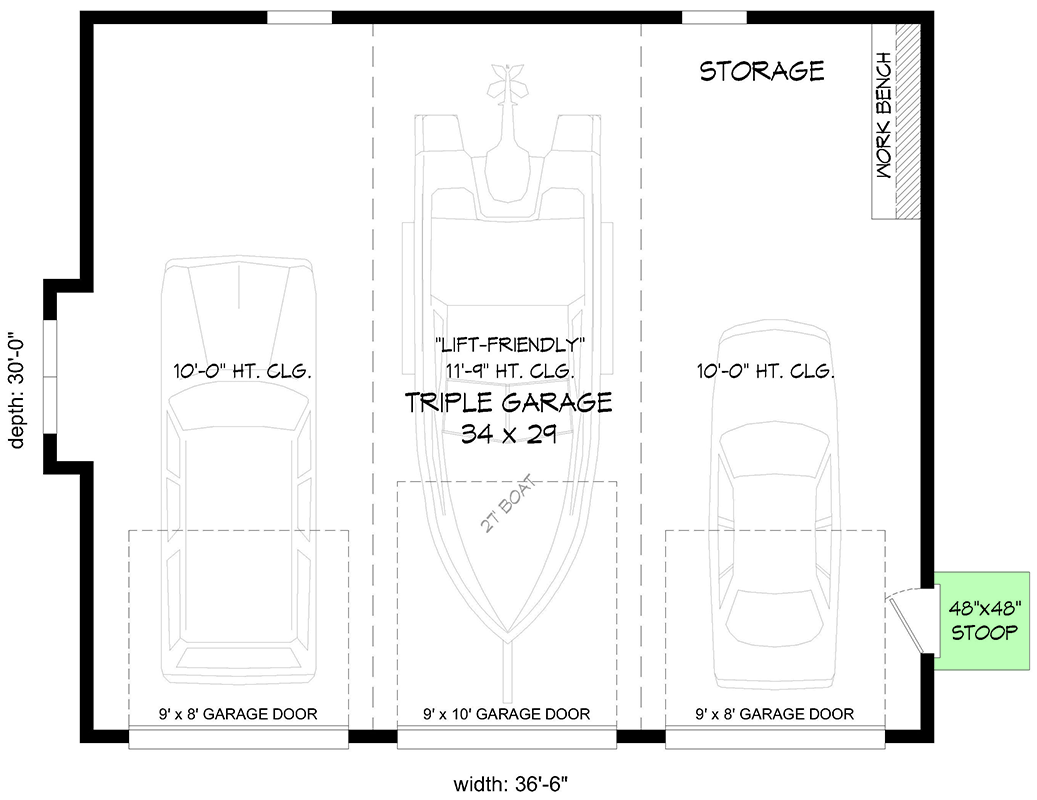

Main Level
floor plan image Main Level
Plan Details
  • This detached garage gives you 1062 square feet secured behind a two 9' wide by 8' garage doors and a lift friendly RV Bay with 9' wide by 10' garage door in the middle.
  • Architectural Designs' primary focus is to make the process of finding and buying plans more convenient for those interested in new constructing.
  • Our website offers a vast collection of garage plans, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best garage plans available.
  • We can modify any garage plan you see on our site. Learn more about modifications.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 6"

Depth

30' 0"

Max Ridge Height

22' 4"

Garage

Type

Detached, RV Garage

Area

1062 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Architectural Style

Traditional

Special Features

Workshop

Square Footage Breakdown

Total Heated Area

0 sq. ft.
