Plan 25691GE
3-Car Garage with Vestibule with Half Bath and Storage Above - 1033 Sq Ft
Heated S.F.
167
Beds
Baths
0
Stories
2
Cars
3
Floor Plan

Plan 25691GE

Garage Level
slide image 0
Bonus Above
slide image 1

Plan 25691GE

1-800-854-7852

1-262-521-4596

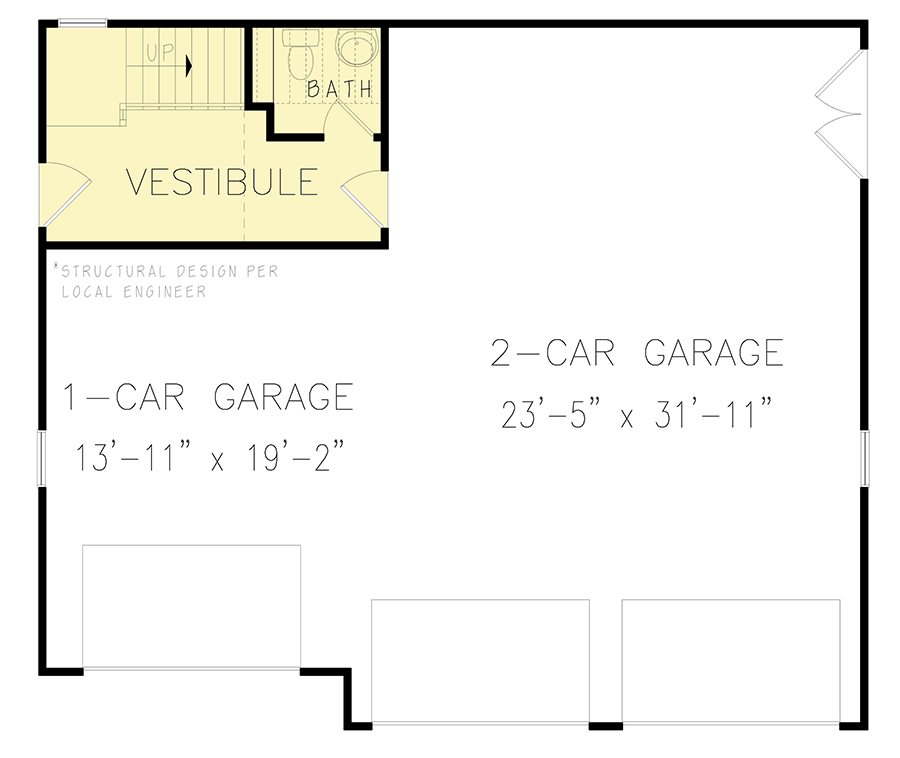

Garage Level
floor plan image Garage Level

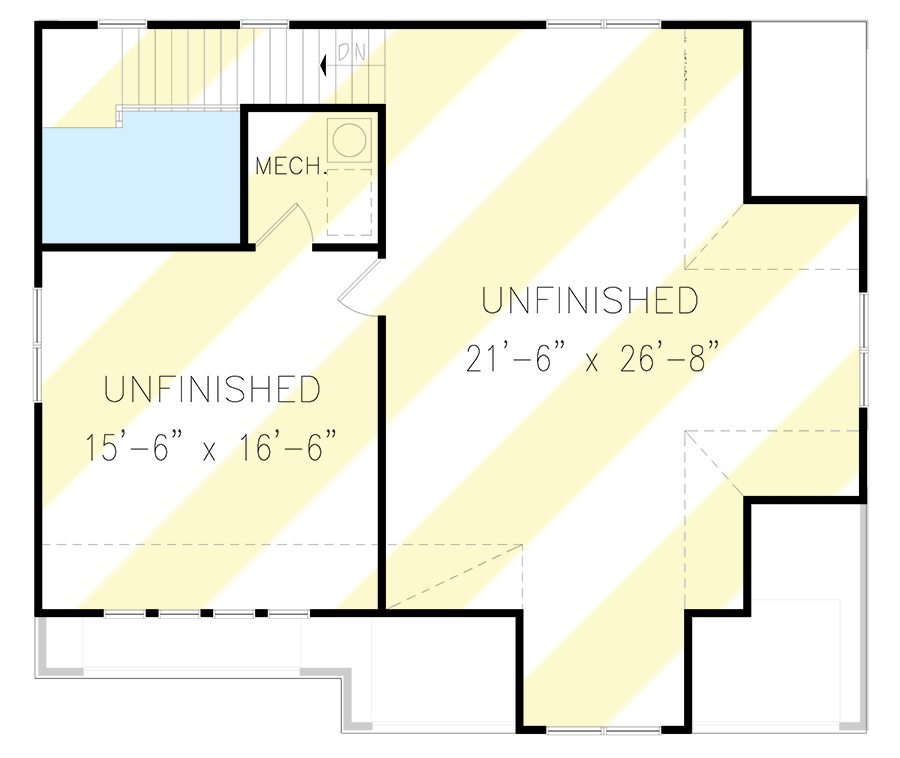

Bonus Above
floor plan image Bonus Above
Plan Details
  • This 3-car garage plan presents an abundance of character with arched, garage doors, shake siding, and decorated gables.
  • The depth of the garage provides enough space for additional storage, or a hobby shop.
  • The vestibule leads to the second level, and includes a half bath.
  • Upstairs, discover two, spacious rooms, along with the mechanical room.
  • Related Plans: Get a 2-car version with plan 15606GE. Get a finished apartment upstairs with garage apartment plan 25824GE.
What's Included

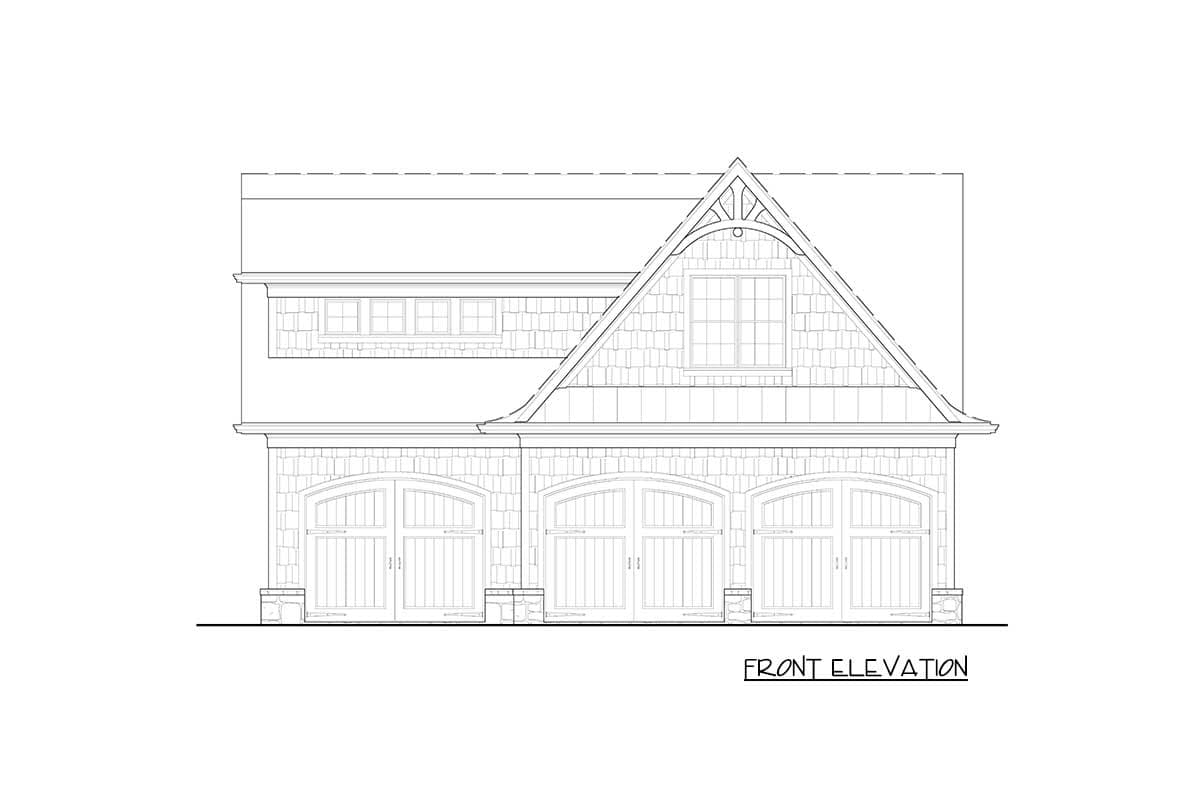

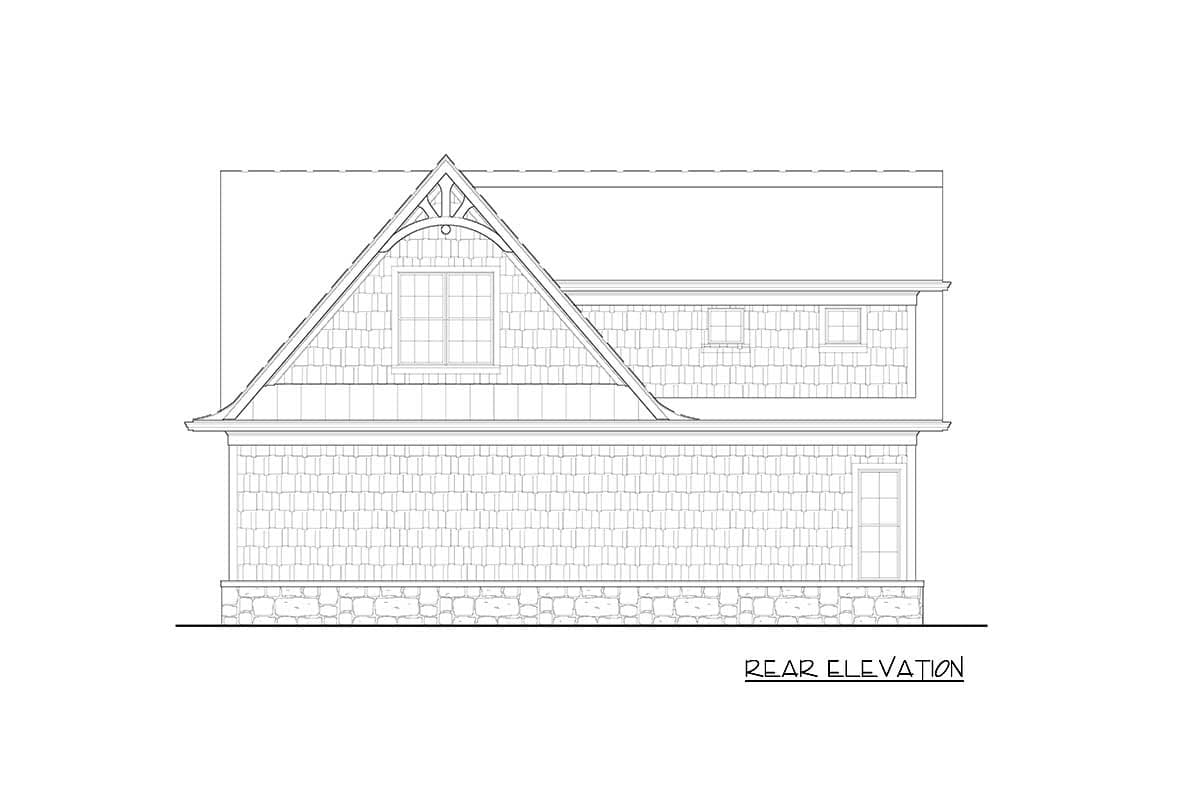

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

167 sq. ft.

1st Floor

167 sq. ft.

Bonus

845 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

38' 0"

Depth

32' 6"

Max Ridge Height

26' 10"

Garage

Type

Detached

Area

1033 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Architectural Style

Craftsman

Square Footage Breakdown

Total Heated Area

167 sq. ft.

1st Floor

167 sq. ft.

Bonus

845 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

38' 0"

Depth

32' 6"

Max Ridge Height

26' 10"

Garage

Type

Detached

Area

1033 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Architectural Style

Craftsman
