Plan 80590PM
3 Family House Plan with 3-Level Units - 2111 Sq Ft - 2 with 5 Beds and 1 with 4 Beds
Heated S.F.
6,333
Units
3
Width
Depth
Floor Plan

Plan 80590PM

Basement
slide image 0
Main Level
slide image 1
2nd Floor
slide image 2

Plan 80590PM

1-800-854-7852

1-262-521-4596

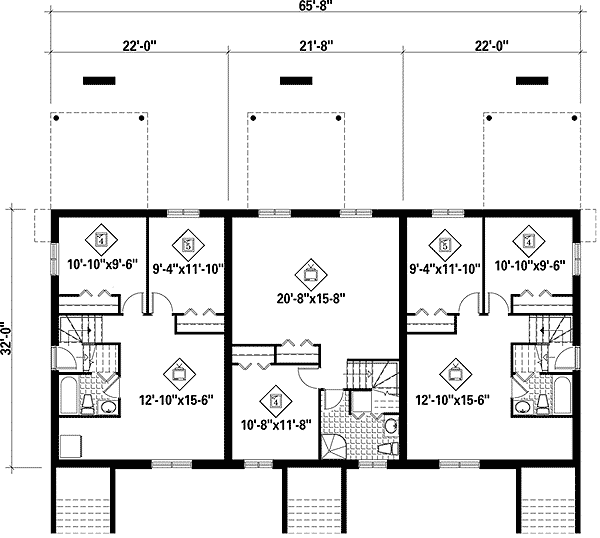

Basement
floor plan image Basement

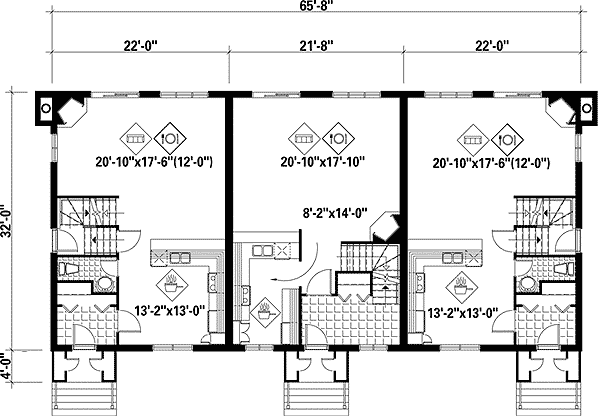

Main Level
floor plan image Main Level

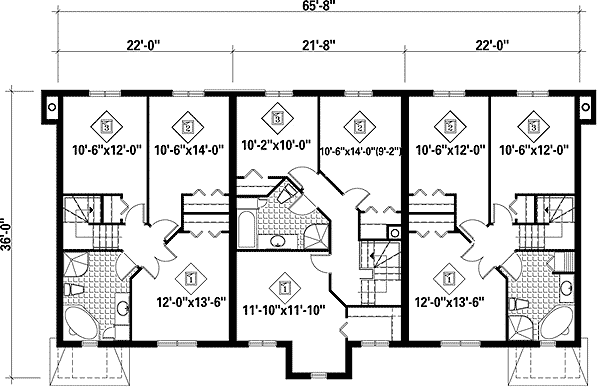

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 3 family house plan gives you 2,111 square foot 3-level units. The ones on the ends have 5 beds and 2.5 baths while the one in the middle has 4 beds and 2 baths.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
2,111Sq. Ft.
700 Sq. Ft.
Lower Level
700 Sq. Ft.
1st Floor
711 Sq. Ft.
2nd Floor
5Beds
2Full Baths
1Half Bath
22'width
36'depth
32'height
Unit B
2,111Sq. Ft.
700 Sq. Ft.
Lower Level
700 Sq. Ft.
1st Floor
711 Sq. Ft.
2nd Floor
4Beds
2Full Baths
21' 8"width
36'depth
32'height
Unit C
2,111Sq. Ft.
700 Sq. Ft.
Lower Level
700 Sq. Ft.
1st Floor
711 Sq. Ft.
2nd Floor
5Beds
2Full Baths
1Half Bath
22'width
36'depth
32'height
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

6,333 sq. ft.

Lower Level

2,100 sq. ft.

1st Floor

2,100 sq. ft.

2nd Floor

2,133 sq. ft.

Beds/Baths

Bedrooms

10

Full bathrooms

6

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

65' 0"

Depth

32' 0"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Traditional

Special Features

Game/Rec Room

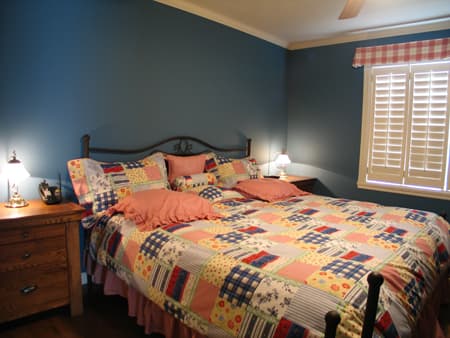

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Metric

Photo Gallery

Square Footage Breakdown

Total Heated Area

6,333 sq. ft.

Lower Level

2,100 sq. ft.

1st Floor

2,100 sq. ft.

2nd Floor

2,133 sq. ft.

Beds/Baths

Bedrooms

10

Full bathrooms

6

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

65' 0"

Depth

32' 0"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Traditional

Special Features

Game/Rec Room

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Metric

Photo Gallery
