Plan 72829DA
3 Gabled Country Craftsman House Plan
Heated S.F.
1,801
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 72829DA

Main Level
slide image 0

Plan 72829DA

1-800-854-7852

1-262-521-4596

Main Level

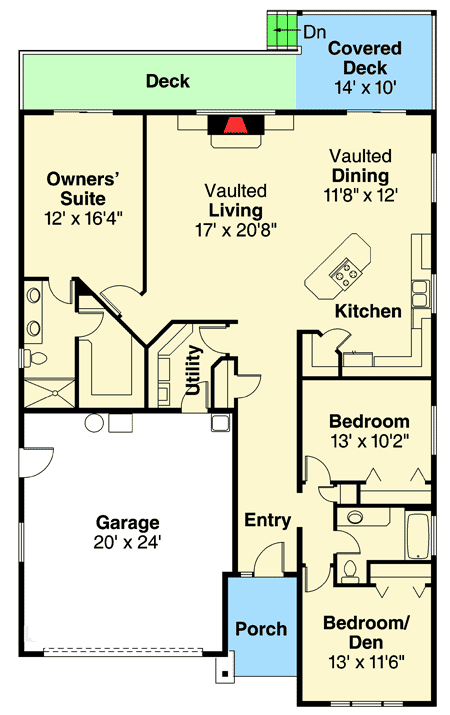

floor plan image Main Level
Plan Details
  • Decorative supports accent the shingle-front gables that adorn this compact country-Craftsman home.
  • Inside, light washes into the vaulted entry through a sidelight and transom. Secondary bedrooms and a bathroom are to the right. The front bedroom could be a den or home office.
  • After passing a coat closet and utility room, the entry opens out into a spacious vaulted living room and dining area. The entire area is naturally bright. Light spills in through a window set over the gas fireplace, and through wide sliding glass doors in the dining area that open onto a covered deck.
  • Conveniently, the L-shaped kitchen sits in the corner nearest the dining area. A roomy walk-in pantry fills one corner of the kitchen. Range and oven are built into a work island rimmed on one side with a flush eating bar.
  • Owners' suite amenities include a deep walk-in closet, shower, double vanity and direct access to the deck.
  • The roof has a 7:12 pitch.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,801 sq. ft.

1st Floor

1,801 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

42' 0"

Depth

70' 0"

Max Ridge Height

22' 8"

Garage

Type

Attached

Area

523 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

7 on 12

Architectural Style

Country

Craftsman

Northwest

Special Features

Bedrooms - Split

Den

Home Office

Master Suite - 1st Floor

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

1,801 sq. ft.

1st Floor

1,801 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

42' 0"

Depth

70' 0"

Max Ridge Height

22' 8"

Garage

Type

Attached

Area

523 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

7 on 12

Architectural Style

Country

Craftsman

Northwest

Special Features

Bedrooms - Split

Den

Home Office

Master Suite - 1st Floor

Plan Collections

Home Office
