Plan 92077VS
3-Level Garage Apartment with Ground Level Workshop - 1628 Sq Ft
Heated S.F.
1,628
Beds
1
Baths
1
Stories
2
Cars
3
Floor Plan

Plan 92077VS

Main Level
slide image 0
2nd Floor
slide image 1
3rd Floor
slide image 2

Plan 92077VS

1-800-854-7852

1-262-521-4596

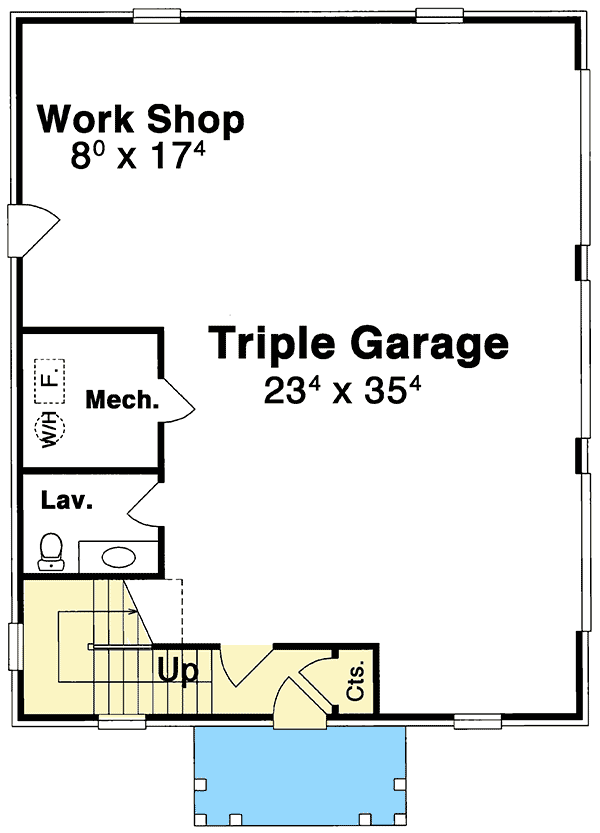

Main Level
floor plan image Main Level

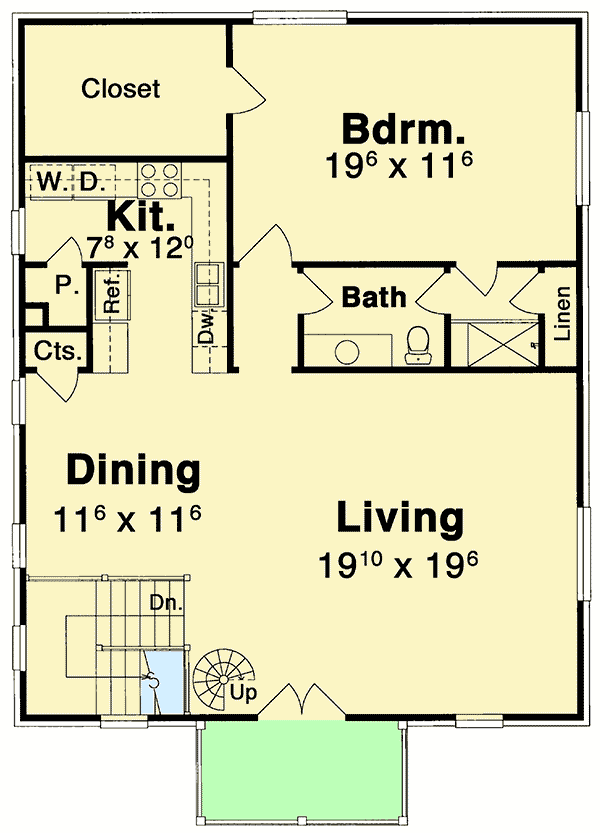

2nd Floor
floor plan image 2nd Floor

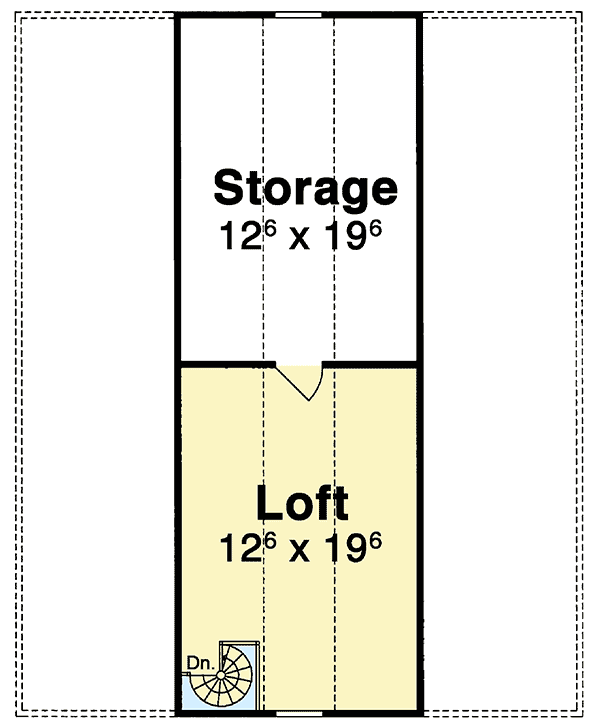

3rd Floor
floor plan image 3rd Floor
Plan Details
  • This 3-level garage apartment gives you parking for 3 cars and a workshop on the ground floor, a 1-bed apartment on the second floor and a loft on the third floor.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included

  • Foundation plan
  • Floor plans with electrical layouts
  • 1/4" Elevations (all sides)
  • Cabinet details and interior elevations (when necessary)
  • Roof Plan
  • Typical Wall Section and two standard detail sheets
  • General Notes Page containing reference to the 2012 IRC building code to supplement plans drawn prior to these changes.
  • Other details shown as required by complexity of plans

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,628 sq. ft.

1st Floor

88 sq. ft.

2nd Floor

1,352 sq. ft.

3rd Floor

260 sq. ft.

Porch, Front

60 sq. ft.

Balcony / Veranda

60 sq. ft.

Storage

260 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

32' 0"

Depth

40' 0"

Max Ridge Height

31' 6"

Garage

Type

Detached

Area

1198 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Carriage

Southern

Traditional

Special Features

Butler Walk-in Pantry

Loft

Master Suite - 2nd Floor

Workshop
