Plan 680396VR
3 or 4 Bed Barndominium House Plan with Wrap Around Porch and Carport - 2393 Sq Ft
Heated S.F.
2,393
Beds
3
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 680396VR

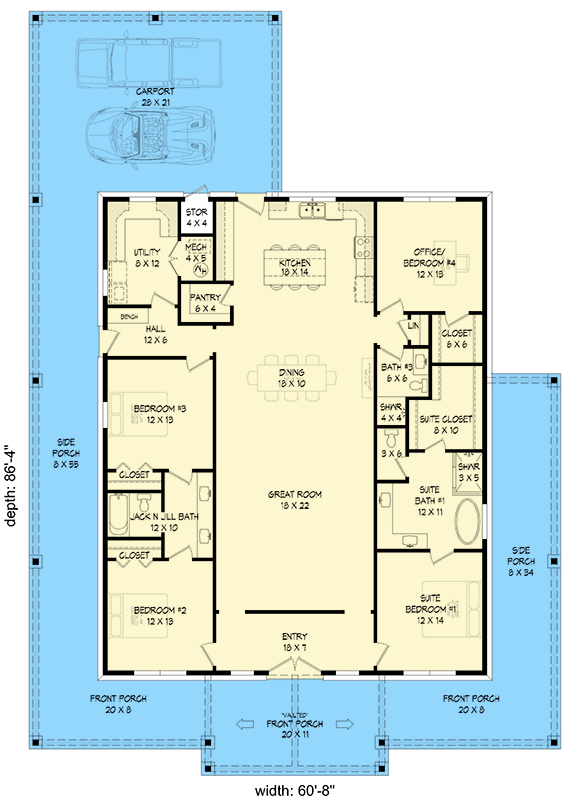

Main Level
slide image 0

Plan 680396VR

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details

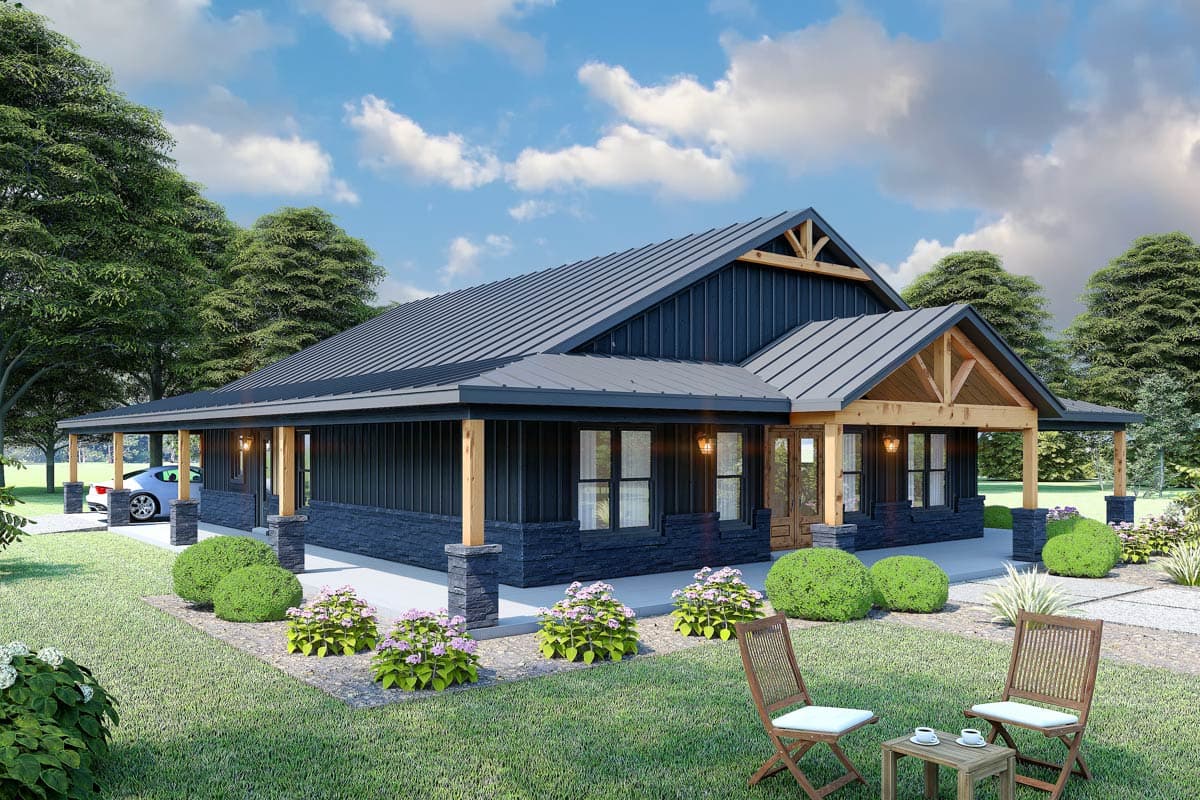

  • This barndominium-like house plan - designed with 2x6 exterior walls - gives you 3 or 4 beds, 3 baths and 2,393 square feet of heated living. An 8'-deep porch wraps around 3 sides of the home and gives you a combined 1,324 square feet of covered fresh air space to enjoy.

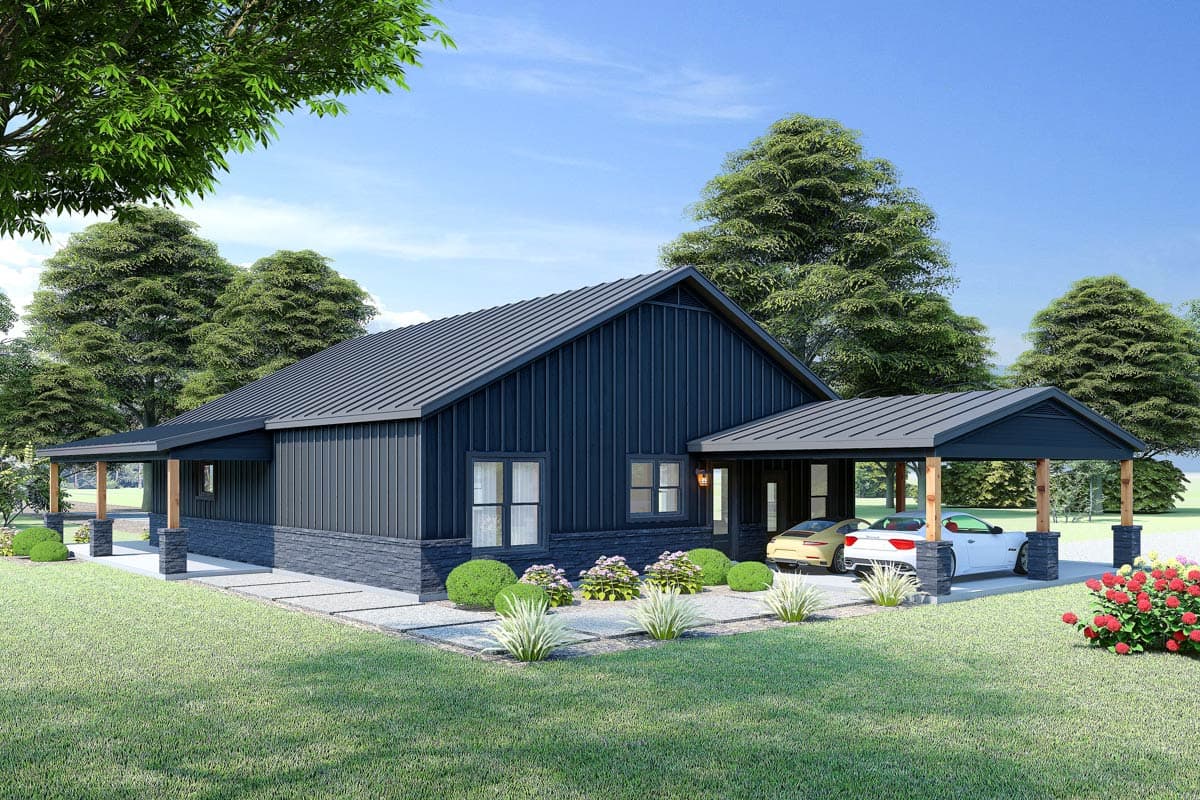

  • In back, a 2-car carport provides 610 square feet of covered space for your vehicles and gear.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get a version with two master suites with house plan 380370VR (2,393 sq. ft.).
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

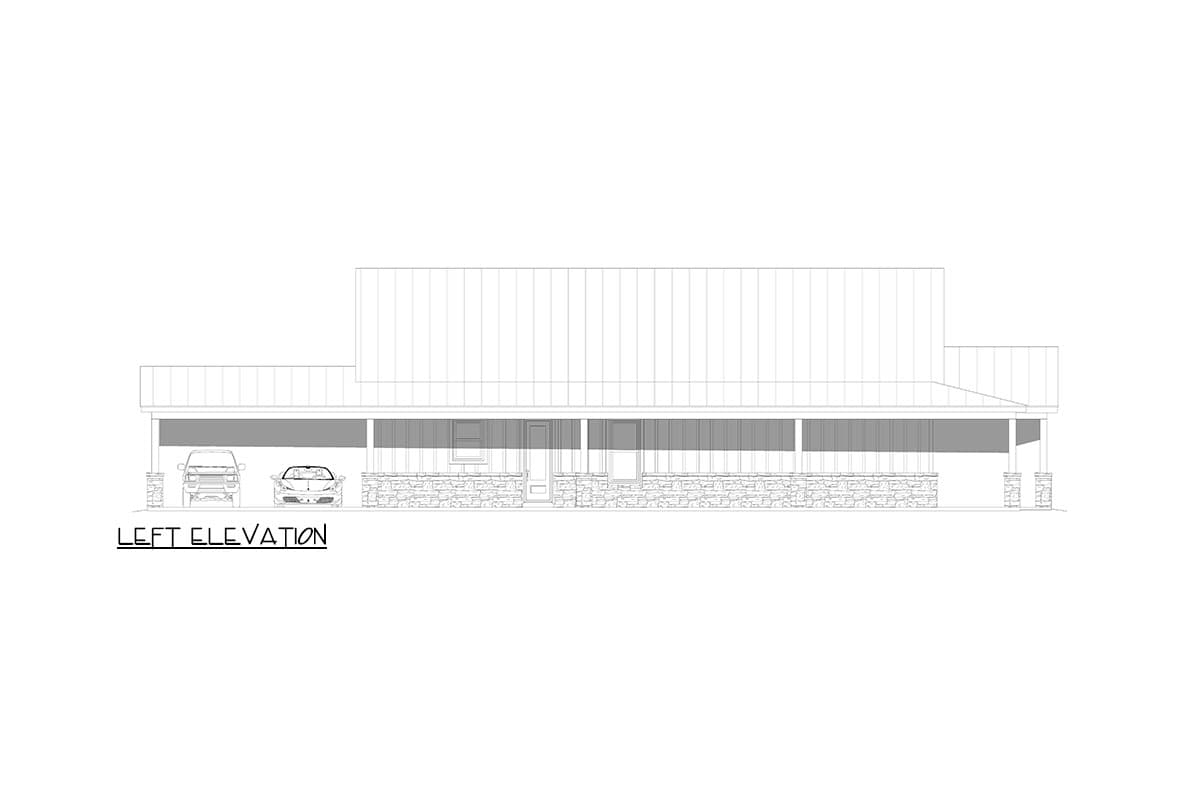

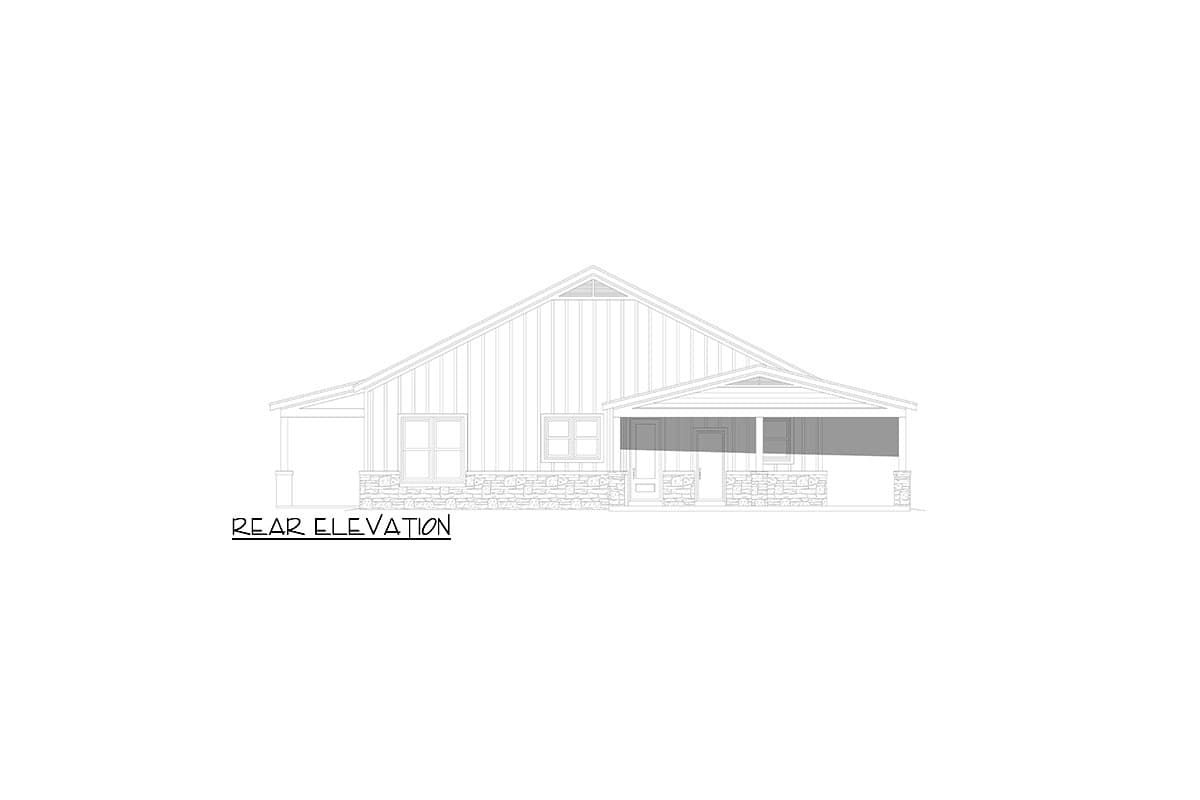

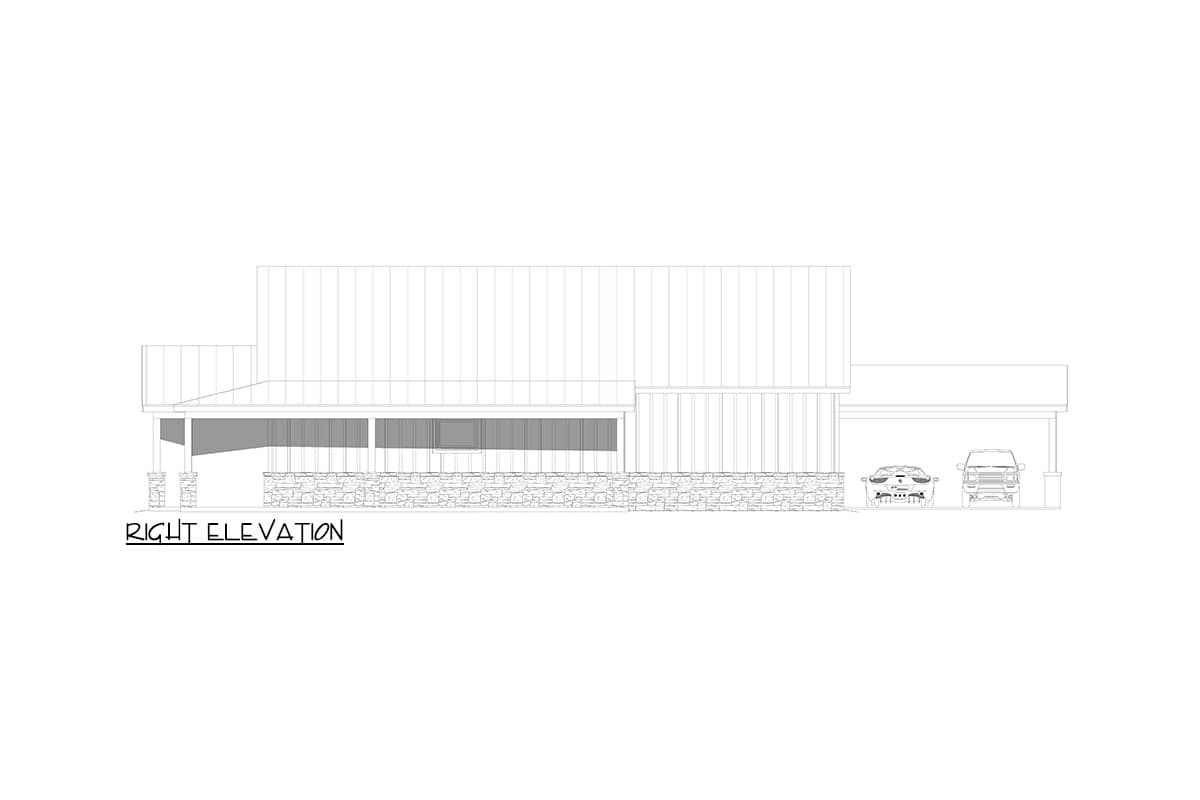

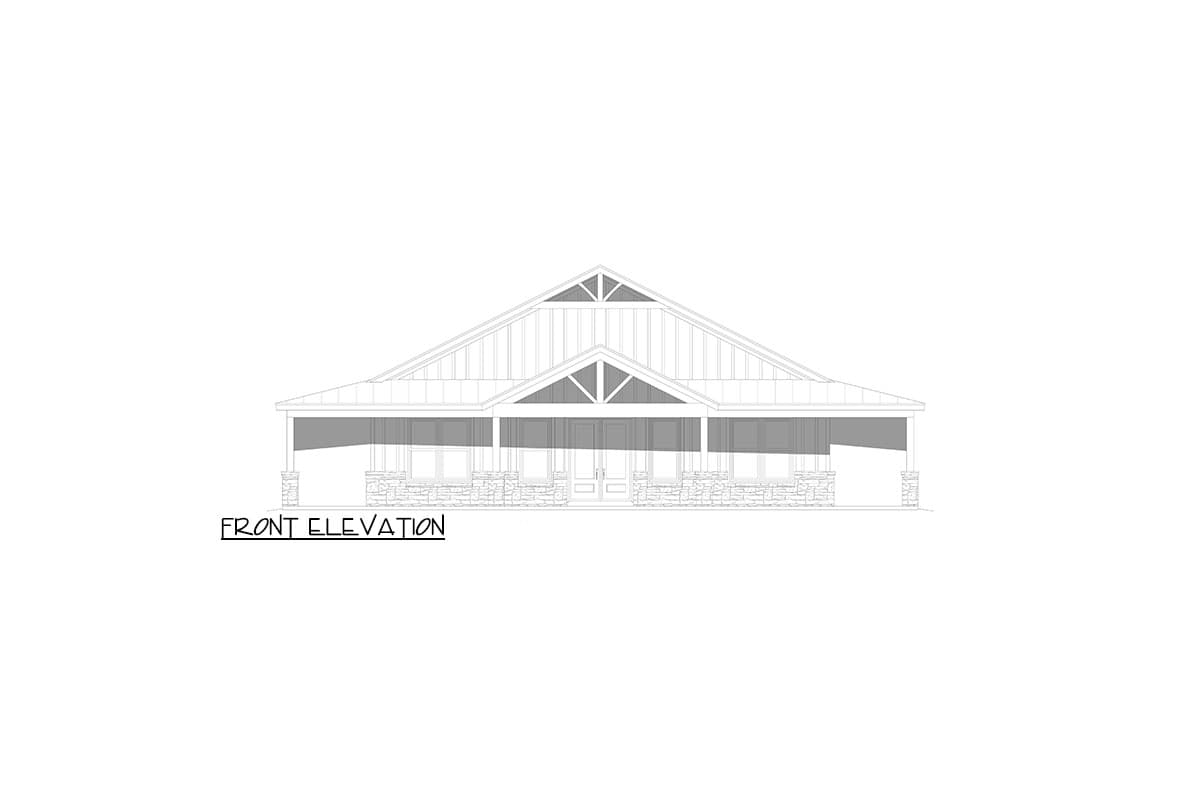

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,393 sq. ft.

1st Floor

2,393 sq. ft.

Porch, Combined

1,324 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

73' 9"

Depth

43' 4"

Max Ridge Height

30' 2"

Garage

Type

Attached

Area

610 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

2.5 on 12

Framing Type

Stick

Architectural Style

Country

Farmhouse

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Laundry - Main Level

Loft

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,393 sq. ft.

1st Floor

2,393 sq. ft.

Porch, Combined

1,324 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

73' 9"

Depth

43' 4"

Max Ridge Height

30' 2"

Garage

Type

Attached

Area

610 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

2.5 on 12

Framing Type

Stick

Architectural Style

Country

Farmhouse

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Laundry - Main Level

Loft

Master Suite - 1st Floor
