Plan 68947VR
3-Story Contemporary House Plan with Rooftop Deck - 2011 Sq Ft
Heated S.F.
2,011
Beds
4
Baths
3
Stories
3
Cars
2
Floor Plan

Plan 68947VR

Main Level
slide image 0
2nd Floor
slide image 1
3rd Floor
slide image 2
4th Floor - Overlook
slide image 3

Plan 68947VR

1-800-854-7852

1-262-521-4596

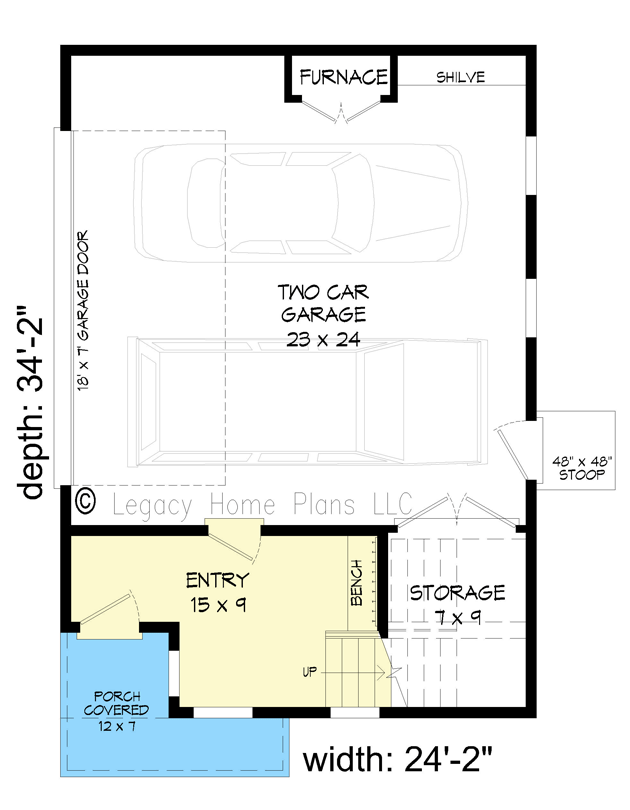

Main Level
floor plan image Main Level

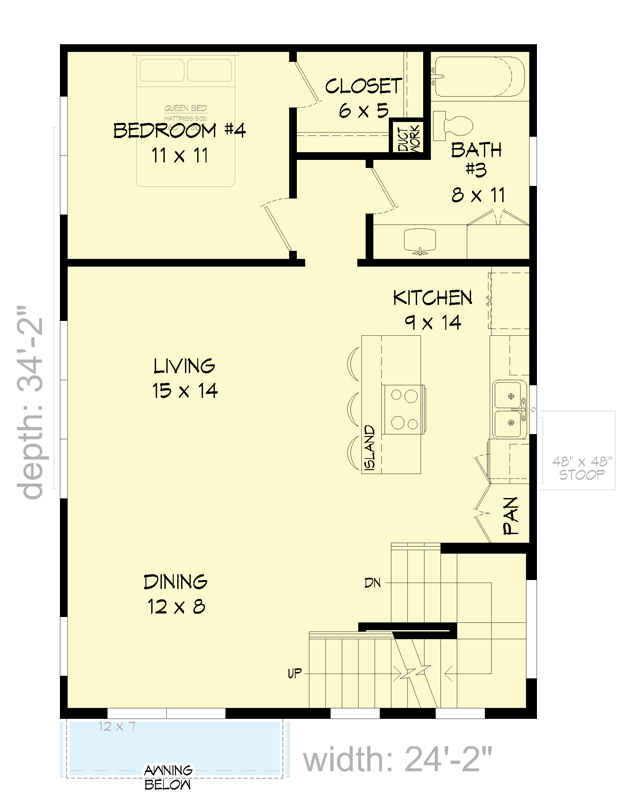

2nd Floor
floor plan image 2nd Floor

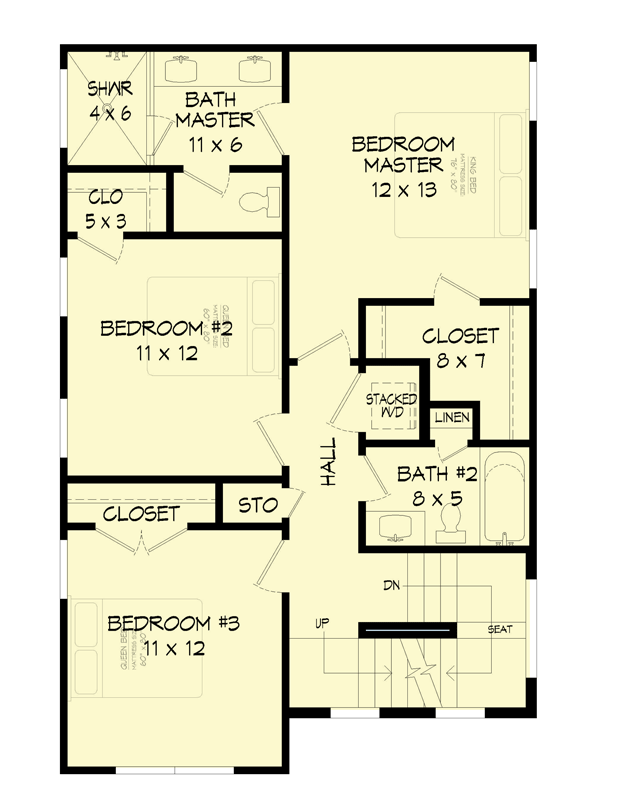

3rd Floor
floor plan image 3rd Floor

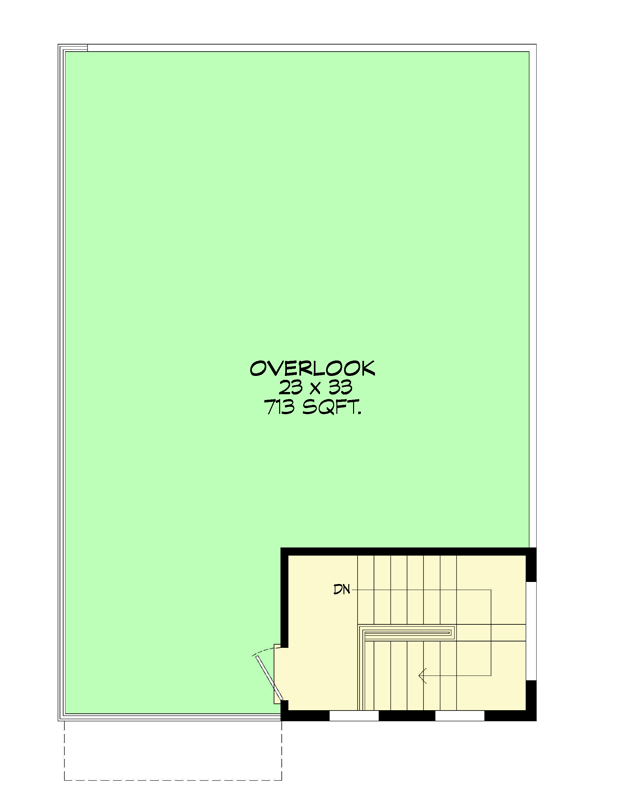

4th Floor - Overlook
floor plan image 4th Floor - Overlook
Plan Details

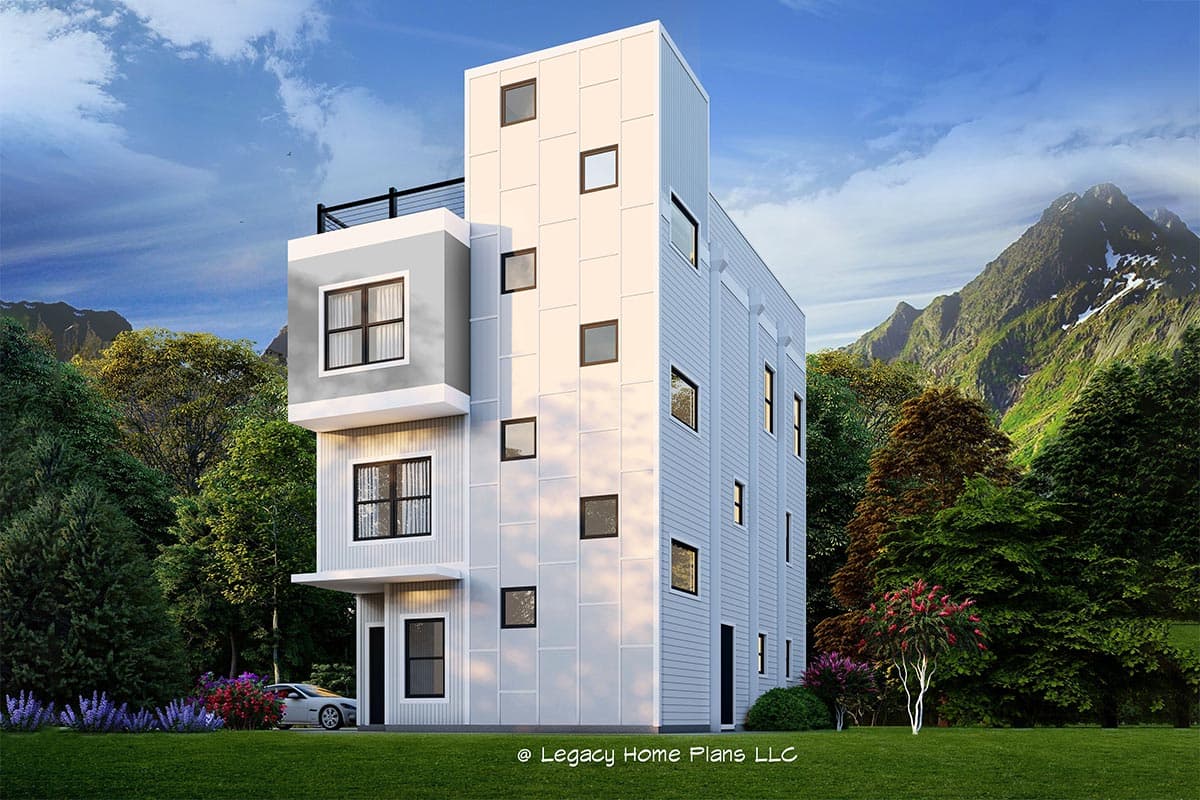

  • Modern siding materials adorn the facade of this 3-story, Contemporary house plan, which boasts an expansive rooftop deck in order to enjoy the surrounding landscape.
  • The main level is where you'll find the 2-car garage, as well as the formal entry with hooks above the built-in bench.
  • Discover an open living space on the second level, complete with a cooktop island in the kitchen. A bedroom on this level is perfect for guests and sits across from a full bathroom.
  • Three bedrooms reside on the third level, including the master bedroom that features a 4-fixture bath and walk-in closet. A stackable washer / dryer unit is located next to the master bedroom.
  • The 713 sq ft, rooftop deck serves as the crowning jewel of this design and will encourage romantic evenings under the stars.
  • Related Plans: Get an alternate version with house plan 68948VR (3 beds) and 680223VR (5 beds)..
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,011 sq. ft.

1st Floor

213 sq. ft.

2nd Floor

826 sq. ft.

3rd Floor

859 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 2"

Depth

34' 2"

Max Ridge Height

30' 6"

Garage

Type

Attached

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

9'

Third Floor

9' 0''

Roof Details

Primary Pitch

0 on 12

Framing Type

Truss

Architectural Style

Contemporary

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Mudroom
