3-Story Northwest Style House Plan with Two Story Great Room and Rooftop Deck - 6305 Sq Ft
Heated S.F.
6,305
Beds
6
Baths
6.5
Stories
3
Cars
3
Floor Plan

Plan 666270RAF

Main Level
slide image 0
2nd Floor
slide image 1

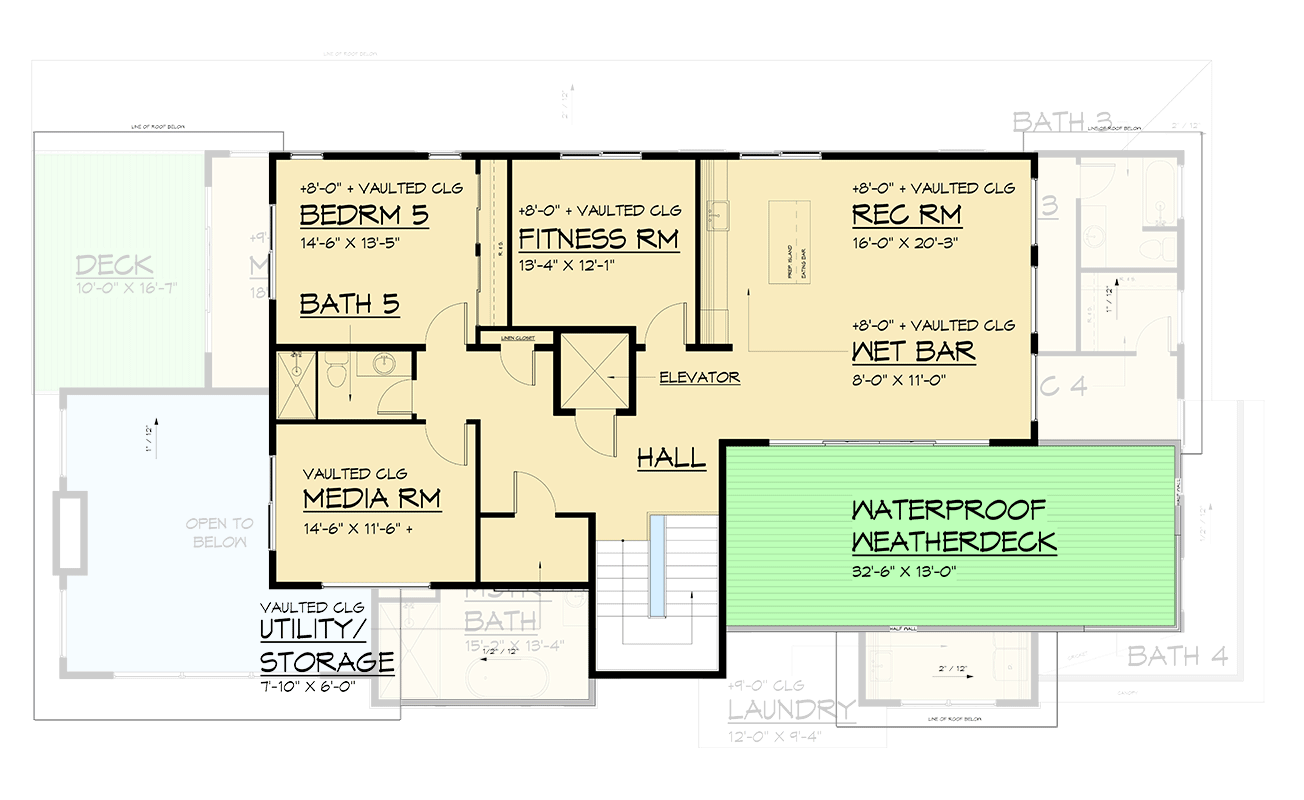

3rd Floor
slide image 2

Plan 666270RAF

1-800-854-7852

1-262-521-4596

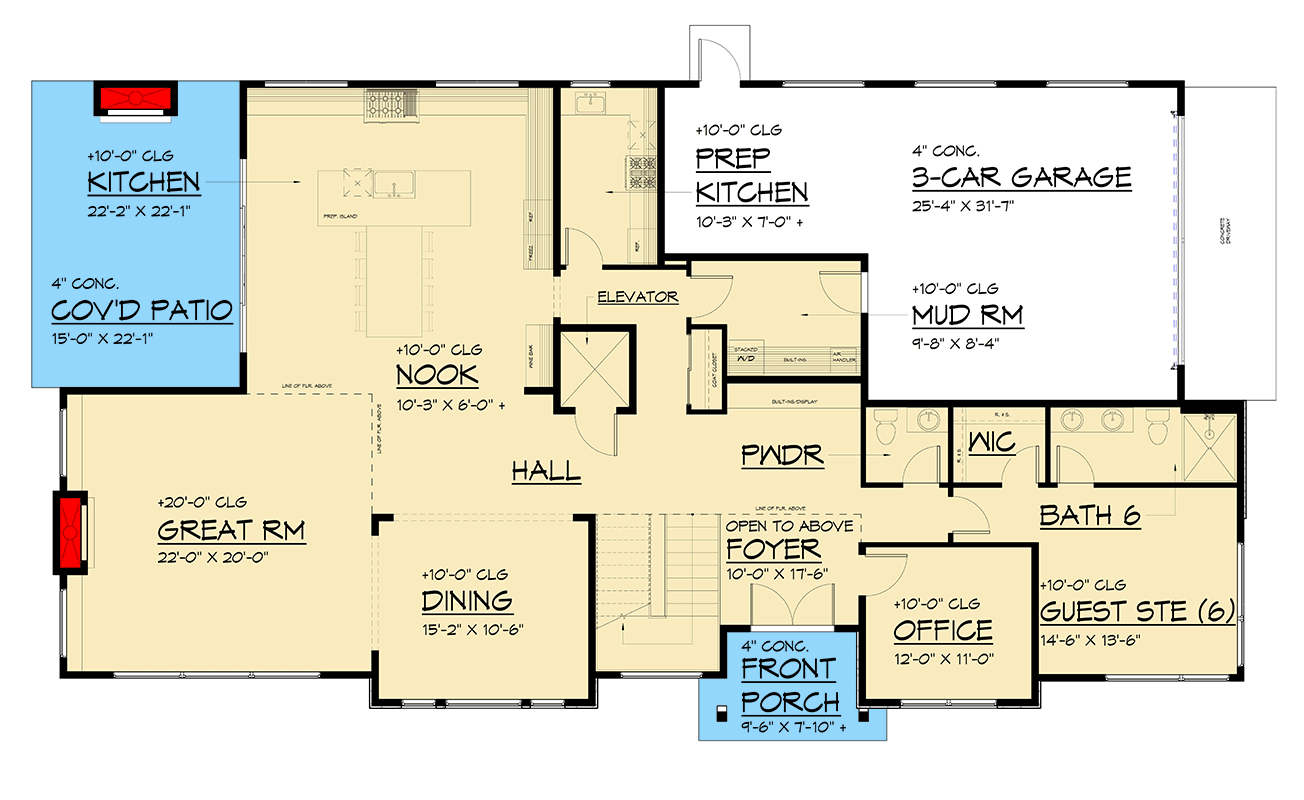

Main Level
floor plan image Main Level

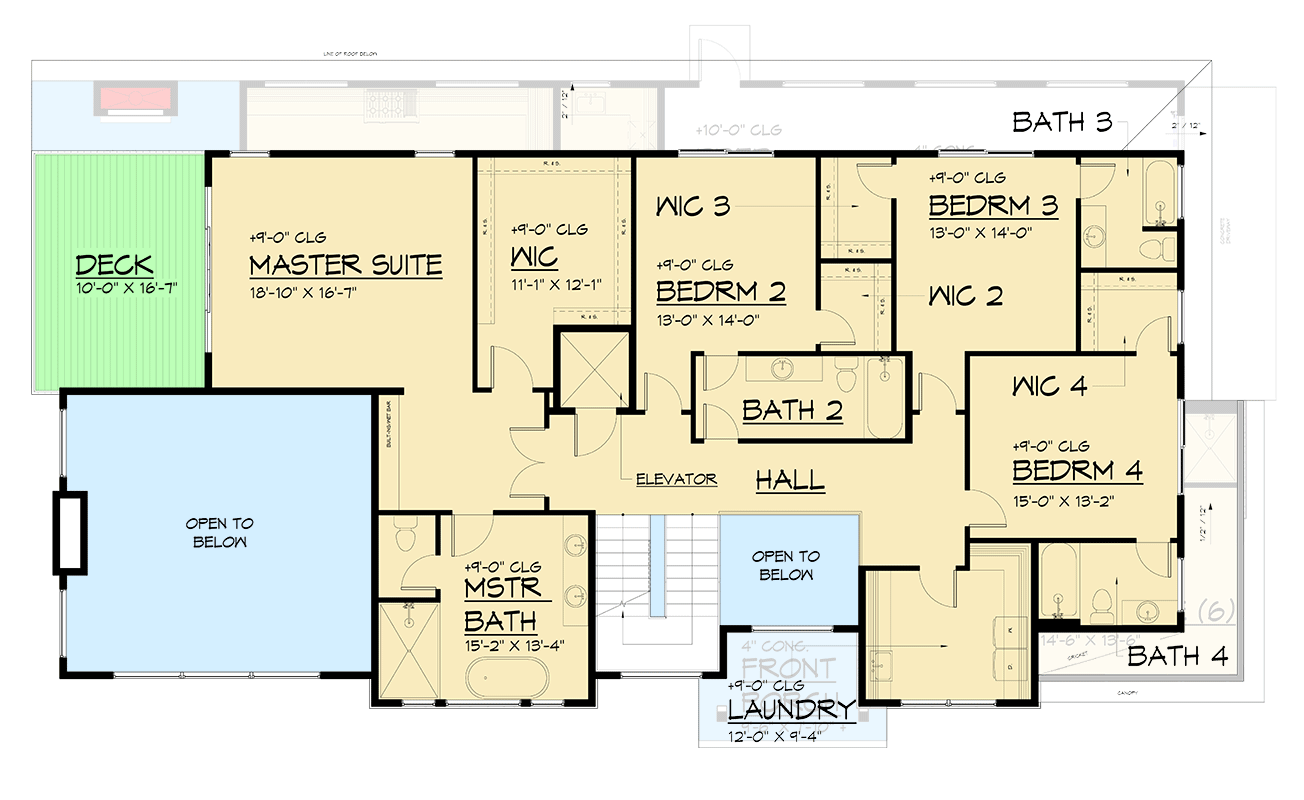

2nd Floor
floor plan image 2nd Floor
3rd Floor
floor plan image 3rd Floor
Plan Details
  • This 6 bed, 6.5 bath northwest house plan gives you 6,305 square feet of heated living and 3-car side garage (707 sq. ft.).
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans

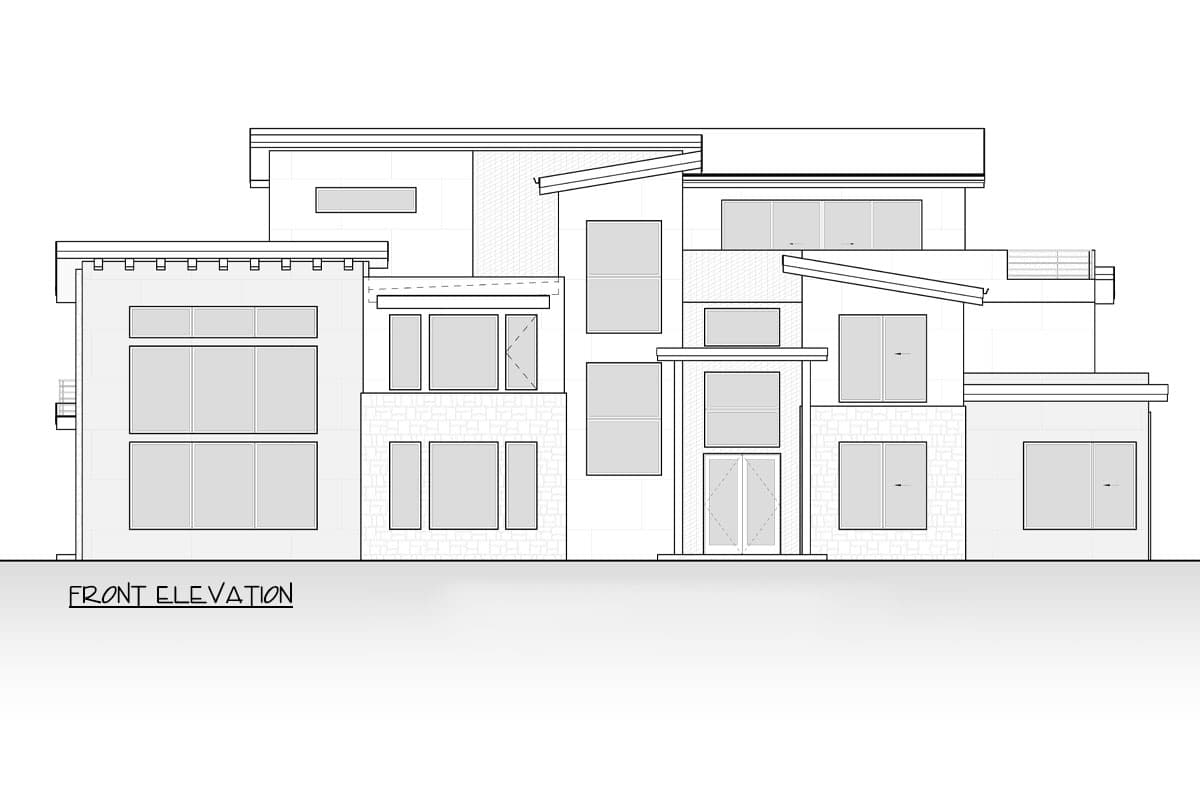

  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

6,305 sq. ft.

1st Floor

2,605 sq. ft.

2nd Floor

2,226 sq. ft.

3rd Floor

1,474 sq. ft.

Porch, Front

89 sq. ft.

Deck

448 sq. ft.

Balcony / Veranda

214 sq. ft.

Covered Patio

331 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

6

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

85' 3"

Depth

45' 0"

Max Ridge Height

34' 6"

Garage

Type

Attached

Area

707 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Third Floor

8' 0''

Roof Details

Primary Pitch

2 on 12

Secondary Pitch

1 on 12

Framing Type

Stick

Architectural Style

Contemporary

Modern

Northwest

Special Features

Bedrooms - Split

Bonus Room
