Plan 660004JMD
3000 Square Foot Modern Farmhouse with 4-Bedroom Suites
Heated S.F.
3,025
Beds
4
Baths
4.5
Stories
1
Cars
3
Floor Plan

Plan 660004JMD

Main Level
slide image 0

Plan 660004JMD

1-800-854-7852

1-262-521-4596

Main Level

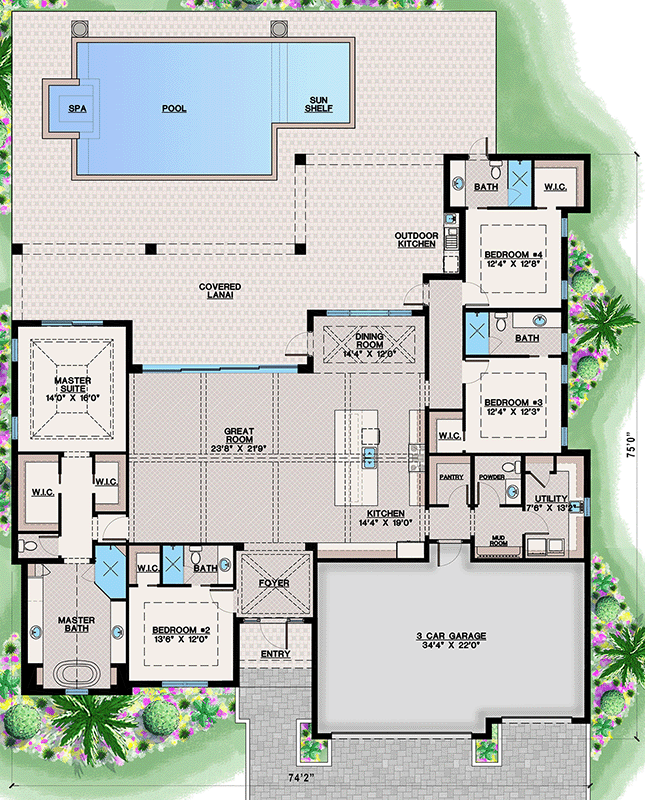

floor plan image Main Level
Plan Details

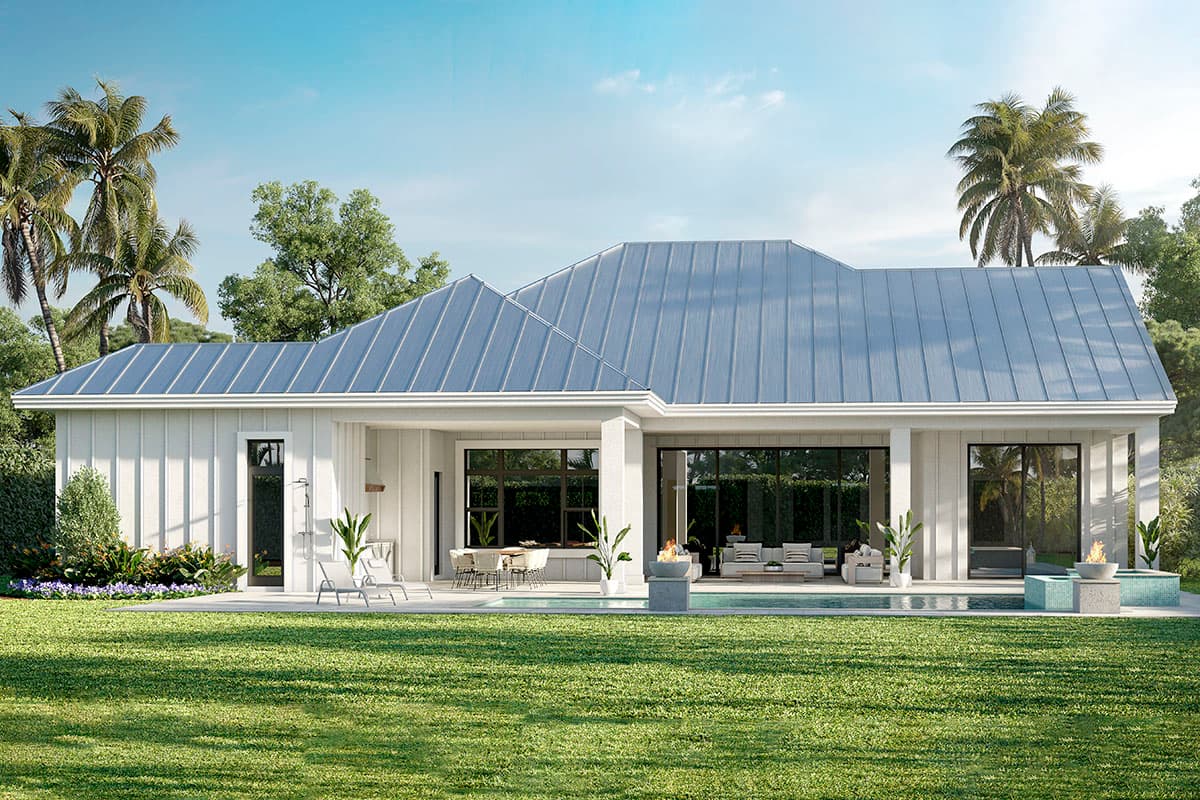

  • Classic country details combine with a modern flare on this 4 bedroom home plan.  Gable roof ends, dormers and shed roofs all combine to give it great curb appeal.
  • Inside, the vaulted ceilings with beams thru the great room and kitchen will excite anyone who enters this home.
  • The walk in pantry, utility room and mud room are right off the garage and kitchen with a powder bath in between. The dining is perfectly placed off the kitchen and facing the rear of the home.
  • The master suite has vaulted ceilings, his and her walk in closets, dual vanities and a soaking tub surrounded by niches in the walls.
  • The 3 additional bedrooms have their own bathrooms and walk in closets.
  • A large covered lanai with outdoor kitchen and enough room for seating and dining will entertain family and social gatherings.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida.
What's Included

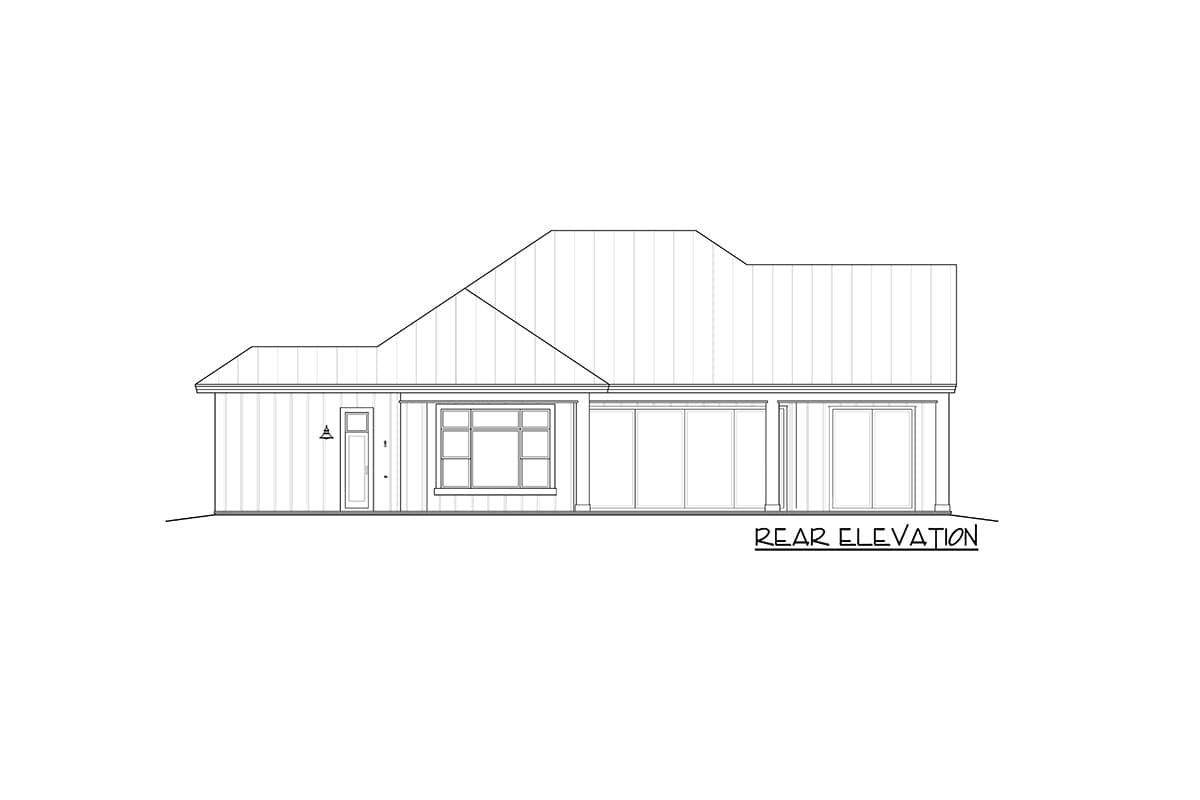

Elevations Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
*Slab Plan Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Rough-in Plumbing Location (if applicable)
  • Mechanical Equipment Locations (if applicable)
  • Electrical Locations (if applicable)
Roof Design Plan Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
 *We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,025 sq. ft.

1st Floor

3,025 sq. ft.

Porch, Front

54 sq. ft.

Covered Patio

872 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

74' 2"

Depth

75' 0"

Max Ridge Height

29' 0"

Garage

Type

Attached

Area

795 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Foyer

Beamed

20' 8''

Great Room

Vaulted

0' 0''

Kitchen

Vaulted

0' 0''

Dining Room

Coffered

12' 0''

Master Bedroom

Vaulted

0' 0''

Master Bath

Vaulted

0' 0''

Bedroom 2

Coffered

10' 0''

Bedroom 3

Coffered

10' 0''

Bedroom 4

Coffered

10' 0''

Lanai

Flat

12' 0''

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Coastal

Country

Farmhouse

Florida

Modern Farmhouse

New American

Ranch

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Two Story Great Room

Square Footage Breakdown

Total Heated Area

3,025 sq. ft.

1st Floor

3,025 sq. ft.

Porch, Front

54 sq. ft.

Covered Patio

872 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

74' 2"

Depth

75' 0"

Max Ridge Height

29' 0"

Garage

Type

Attached

Area

795 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Foyer

Beamed

20' 8''

Great Room

Vaulted

0' 0''

Kitchen

Vaulted

0' 0''

Dining Room

Coffered

12' 0''

Master Bedroom

Vaulted

0' 0''

Master Bath

Vaulted

0' 0''

Bedroom 2

Coffered

10' 0''

Bedroom 3

Coffered

10' 0''

Bedroom 4

Coffered

10' 0''

Lanai

Flat

12' 0''

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Coastal

Country

Farmhouse

Florida

Modern Farmhouse

New American

Ranch

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Two Story Great Room
