Plan 264012KMD
3000 Square Foot Modern Farmhouse with 4 Beds and a Man Cave
Heated S.F.
3,013
Beds
4
Baths
3
Stories
1
Cars
3
Floor Plan

Plan 264012KMD

Main Level
slide image 0

Plan 264012KMD

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This 3,013 square foot modern farmhouse gives you the best of one-story living. The exterior has board and batten siding, a standing seam metal roof, three gables and a shed roof over the covered entry. A front-facing garage gives you 980 square feet of car storage behind a 2-car bay with an 18' by 8' overhead door and a 1-car bay with a 10' by 8' overhead door.
  • French doors open to the entry with an attractive 2-sided fireplace shared with the open great room/dining room on the other side. That space is open to the island kitchen and opens to the covered patio giving you the joys of indoor-outdoor living.
  • A Man Cave off the garage has a vaulted ceiling and is a great place to watch the big game with friends.
What's Included

  • Foundation Plan: Includes the complete foundation with dimensions, plumbing locations for slabs and reference details for foundation construction.  Also includes any specific construction notes or requirements to ensure proper installation. Does not include Structural Engineering stamp due to regional specification and requirements per local conditions. Typically, structural requirements can be obtained by local lumber supplier for little or no cost.

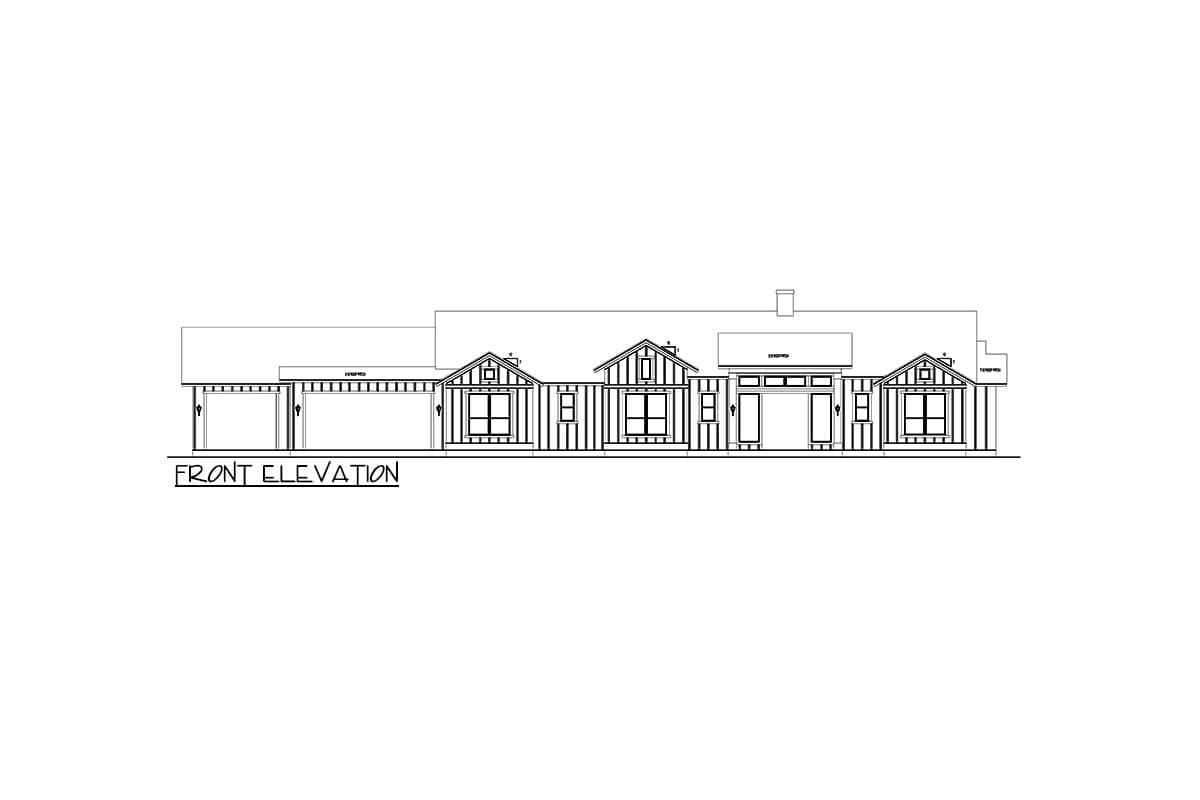

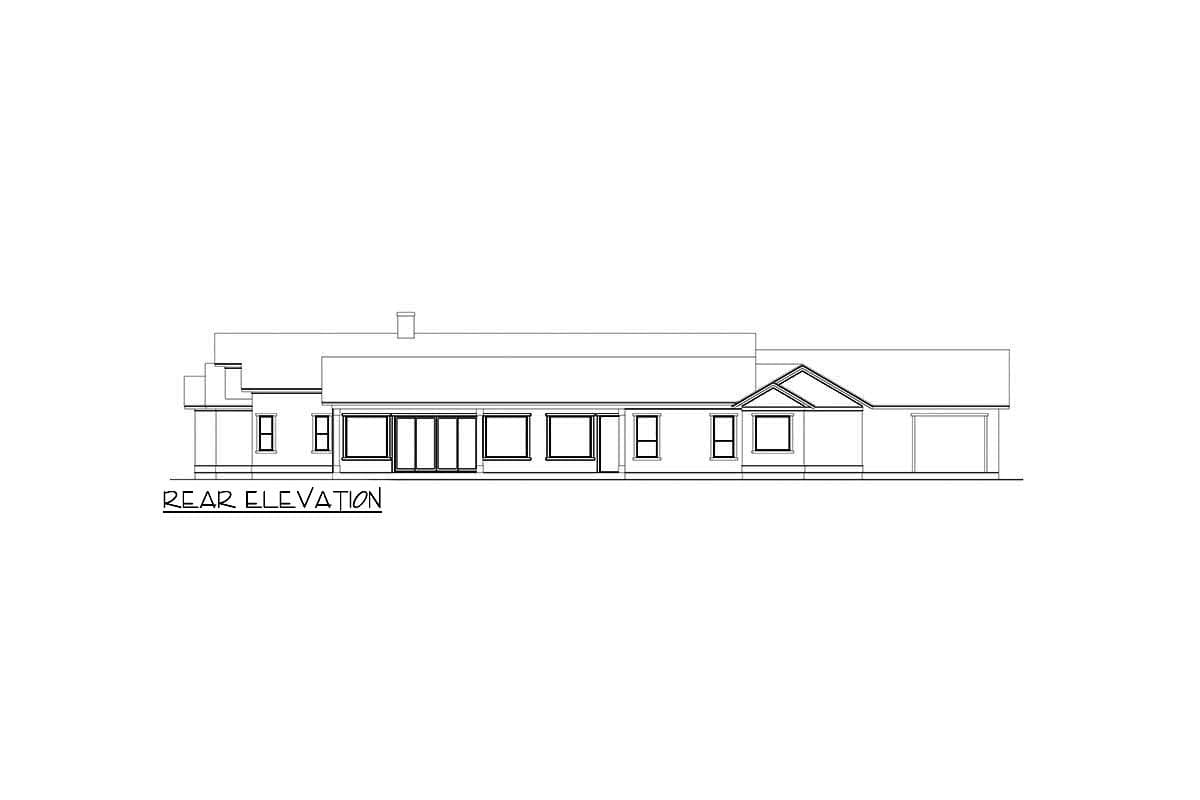

  • Elevations: Exterior views from all four directions that includes dimensions, height dimensions including finished floor to highest point of the structure.  Also includes all special construction notes, finishes and applicable elements that need extra detail to convey the design intent to construct in the field correctly.

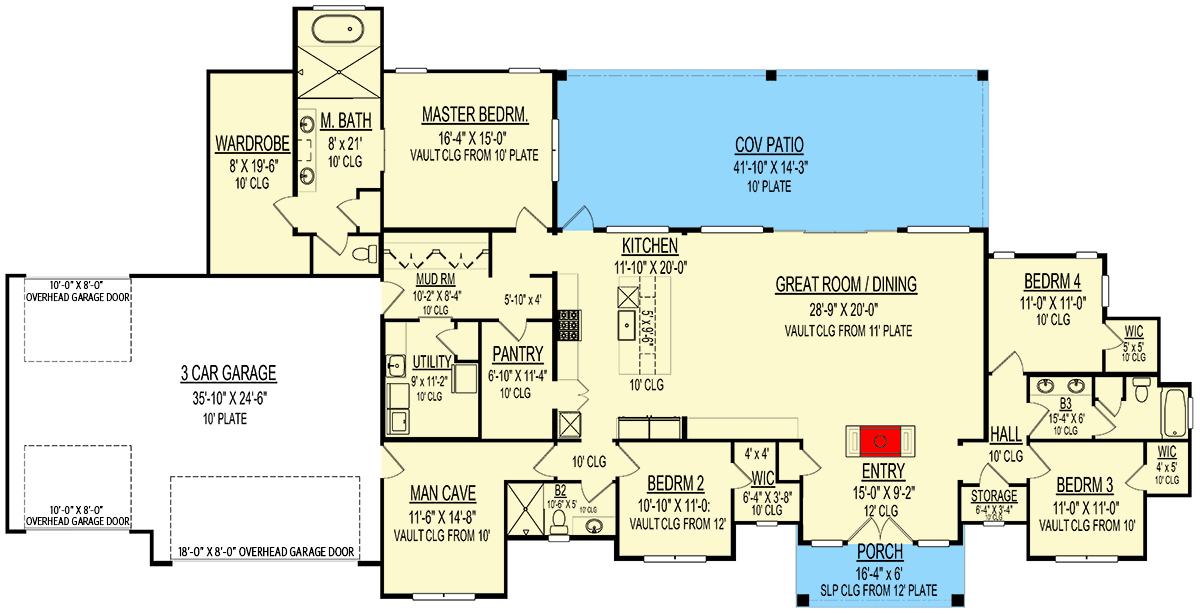

  • Floor Plan(s): Complete with dimensions of wall locations, windows, doors, cabinetry, and special construction elements. Notes including standard and special conditions tailored for the tradesmen in mind. We strive to give your contractor more dimensions than they need.
  • Roof Plan: Complete with overhang dimensions, plate heights which remove the guesswork of how the roof is properly constructed.  Also includes roof pitches, notes for special conditions, roof square footage which is a big help estimating roof materials and reducing job site waste.
  • Details: All relevant details including Cornice (eave) which are designed directly from each plan "we do not reuse details with each plan." we also include applicable enlarged details which need even more magnification in order to properly explain the design intent.
  • Interior Elevations: Inside views of the structure, including cabinetry, electrical and any applicable special construction that needs that extra level of detail.
  • Sections: Also known as a cut through the entire structure.  This explains in further detail how the structure is built and properly braced to ensure a safe home. Our practice also includes complete dimensions, notes, and any required special attention needed.
  • Electrical Plan: Complete with layout and location of lights, switches and plugs.  When we include wall plugs, we go beyond the code standards, which gives you more walls to choose to plug up your appliance.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,013 sq. ft.

1st Floor

3,013 sq. ft.

Porch, Front

98 sq. ft.

Covered Patio

641 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

115' 0"

Depth

57' 5"

Max Ridge Height

20' 11"

Garage

Type

Attached

Area

980 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Contemporary

Country

Modern Farmhouse

New American

Ranch

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

3,013 sq. ft.

1st Floor

3,013 sq. ft.

Porch, Front

98 sq. ft.

Covered Patio

641 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

115' 0"

Depth

57' 5"

Max Ridge Height

20' 11"

Garage

Type

Attached

Area

980 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Contemporary

Country

Modern Farmhouse

New American

Ranch

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
