Plan 580027DFT
3164 Square Foot Modern Prairie-style House Plan with 3 Bedrooms
Heated S.F.
3,164
Beds
3
Baths
3.5
Stories
2
Cars
2- 3
Floor Plan

Plan 580027DFT

Main Level
slide image 0
2nd Floor
slide image 1

Plan 580027DFT

1-800-854-7852

1-262-521-4596

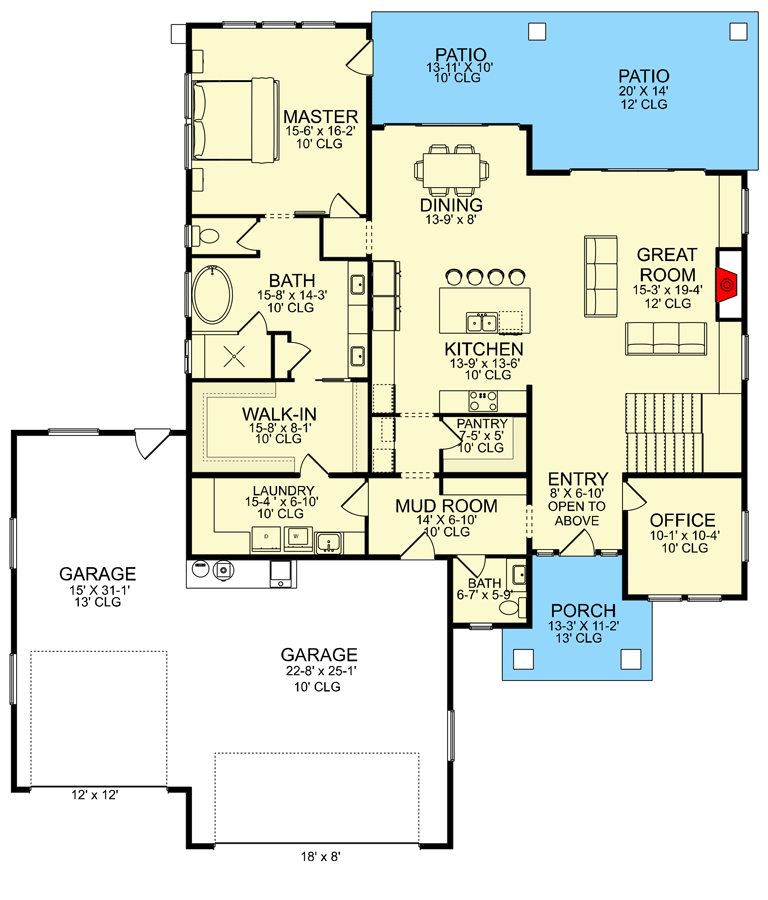

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 2-story Modern Prairie-style house plan gives you 3,164 square feet of heated living space with 3 beds and 3.5 baths with 1,093 square feet of parking for up to 3 cars.
  • A 2-story entry greets you as you enter of the porch and leads you past the home office and mudroom (and powder room) to the open concept back of the home.
  • The great room has a fireplace and opens to the covered patio. The kitchen has a double sink in the island and seating for up to four. A walk-in pantry is steps away as is the dining room which opens to the back patio.
  • The master suite is the only bedroom on the main floor and enjoys patio access as well as the convenience of direct access to the laundry room from the walk-in closet.
  • Upstairs, two bedrooms - each with its own bathroom - and a bonus room (included in the total living area) completes the home.
What's Included

  • Cover Sheet: General Notes and code criteria
  • Foundation Plan: Concrete layouts including footings, slabs and stem walls, dimensions, floor joist layout, plumbing fixture locations and construction notes and details
  • Floor Plan(s): Dimensions, wall framing, room sizes, door and window location and sizes, plumbing fixtures, kitchen layout with cabinetry location and construction notes and details
  • Roof Plan: Bird's eye view and general layout, roof pitches, eave sizes, special ceiling heights, trey ceilings located and construction notes and details
  • Section View(s): A cut or cuts through the home showing wall plate heights, stair sections, special construction sections including footings and crawl space or slab details

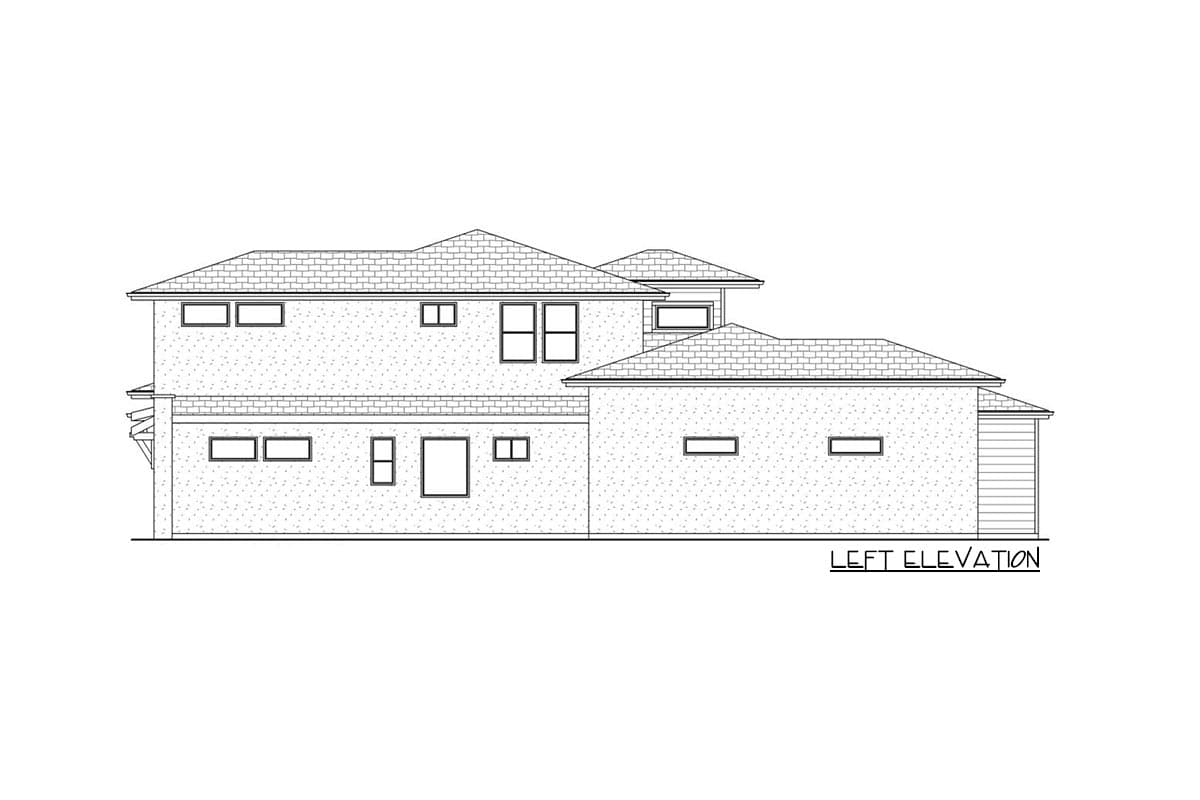

  • Exterior Elevations: Shows 2-D exterior views of all 4 sides of home locating and showing roof lines, roof pitches, material callouts, window locations, vents, trim style and plate heights
  • Electrical Plans: General layout of smoke detectors, carbon monoxide detectors, exhaust fans, lights, switches, outlets and GFI outlets

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,164 sq. ft.

1st Floor

2,057 sq. ft.

2nd Floor

1,107 sq. ft.

Porch, Front

94 sq. ft.

Covered Patio

375 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

65' 0"

Depth

73' 0"

Garage

Type

Attached

Area

1093 sq. ft.

Count

2 or 3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Stick And Truss

Architectural Style

Contemporary

Modern

Northwest

Prairie

Special Features

Bonus Room

Butler Walk-in Pantry

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
