Plan 61526UT
3500 Sq Ft Modern Barndominium Garage Plan with 1400 Sq Ft 2-Bed Apartment Above
Heated S.F.
1,428
Beds
2
Baths
2.5
Stories
2
Cars
4- 6
Floor Plan

Plan 61526UT

Main Level
slide image 0
2nd Floor
slide image 1

Plan 61526UT

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

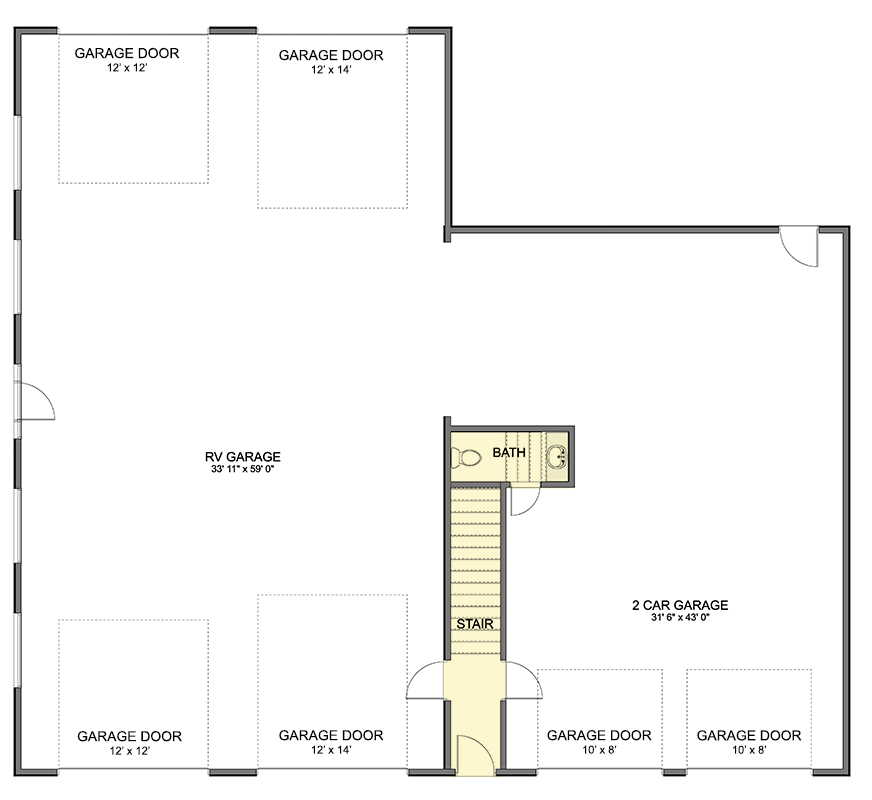

  • This modern-style barndominium garage plan offers flexible vehicle storage and workshop opportunities. Essentially two garages separated by the stairs to the apartment above, the right side features an oversized 31' x 43' 2-car garage with two 10' x 8' overhead doors for standard vehicles. On the left side, a 34' x 59' drive-through RV garage with one half accessible through a 12' x 12' overhead door and a 12' x 14' overhead door, accommodating most RVs, trailers, boats, and motorized equipment.

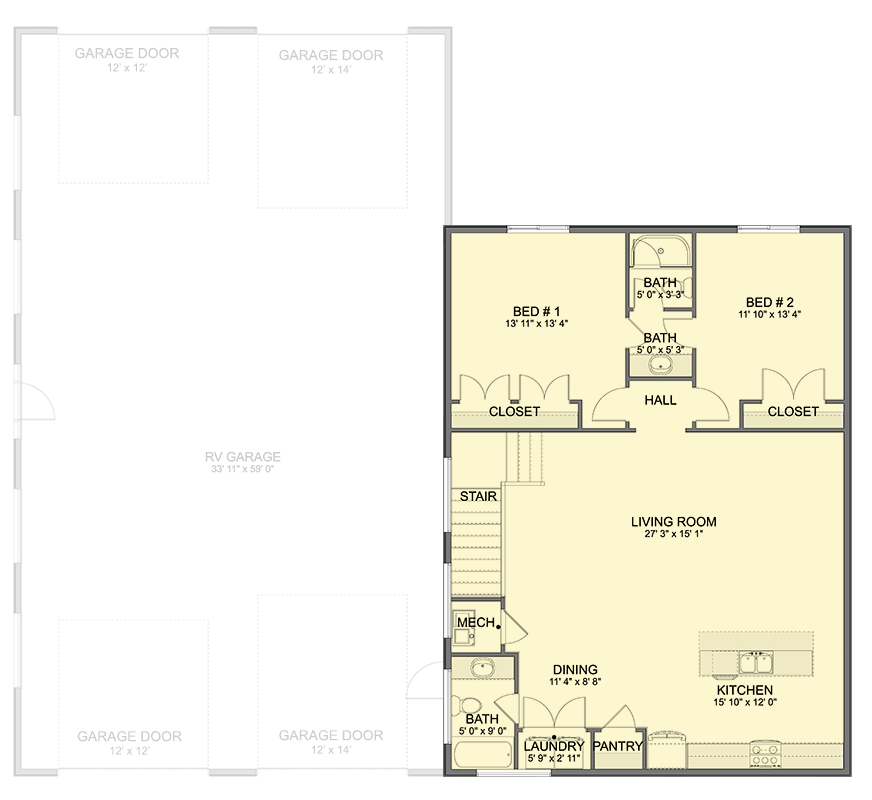

  • Upstairs you'll discover a generous 1,428 square foot apartment with two bedrooms and two baths, the bedrooms share a jack & jill bath nested between them.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing
  • Elevations
  • Cross sections
  • Electrical plans
  • General details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,428 sq. ft.

2nd Floor

1,428 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

67' 0"

Depth

60' 0"

Max Ridge Height

31' 11"

Garage

Type

RV Garage, Detached

Area

3508 sq. ft.

Count

4, 5, or 6 Cars

Entry Location

Front, Rear

Ceiling Heights

First Floor

10'

Second Floor

8'

RV Garage

12' 6''

Roof Details

Primary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Barndominium

Carriage

Modern

Special Features

Bedrooms - Clustered

Jack & Jill Bath

Laundry - Upstairs

Master Suite - 2nd Floor

Workshop

Square Footage Breakdown

Total Heated Area

1,428 sq. ft.

2nd Floor

1,428 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

67' 0"

Depth

60' 0"

Max Ridge Height

31' 11"

Garage

Type

RV Garage, Detached

Area

3508 sq. ft.

Count

4, 5, or 6 Cars

Entry Location

Front, Rear

Ceiling Heights

First Floor

10'

Second Floor

8'

RV Garage

12' 6''

Roof Details

Primary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Barndominium

Carriage

Modern

Special Features

Bedrooms - Clustered

Jack & Jill Bath

Laundry - Upstairs

Master Suite - 2nd Floor

Workshop
