4,100 Sq Ft New American House Plan with RV Garage and Finished Lower Level
Heated S.F.
4,106
Beds
3
Baths
3.5
Stories
1
Cars
5
Floor Plan

Plan 703012TYL

Main Level
slide image 0
Lower Level
slide image 1

Plan 703012TYL

1-800-854-7852

1-262-521-4596

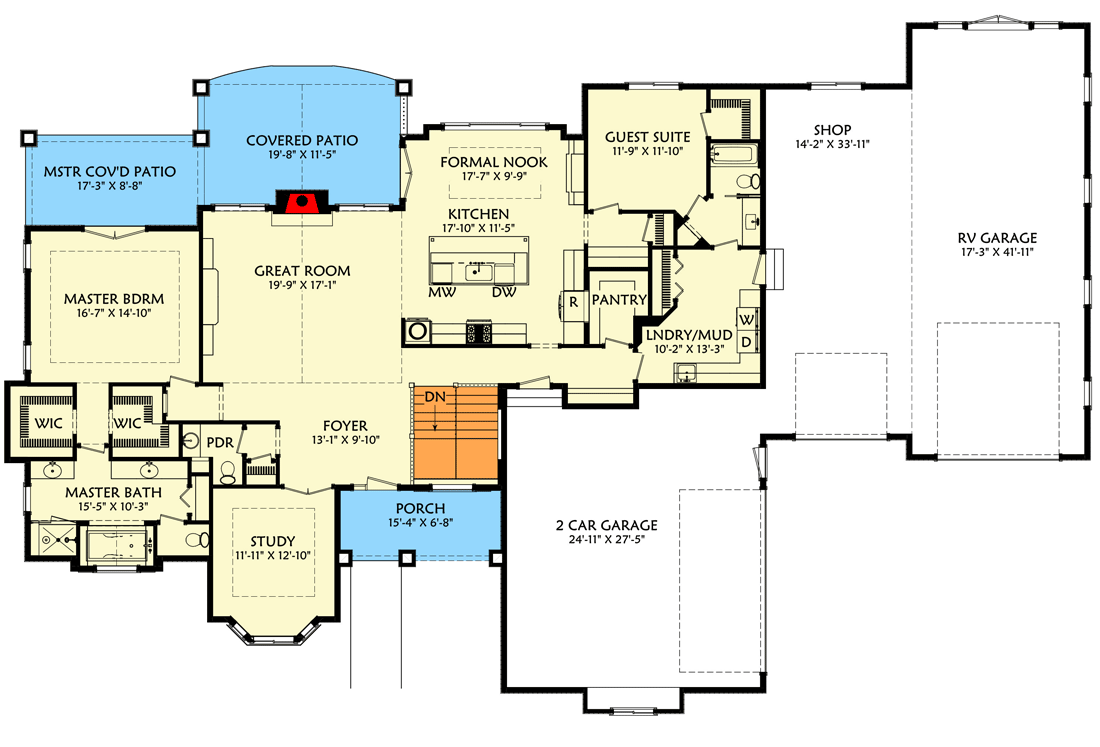

Main Level
floor plan image Main Level

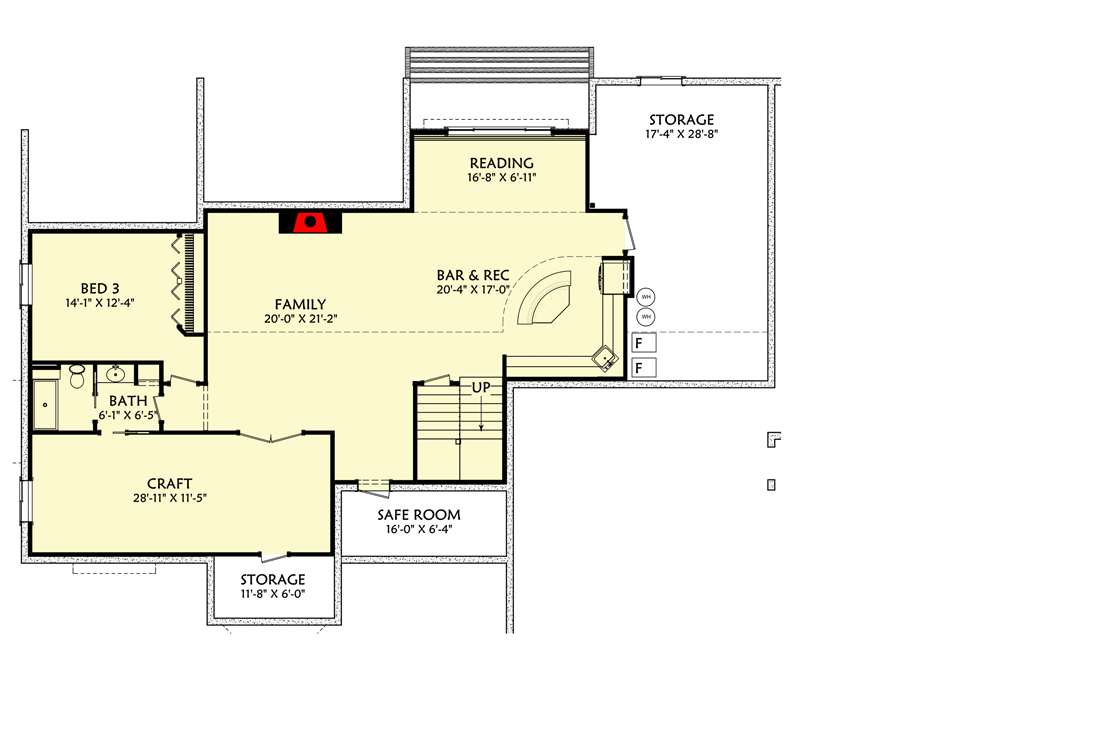

Lower Level
floor plan image Lower Level
Plan Details

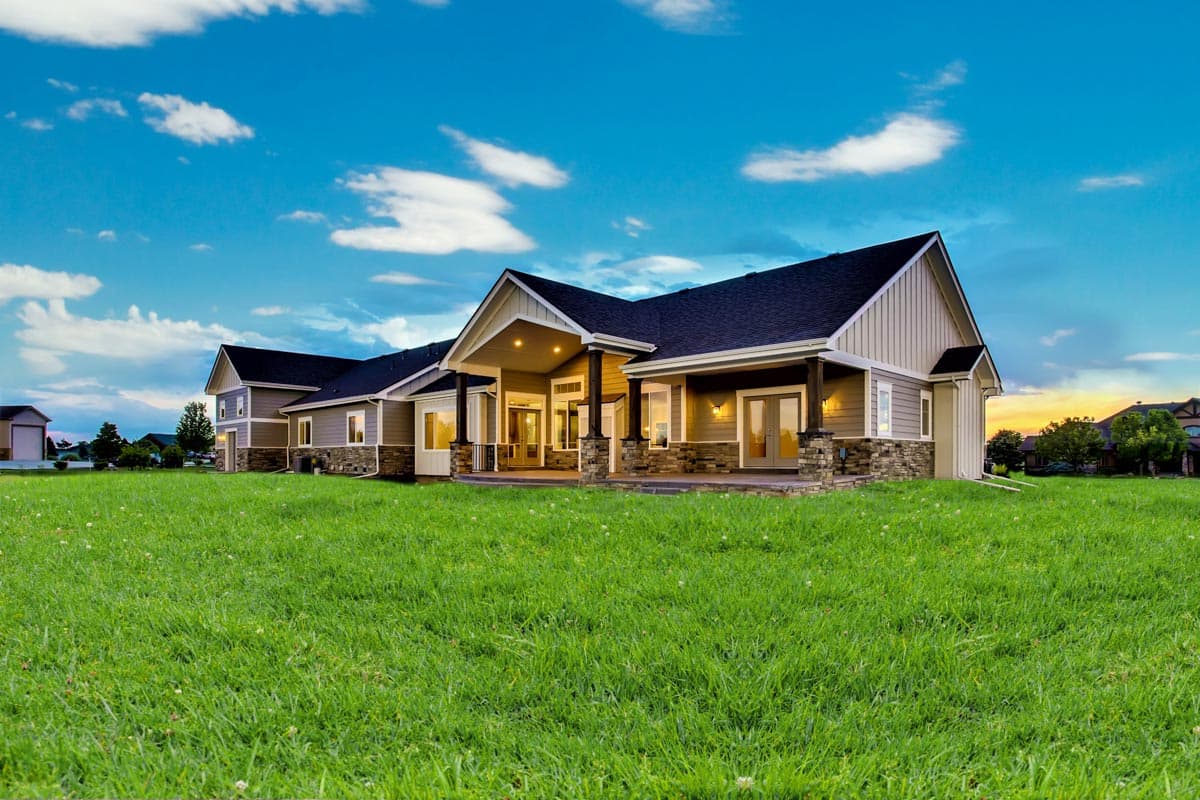

  • This 4,106 square foot house plan gives you 3 beds, 3.5 baths and a 5-car garage (1,921 sq. ft.) which includes a workshop and tandem RV bay. Board & batten pair with clapboard above a stone skirt to give this craftsman farmhouse a timeless appeal.
  • Past the covered front porch, you step into the foyer and are greeted by a two-story great room that opens into the dining and kitchen area - both of which allow access to the right side of the home which includes a guest suite and your laundry/mudroom where you can find entrances to the garage and workshop.
  • The opposite end of the home holds your master bedroom, complete with double walk-in closets and master bath that neighbor the study and powder room right beside the foyer.

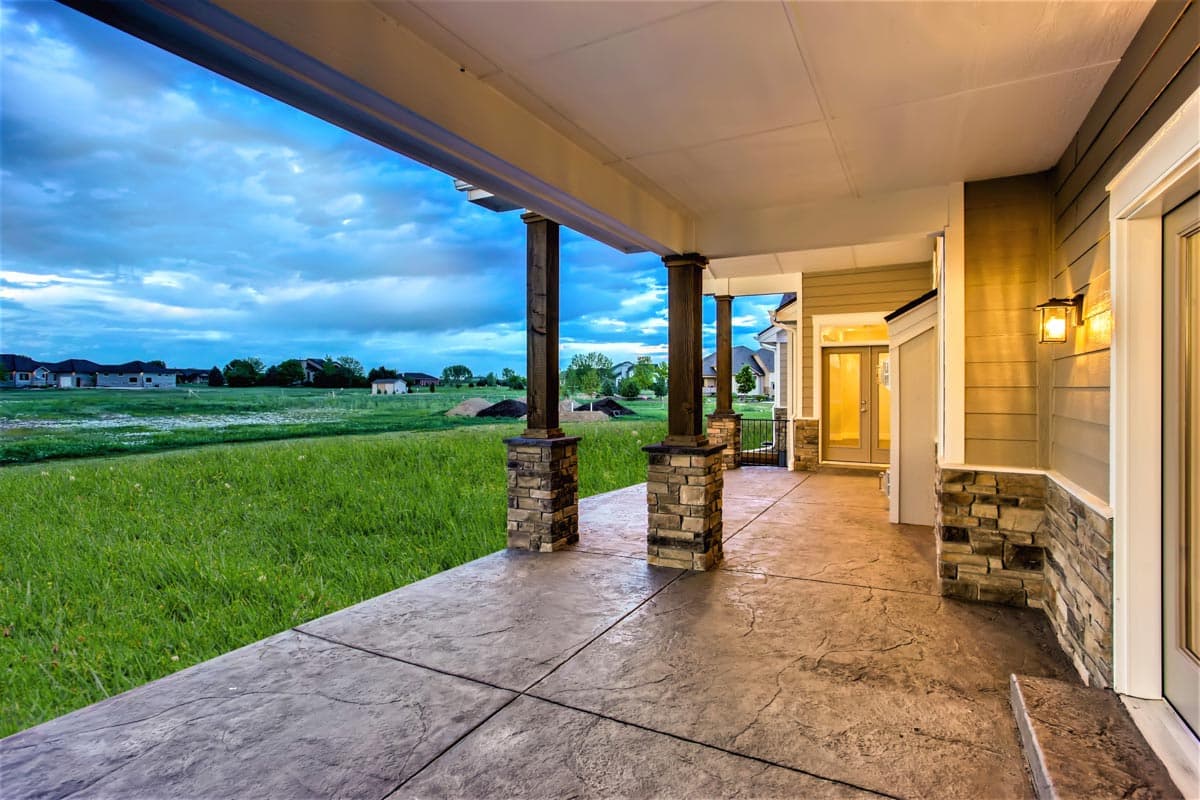

  • Covered patios provide outdoor leisure behind the master bedroom and great room.
  • Downstairs, your family and recreation opportunities expand with a second fireplace setting a cozy atmosphere for the family room open to the full bar, reading nook, craft room and your third bedroom with it's full bath.
What's Included
  • Cover page with notes & index
  • Exterior Elevations
  • Floor plans and stair section (the latter when applicable)
  • Roof plan
  • Building section & details
  • Electrical plans
  • Foundation plan (outline only)
  • Main floor framing plan (outline only)
  • Roof plan (outline only)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,106 sq. ft.

Lower Level

1,646 sq. ft.

1st Floor

2,460 sq. ft.

Basement Unfinished

501 sq. ft.

Porch, Front

102 sq. ft.

Porch, Rear

539 sq. ft.

Entry

148 sq. ft.

Storage

501 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

107' 0"

Depth

68' 0"

Max Ridge Height

22' 8"

Garage

Type

Attached, RV Garage

Area

1921 sq. ft.

Count

5 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

8' 8"

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

New American

Traditional

Special Features

Breakfast Nook

Flex Room

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Safe Room

Two Story Great Room

Wet Bar

Workshop

Plan Collections

Exclusive
