Plan 849016PGE
4 Bed 1661 Sq Ft House Plan with Split Bedroom Layout
Heated S.F.
1,661
Beds
4
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 849016PGE

Main Level
slide image 0

Plan 849016PGE

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • Enjoy the convenience of one-level living with this 1,661 square foot 4 bed, 2 bath house plan a split bedroom layout.
  • Guest bedrooms occupy the right side of the home and share a bath while the master suite encompasses the entire left side of the home.
  • The island kitchen with corner pantry has views to the family and dining rooms.
  • Sliding doors on the back wall of the family room open to a 14'6" wide and 6' deep covered deck.
What's Included
  • Cover Sheet

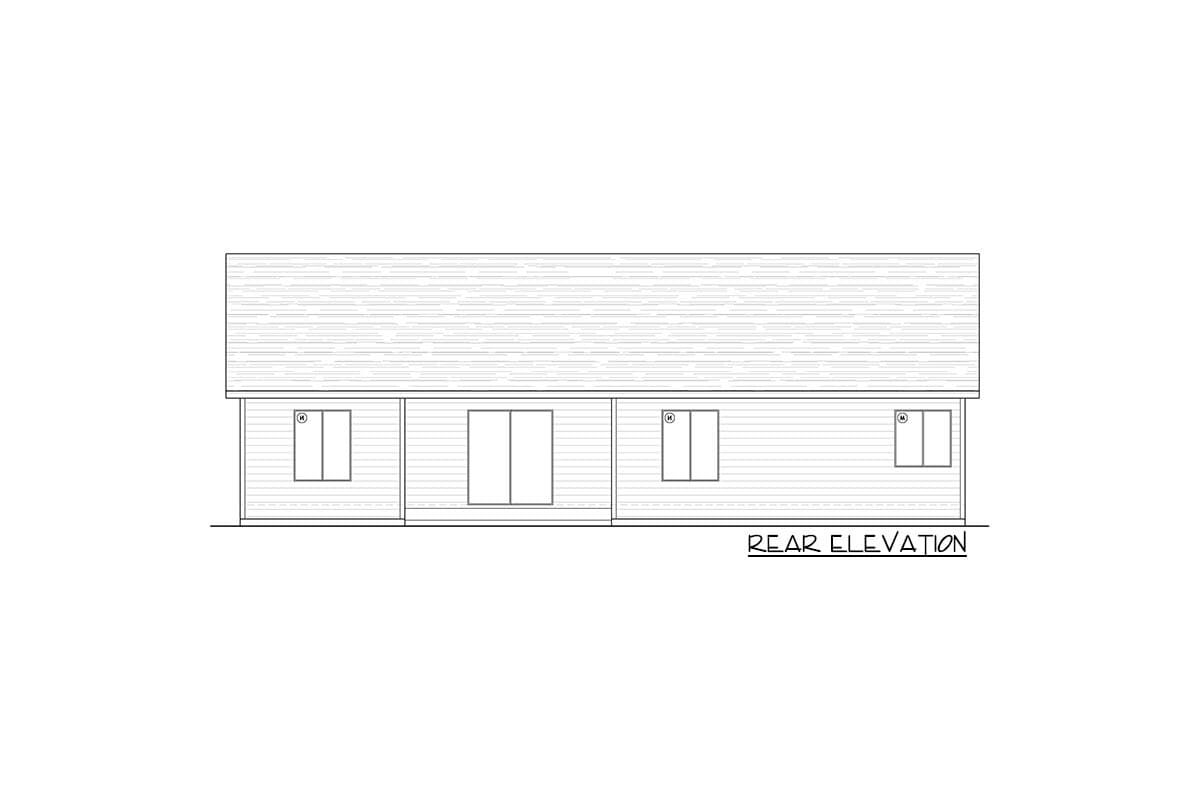

  • Elevations
  • Foundation Plan
  • Floor Plan
  • Details and Schedules
  • Upper Floor Framing Plan
  • Roof Flaming Plan
  • Details
  • Sections and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,661 sq. ft.

1st Floor

1,661 sq. ft.

Porch, Front

20 sq. ft.

Porch, Rear

87 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

51' 0"

Depth

53' 0"

Max Ridge Height

19' 2"

Garage

Type

Attached

Area

429 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Room

Ceiling Type

Height

Owner's Bedroom

Flat

8' 0''

Master Bath

Flat

8' 0''

Master WIC

Flat

8' 0''

Kitchen

Flat

8' 0''

Dining Room

Flat

8' 0''

Great Room

Flat

8' 0''

Bedroom 2

Flat

8' 0''

Bedroom 3

Flat

8' 0''

Bedroom 4

Flat

8' 0''

Laundry Room

Flat

8' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,661 sq. ft.

1st Floor

1,661 sq. ft.

Porch, Front

20 sq. ft.

Porch, Rear

87 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

51' 0"

Depth

53' 0"

Max Ridge Height

19' 2"

Garage

Type

Attached

Area

429 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Room

Ceiling Type

Height

Owner's Bedroom

Flat

8' 0''

Master Bath

Flat

8' 0''

Master WIC

Flat

8' 0''

Kitchen

Flat

8' 0''

Dining Room

Flat

8' 0''

Great Room

Flat

8' 0''

Bedroom 2

Flat

8' 0''

Bedroom 3

Flat

8' 0''

Bedroom 4

Flat

8' 0''

Laundry Room

Flat

8' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
