Plan 56377SM
4 Bed Acadian House Plan With Bonus Room
Heated S.F.
2,605
Beds
4
Baths
3.5
Stories
1
Cars
3
Floor Plan

Plan 56377SM

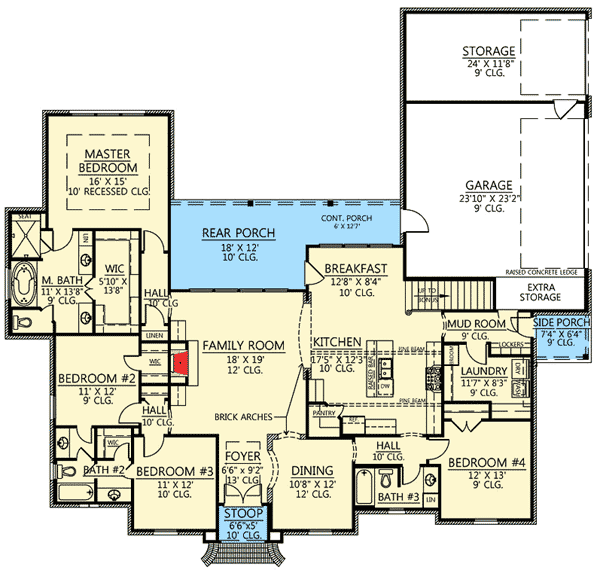

Main Level
slide image 0
Bonus
slide image 1

Plan 56377SM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Bonus
floor plan image Bonus
Plan Details

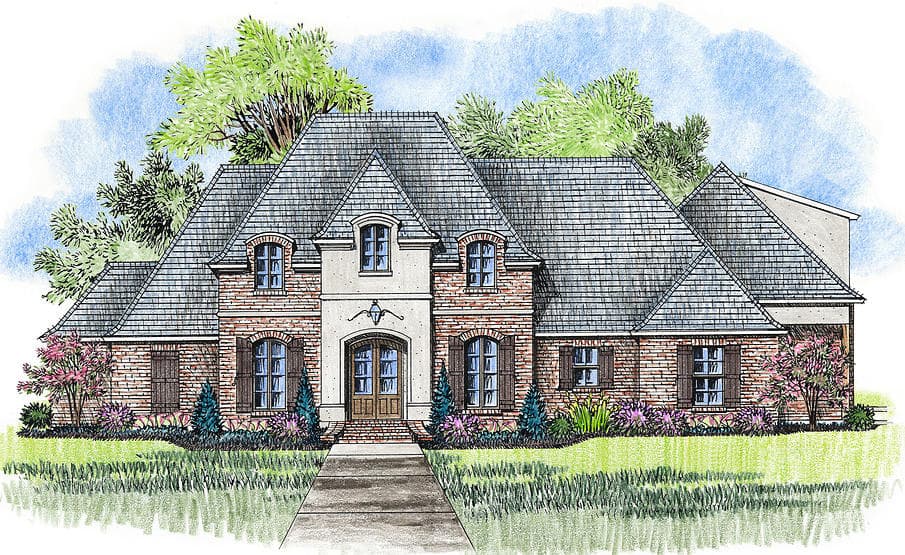

  • An elegant exterior with decorative wooden shutter adds curb appeal to this French Acadian home plan.
  • 13' -igh ceilings in the foyer and 12' ceilings in the family room create volume and a great welcome to the home.

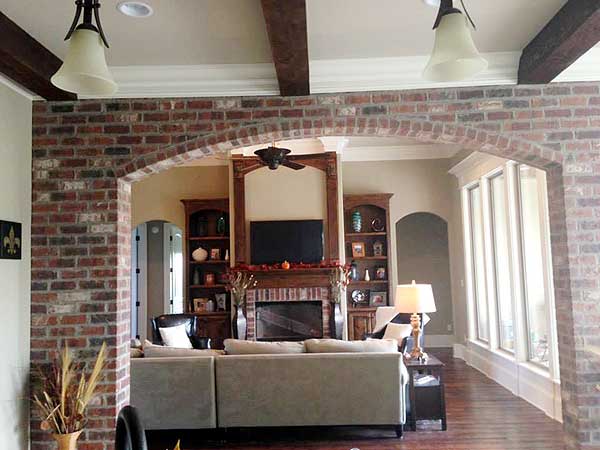

  • The family room has a fireplace flanked by built-ins and windows overlooking the rear porch.

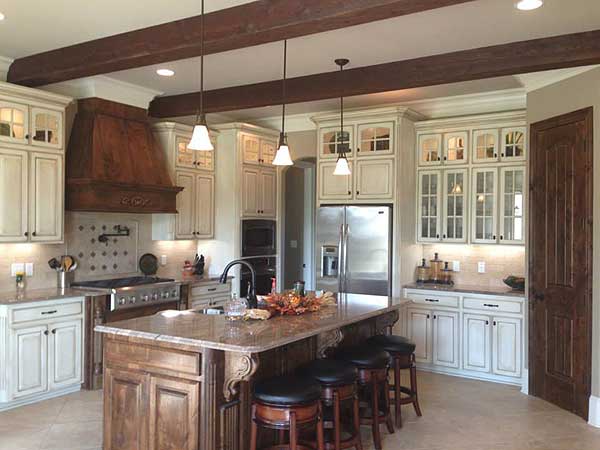

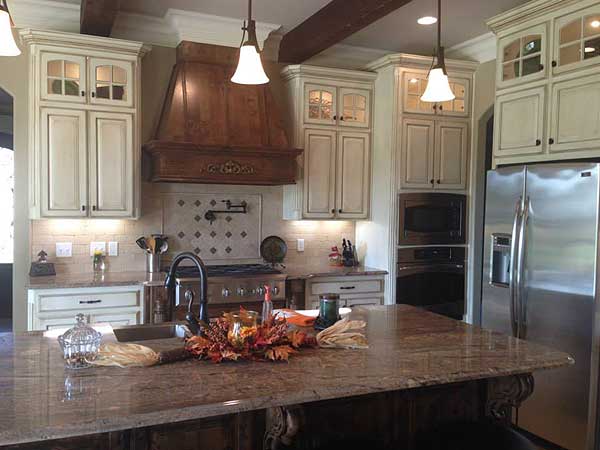

  • The large breakfast nook with its wall of windows is open to the huge kitchen with a much-desired walk-in pantry..
  • The private master suite is privately situated at the rear of the home.
  • The bonus room upstairs gives you expansion possibilities and a half bath.
  • Related Plan: Eliminate the bonus room and build in reverse with house plan 56309SM.
  • NOTE: Please allow a 5 to 10 day delay for 2x6 option to be completed.
What's Included
  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.

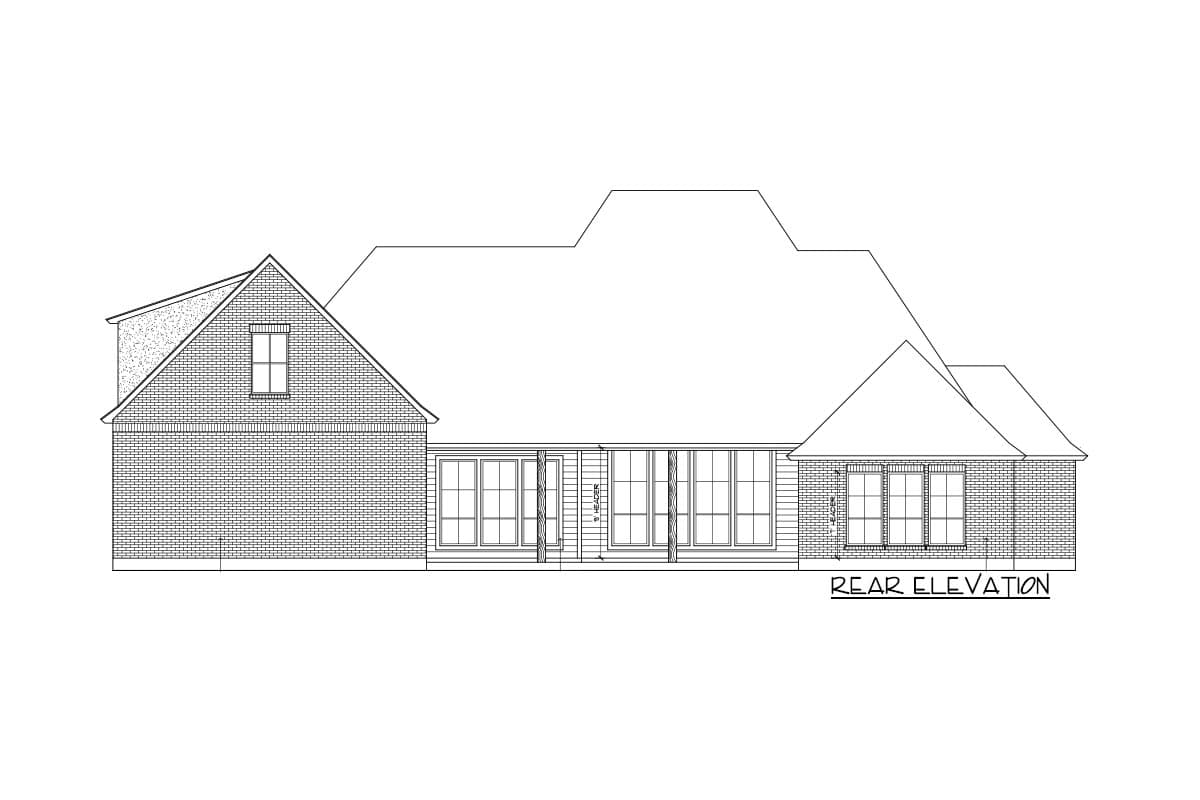

  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,605 sq. ft.

1st Floor

2,605 sq. ft.

Bonus

687 sq. ft.

Porch, Front

32 sq. ft.

Porch, Rear

299 sq. ft.

Entry

47 sq. ft.

Storage

280 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

78' 3"

Depth

71' 5"

Max Ridge Height

29' 11"

Garage

Type

Attached

Area

693 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

9 on 12

Architectural Style

Acadian

European

French Country

Louisiana

Southern

Special Features

Bedrooms - Clustered

Bonus Room

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery
