Plan 600002PDZ

Exclusive

4-Bed Barndominium House Plan with Wrap Around Porch - 2609 Sq Ft
Heated S.F.
2,609
Beds
4
Baths
3.5
Stories
2
Cars
4
Tour
Floor Plan

Plan 600002PDZ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 600002PDZ

1-800-854-7852

1-262-521-4596

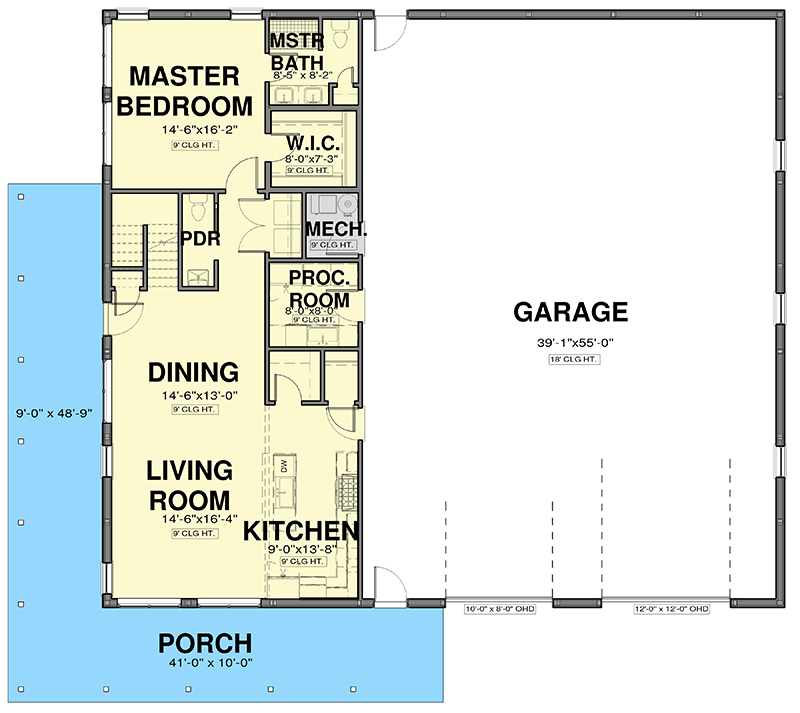

Main Level
floor plan image Main Level

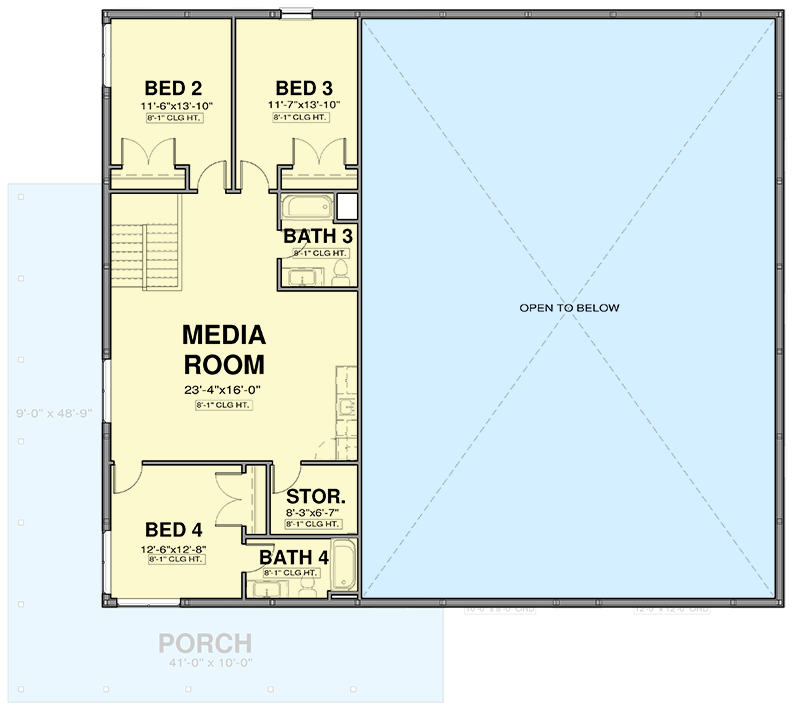

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This barndominium house plan offers you 2,609 square feet of heated living space, 4 beds, 3.5 baths, and a 2,220 square foot 4-car garage.
  • This plan is designed for Post-Frame construction, and we offer conversion into conventional wood framing with 2x4 or 2x6 exterior walls.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover Page
  • Concrete/Foundation Plan
  • Lower Level Framing Plan (If applicable)
  • Main Level Framing Plan
  • Second Level Framing Plan (If applicable)
  • Roof Plan
  • Front & Rear Exterior Elevations
  • Left & Right Exterior Elevations
  • Stair Plan
  • Deck Plan (If applicable)
  • Enlarged Kitchen Plans & Elevations
  • Enlarged Plans & Elevations
  • Framing Details
  • Floor Finish Plans
  • Isometric Views
  • Electrical Plans
What's Not Included
Document
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
  • Materials list - MAY be available as a purchasable option under the "Options" tab
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,609 sq. ft.

1st Floor

1,342 sq. ft.

2nd Floor

1,267 sq. ft.

Porch, Combined

659 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Post-Frame

Optional Type(s)

2x6

Dimensions

Width

64' 0"

Depth

56' 0"

Max Ridge Height

31' 9"

Garage

Type

Attached, RV Garage

Area

2220 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8' 1"

Architectural Style

Barndominium

Country

New American

Special Features

Bedrooms - Split

Laundry - Main Level

Loft

Master Suite - 1st Floor

Media Room

Safe Room

Wet Bar

Wrap Around Porch

Plan Collections

Exclusive

Post-Frame

Square Footage Breakdown

Total Heated Area

2,609 sq. ft.

1st Floor

1,342 sq. ft.

2nd Floor

1,267 sq. ft.

Porch, Combined

659 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Post-Frame

Optional Type(s)

2x6

Dimensions

Width

64' 0"

Depth

56' 0"

Max Ridge Height

31' 9"

Garage

Type

Attached, RV Garage

Area

2220 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8' 1"

Architectural Style

Barndominium

Country

New American

Special Features

Bedrooms - Split

Laundry - Main Level

Loft

Master Suite - 1st Floor

Media Room

Safe Room

Wet Bar

Wrap Around Porch

Plan Collections

Exclusive

Post-Frame
