Plan 28122J
4 Bed Board and Batten Craftsman House Plan Under 2400 Square Feet
Heated S.F.
2,353
Beds
4
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 28122J

Main Level
slide image 0
2nd Floor
slide image 1

Plan 28122J

1-800-854-7852

1-262-521-4596

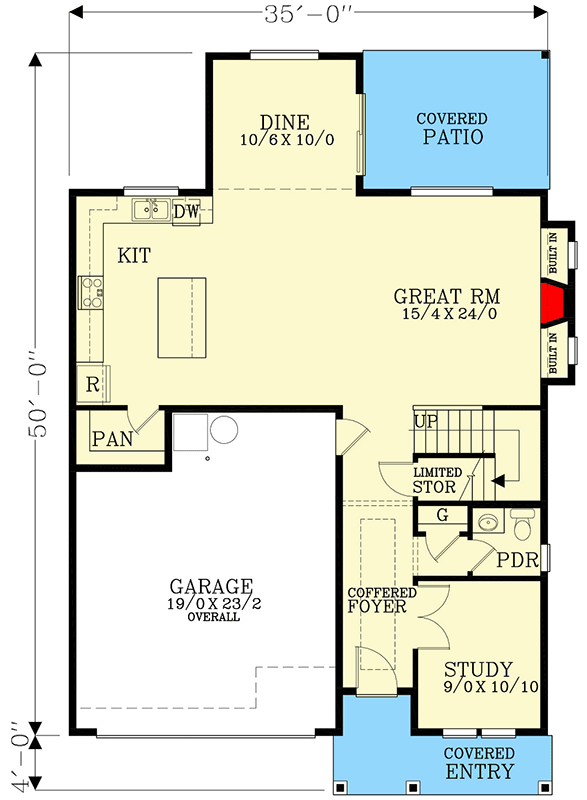

Main Level
floor plan image Main Level

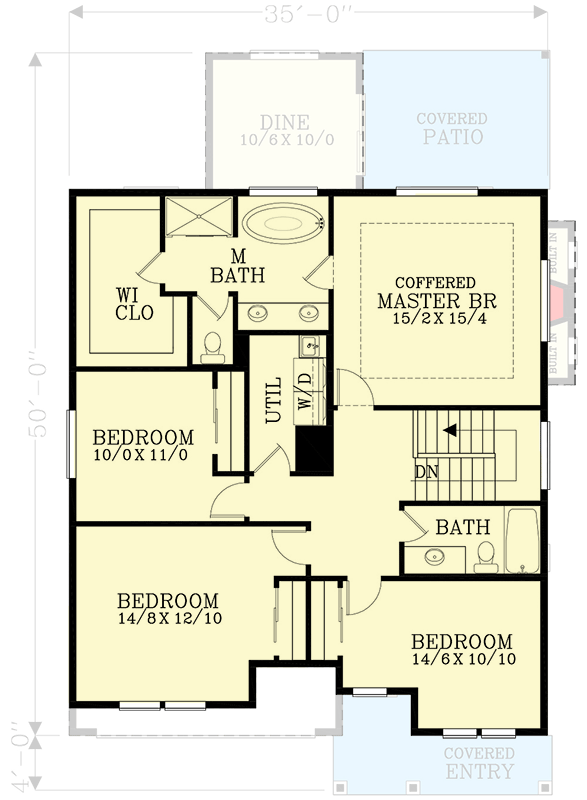

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Board and batten siding and a metal shed roof gives this 4 bed, 2.5 bath Craftsman house plan great curb appeal. Inside, the home gives you 2,353 square feet of heated living space spread over two floors.
  • A covered porch invites you inside to find a study behind French doors. Entry from the double garage is a few steps further, and a powder bath and coat closet are conveniently close by.
  • The remainder of the main level is open to one another with the great room, dining area, and kitchen enjoying rearward views.
  • A prep island in the kitchen includes a breakfast bar and the pantry is just steps away.
  • Four bedrooms surround the central laundry room upstairs, and a kid's study is nestled in between the family bedrooms.
  • Related Plan: Get an alternate version with house plans 28072J and 28073J.
What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,353 sq. ft.

1st Floor

1,091 sq. ft.

2nd Floor

1,262 sq. ft.

Porch, Front

75 sq. ft.

Porch, Rear

135 sq. ft.

Porch, Combined

210 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

35' 0"

Depth

50' 0"

Max Ridge Height

27' 1"

Garage

Type

Attached

Area

465 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

New American

Northwest

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Den

Flex Room

Home Office

Laundry - Upstairs

Library/Study

Master Suite - 2nd Floor

Plan Collections

Home Office
