Plan 666090RAF

4-Bed Contemporary House Plan with Lower-Level Apartment

Heated S.F.

4,260

Beds

6

Baths

3.5

Stories

2

Cars

2

Floor Plan

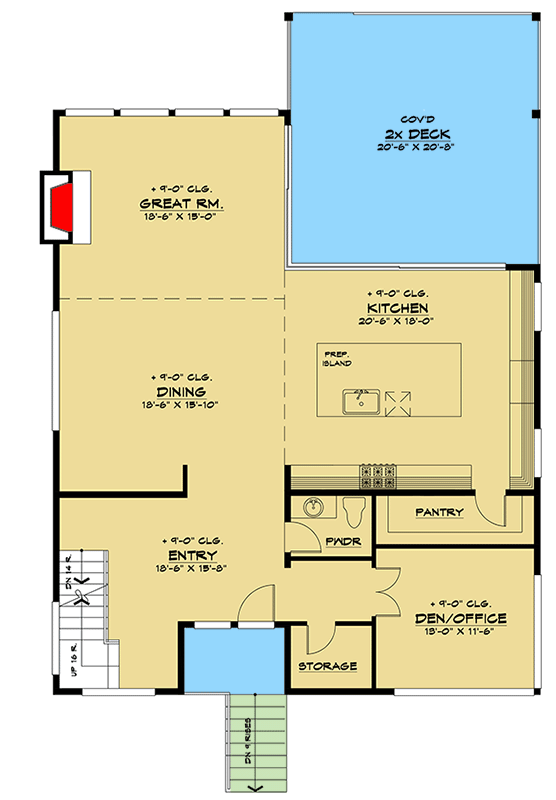

Main Level

floor plan image Main Level

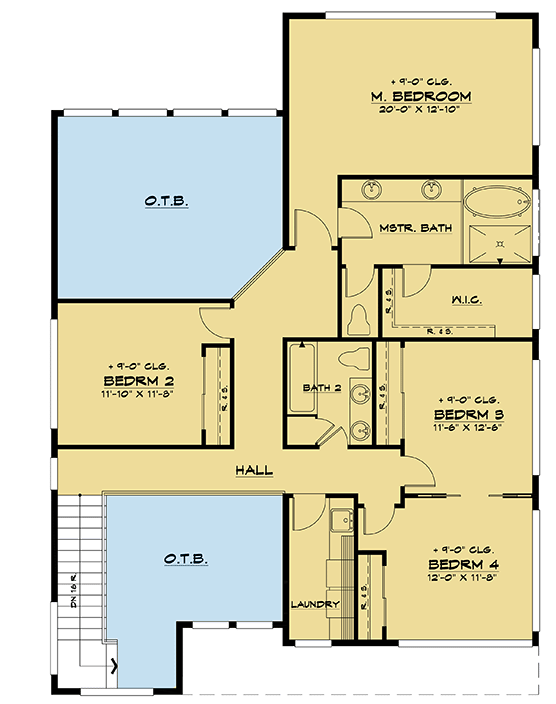

2nd Floor

floor plan image 2nd Floor

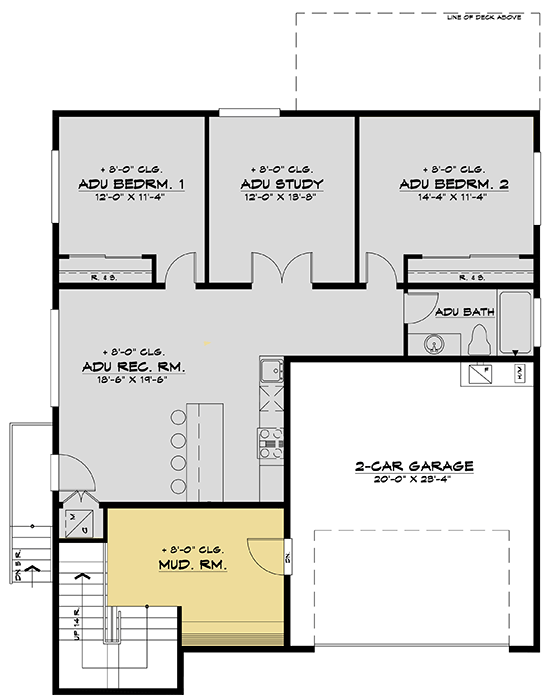

Lower Level

floor plan image Lower Level

Plan Details

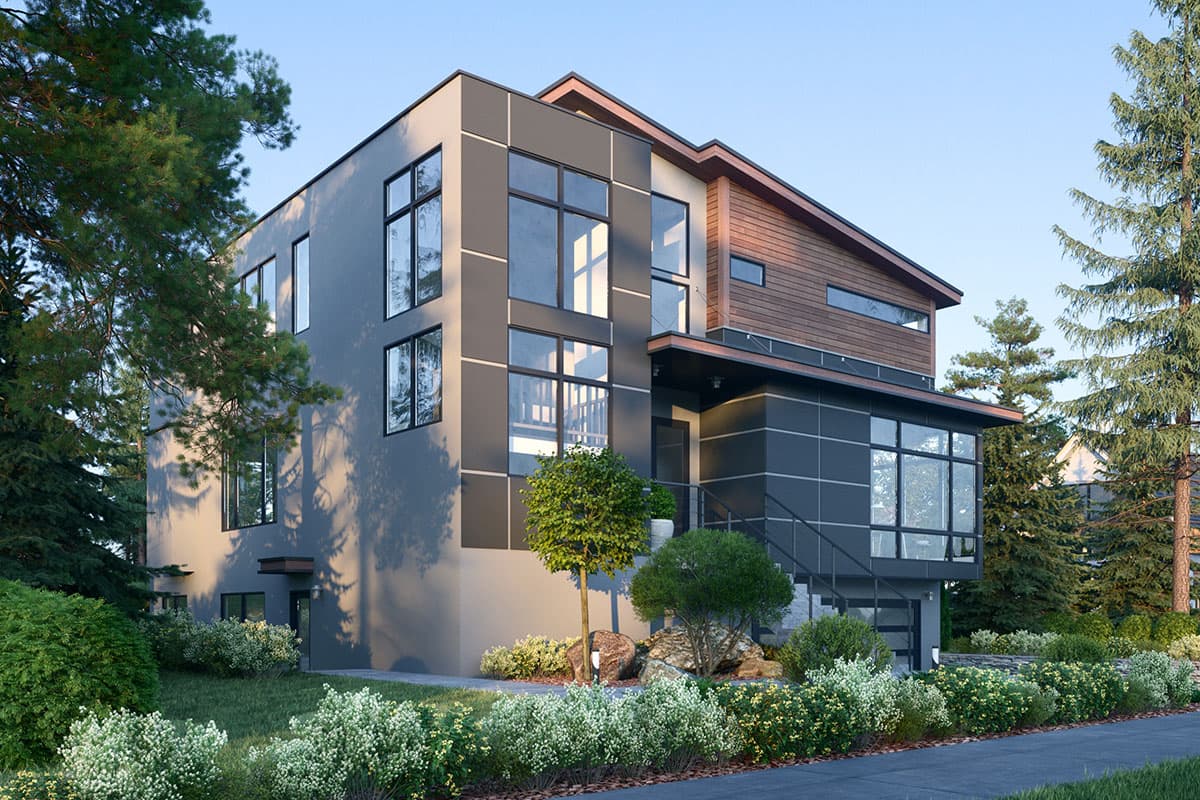

This contemporary house plan boldly rises from the ground and presents a lean-to and flat roof combo, as well as oversized windows to maximize access to natural light.
The lower level features an optional in-law suite, or income property, with a private entrance, two bedrooms, home office, and recreation room with a kitchen; a total of 999 square feet.

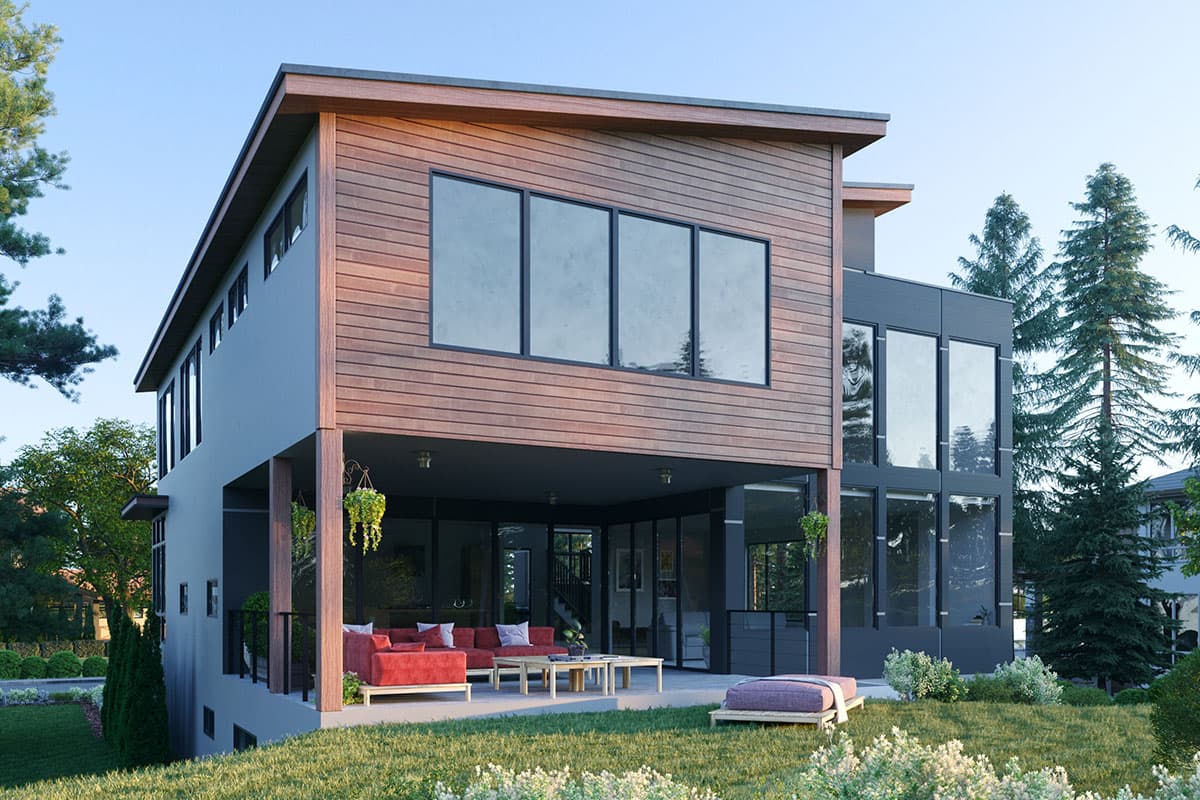

On the main level, discover a powder bath and coat closet near the entry, while French doors lead to a den, or home office. The heart of the home is completely open to one another, with retractable walls providing a seamless flow onto the covered deck.
The massive prep island gives the homeowner ample workspace in the kitchen, and the adjacent pantry lends plenty of storage space.
Upstairs, four sizable bedrooms can be found, with the largest reserved for the homeowner. The laundry room resides across from a 4-fixture bath, which the three secondary bedrooms share.

Build Gallery

See and hear from existing customers with real photos, videos, and reviews.

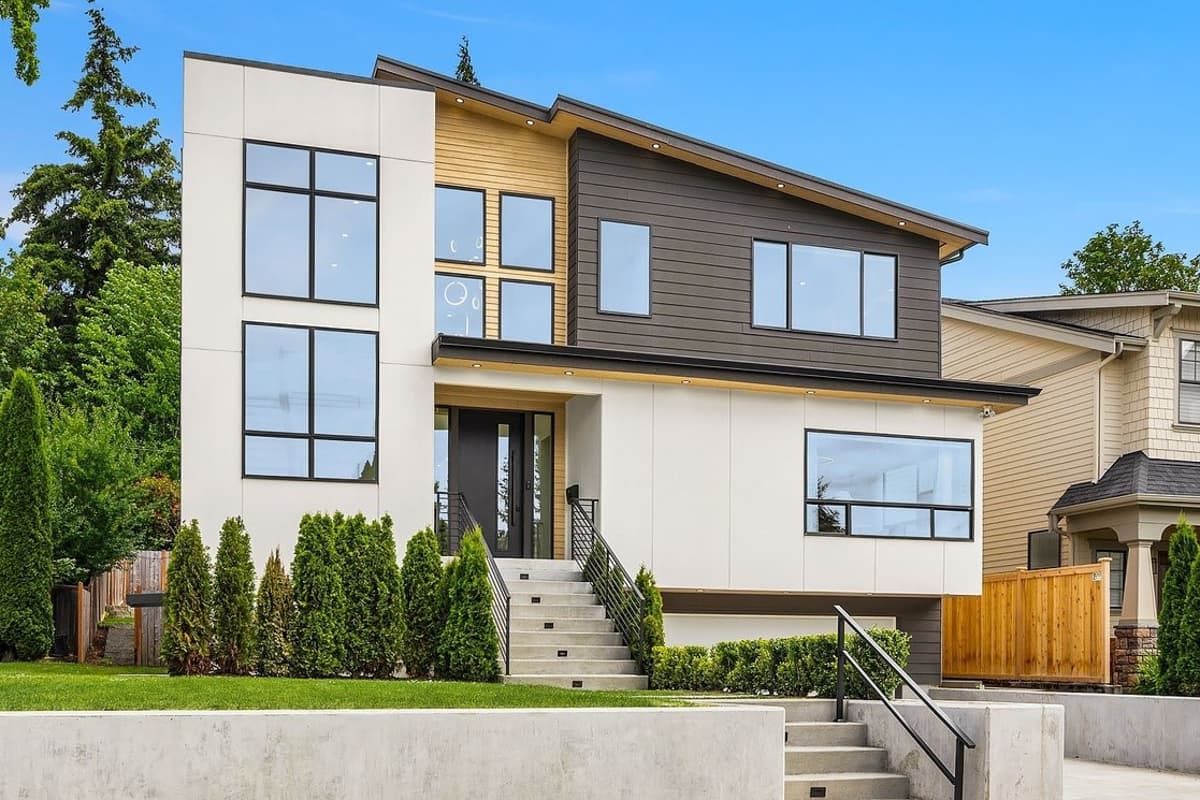

build gallery item - Contemporary House Plan 666090RAF Comes to Life in Washington

Contemporary House Plan 666090RAF Comes to Life in Washington

33

Photos

What's Included

Cover Sheet with plan info
General Notes - Note: codes will not include local state adopted amendments
Fully dimensions and detailed floor plans
Elevations
Building Cross Section
Roof Plan
Details
Window Schedule
Original Structural plan FOR REFERENCE ONLY

What's Not Included

Architectural or Engineering Stamp - handled locally when required
Site plans - handled locally - handled locally when required
Mechanical Drawings - handled locally when required
Plumbing Drawings - handled locally when required
Electrical Drawings - handled locally when required
Energy Calculations - handled locally when required
Foundation and Framing plans - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

4,260 sq. ft.

Lower Level

1,208 sq. ft.

1st Floor

1,621 sq. ft.

2nd Floor

1,431 sq. ft.

Porch, Combined

45 sq. ft.

Deck

427 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Daylight, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

56' 0"

Max Ridge Height

35' 0"

Garage

Type

Drive Under

Area

511 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 2nd Floor

Two Story Great Room

Plan Collections

Attached Apartments

Multi-Generational
