Plan 810033RBT

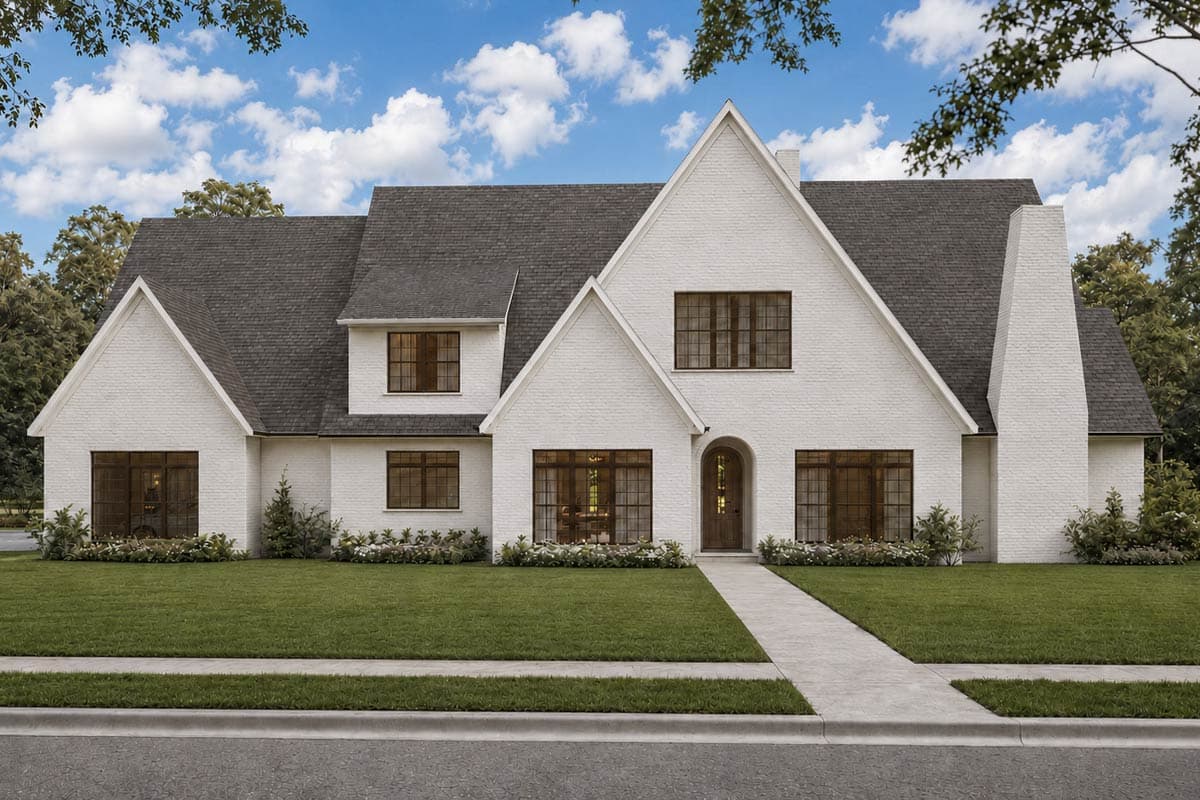

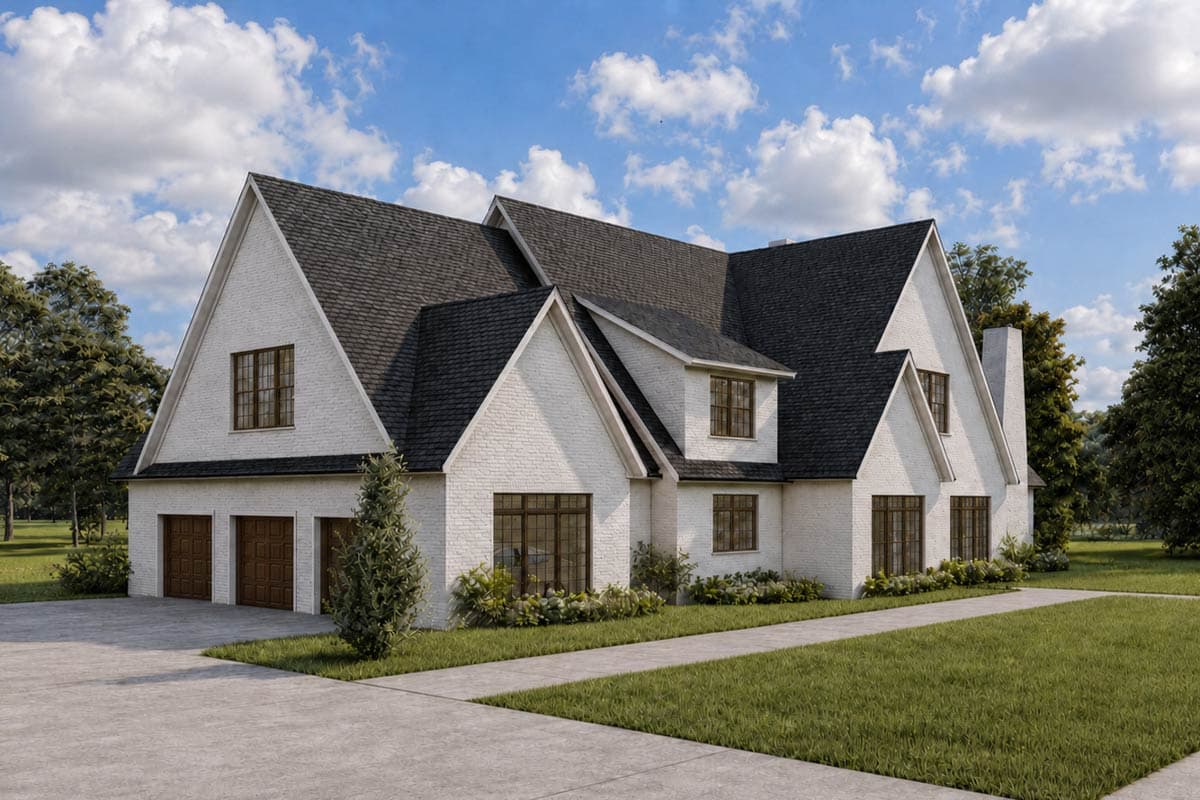

4-Bed Contemporary Transitional House Plan with Outdoor Living Space - 4500 Sq Ft
Heated S.F.
4,500
Beds
4
Baths
4.5
Stories
2
Cars
3
Floor Plan

Plan 810033RBT

Main Level
slide image 0
2nd Floor
slide image 1

Plan 810033RBT

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This transitional house plan gives you 4,500 square feet of heated living space with 4 beds, 4.5 baths and a 1,000 square foot garage with space for 3 vehicles.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get a smaller version with house plan 810030RBT (3,250 sq. ft.).
What's Included
  • Cover page with area tabulation notes and specifications
  • Foundation plan and details
  • Floor plans
  • Roof plan
  • Exterior elevations
  • Kitchen plan and interior elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,500 sq. ft.

1st Floor

2,445 sq. ft.

2nd Floor

2,055 sq. ft.

Bonus

475 sq. ft.

Porch, Front

32 sq. ft.

Covered Patio

673 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

90' 0"

Depth

55' 4"

Max Ridge Height

39' 1"

Garage

Type

Attached

Area

1000 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

16 on 12

Architectural Style

Contemporary

New American

Transitional

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Den

Formal Dining

Game/Rec Room

Home Office

In-Law Suite

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Master Suite - 2nd Floor

Media Room

Mudroom

Outdoor Fireplace

Outdoor Kitchen

Playroom

Two Master Suites
