Plan 710291BTZ
4-Bed Cottage-Style House Plan with Upstairs Entertainment Room
Heated S.F.
3,088
Beds
4
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 710291BTZ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 710291BTZ

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level

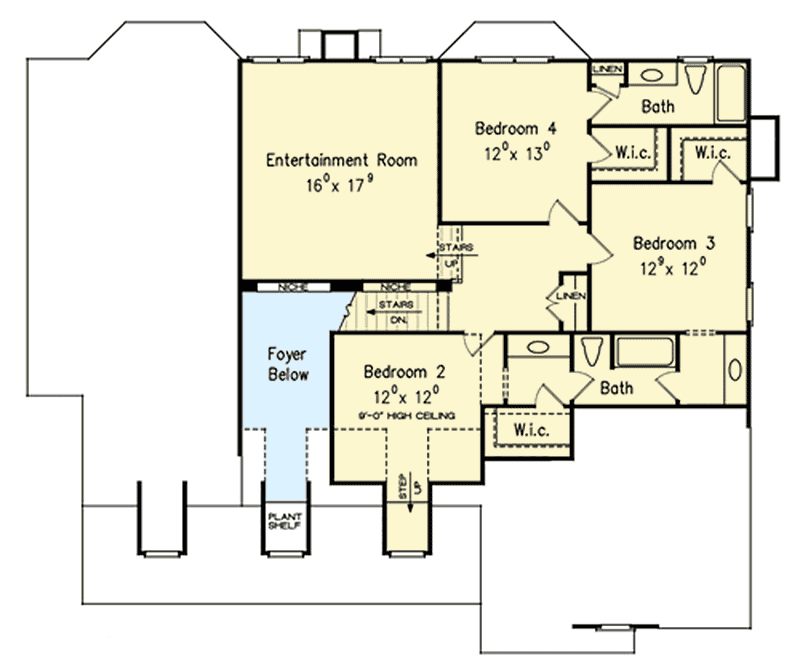

2nd Floor
floor plan image 2nd Floor
Plan Details

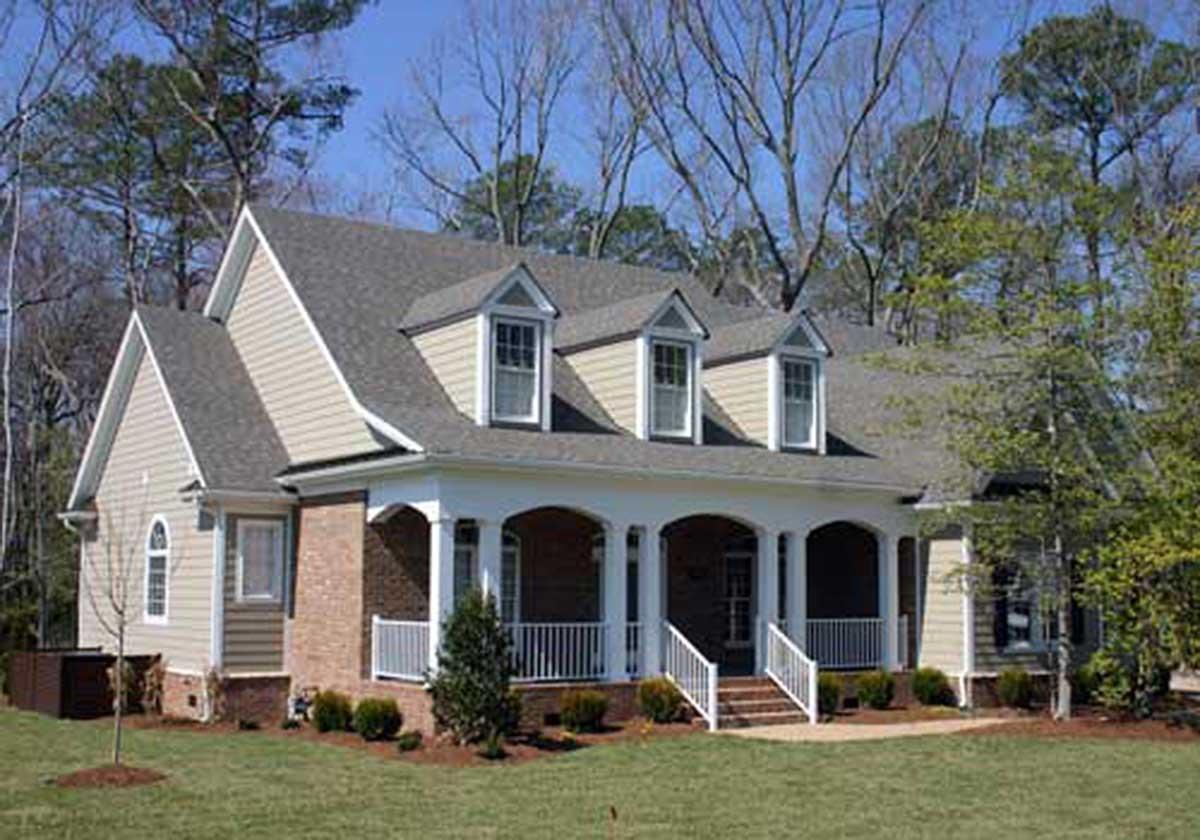

  • Lattice accents and three dormers accent the exterior of this 4-bed house plan. Its cottage-style appeal is friendly and welcoming, with a covered front porch to greet guests and homeowners.
  • The kitchen, breakfast area and keeping room gently combine into one common space, making it the center point of the home where family and friends gather.
  • Radius windows in the family room let plenty of sunshine in. Decorative art niches line the stairway to the upper level creating great decorating opportunities.
  • The main floor master suite has a bayed sitting area and a large walk-in closet.
  • The entertainment room upstairs gives children their own designated space to play games or spend time with friends.
  • Related Plan: Get an alternate exterior with house plan 710260BTZ.
What's Included
  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,088 sq. ft.

1st Floor

1,866 sq. ft.

2nd Floor

1,222 sq. ft.

Basement Unfinished

1,866 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

62' 4"

Depth

51' 6"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

549 sq. ft.

Count

2 Cars

Entry Location

Side

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Special Features

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Plan Collections
