Name: Plan 23286JD: 4-Bed Craftsman House Plan with 3-Car Angled Garage
SKU: 23286JD
Price: 2700.0 USD
Availability: InStock

Plan 23286JD

4-Bed Craftsman House Plan with 3-Car Angled Garage

Heated S.F.

4,970

Beds

Baths

4.5

Stories

Cars

Floor Plan

Main Level

Lower Level

Plan Details

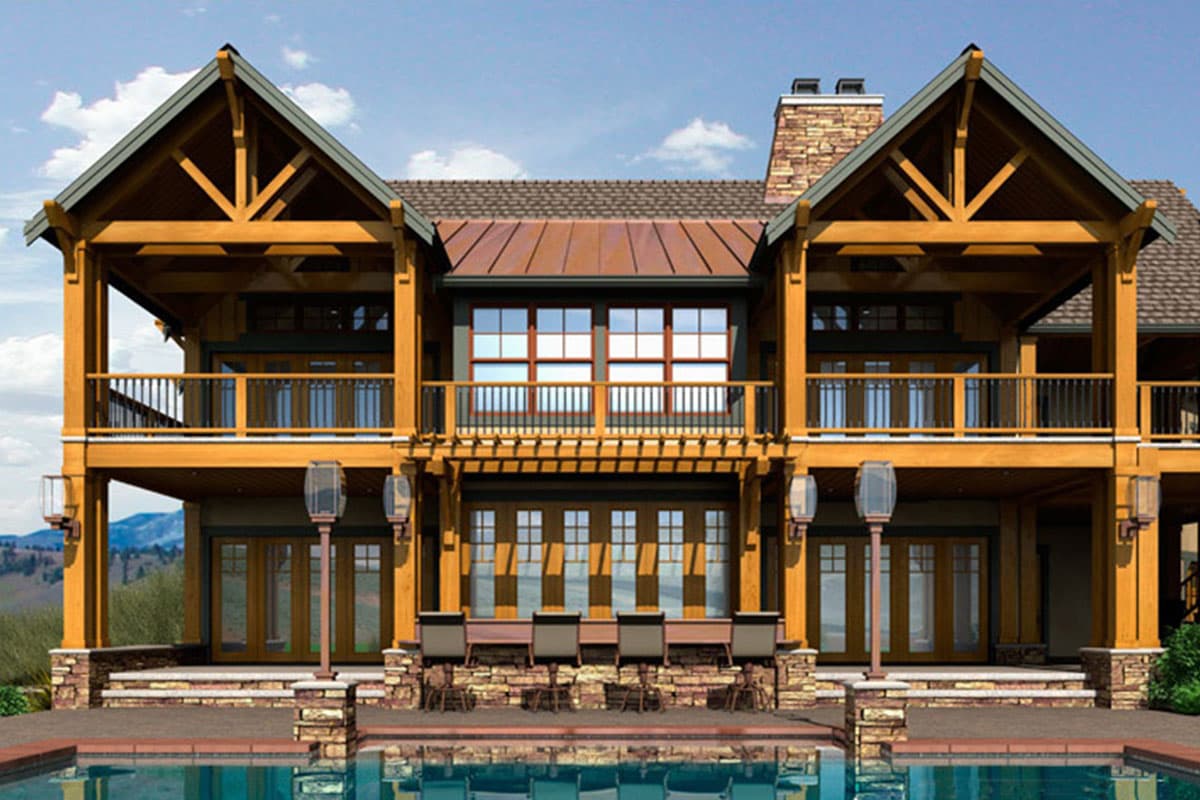

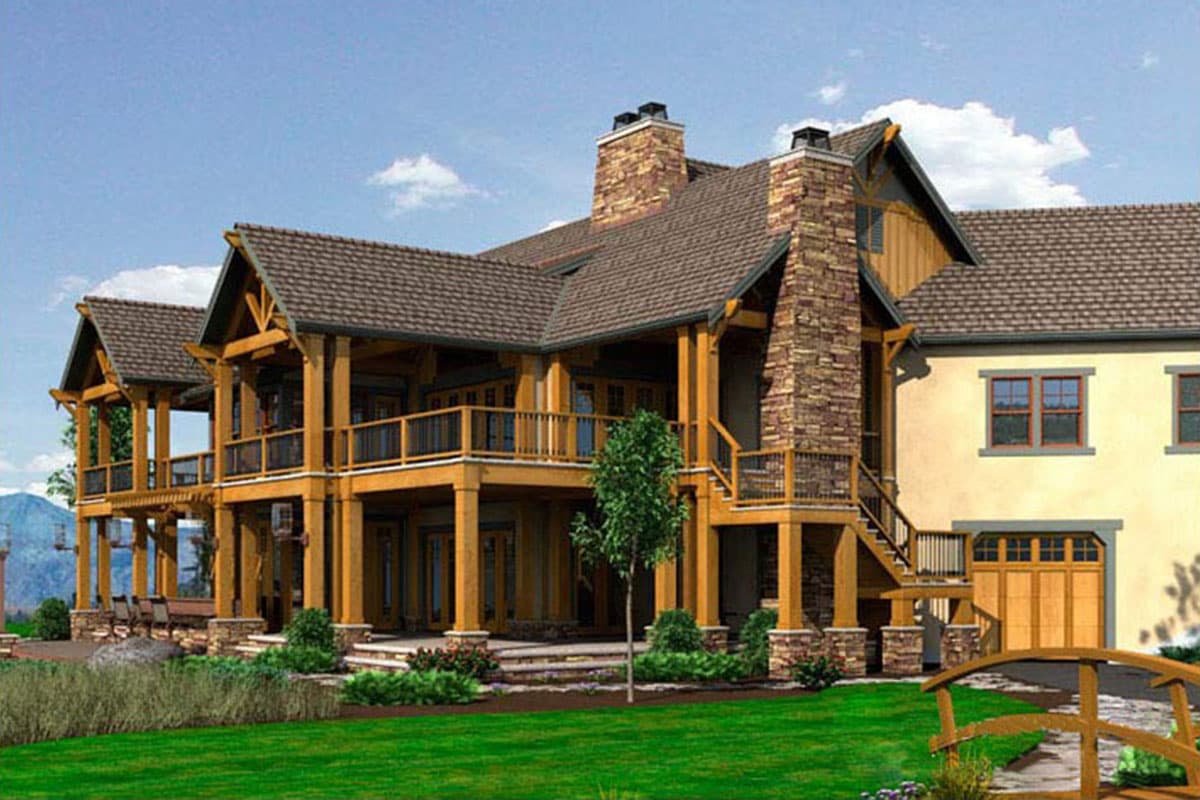

Take advantage of your rear view lot with this extraordinary house plan. Extensive rear decks, both covered and open, plus a glass-enclosed nook bring the views pouring in.
Note the extensive use of Nanawall systems. These enable you to pull back walls and literally remove the barrier between the outdoors and the indoors. The vaulted great room could be opened on three sides, two to the fresh air.
The vaulted foyer has views through the nook in back. And the kitchen has a very open feel.
The master suite has Nanawall access to a rear covered deck. A guest suite in front can also be used as a study.
You'll find a loaded lower level with a surprise 4th garage which can also be used as storage. Nanawalls are used extensively here as well. Note the bar with seating on two sides. An open game and media room, two bedrooms plus storage complete this level.
NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

What's Included

Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

What's Not Included

Electrical Plan - handled by your subcontractor to match your individual needs
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
