Plan 69001AM
4-Bed Craftsman House Plan with Vaulted Master Suite
Heated S.F.
2,453
Beds
4
Baths
2.5
Stories
2
Cars
2
Photos
Floor Plan

Plan 69001AM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 69001AM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

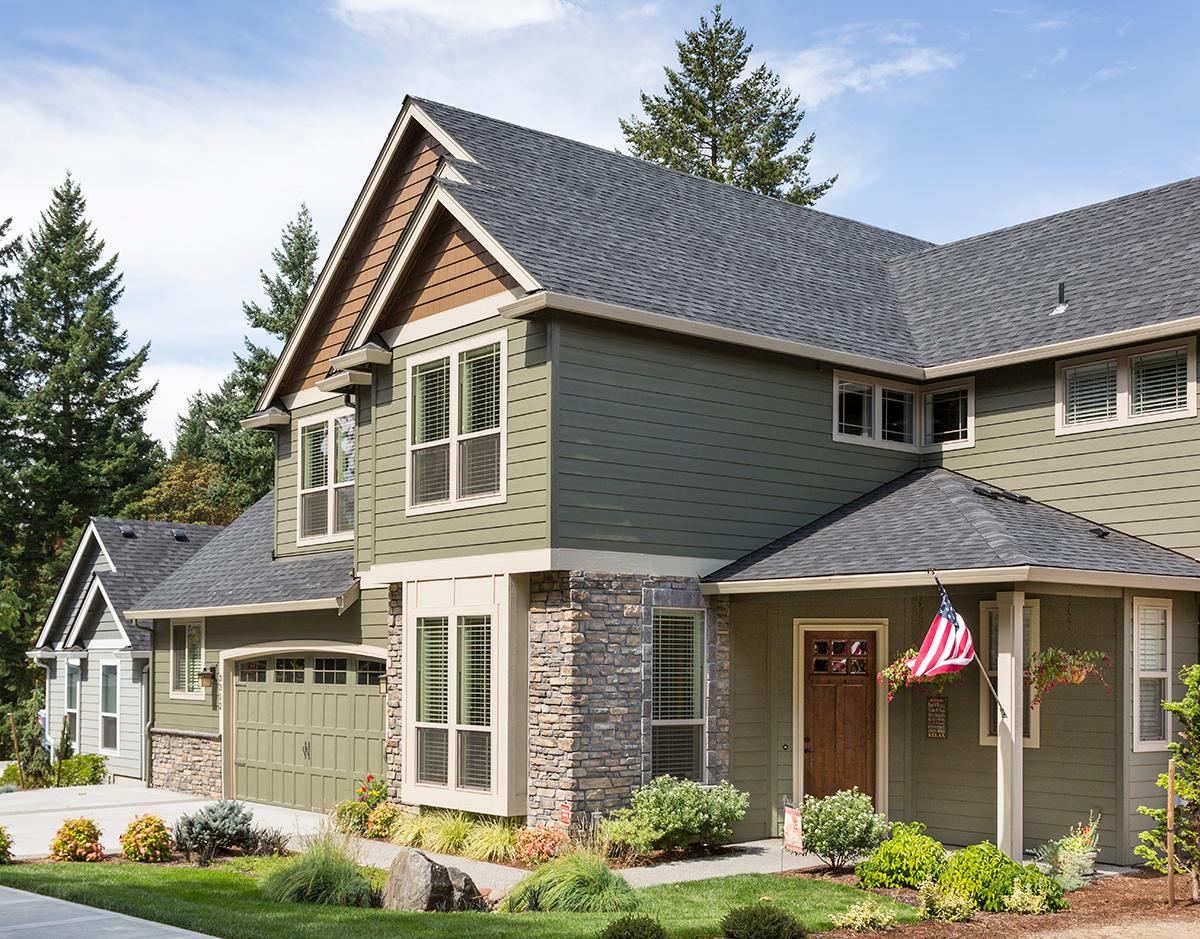

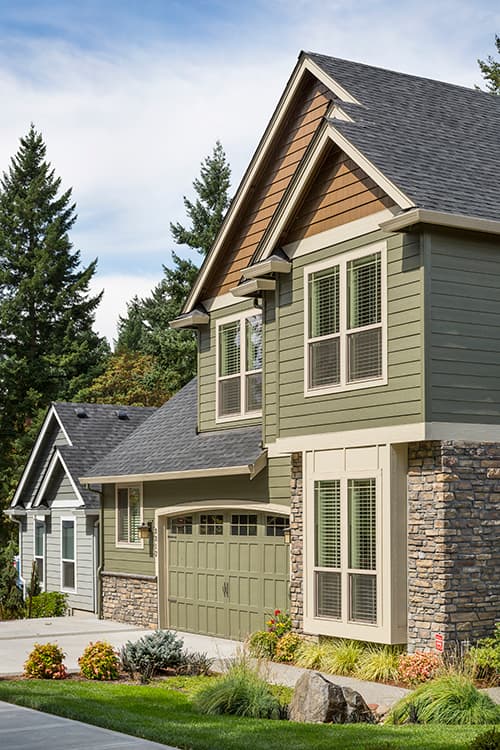

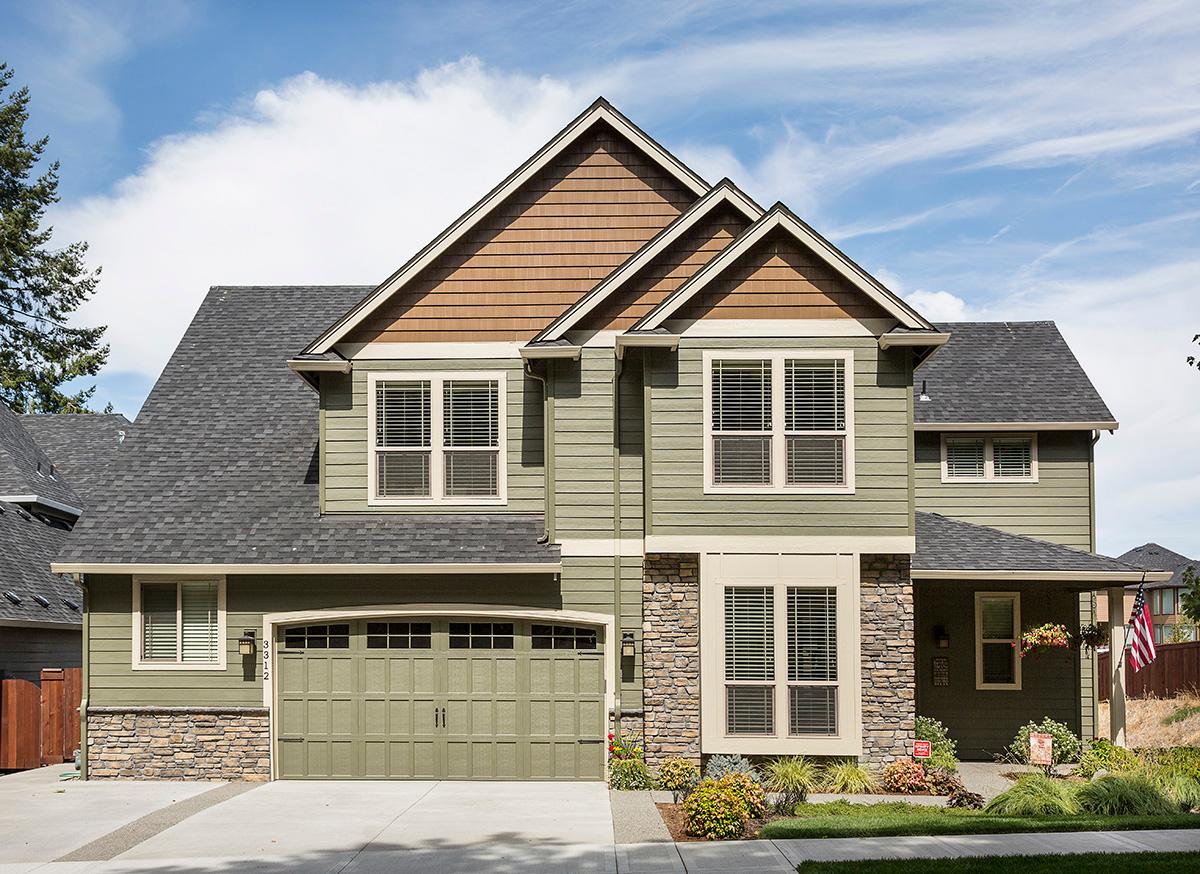

  • The perfect size home plan and a pretty facade add up to a great home plan for your family. The combination of wood siding and stone complements a carriage-style garage door and cedar shingle detailing on the outside of this home.

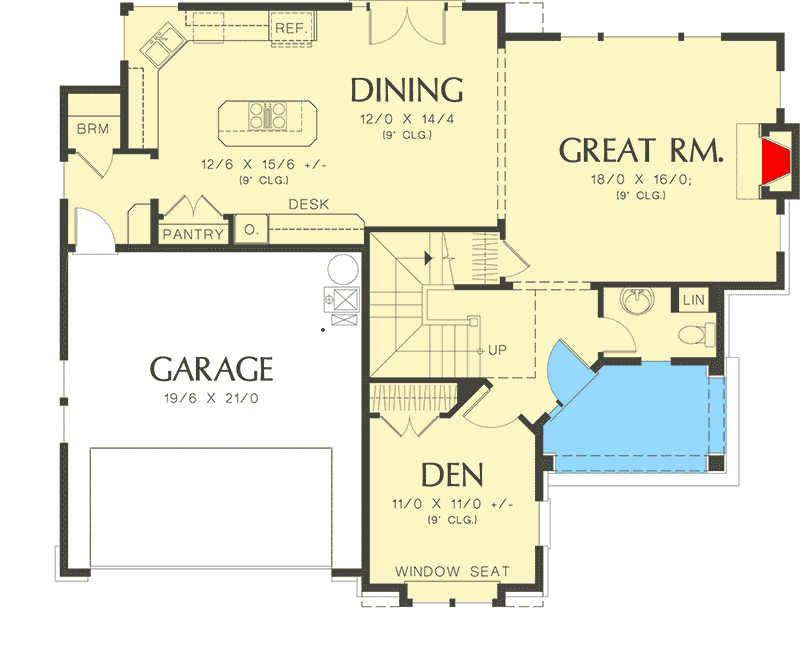

  • The interior opens though an angled front entry with den on the left and a half-bath on the right. The den has a comfortable window seat for dreaming and gazing. The back of the main level is lined with an open living/dining area. The great room has a window-flanked fireplace. The dining area adjoins an island kitchen, which has a roomy pantry and built-in desk. Access to the two-car garage holds a convenient broom closet.

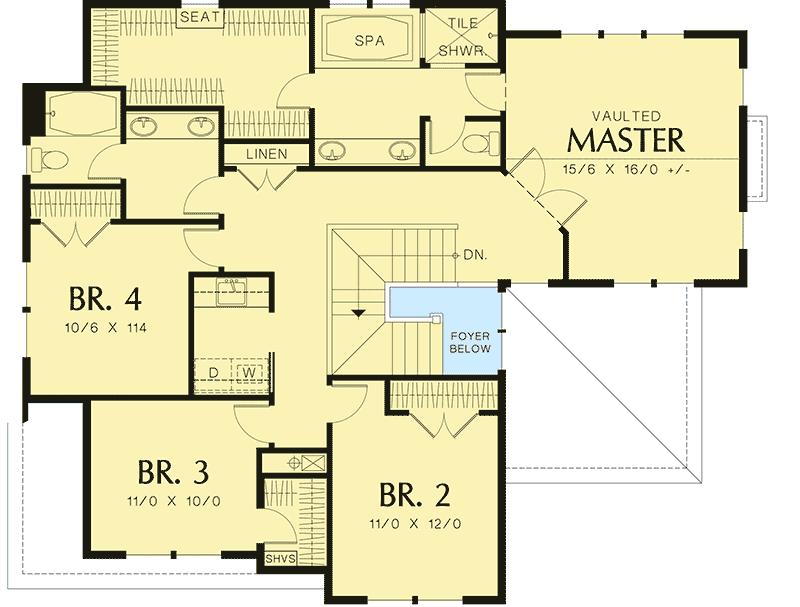

  • Bedrooms are on the upper level. They include a vaulted master suite with spa bath, walk-in closet with window seat, and separate tub and shower. Bedroom 3 also has a walk-in closet. The laundry sits on the upper level to make wash day trouble free.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 69001AM Comes To Life In Oregon!

House Plan 69001AM Comes To Life In Oregon!

23

Photos

What's Included

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
  • Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
  • IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.
  • Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
  • Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,453 sq. ft.

1st Floor

1,118 sq. ft.

2nd Floor

1,335 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

40' 0"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

430 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Clustered

Den

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,453 sq. ft.

1st Floor

1,118 sq. ft.

2nd Floor

1,335 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

40' 0"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

430 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Clustered

Den

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

Photo Gallery
