Plan 64406SC
4 Bed Craftsman with Options
Heated S.F.
2,901
Beds
4
Baths
3.5
Stories
2
Cars
3
Photos
Floor Plan

Plan 64406SC

Main Level
slide image 0
2nd Floor
slide image 1
Unfinished Basement
slide image 2

Plan 64406SC

1-800-854-7852

1-262-521-4596

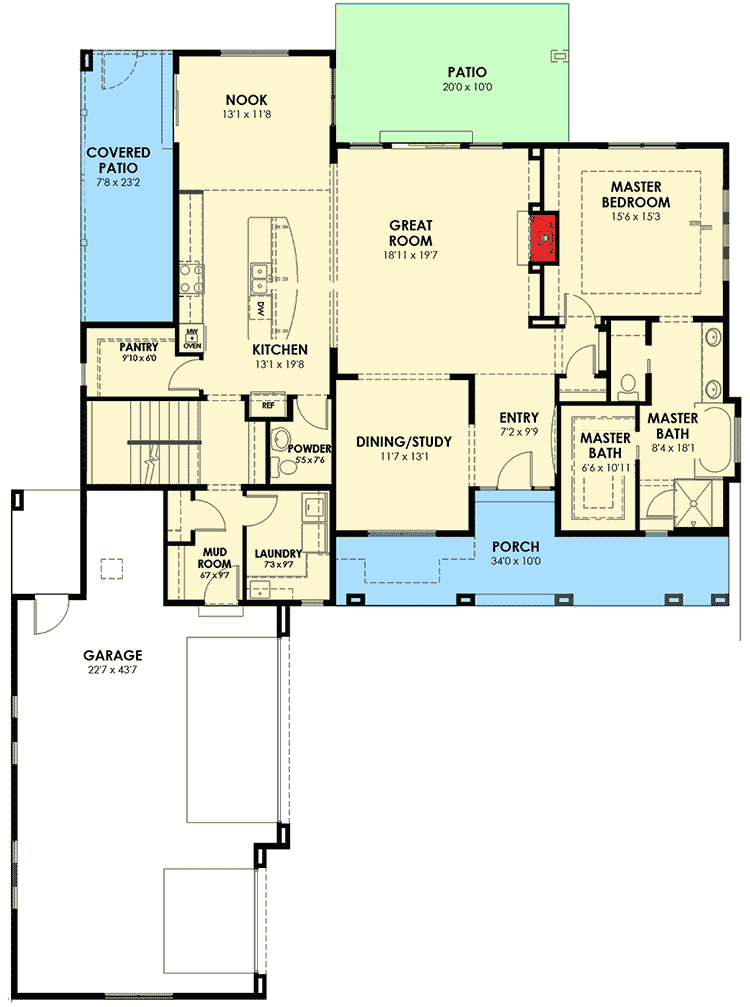

Main Level
floor plan image Main Level

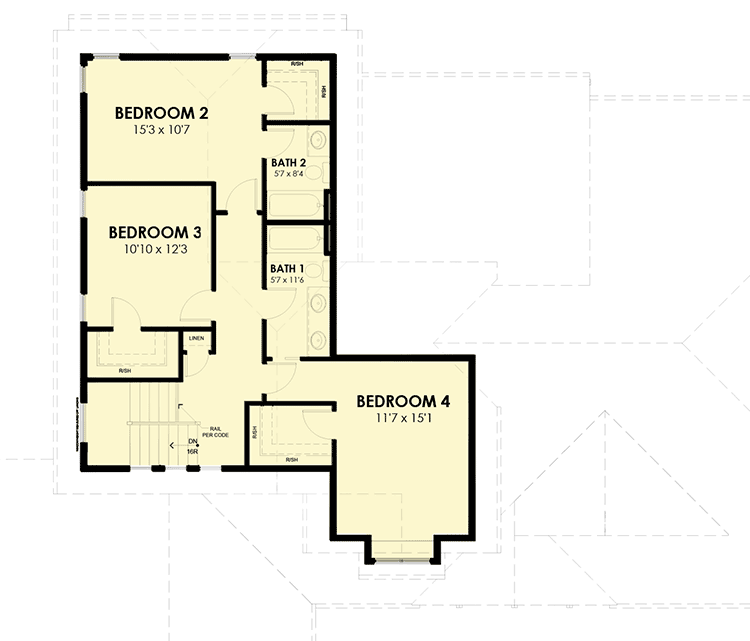

2nd Floor
floor plan image 2nd Floor

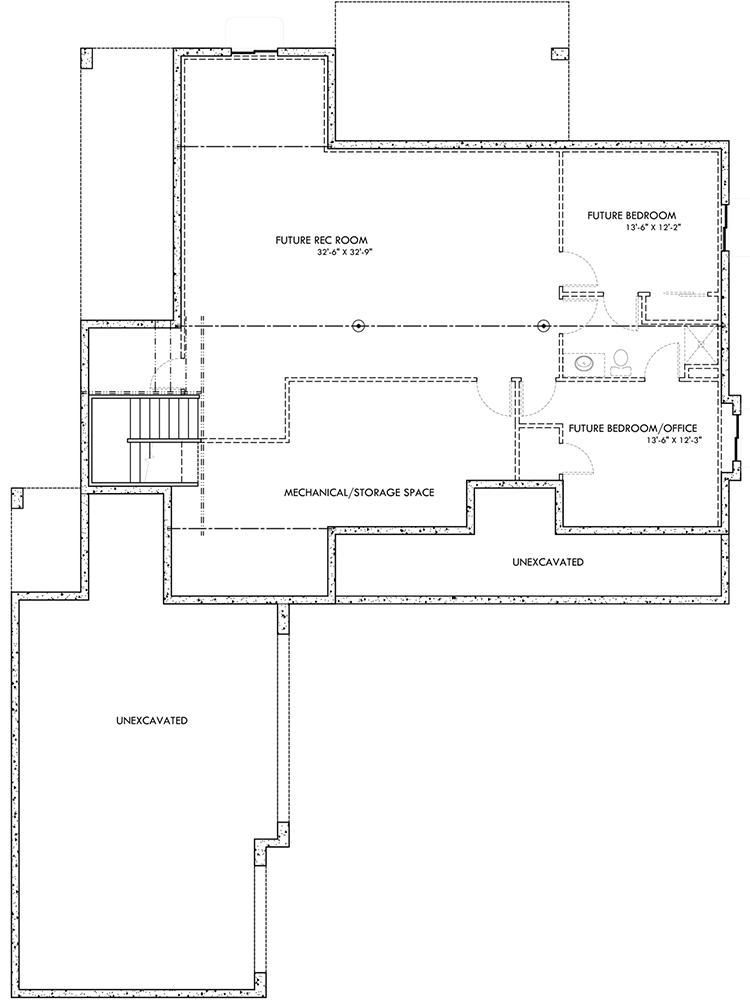

Unfinished Basement
floor plan image Unfinished Basement
Plan Details
  • This master-on-main Craftsman house plan gives you a total of 4 beds and 3.5 baths and has a sister plan giving you an alternate exterior option.

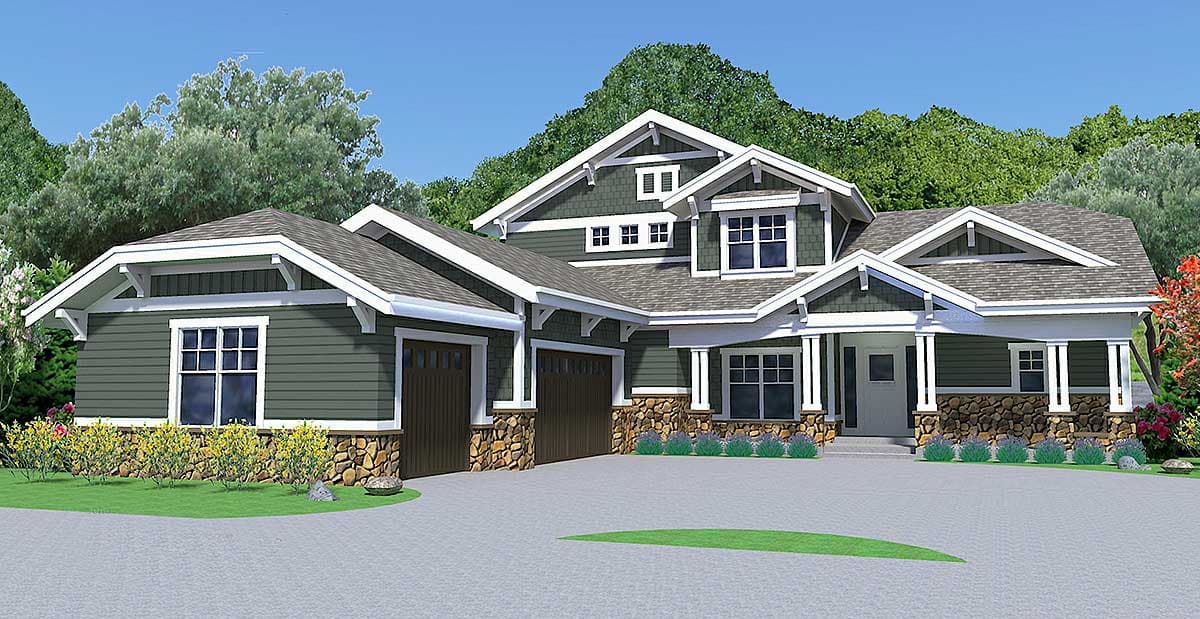

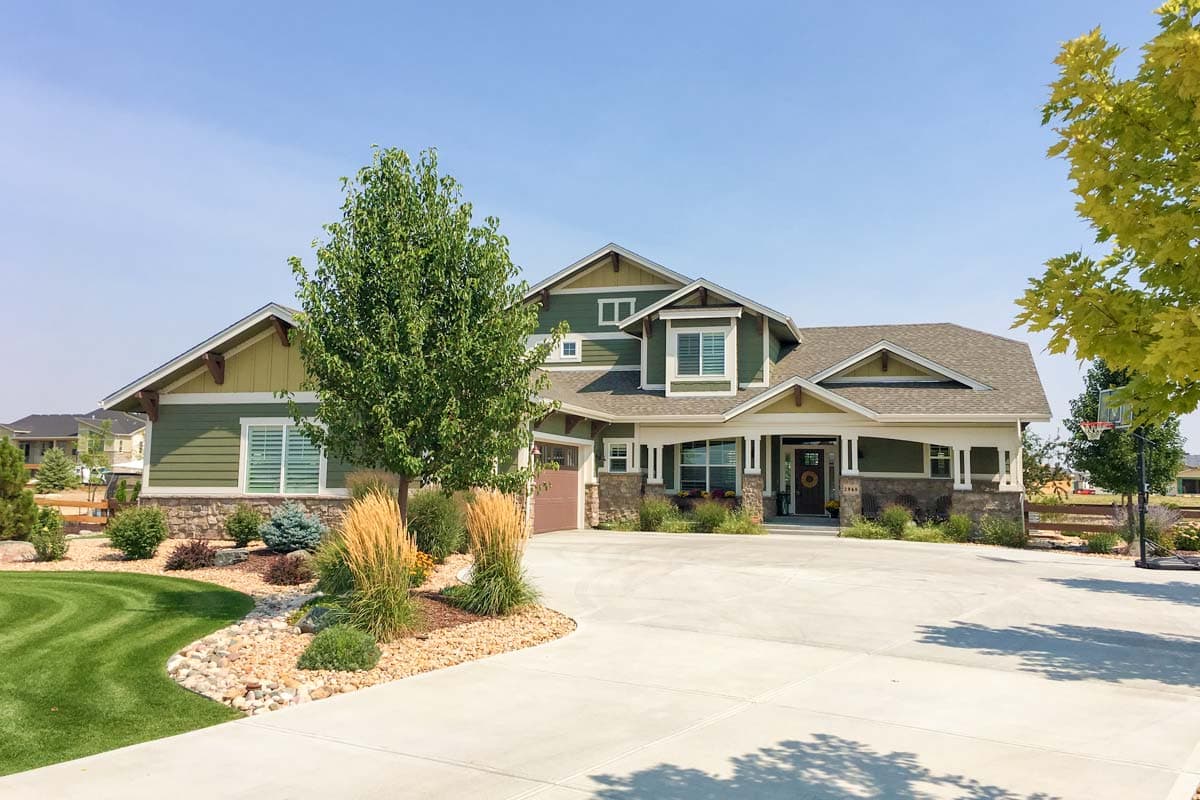

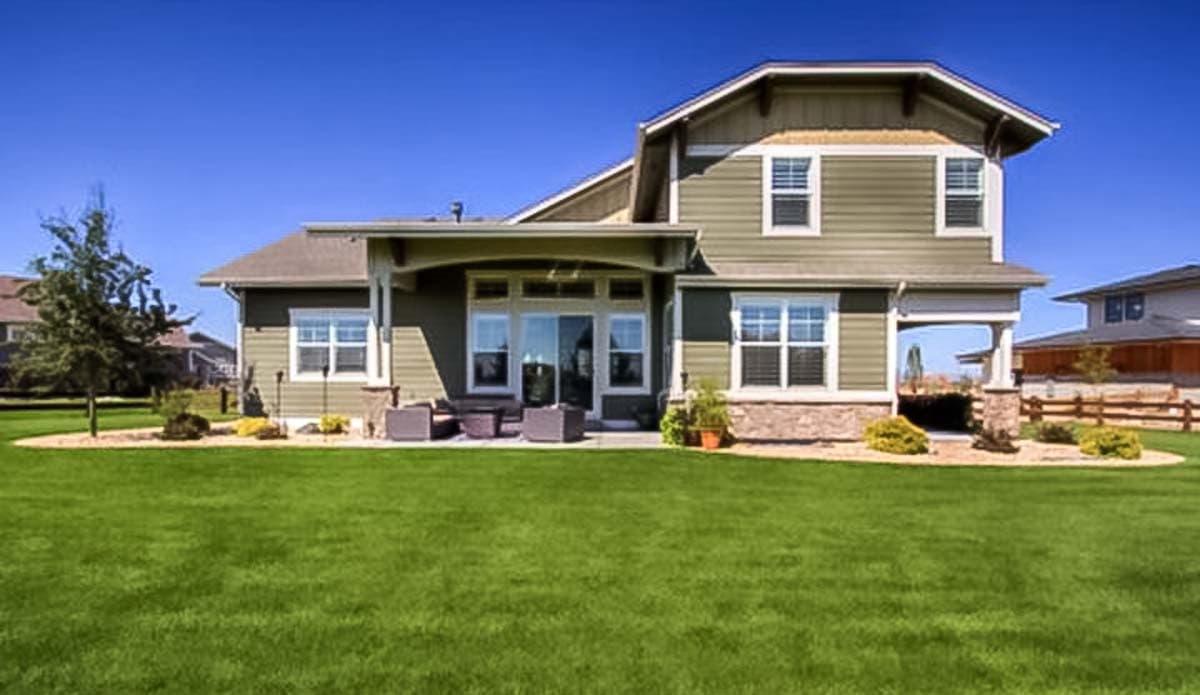

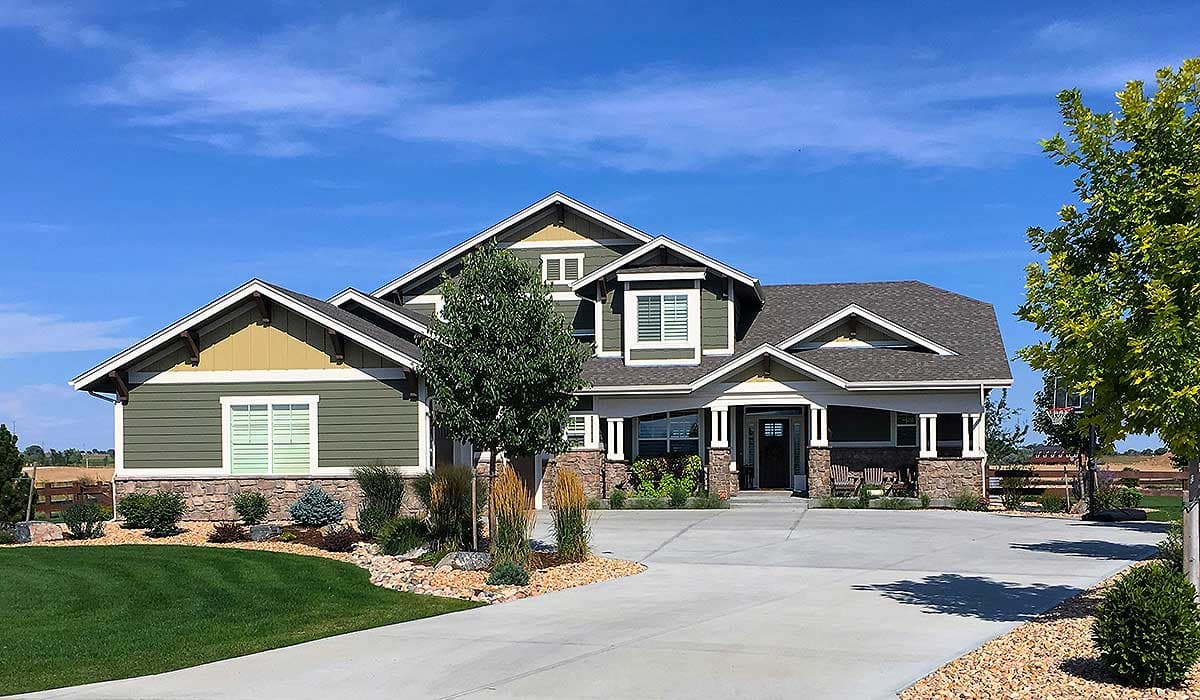

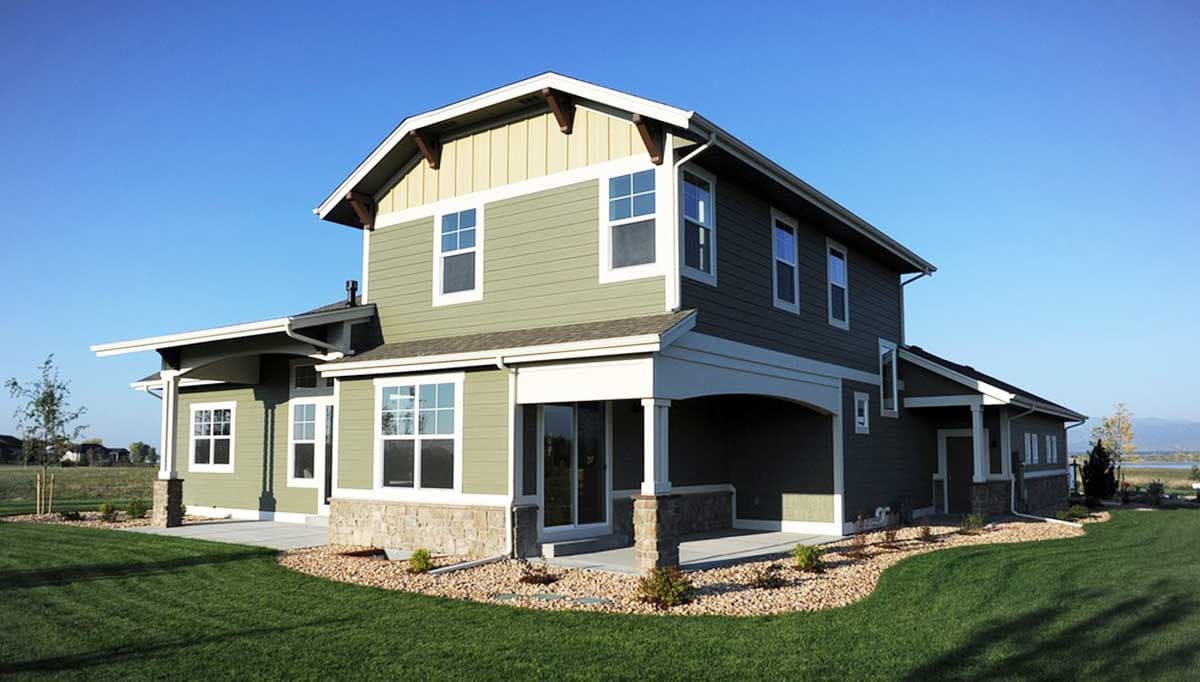

  • A 34'-wide front porch greets you and at 10'-deep, gives you room for furniture. There is also a side porch and a large patio in back giving you more places to enjoy the fresh air.

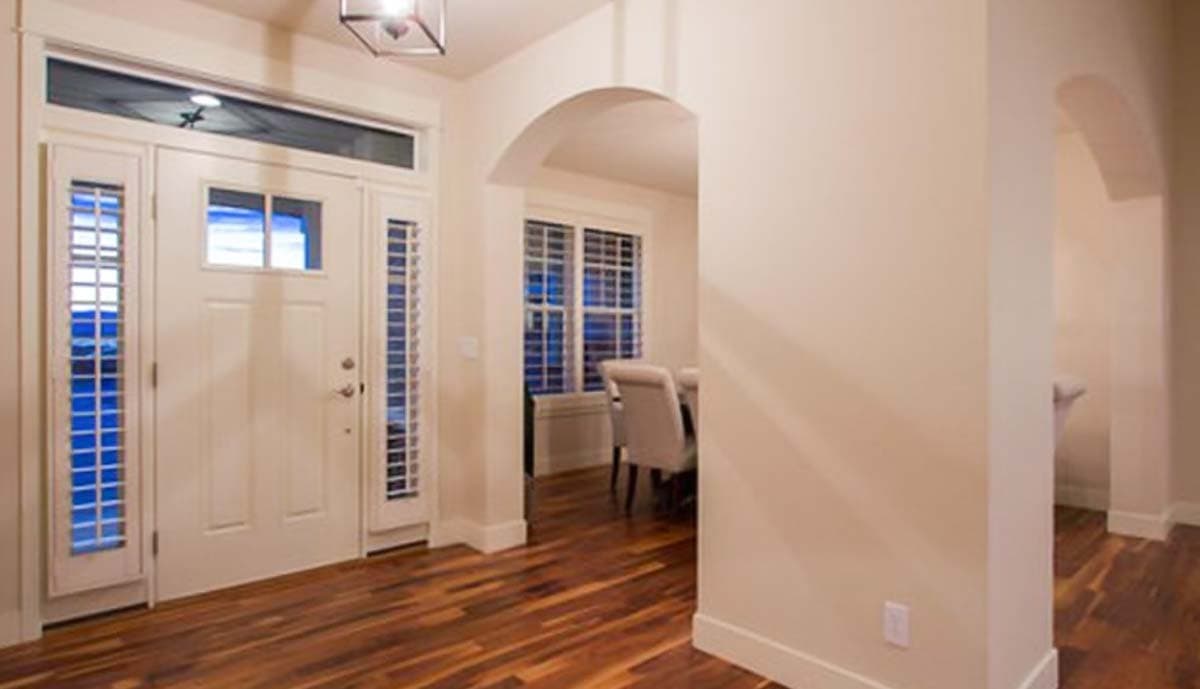

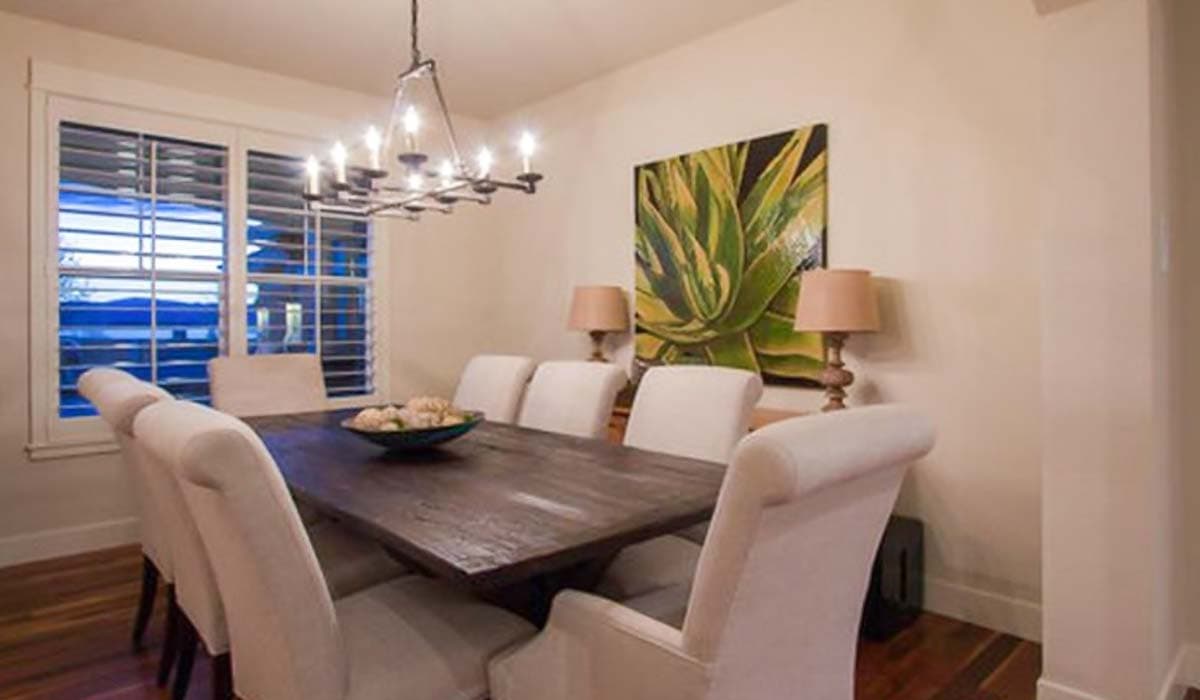

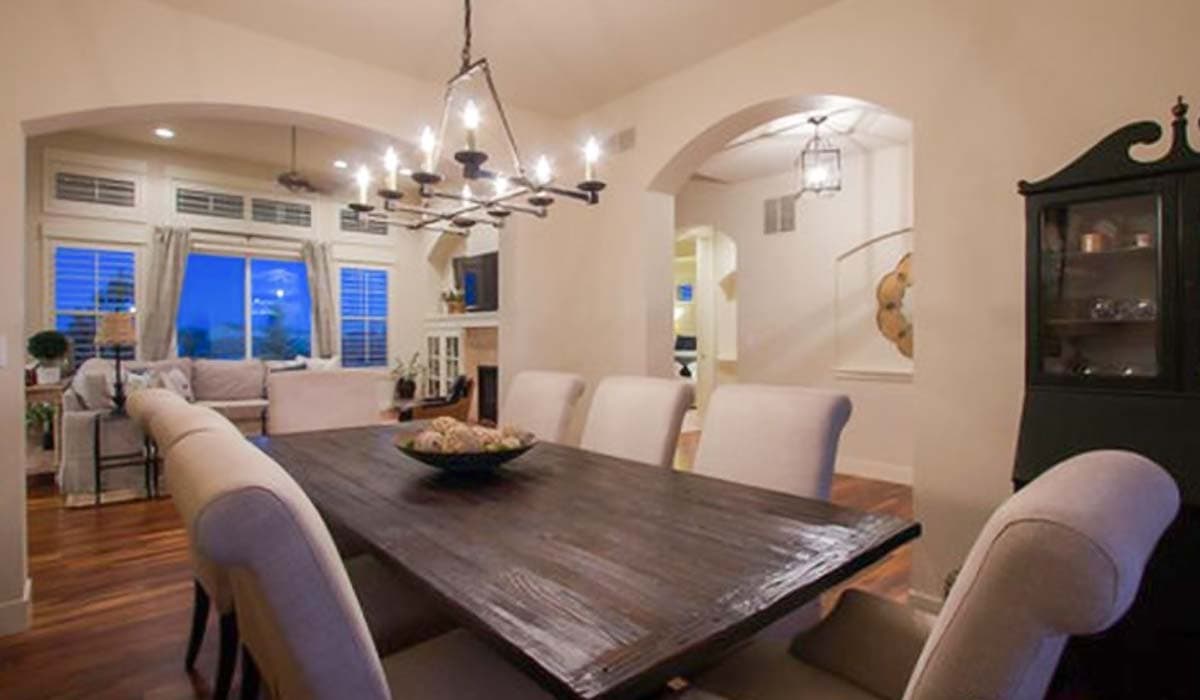

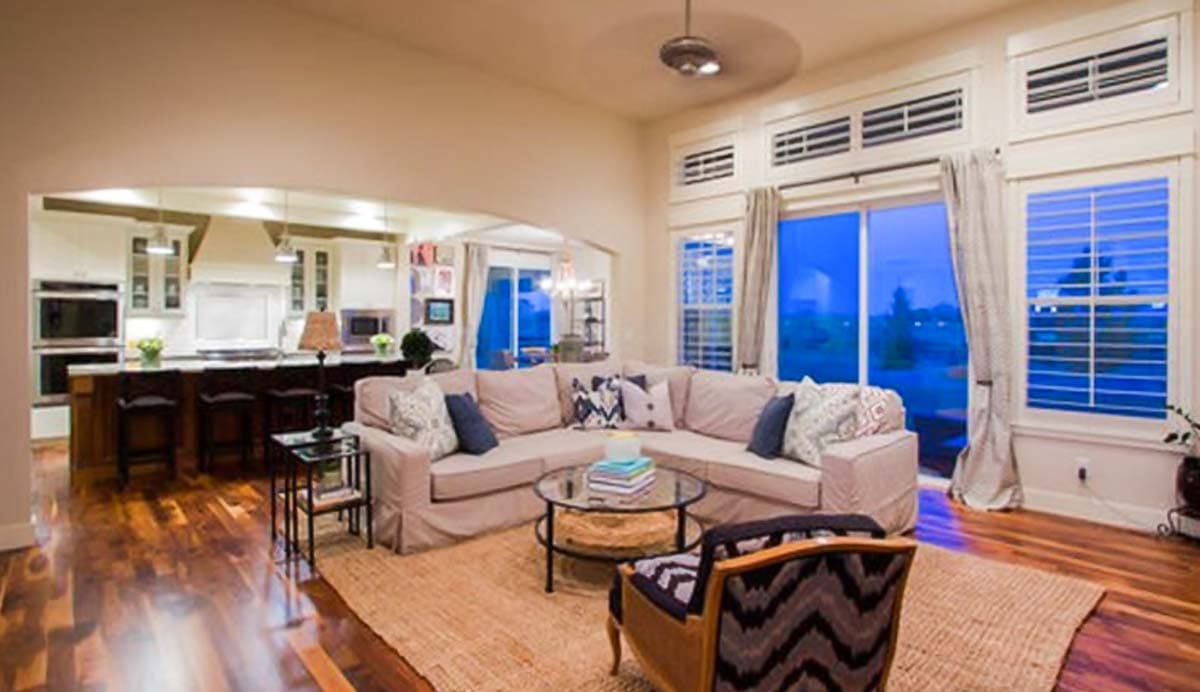

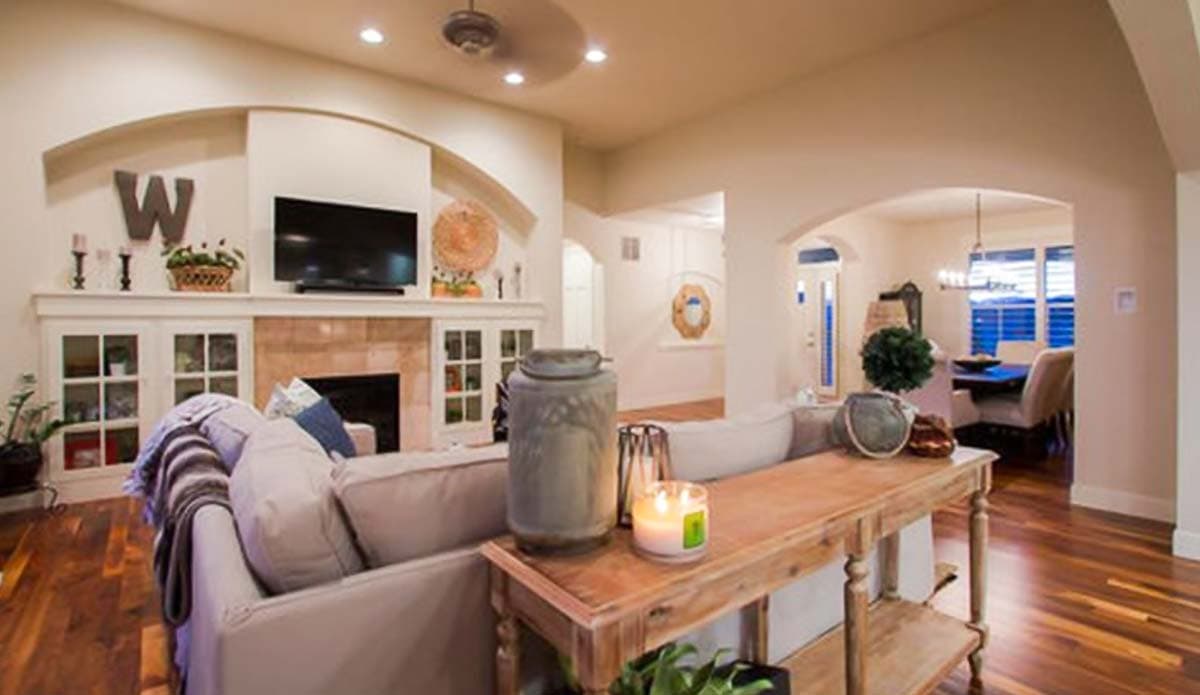

  • The entry gives you views into the dining room on your left and the great room ahead. The great room has a fireplace flanked by built-ins and has patio access.

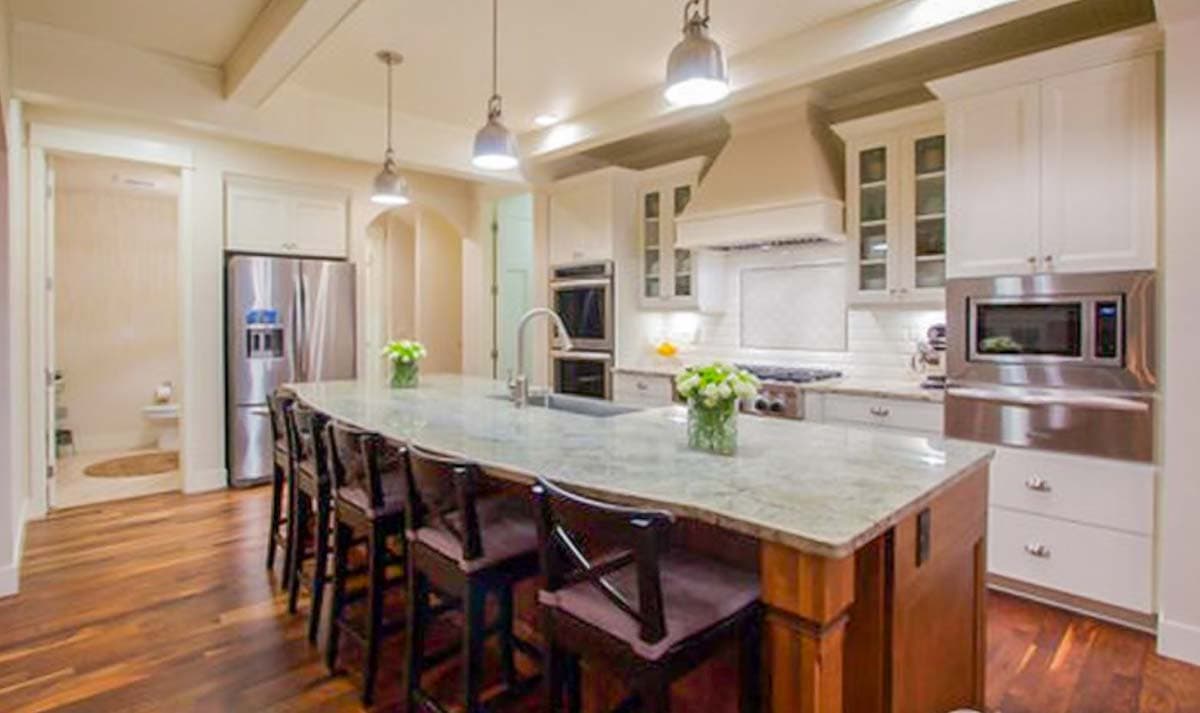

  • The kitchen opens to the great room and nook and has a large island with seating a huge walk-in pantry. A side porch - plus that patio - make al fresco an enticing option.
  • A powder room, laundry and mud room are clustered around the garage entrance.

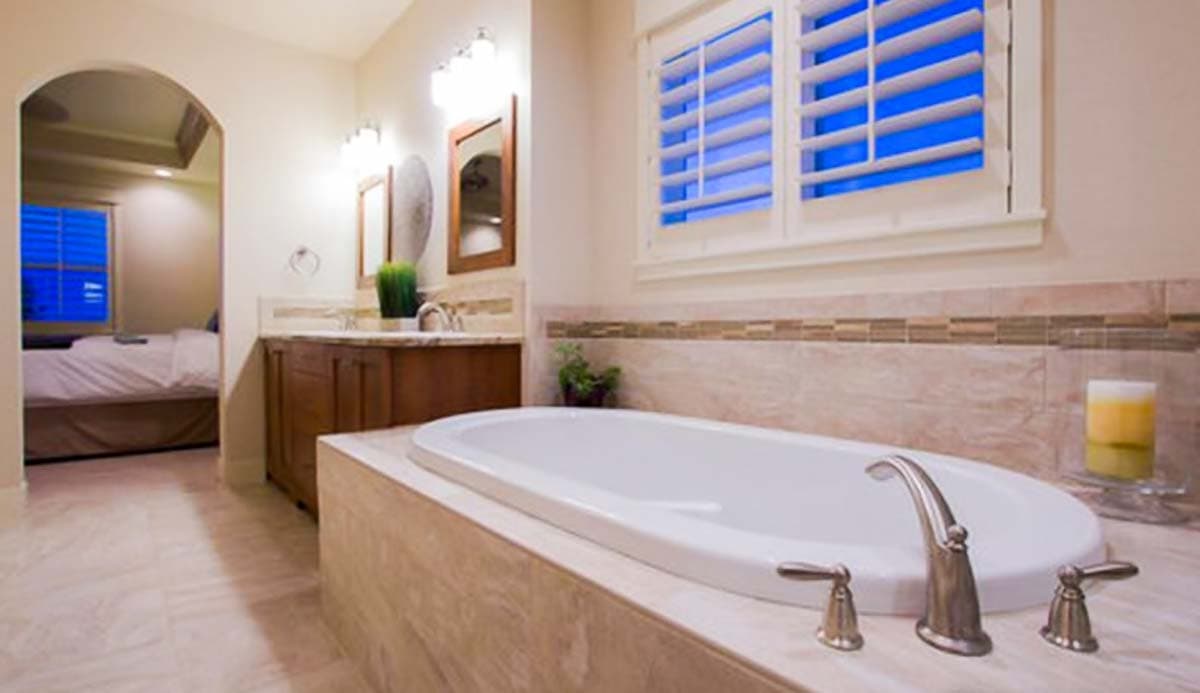

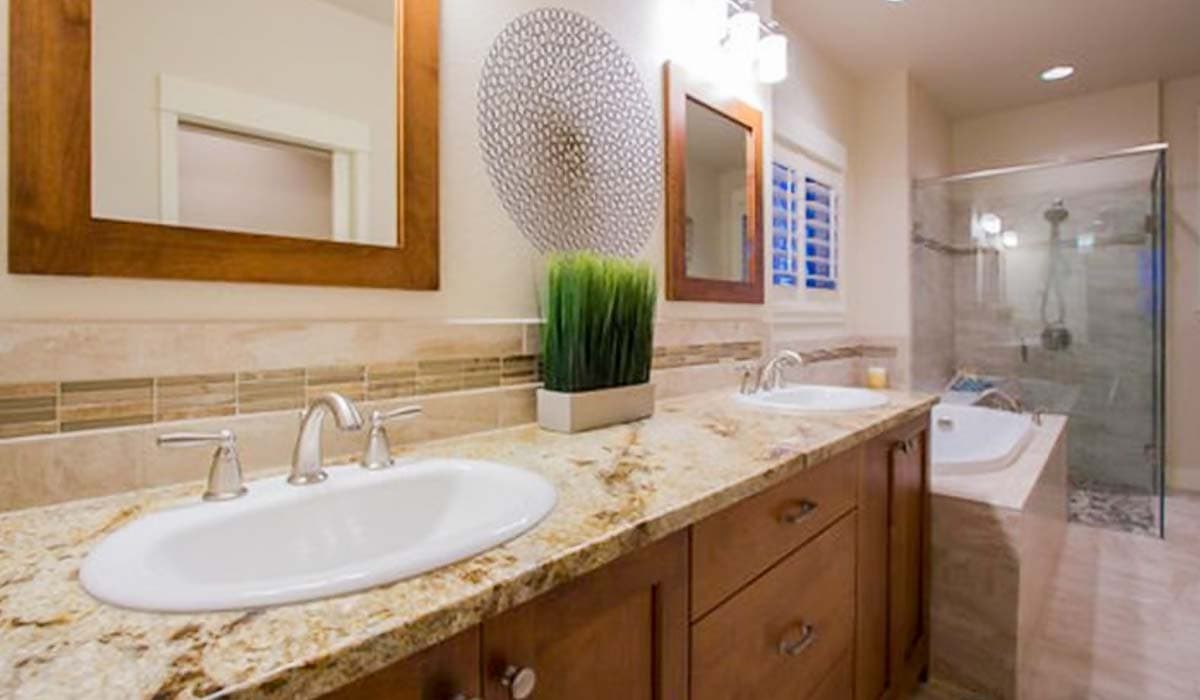

  • The master has a deep walk-in closet and the bath has his and her sinks. The kids get the upstairs to themselves and share two baths.
  • The roof is a truss design with a 6:12 pitch.
  • Related Plan: Get an alternate exterior with house plan 64405SC.
  • NOTE: Plans cannot be built within a 50 mile radius of Fort Collins, CO.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 64406SC Comes to Life in Missouri

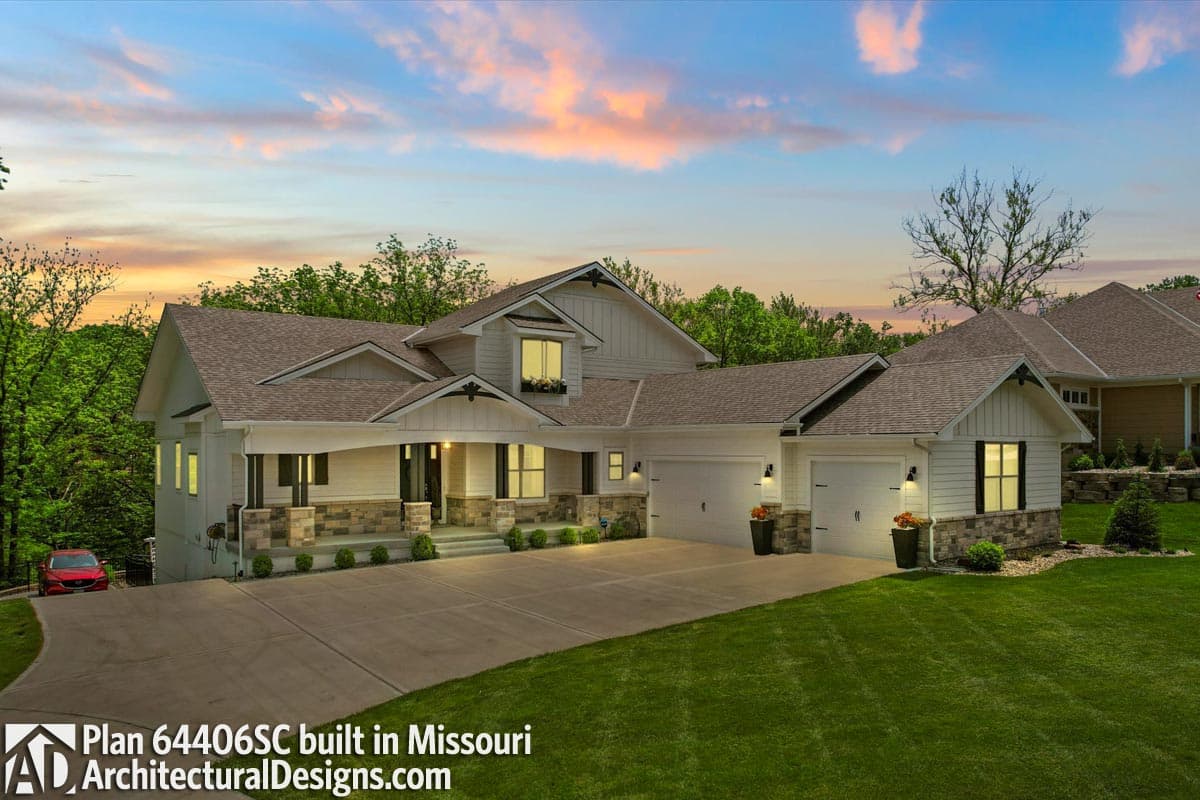

House Plan 64406SC Comes to Life in Missouri

68

Photos

build gallery item - House Plan 64406SC comes to life in Ohio

House Plan 64406SC comes to life in Ohio

14

Photos

What's Included
  • Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • Upper Level Plan (if needed) - same information as Main Level.
  • Roof Plan - layout with pitch markers, dimensions and notes.
  • Main Level Electrical Plan - electrical outlets, switches and light locations shown.
  • Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.
  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.
  • Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
  • Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,901 sq. ft.

1st Floor

1,931 sq. ft.

2nd Floor

970 sq. ft.

Basement Unfinished

1,790 sq. ft.

Porch, Front

340 sq. ft.

Deck

377 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

63' 0"

Depth

82' 0"

Max Ridge Height

28' 9"

Garage

Type

Attached

Area

850 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Breakfast Nook

Butler Walk-in Pantry

Flex Room

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom
