Name: Plan 36595TX: 4-Bed European Home Plan with Upstairs Bonus Room
SKU: 36595TX
Price: 1062.5 USD
Availability: InStock

Plan 36595TX

4-Bed European Home Plan with Upstairs Bonus Room

Heated S.F.

3,838

Beds

Baths

4.5

Stories

1-2

Cars

Floor Plan

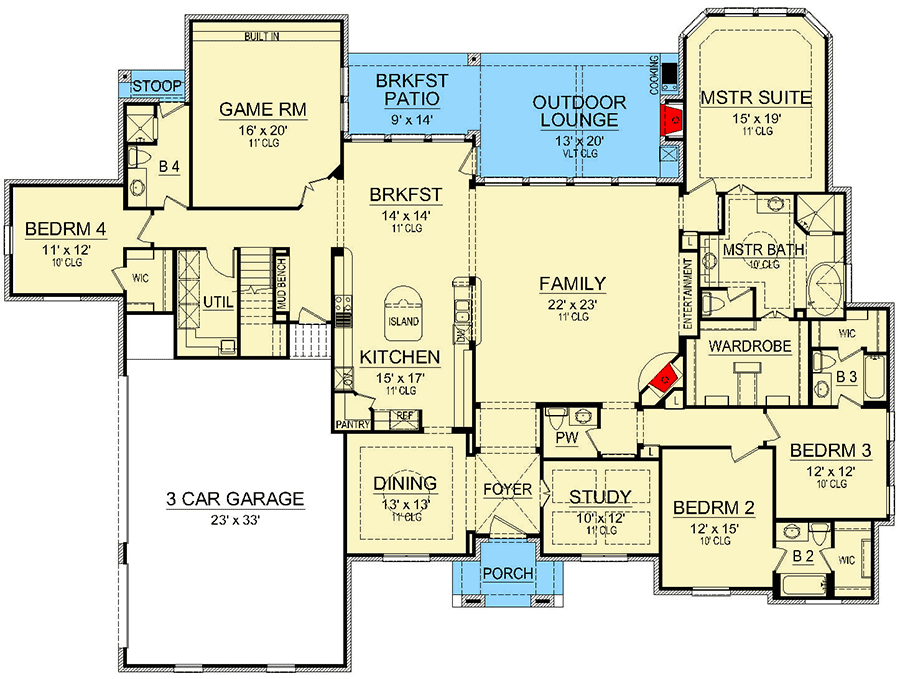

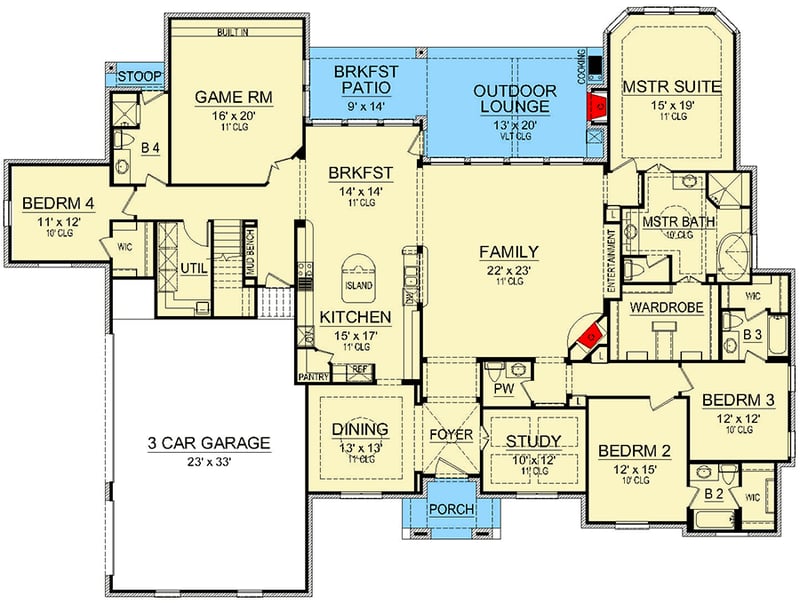

Main Level

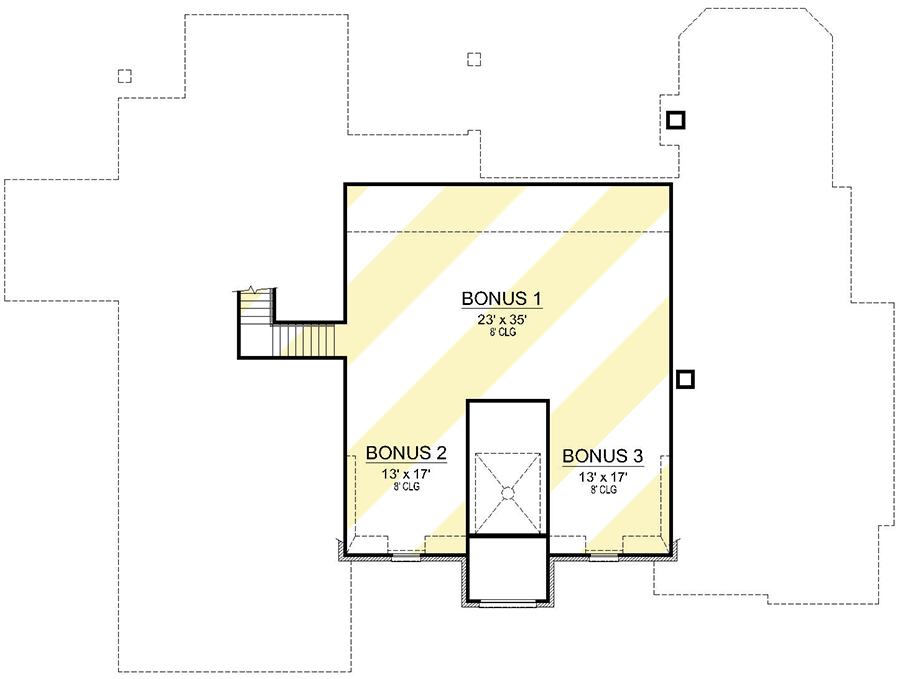

Bonus Level

Plan Details

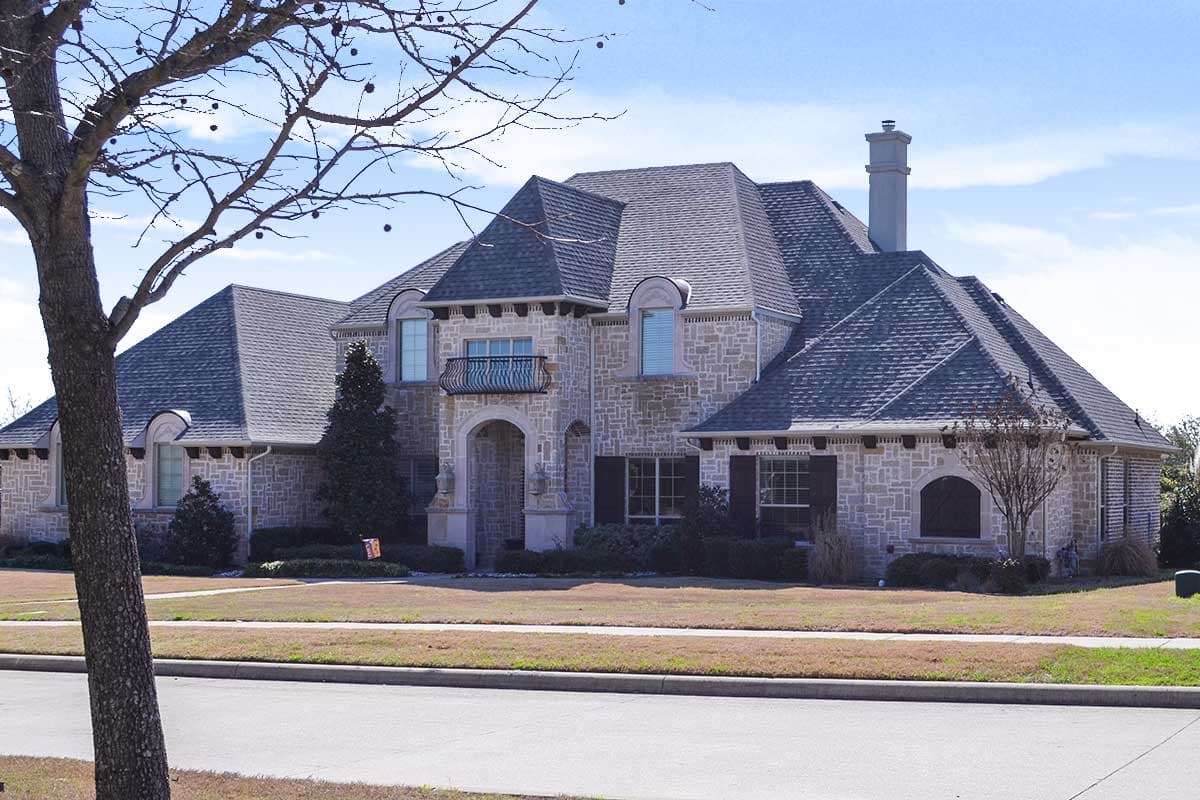

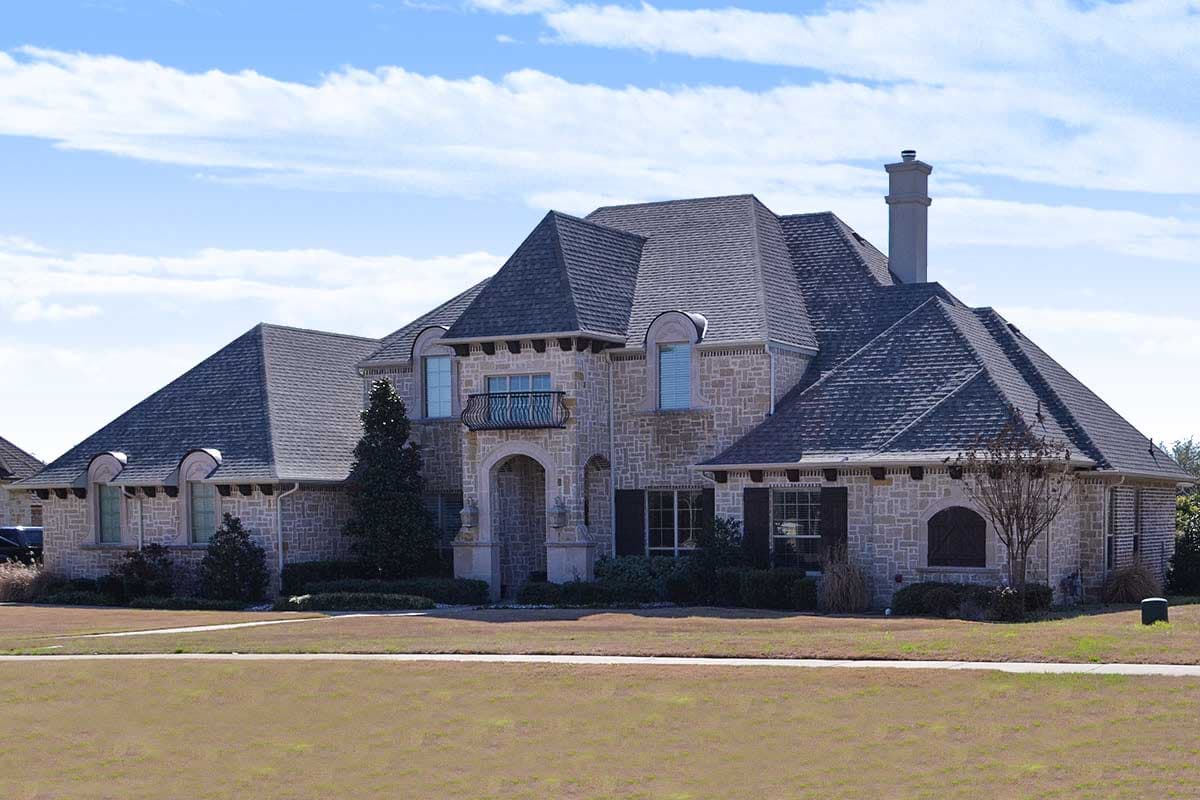

Stone and brick surround the exterior of this European home plan, which displays a castle likeness adding to the grand curb appeal.
Once past the threshold, a formal dining room and quiet study flank the foyer, while the heart of the home is straight ahead. The rear wall is comprised of windows to allow natural light in and rearward views out past the covered patio.
Indulge in ample counter space in the spacious kitchen layout, complete with a multi-purpose island and adjoining breakfast nook.
The master suite serves as a true getaway for the homeowner, and includes a massive en suite and equally large wardrobe. Bedrooms 2 and 3 both include a full bath, while the fourth bedroom is privately situated apart from the others.
The 3-car garage shares the left side of the home with a sizable game room and laundry room. Upstairs, a generous bonus room lends a flexible space to the design.

What's Included

Cover sheet
Foundation Plan - schematic only
First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

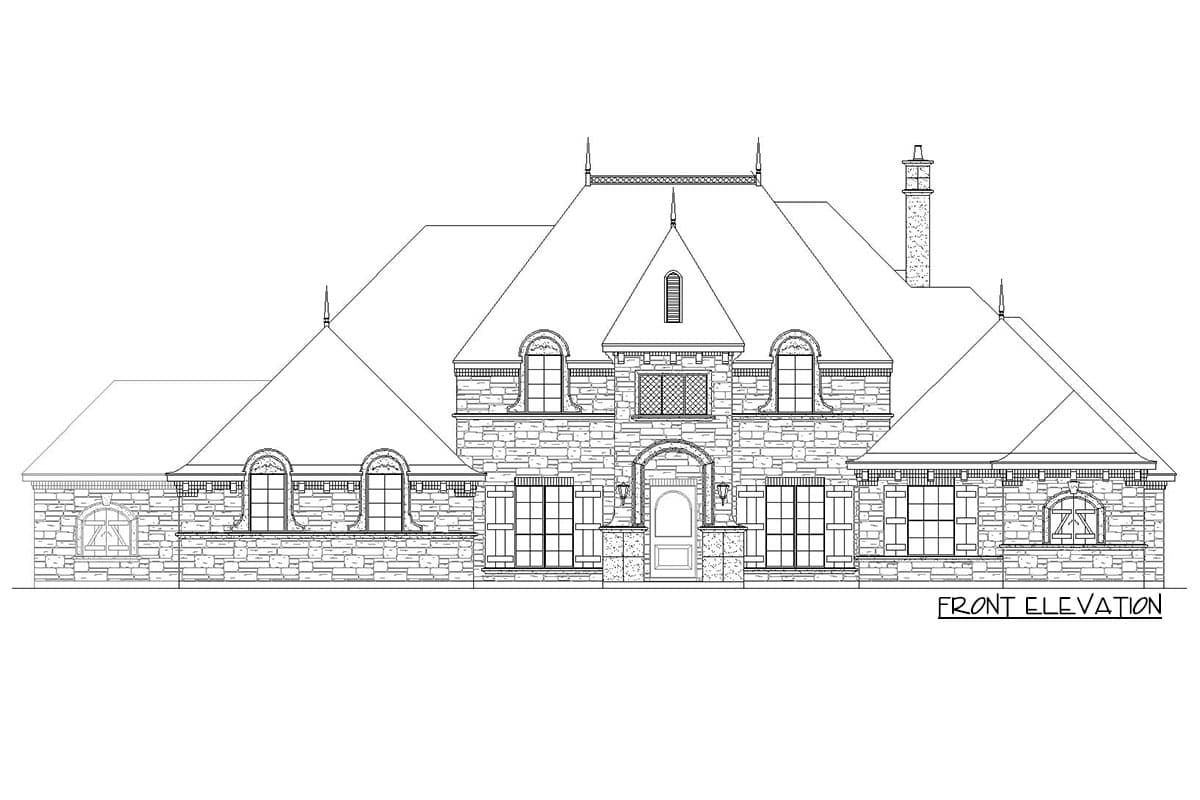

Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

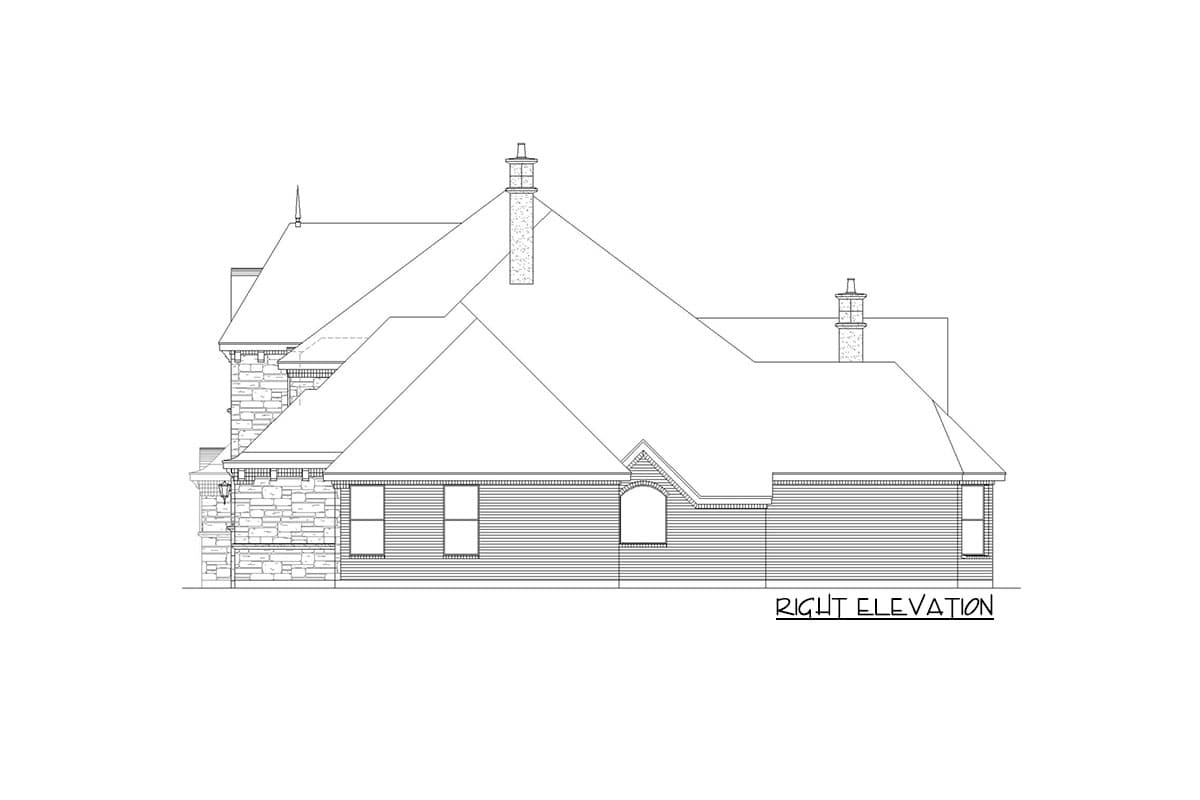

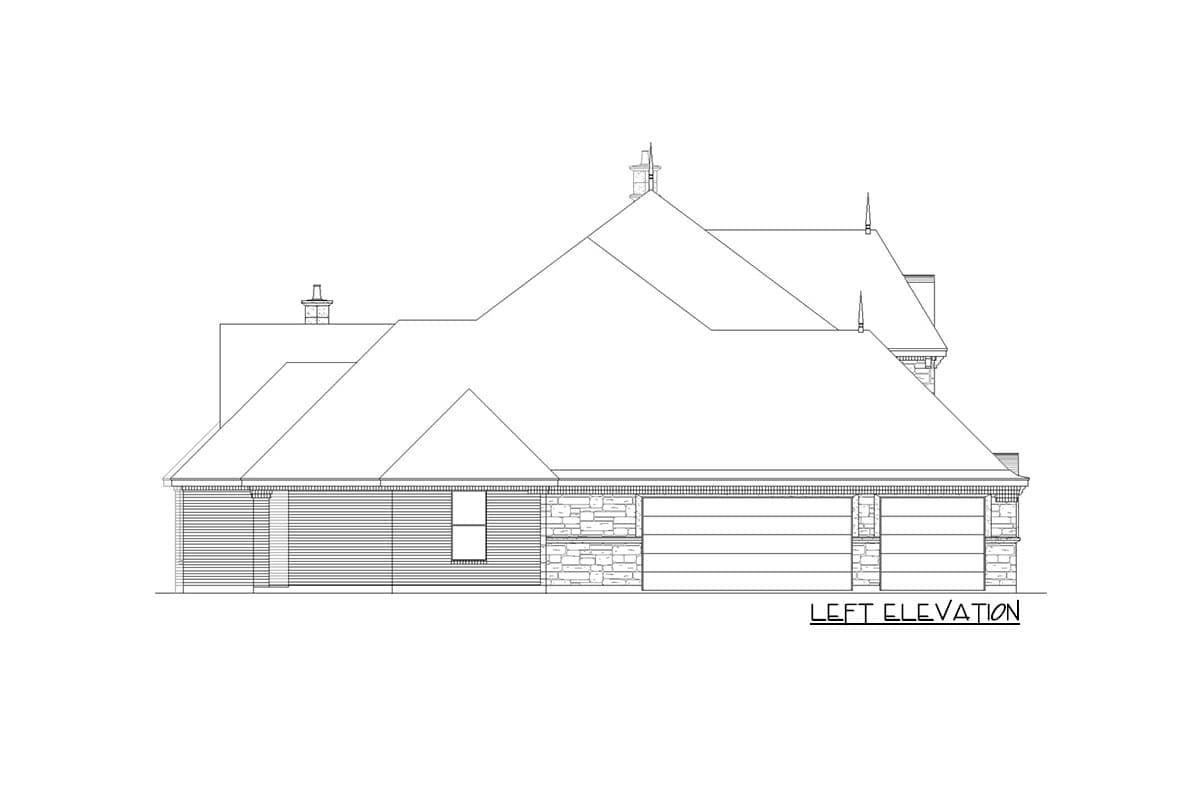

Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
Sections page
Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
