Plan 36547TX
4-Bed European Ranch Home Plan with Courtyard Entry
Heated S.F.
2,398
Beds
4
Baths
3
Stories
1
Cars
2
Floor Plan

Plan 36547TX

Main Level
slide image 0

Plan 36547TX

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This 4-bed European ranch home plan has a charming exterior showcasing stone accents and arched block pane windows. The covered entryway has a transom and sidelites
  • Walk through the courtyard and the covered entry  and find yourself in the foyer. Directly ahead you find the open family room with a 12' ceiling, corner fireplace, floor-to-ceiling windows and access to the covered patio.
  • The dining room is near the kitchen for ease in serving family and guests. Octagonal windows in breakfast room offer bright mornings, while the kitchen’s breakfast bar separates the two rooms.
  • A quiet study with closet and trey ceiling is beyond the dining room and has access to the hall leading to the side entry 2-car garage.
  • The master suite that boasts a trey ceiling, patio access, and a luxurious master bath with his and hers vanity, separate shower and garden tub, and a large walk-in wardrobe with built-ins.
  • Two family bedrooms, each with walk-in closets, share a Jack-and-Jill bath. The rear bedroom has access to the back yard and breakfast room. The third family bedroom has a trey ceiling, large closet, and access to a full bath in the hall.
What's Included
  • Cover sheet
  • Foundation Plan - schematic only

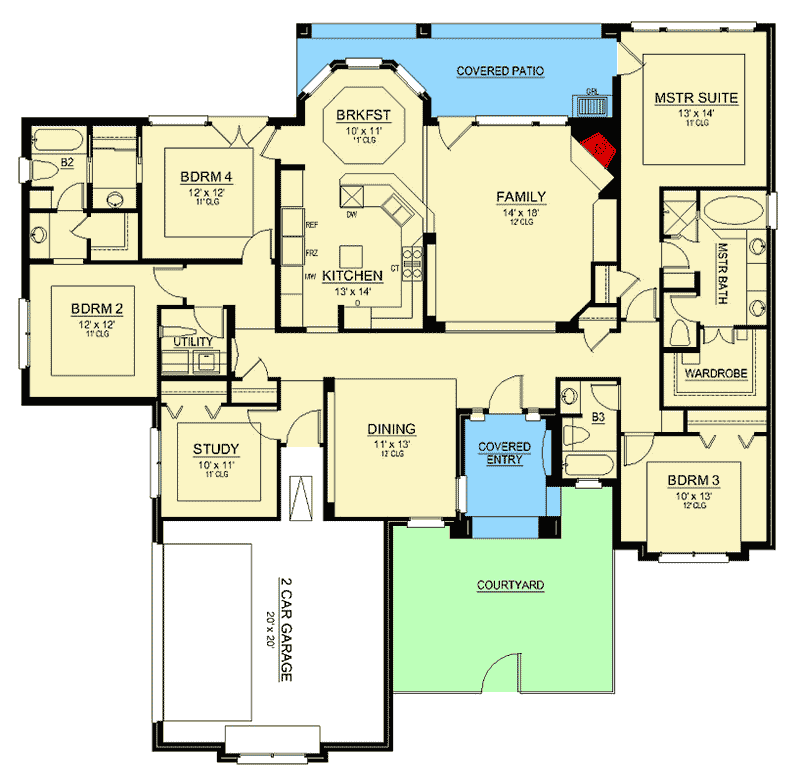

  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

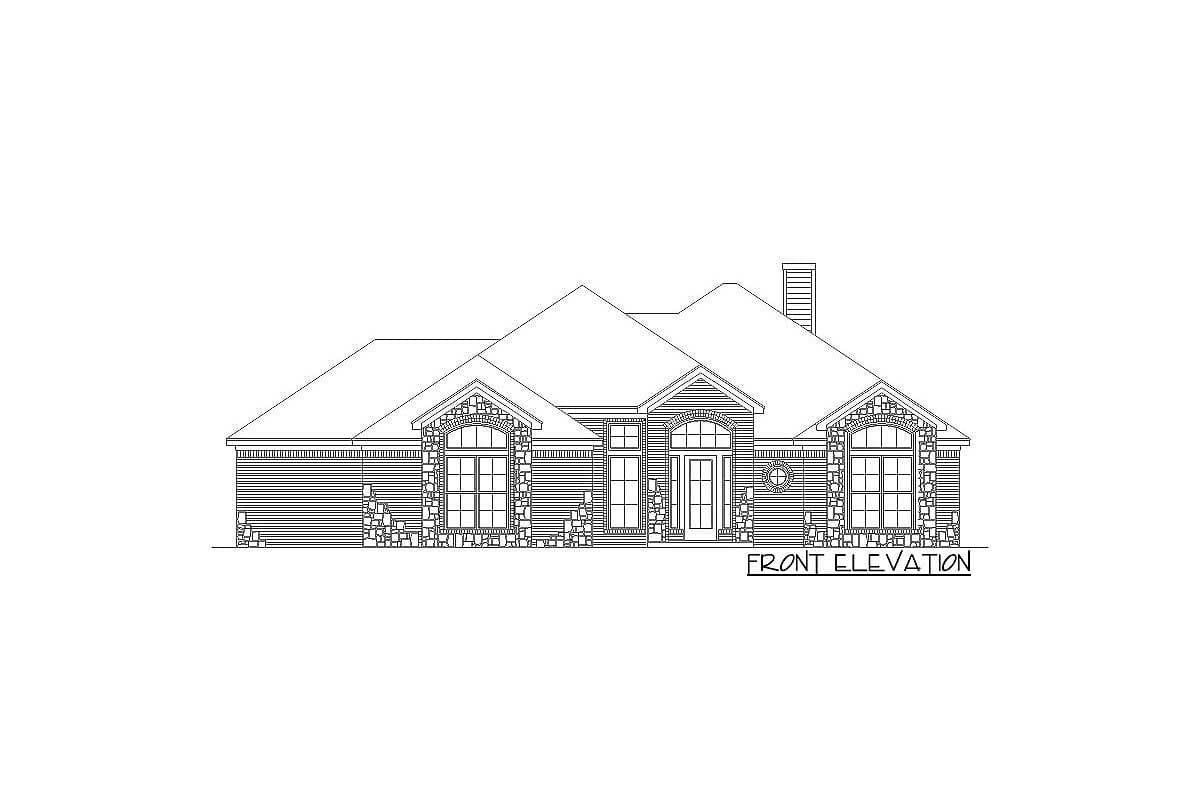

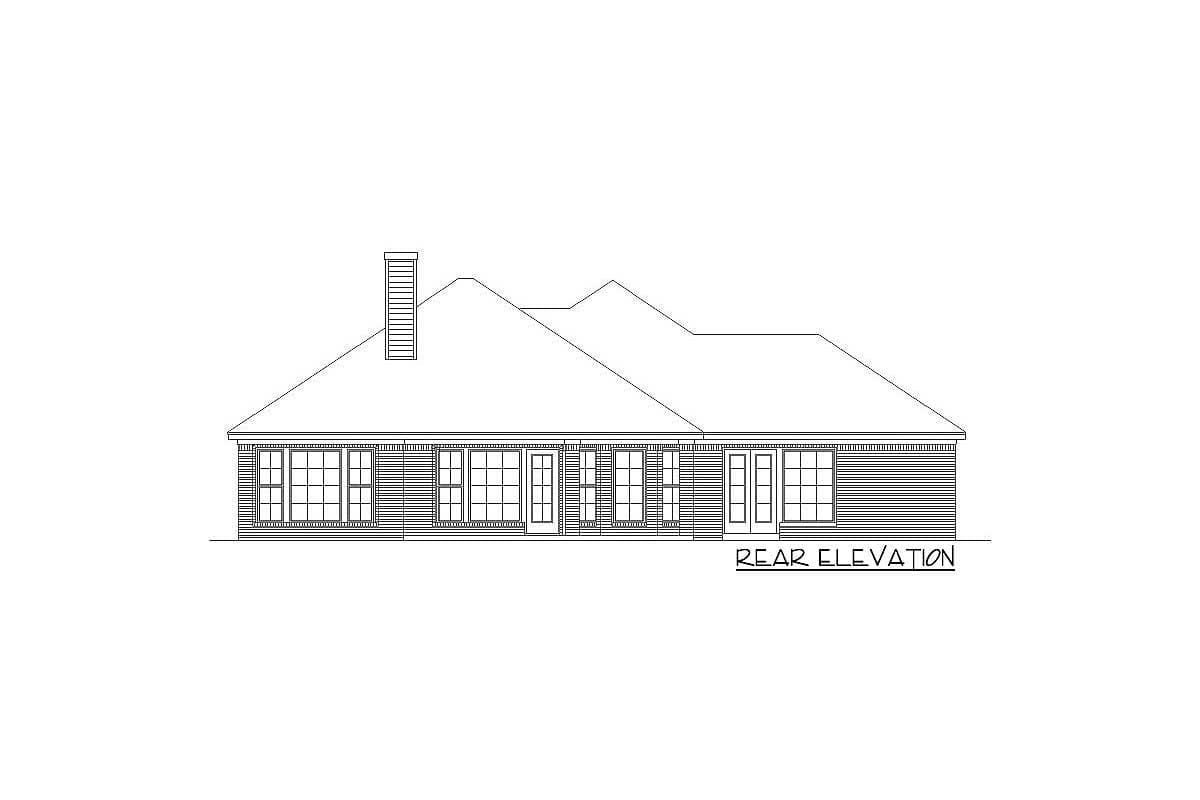

  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

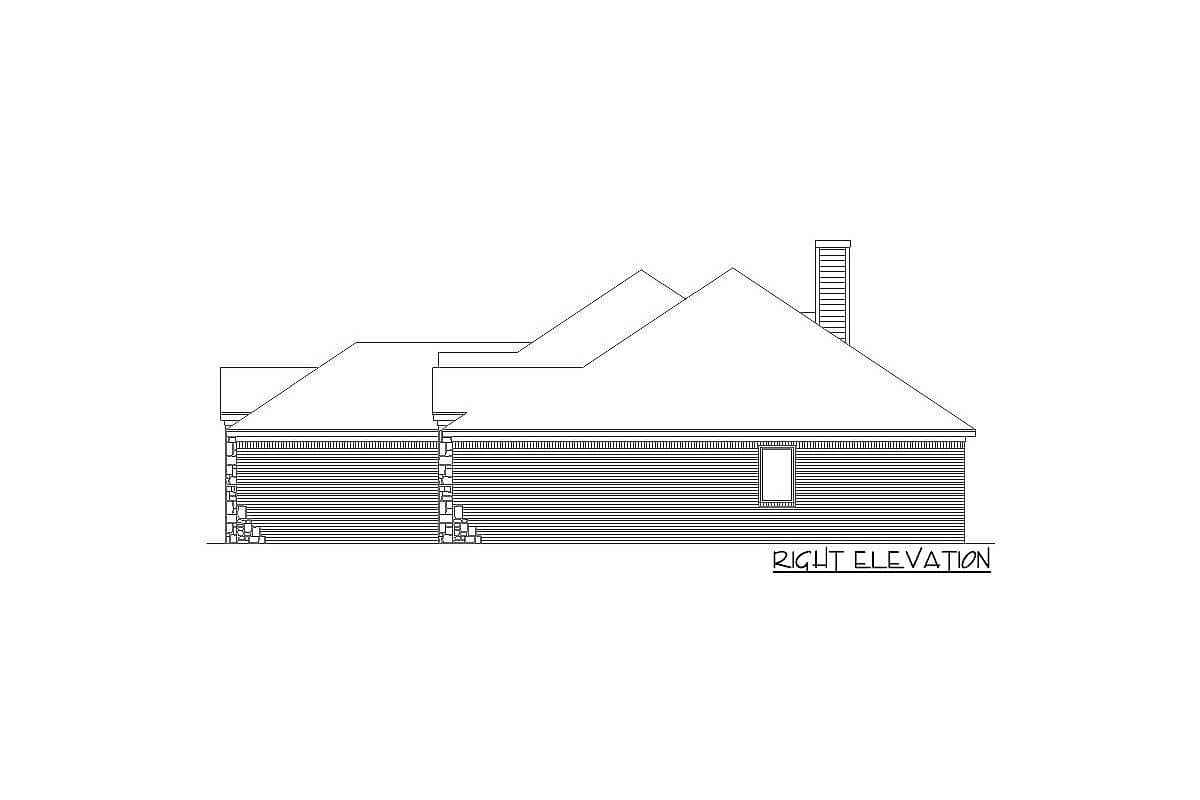

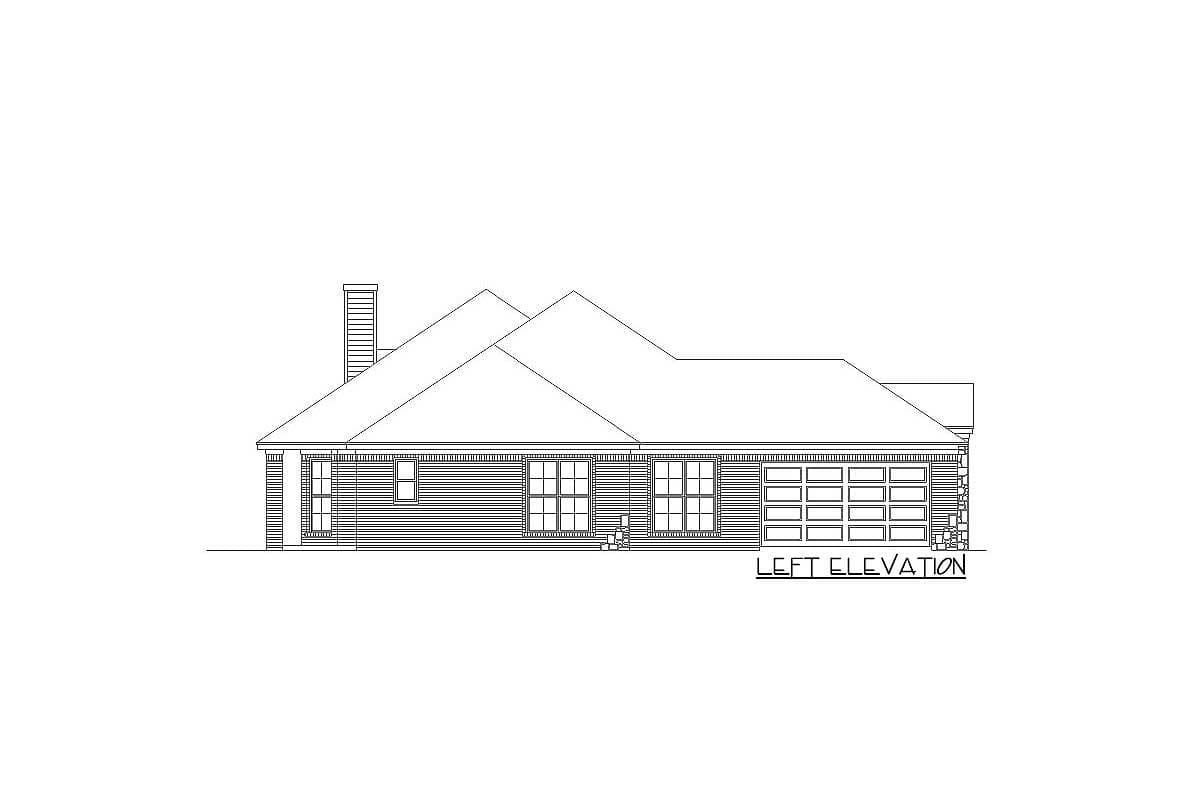

  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,398 sq. ft.

1st Floor

2,398 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

68' 0"

Depth

67' 0"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

496 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Architectural Style

European

Ranch

Traditional

Special Features

Bedrooms - Clustered

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,398 sq. ft.

1st Floor

2,398 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

68' 0"

Depth

67' 0"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

496 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Architectural Style

European

Ranch

Traditional

Special Features

Bedrooms - Clustered

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor
