Plan 500067VV

Exclusive

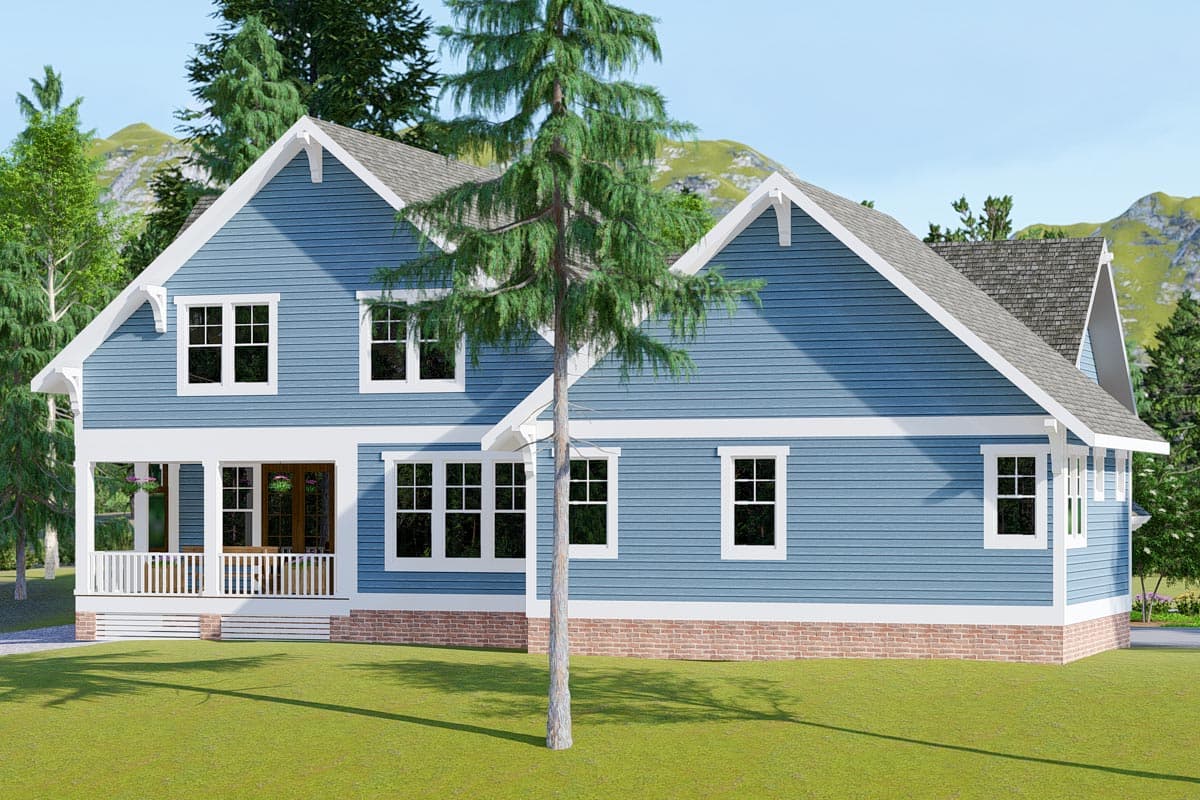

4-Bed Exclusive Craftsman House Plan with Main Floor Master - 2984 Sq Ft

Heated S.F.

2,984

Beds

4

Baths

2.5

Stories

2

Cars

2

Floor Plan

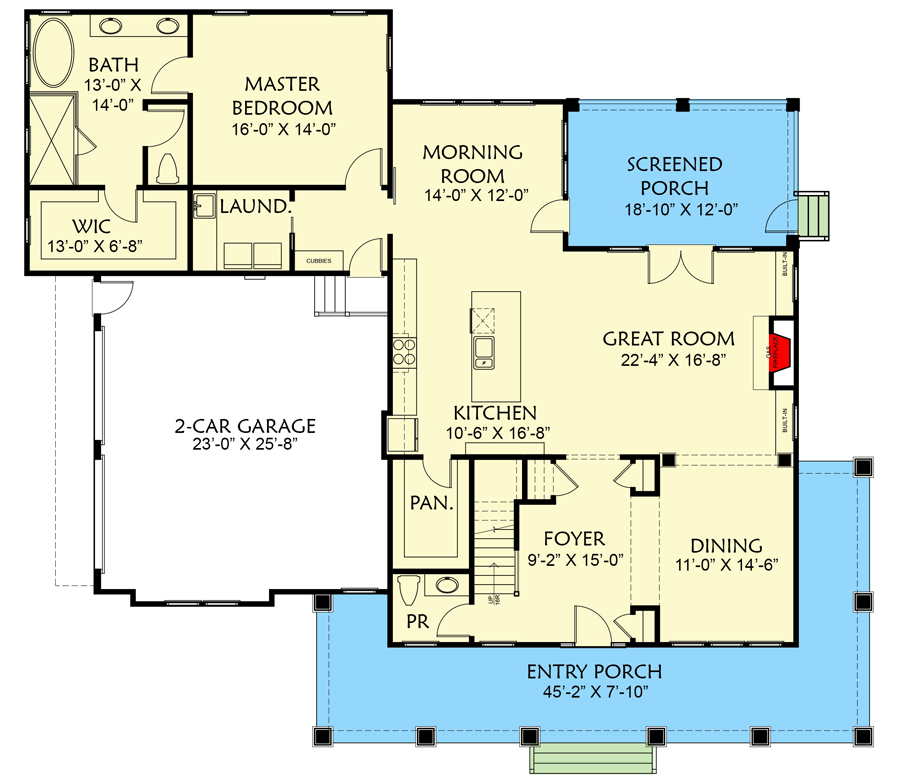

Main Level

floor plan image Main Level

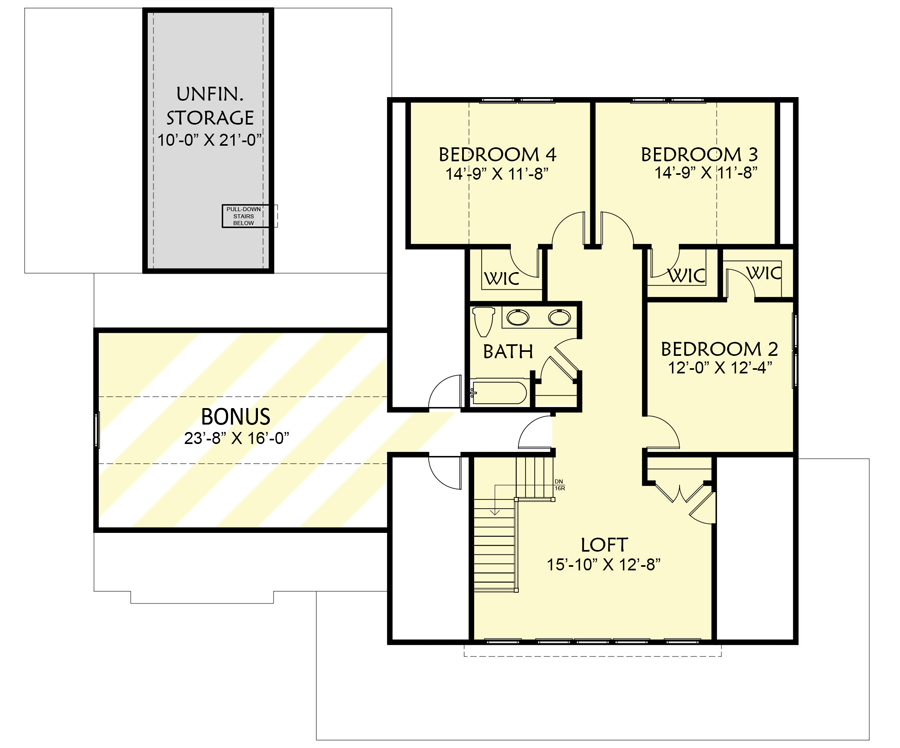

2nd Floor

floor plan image 2nd Floor

Plan Details

This 4-bed exclusive house plan puts a modern spin on a Craftsman-style design. The home plan gives you 2,984 square feet of heated living spread across its two floors.
The great room opens to a large screened porch that is also accessible from the morning room. The morning room is perfect for casual meals while the dining room can accommodate more formal dinners.
The first floor master suite has a large bath and walk-in closet and is conveniently located near the laundry.
The upper floor loft area serves as extra living space for the kids and the bonus room gives them even more space to enjoy.
Related Plan: Get a larger version house plan 500050VV (3,518 sq. ft.), a smaller one with house plan 500080VV (2,677sq. ft.) and one without the garage with house plan 500015VV (2,525 sq. ft.).

What's Included

Cover sheet with notes
Foundation
Floor plans
Elevations
Sections
Framing plans
Electrical plans

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,984 sq. ft.

1st Floor

1,916 sq. ft.

2nd Floor

1,068 sq. ft.

Bonus

459 sq. ft.

Screened Porch

226 sq. ft.

Entry

468 sq. ft.

Storage

231 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

69' 0"

Depth

59' 10"

Max Ridge Height

28' 8"

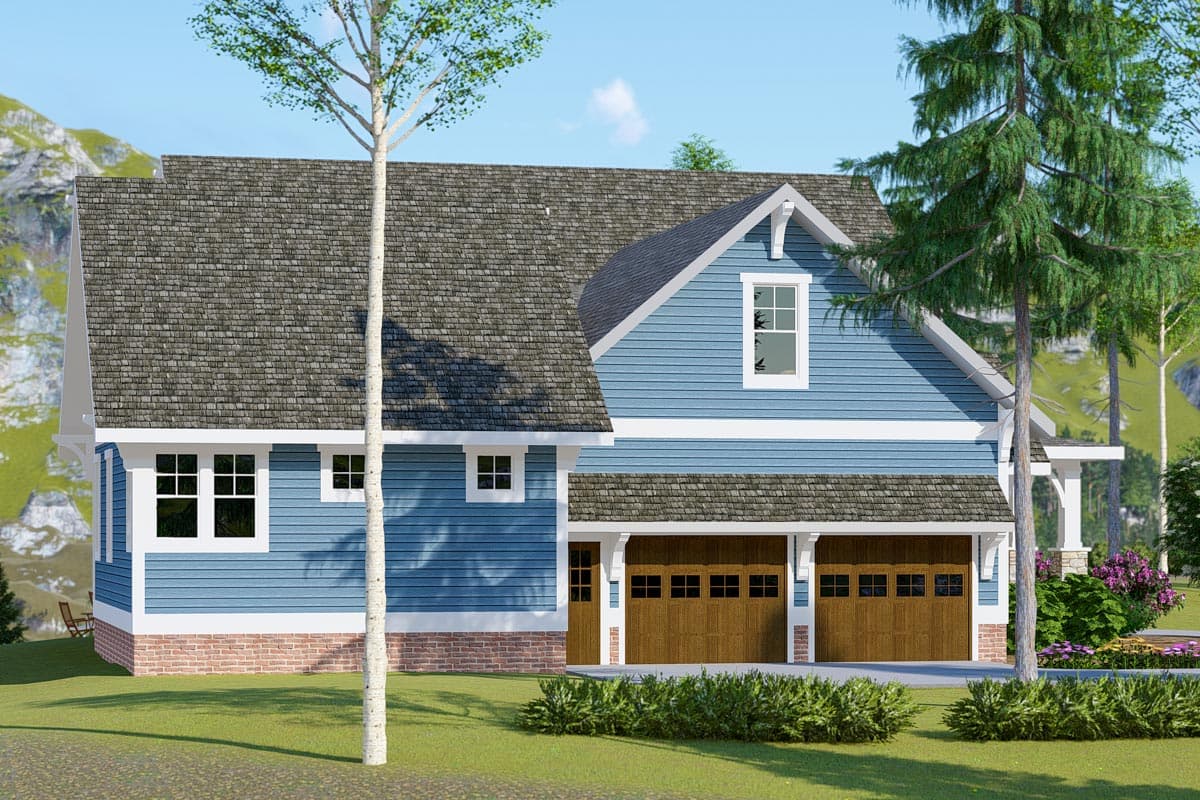

Garage

Type

Attached

Area

636 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

3 on 12

Framing Type

Stick And Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Wrap Around Porch

Plan Collections
