Plan 710093BTZ
4-Bed House Plan with a Stately Brick Exterior
Heated S.F.
2,398
Beds
4
Baths
3
Stories
2
Cars
2
Floor Plan

Plan 710093BTZ

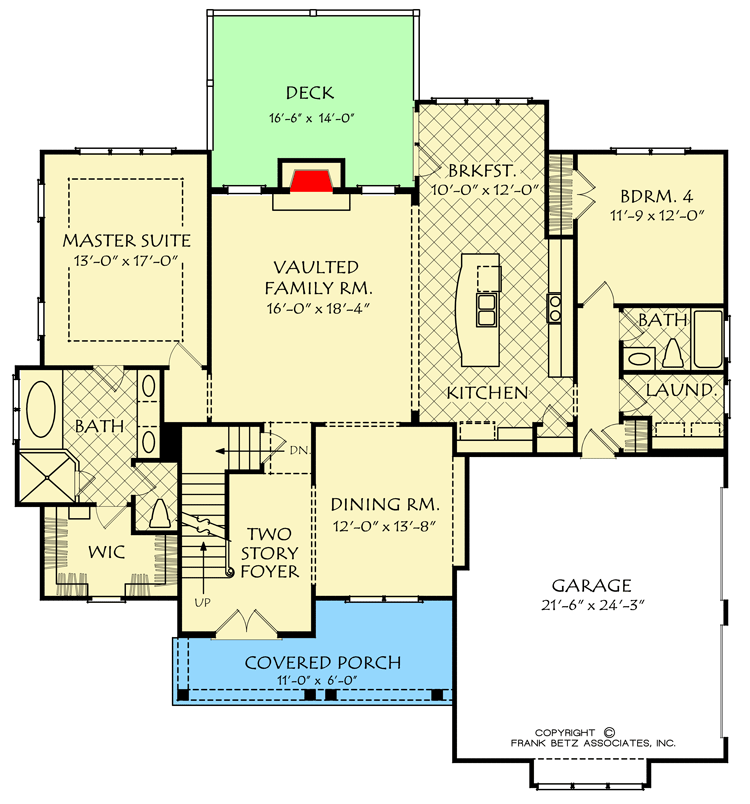

Main Level
slide image 0

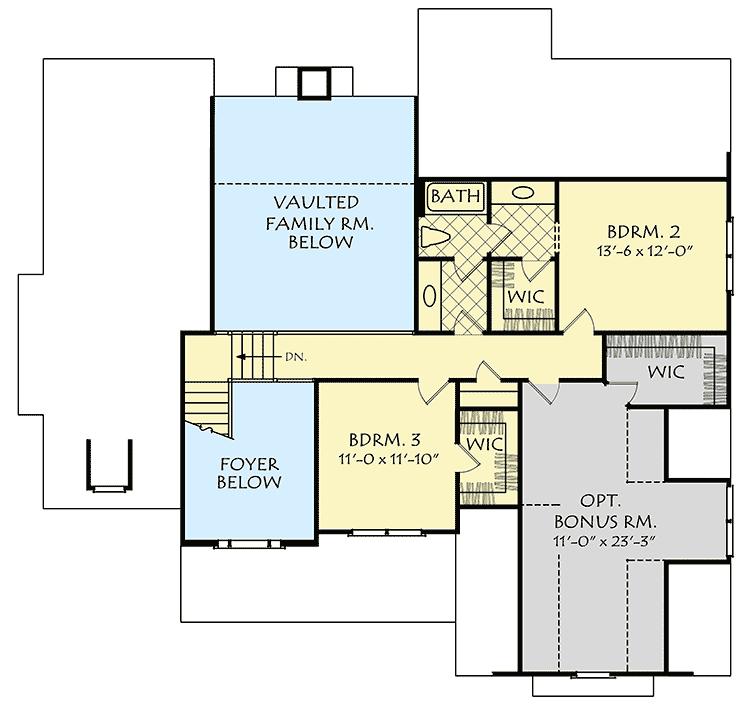

2nd Floor
slide image 1

Plan 710093BTZ

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • A double-columned porch frames the entry to this 4-bed house plan with a stately brick exterior.
  • Double doors invite you inside where you're greeted with a formal and informal spaces.
  • The vaulted family room is centrally located on the main floor to be the center of activity for the occupants and their guests.
  • The master suite is situated on the rear for privacy and to take advantage of any view in the rear. The master bath is complete with a long double vanity, separate tub and shower and walk-in-closet. Across the home, bedroom four is perfectly located to be used as a home office or house an elderly parent.
  • The upper floor provides two secondary bedrooms each with large closet space and access to a compartmentalized bath. The bonus room can be a recreation space or storage area.
  • Related Plans: Get alternate exteriors with house plans 710092BTZ, 710094BTZ and 710310BTZ.
What's Included
  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,398 sq. ft.

1st Floor

1,801 sq. ft.

2nd Floor

597 sq. ft.

Basement Unfinished

1,801 sq. ft.

Bonus

357 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

57' 0"

Depth

55' 0"

Max Ridge Height

27' 6"

Garage

Type

Attached

Area

545 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bonus Room

Breakfast Nook

Formal Dining

Home Office

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Home Office
