Plan 710387BTZ
4-Bed House Plan with Classic Tudor Details
Heated S.F.
2,806
Beds
4
Baths
3.5
Stories
2
Cars
2
Photos
Floor Plan

Plan 710387BTZ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 710387BTZ

1-800-854-7852

1-262-521-4596

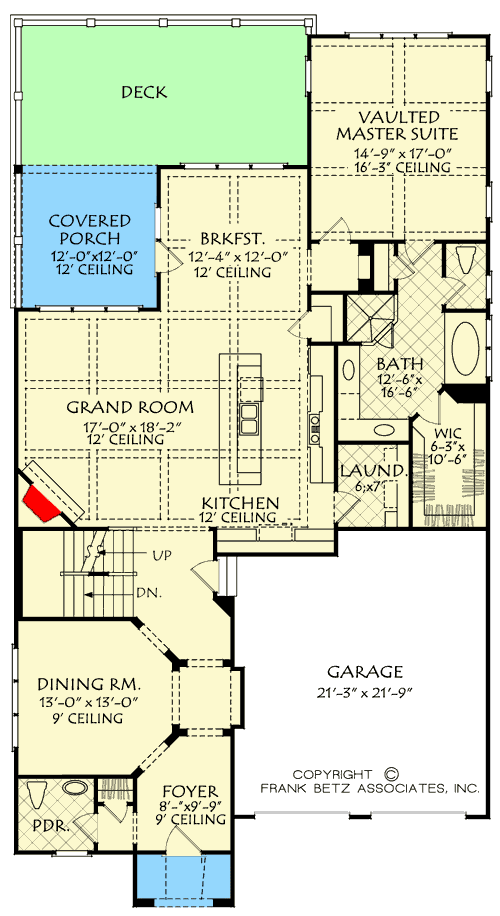

Main Level
floor plan image Main Level

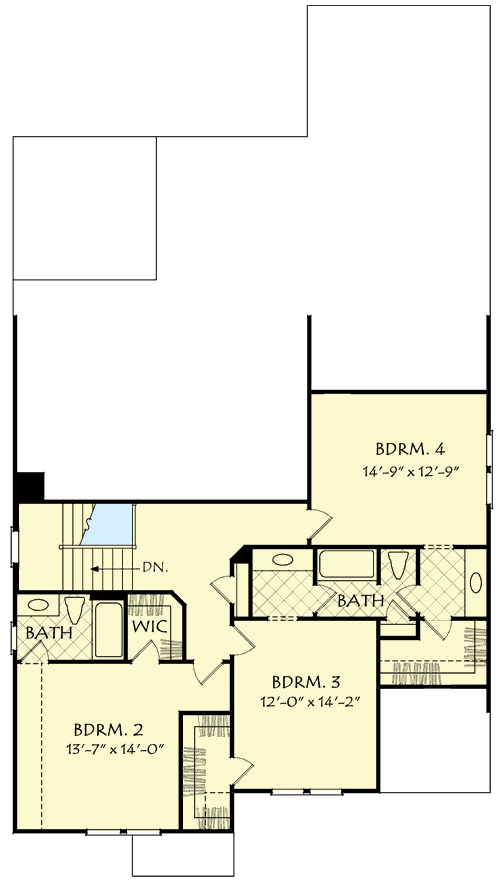

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This house plan has classic Tudor details and perfect bungalow proportions. The main level is anchored by the large great room, chef's kitchen and breakfast area, all accented with a coffered ceiling, fireplace and many windows.
  • The foyer opens into a formal dining area with multiple cased openings and furniture niche' providing the setting for gatherings and meals.
  • A large master suite is also on the main floor with a vaulted ceiling and spa bath for the ultimate retreat for the owner's.
  • The upper level provides three large bedrooms with walk-in-closets. One bedroom has a private bath attached while the other bath is a "Jack-and-Jill" arrangement for siblings or guests.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.

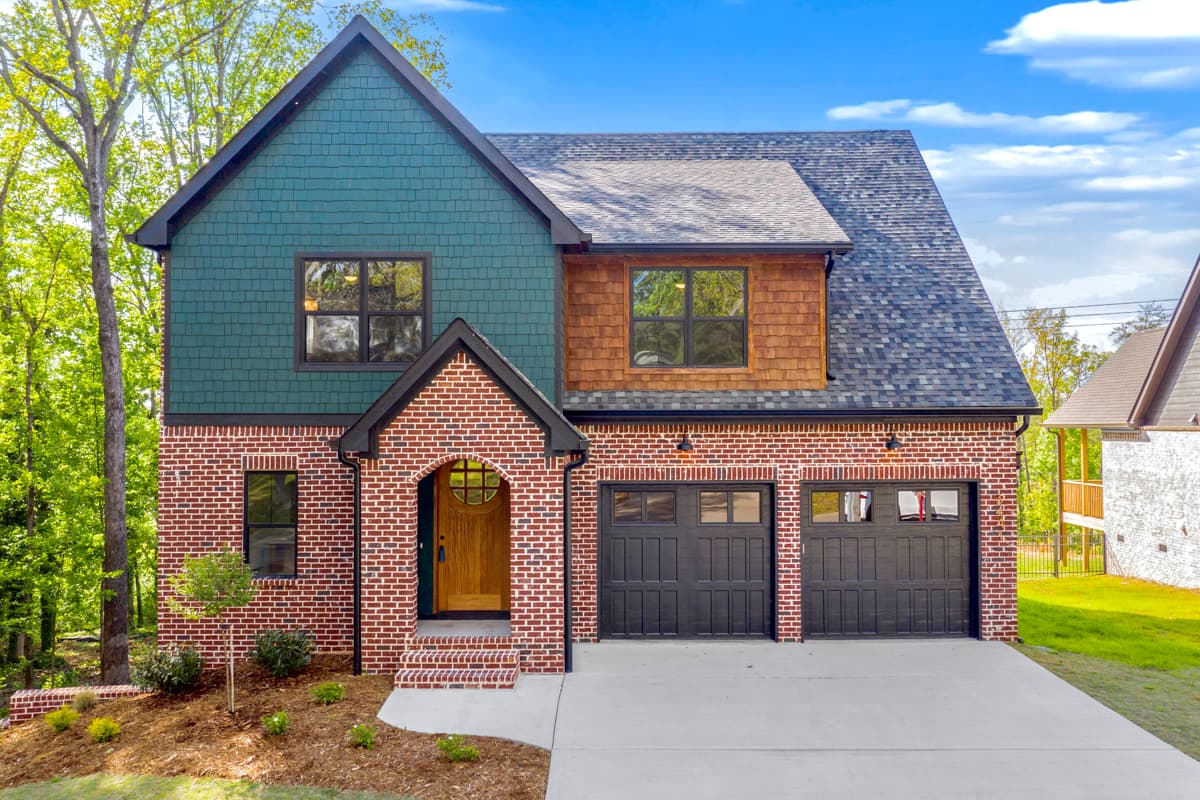

build gallery item - House Plan 710387BTZ Comes to Life in Tennessee

House Plan 710387BTZ Comes to Life in Tennessee

57

Photos

What's Included
  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,806 sq. ft.

1st Floor

1,777 sq. ft.

2nd Floor

1,029 sq. ft.

Basement Unfinished

1,661 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout, Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

40' 0"

Depth

73' 0"

Max Ridge Height

30' 6"

Garage

Type

Attached

Area

503 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Architectural Style

Country

European

Southern

Tudor

Special Features

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,806 sq. ft.

1st Floor

1,777 sq. ft.

2nd Floor

1,029 sq. ft.

Basement Unfinished

1,661 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout, Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

40' 0"

Depth

73' 0"

Max Ridge Height

30' 6"

Garage

Type

Attached

Area

503 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Architectural Style

Country

European

Southern

Tudor

Special Features

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery
