Plan 52300WM
4-Bed House Plan with Farmhouse Porch
Heated S.F.
2,137
Beds
4
Baths
4.5
Stories
2
Cars
2
Floor Plan

Plan 52300WM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 52300WM

1-800-854-7852

1-262-521-4596

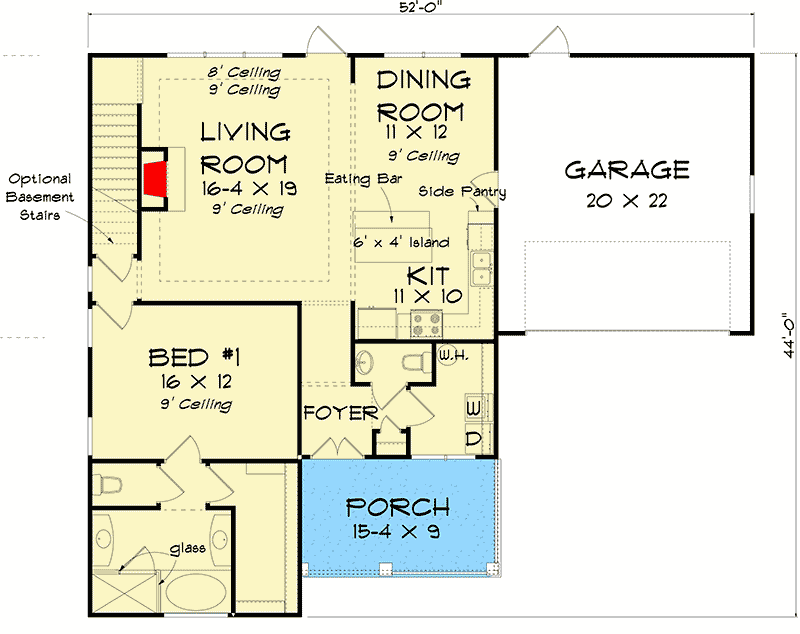

Main Level
floor plan image Main Level

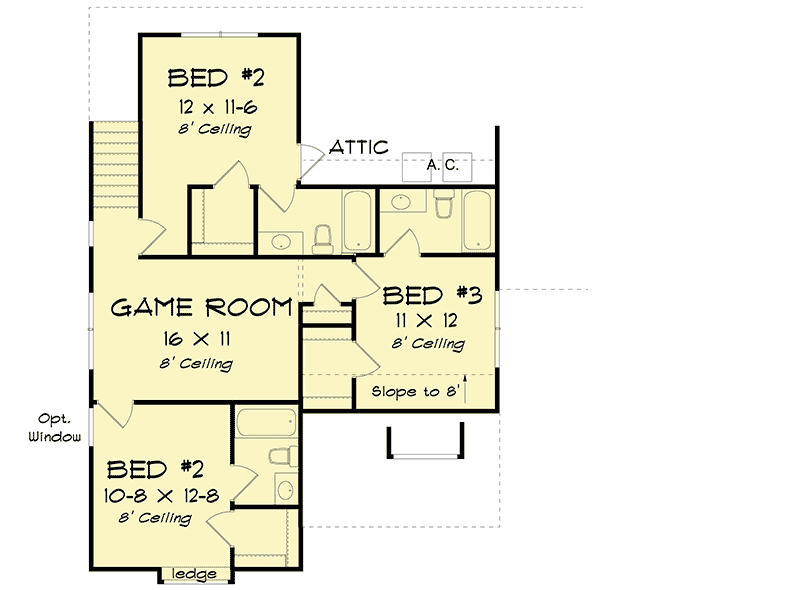

2nd Floor
floor plan image 2nd Floor
Plan Details
  • A shed dormer sits above the farmhouse porch on this 4-bed house plan and an attractive box-bay window adds to the charm.
  • A powder room, closet and laundry room are tucked away off the foyer which guides yo to the open floor plan in back of the home.
  • The living room has a tray ceiling and a fireplace and views to the back. The room is open to the kitchen and dining room making this great for entertaining.
  • An island in the kitchen gives you work space and has seating for casual eating. A door by the pantry opens to the 2-car garage making unloading groceries a breeze.
  • The master bedroom is on the main floor and has a large walk-in closet. Upstairs, three bedrooms with walk-in closets are arrayed around the game room.
  • Related Plans: Remove the garage with house plan 52301WM. Eliminate an upstairs bedroom with house plans 52298WM and 52299WM (without the garage).
What's Included
  • Front elevation and construction notes

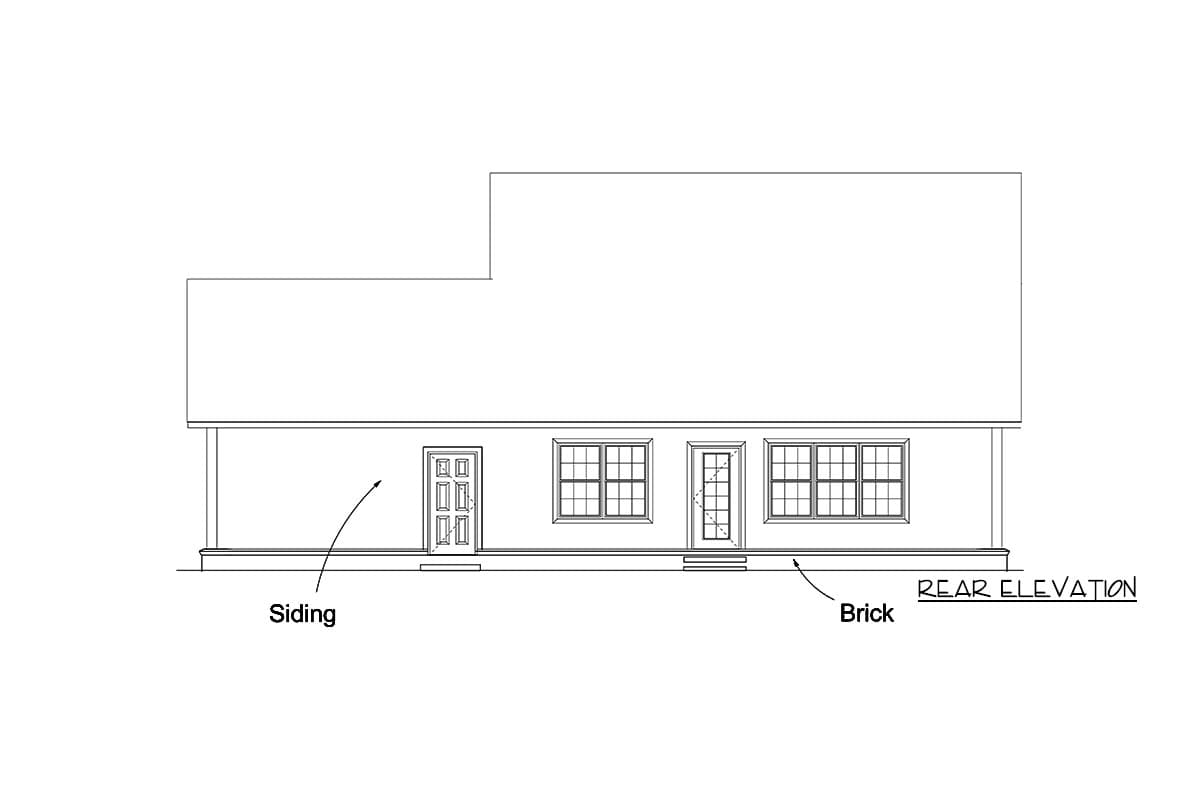

  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,137 sq. ft.

1st Floor

1,219 sq. ft.

2nd Floor

918 sq. ft.

Porch, Front

138 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

52' 0"

Depth

44' 0"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

440 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Cottage

Country

Farmhouse

Traditional

Special Features

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,137 sq. ft.

1st Floor

1,219 sq. ft.

2nd Floor

918 sq. ft.

Porch, Front

138 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

52' 0"

Depth

44' 0"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

440 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Cottage

Country

Farmhouse

Traditional

Special Features

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor
