Plan 777073MTL
4 Bed House Plan with Super Narrow Footprint - 2801 Sq Ft
Heated S.F.
2,801
Beds
4
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 777073MTL

Main Level
slide image 0
2nd Floor
slide image 1

Plan 777073MTL

1-800-854-7852

1-262-521-4596

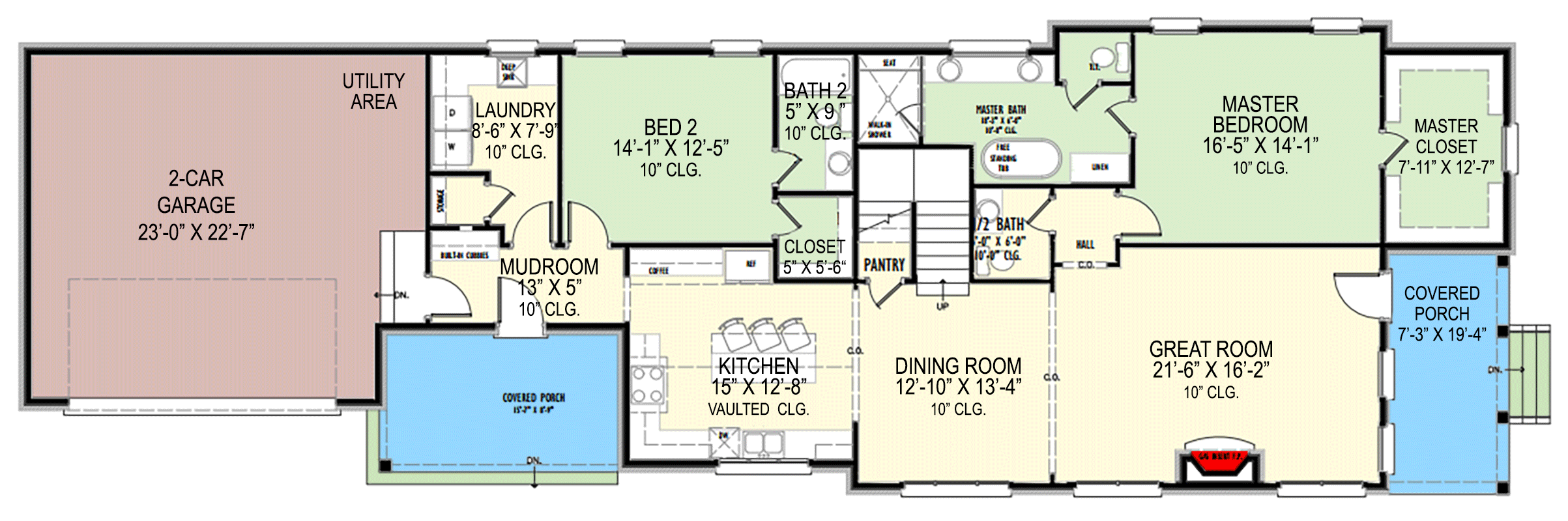

Main Level
floor plan image Main Level

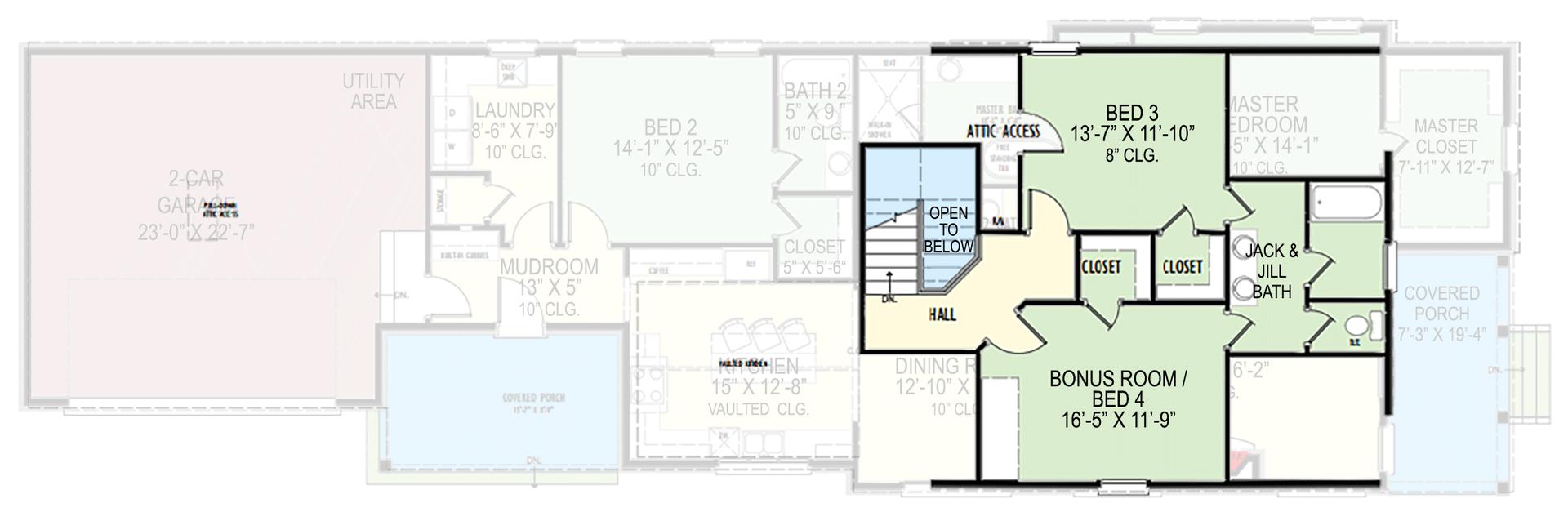

2nd Floor
floor plan image 2nd Floor
Plan Details
  • With a footprint that is just 31'6" wide, this 4 bed, 3.5 bath 2,801 square foot has a 552 square foot house plan is ideal for your narrow or infill lot.
  • Bedrooms line the right side of the first floor, leaving the left side open nearly front to back. The great room with fireplace flows to the dining room and that to the kitchen with a double sink set below a window and an island with seating for three.
  • A 2-car 594 square foot garage in back has space for utilities and steps up to the mudroom entrance.
  • Upstairs, a flex room and Bed 3 have shared access to the Jack and Jill bathroom.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get an alternate version with house plan 777074MTL (2,745 sq. ft.).
What's Included
  • Cover sheet
  • Foundation Plan
  • Floor plan with basic Electrical Plan and Door/Window Schedule
  • Roof Plan
  • Elevations with necessary sections
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
