Plan 623432DJ
4-Bed Mediterranean House Plan with Two-Story Great Room - 3346 Sq Ft
Heated S.F.
3,346
Beds
4
Baths
3.5
Stories
2
Cars
3
Tour
Floor Plan

Plan 623432DJ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 623432DJ

1-800-854-7852

1-262-521-4596

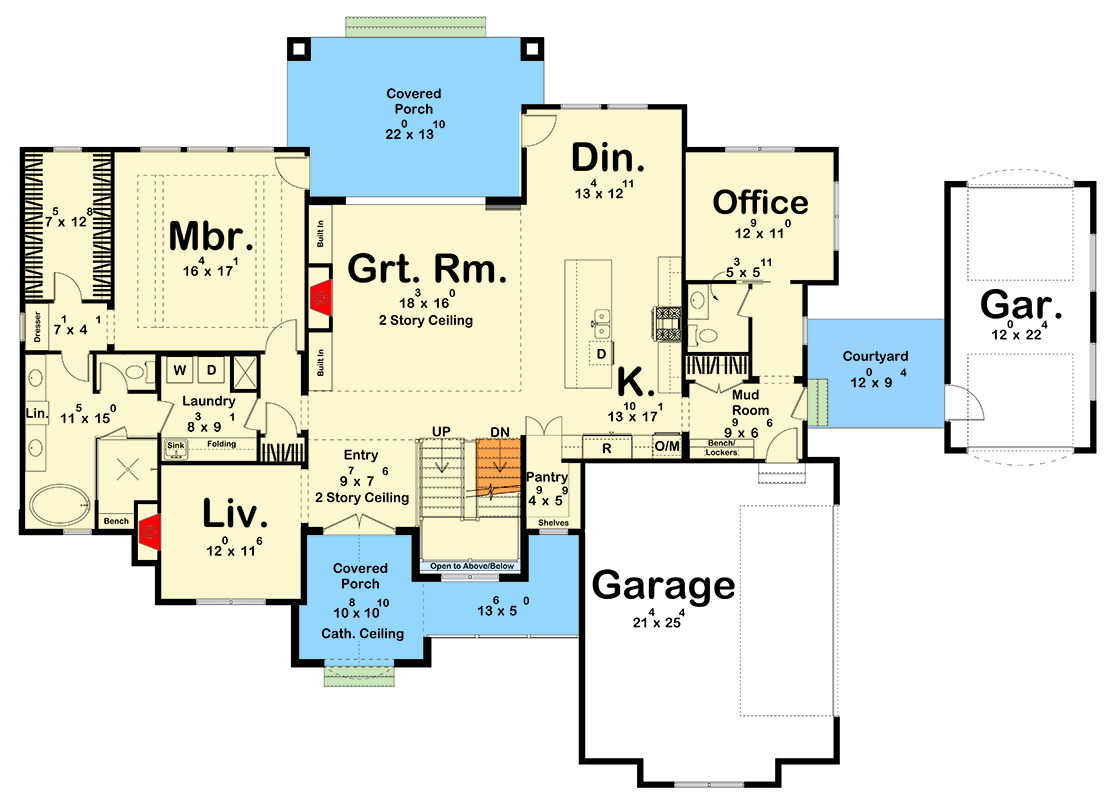

Main Level
floor plan image Main Level

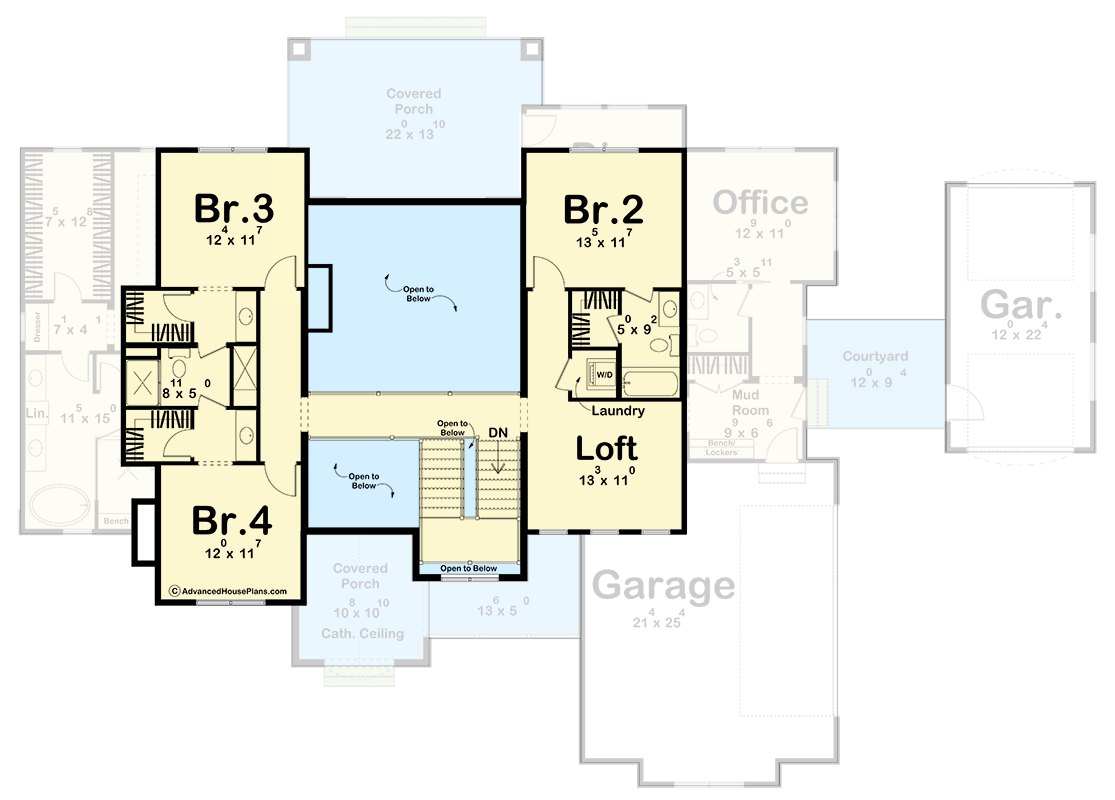

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This two-story Mediterranean house plan with four bedrooms and four bathrooms. It features an attached two-car garage, a detached one-car garage, and a connecting courtyard.
  • Inside, the home includes a living room with a fireplace, a two-story great room, and a master suite with a freestanding tub, large shower, and walk-in closet.
  • A dedicated laundry room is located on the main floor, with additional laundry facilities upstairs.
  • The second floor has three bedrooms, a walkway overlooking the great room, and a loft space for work or relaxation.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,346 sq. ft.

1st Floor

2,231 sq. ft.

2nd Floor

1,115 sq. ft.

Porch, Combined

485 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

92' 0"

Depth

64' 0"

Max Ridge Height

27' 1"

Garage

Type

Attached, Detached

Area

879 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Mediterranean

Special Features

Breakfast Nook

Butler Walk-in Pantry

Home Office

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Laundry - Upstairs

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Square Footage Breakdown

Total Heated Area

3,346 sq. ft.

1st Floor

2,231 sq. ft.

2nd Floor

1,115 sq. ft.

Porch, Combined

485 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

92' 0"

Depth

64' 0"

Max Ridge Height

27' 1"

Garage

Type

Attached, Detached

Area

879 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Mediterranean

Special Features

Breakfast Nook

Butler Walk-in Pantry

Home Office

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Laundry - Upstairs

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room
