Plan 81722AB

4-Bed Mid Century Modern House Plan with Rooftop Patio and Two-Story Great Room - 4507 Sq Ft

Heated S.F.

4,507

Beds

3 - 4

Baths

3 - 4

Stories

2

Cars

3

Floor Plan

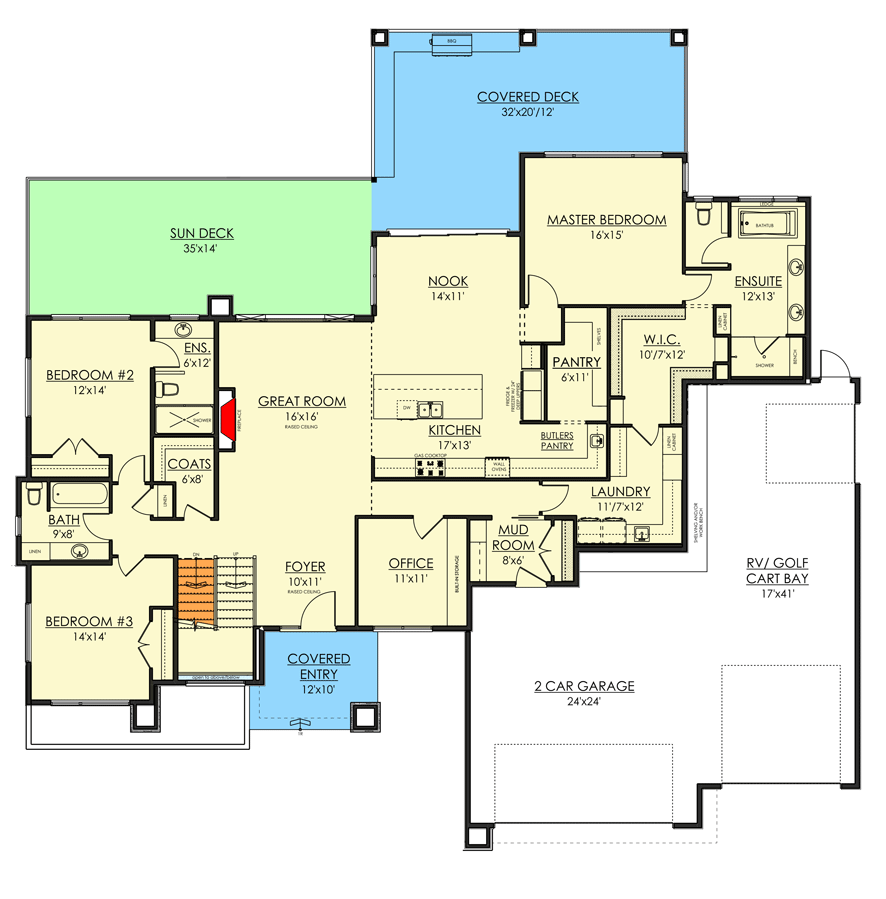

Main Level

floor plan image Main Level

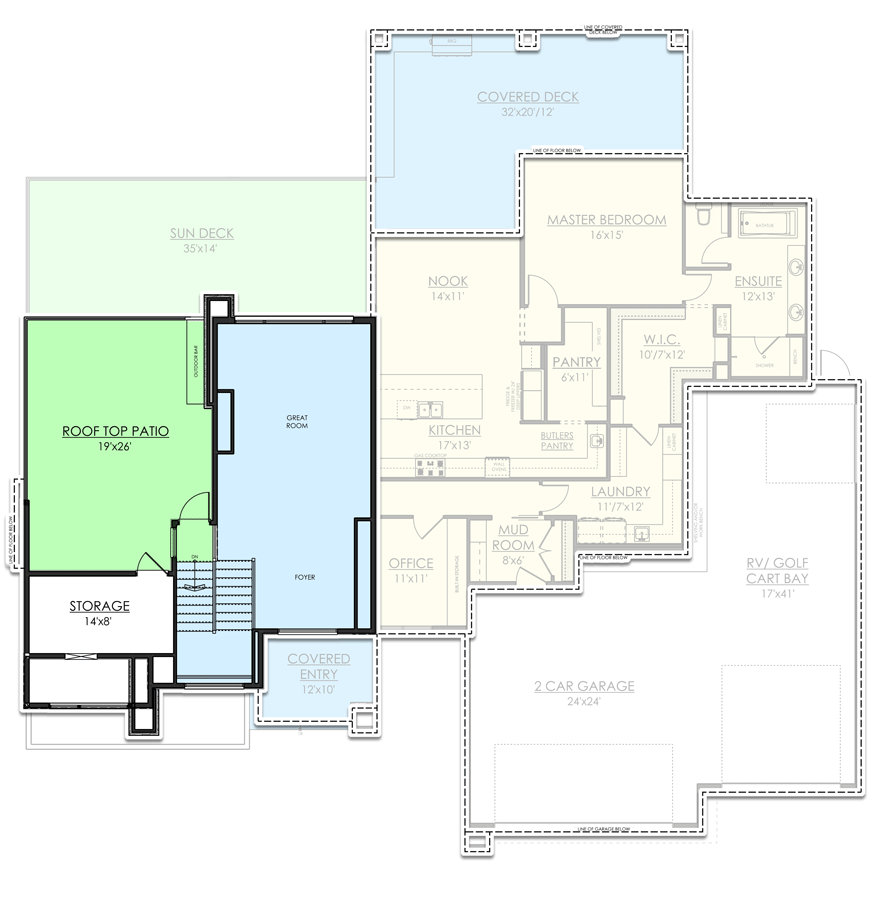

Rooftop Deck

floor plan image Rooftop Deck

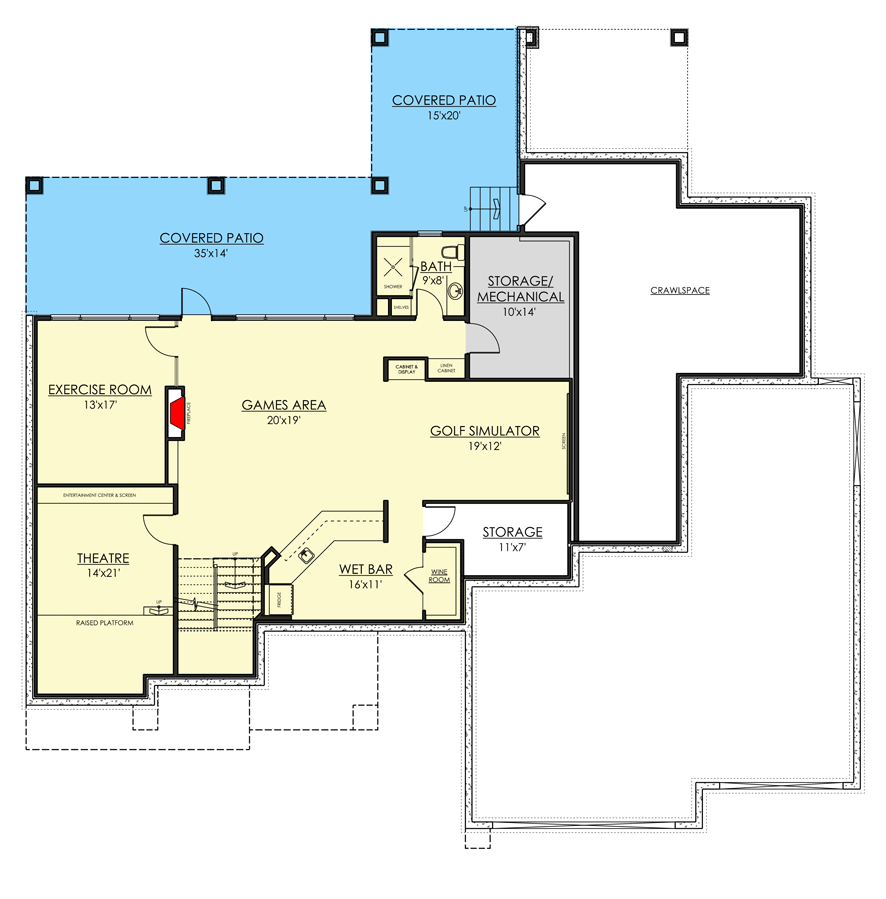

Lower Level

floor plan image Lower Level

Plan Details

Contemporary siding materials adorn the exterior of this 4-bedroom Modern home plan, complete with a rooftop patio to enjoy the sunsets.
A fireplace anchors the left wall of the great room that easily moves into the island kitchen. The kitchen expands into a butler's pantry with access to another walk-in pantry to maximize storage space.
A multi-panel glass door in the dining nook retracts to provide a seamless transition between the interior and covered deck.
The master suite boasts a deluxe ensuite with a pass-through closet that leads to the laundry room. Bedrooms 2 and 3, located across the home, share the hall bath.
Other notable features include a home office, mudroom, and RV / golf cart bay in the garage.

What's Included

Elevations (Front, Rear, Left and Right)
Floor plans
Foundation plan
Cross section
Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

View Sample Plan

What's Not Included

Electrical plan
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

4,507 sq. ft.

Lower Level

1,687 sq. ft.

1st Floor

2,820 sq. ft.

3rd Floor

465 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

85' 0"

Depth

69' 0"

Max Ridge Height

24' 10"

Garage

Type

Attached

Area

1314 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10' 6"

First Floor

10' 1"

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Mid Century Modern

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

4,507 sq. ft.

Lower Level

1,687 sq. ft.

1st Floor

2,820 sq. ft.

3rd Floor

465 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

85' 0"

Depth

69' 0"

Max Ridge Height

24' 10"

Garage

Type

Attached

Area

1314 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10' 6"

First Floor

10' 1"

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Mid Century Modern

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Canadian House Plans
