Plan 801090PM

4-Bed Modern Cottage Plan Filled with Natural Light

Heated S.F.

1,878

Beds

Baths

Stories

Floor Plan

Main Level

2nd Floor

Plan Details

This 4-bedroom Modern Cottage measures 40 feet wide by 38 feet deep, with a living area of 1,878 square feet.
The double-height ceiling above the living room makes the main level feel even bigger and fills the space with natural light.
Discover the primary bedroom with a walk-in closet on the first floor, while the 4-fixture bathroom next door includes a laundry closet.
Located on the side of the cottage, a terrace will allow you to have your meals with your guests while enjoying the view of the back of the property.
The three remaining bedrooms share a 4-fixture bathroom on the second level.

What's Included

Please note this plan is designed to the National Building Code of Canada.

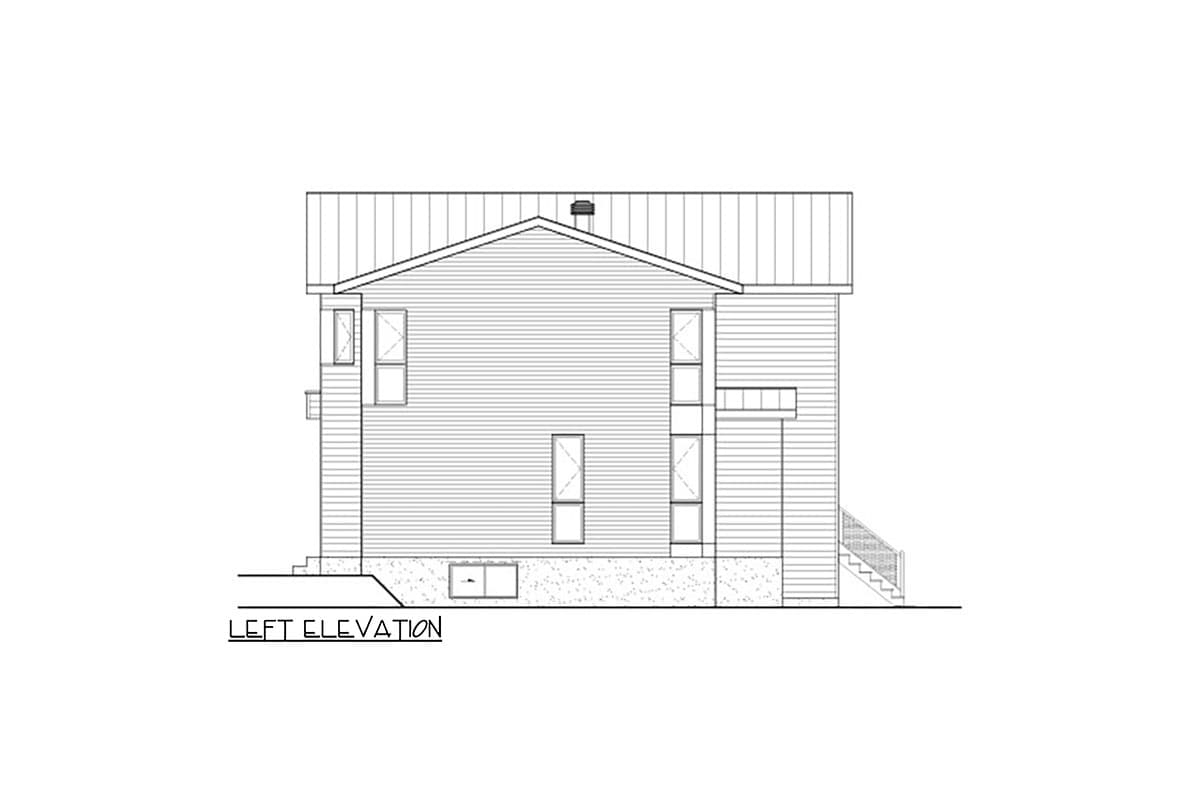

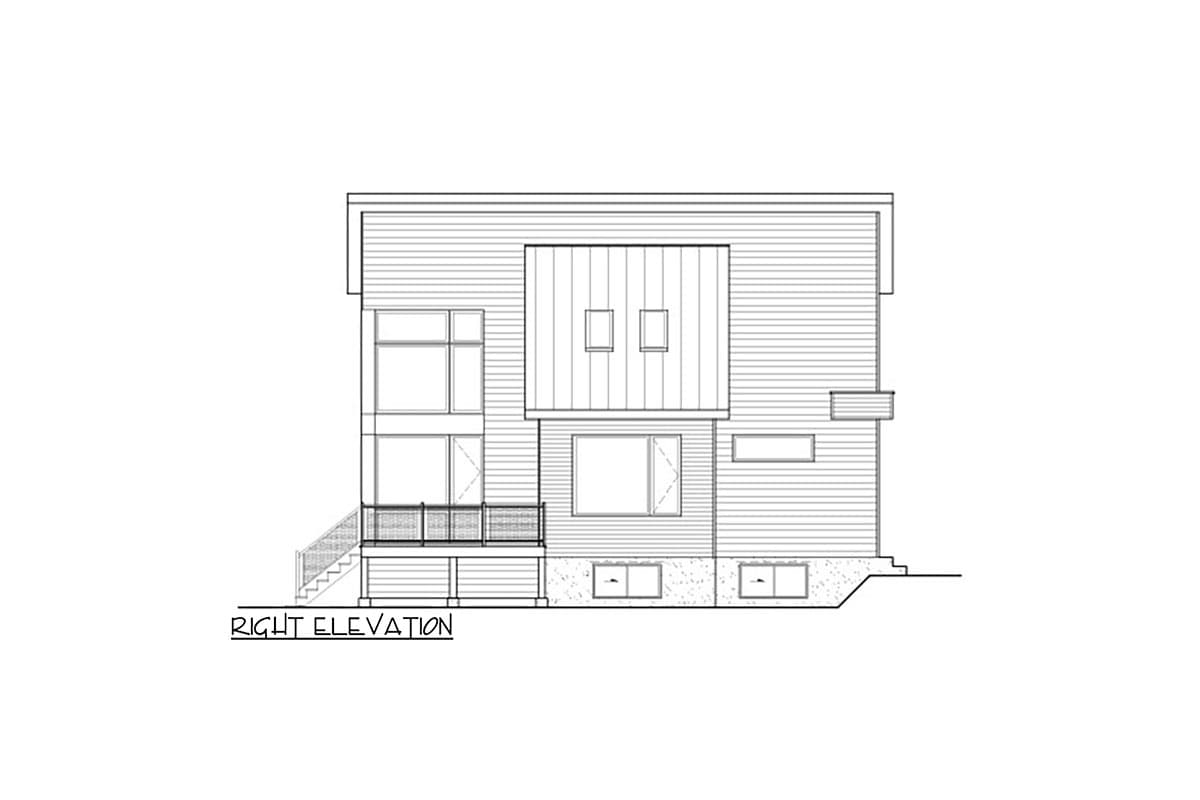

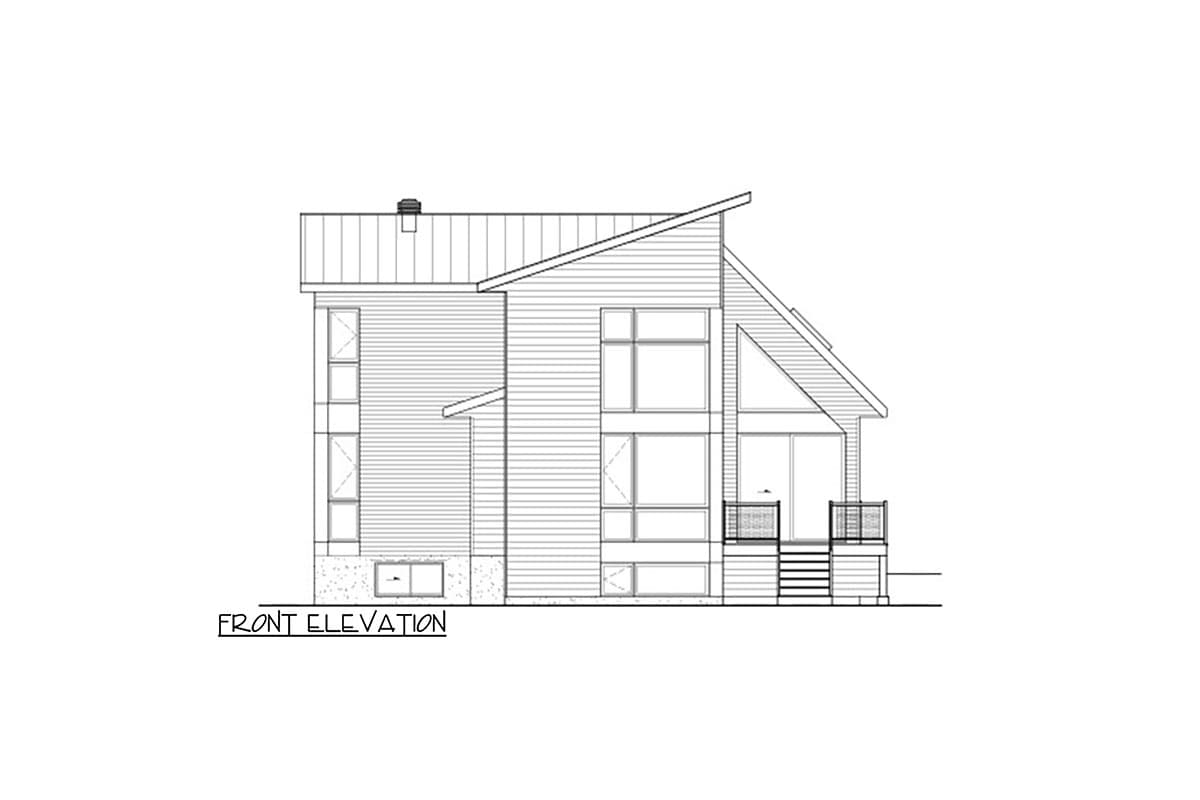

Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.

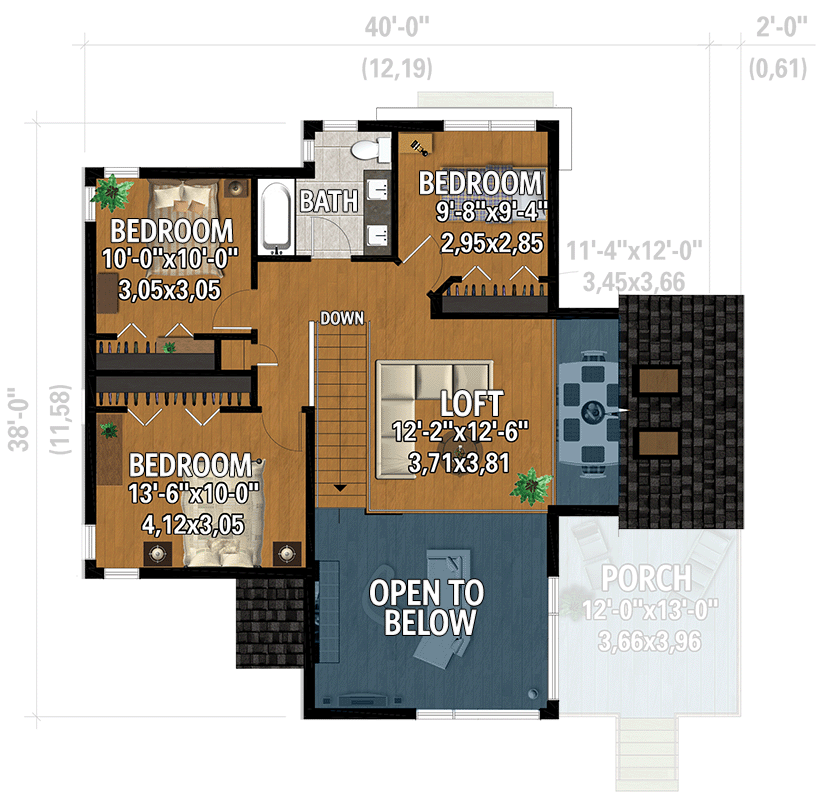

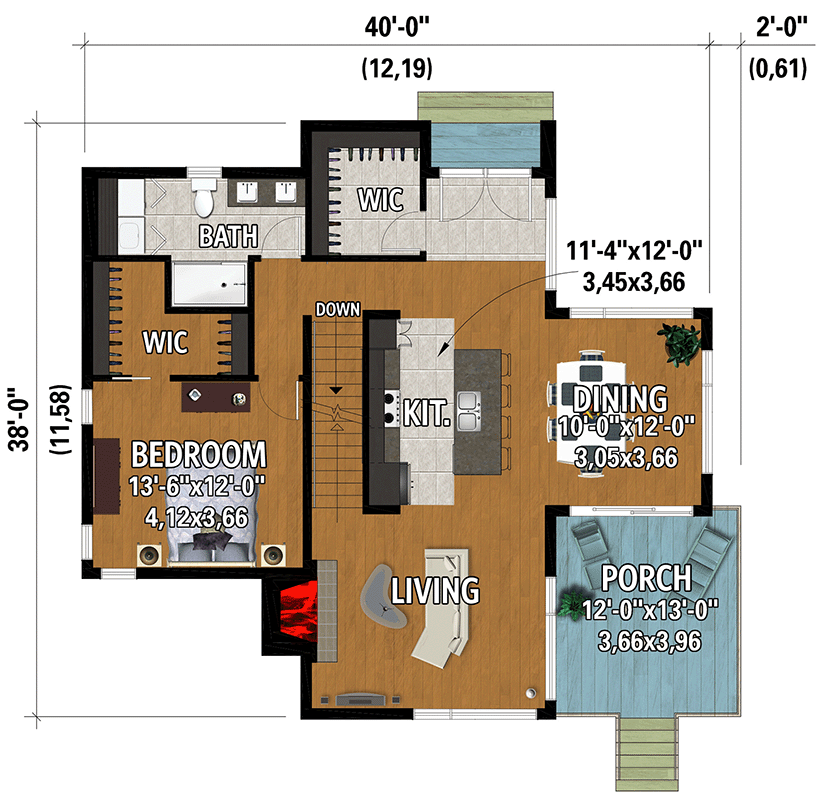

Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
