Plan 818113JSS

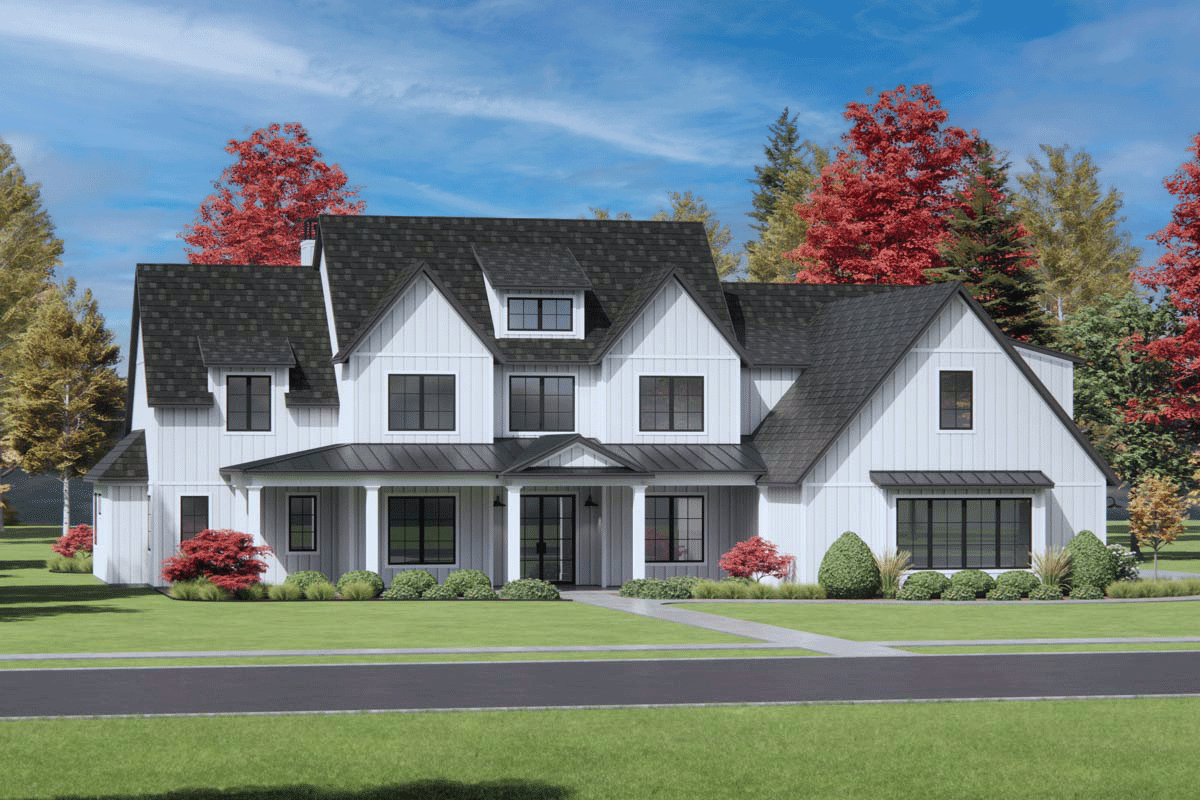

4-Bed Modern Farmhouse Plan with Large Front and Rear Porches - 4164 Sq Ft
Heated S.F.
4,164
Beds
4
Baths
4.5
Stories
2
Cars
3
Floor Plan

Plan 818113JSS

Main Level
slide image 0
2nd Floor
slide image 1

Plan 818113JSS

1-800-854-7852

1-262-521-4596

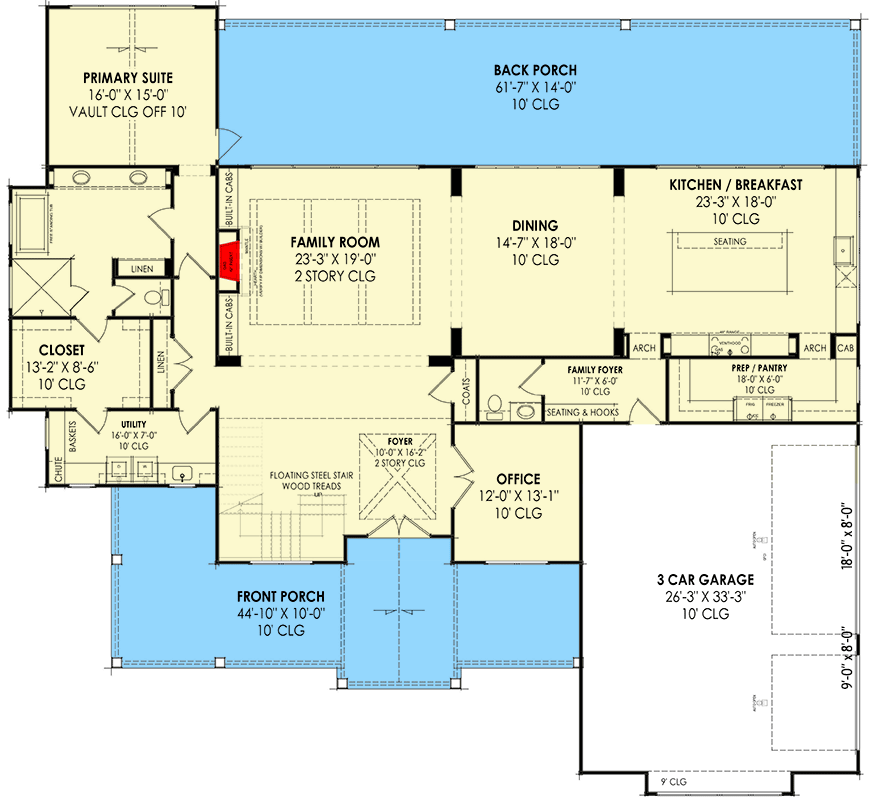

Main Level
floor plan image Main Level

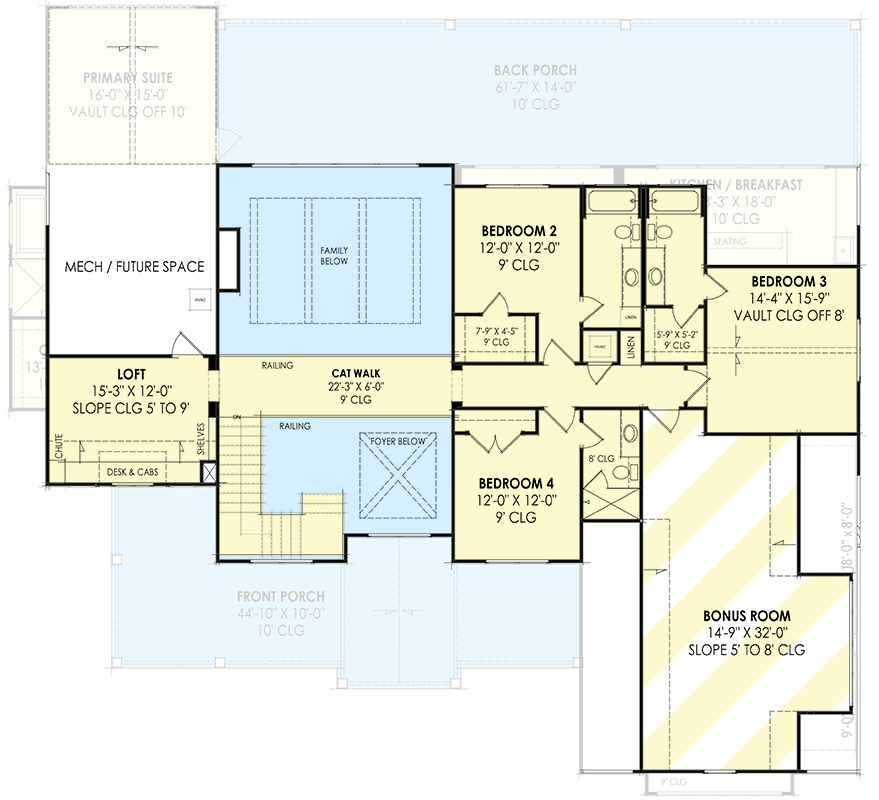

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 4-bed modern farmhouse plan gives you 4,164 square feet of heated living and a massive 926 square foot side-load garage. Porches in front (10' deep; 571 sq. ft.) and back (14' deep; 862 sq. ft.) give you a combined 1,433 square feet of fresh-air space to enjoy.
  • The master suite has a vaulted ceiling and is the sole bedroom on the main floor. With direct access to the back porch and the laundry room, it is a well-planned private retreat. Upstairs, 3 ensuite bedrooms are to the right of the catwalk that looks out across the family room and the foyer below while a loft with built-in desk and laundry chute is to the left.
  • Partial walls provide separation between the family room, the dining room and the kitchen, maintaining the feel of intimate spaces while also giving you an open floor plan living experience.
  • Work from home in the office located behind a pair of French doors off the foyer.
  • The 3-car garage has a 9' by 8' overhead door and a 18' by 8' foot overhead door and accesses the home through the family foyer with built-in seating and a powder room.
What's Included
  • Foundation plan
  • Detailed floorplans
  • Roof plan

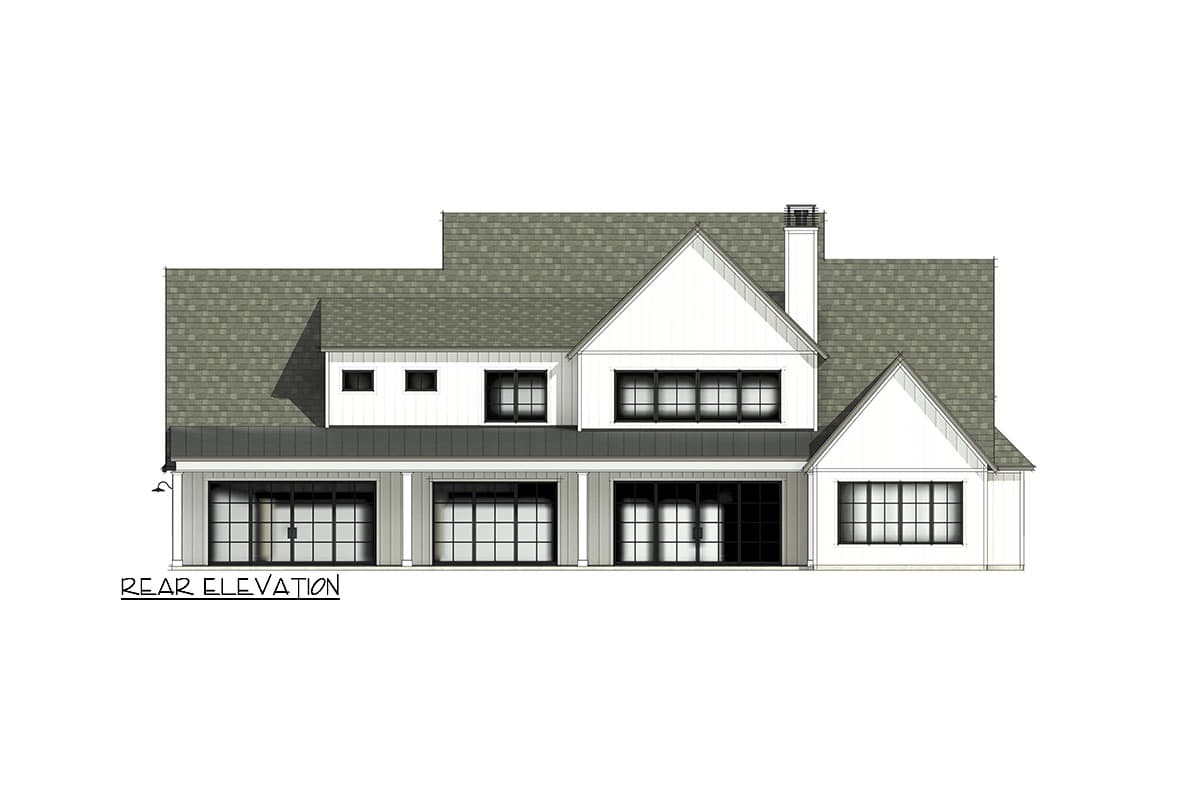

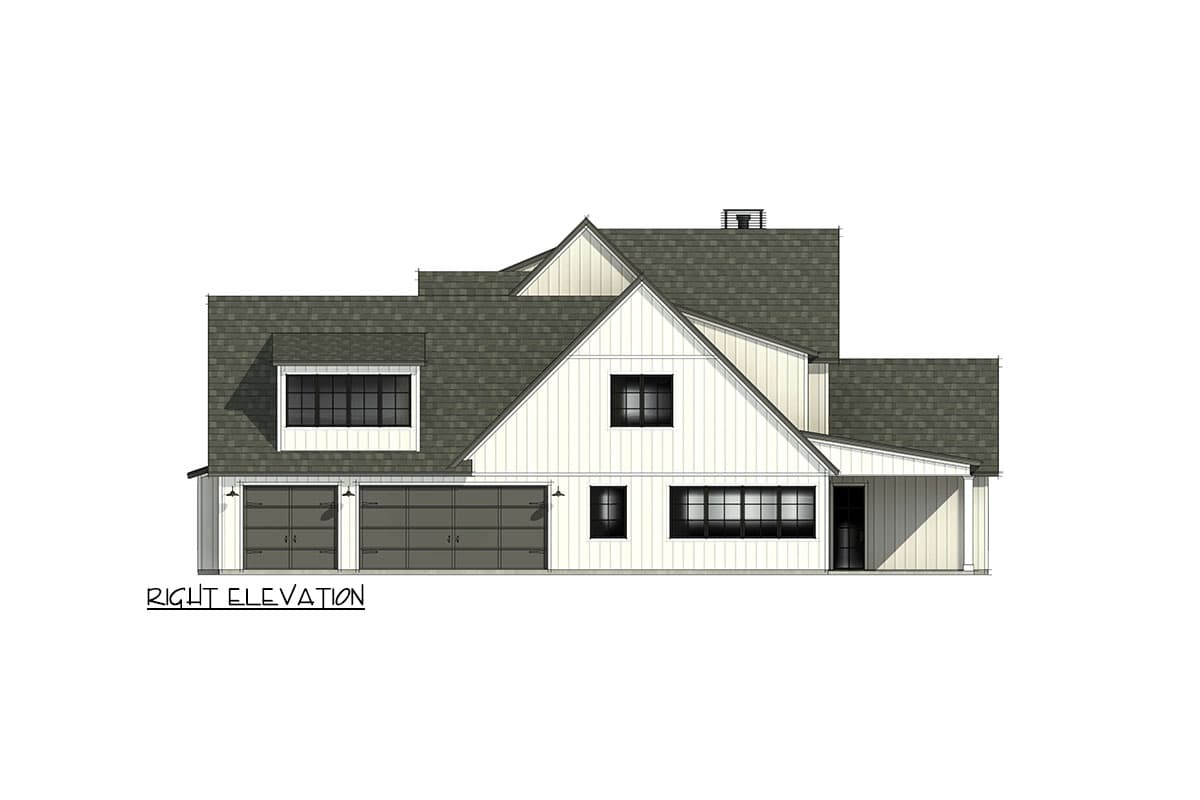

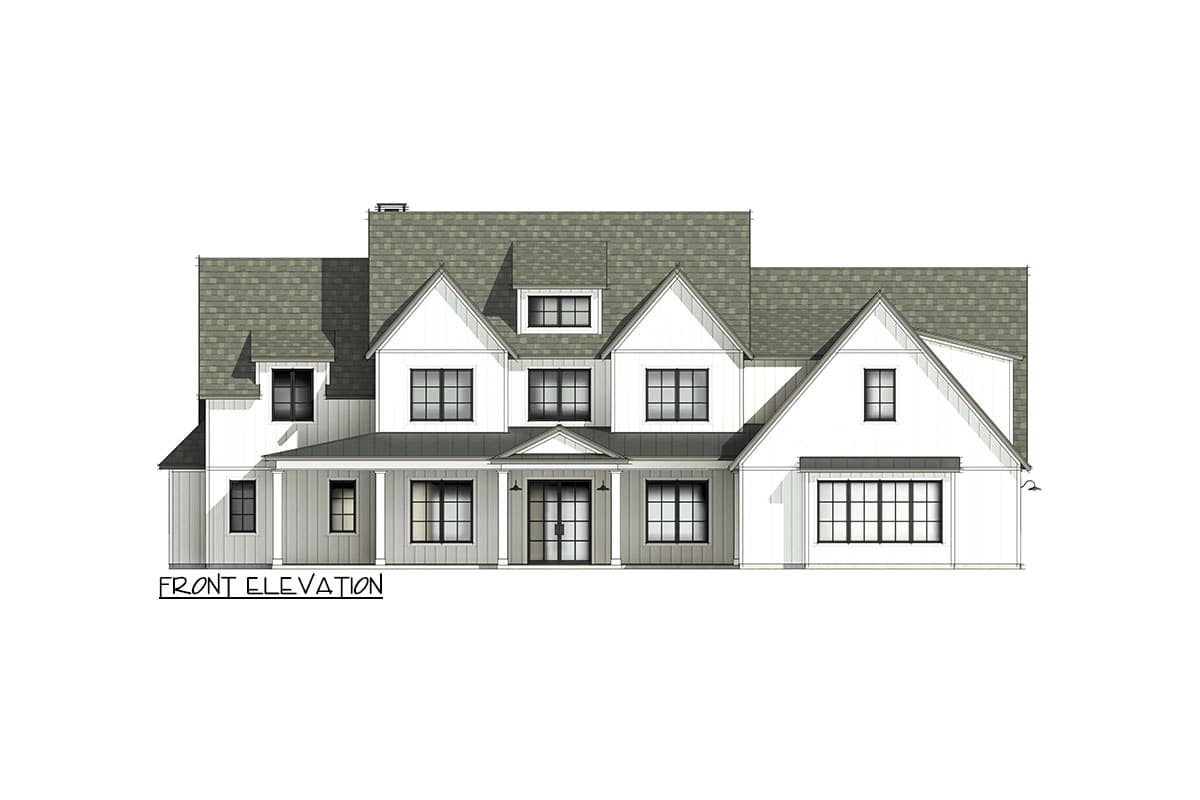

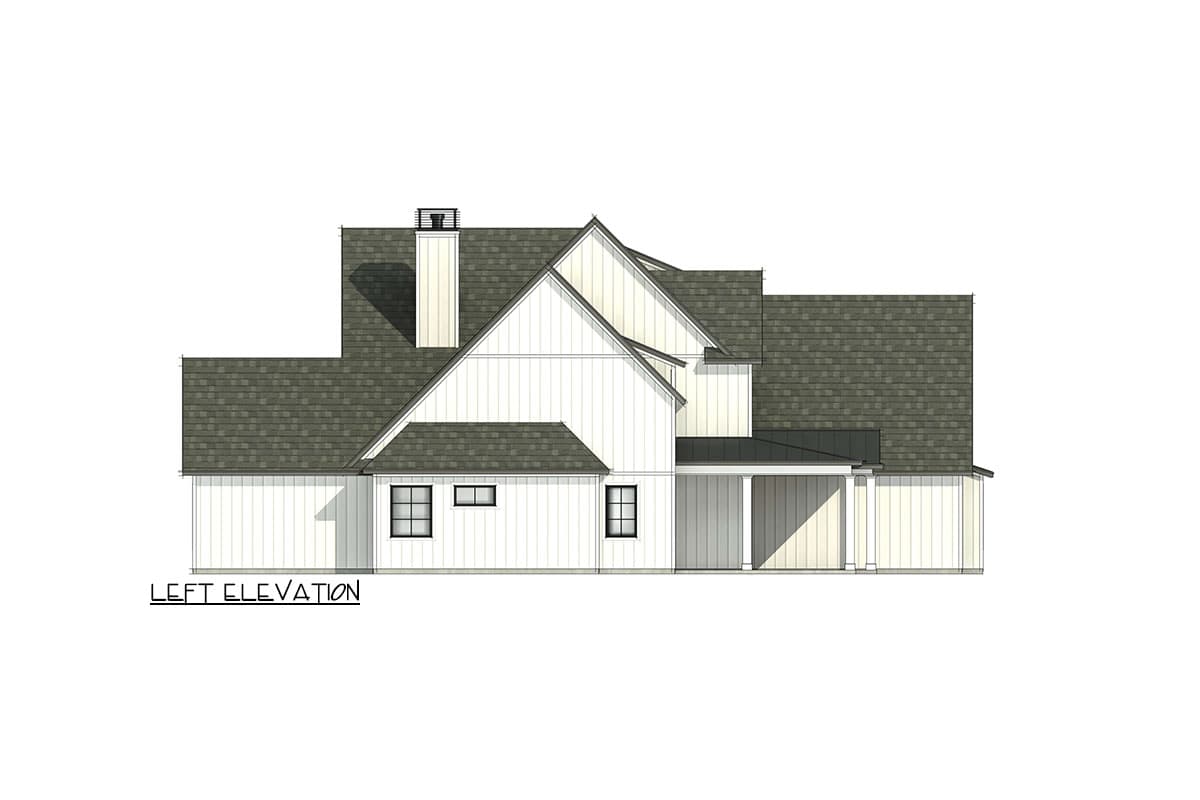

  • Four elevations
  • Electrical schematic
  • Cross section(s)
  • Rafter plan and ceiling joist plans (Beam, joist, and rafters to be sized locally by an engineer or framer)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,164 sq. ft.

1st Floor

2,814 sq. ft.

2nd Floor

1,350 sq. ft.

Bonus

575 sq. ft.

Porch, Front

571 sq. ft.

Porch, Rear

862 sq. ft.

Porch, Combined

1,433 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

81' 7"

Depth

75' 9"

Max Ridge Height

33' 9"

Garage

Type

Attached

Area

926 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

14 on 12

Architectural Style

Country

Farmhouse

Modern Farmhouse

New American

Special Features

Bonus Room

Breakfast Nook

Butler Walk-in Pantry

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Loft

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Home Office
