Plan 666254RAF

4 Bed Modern House Plan with 2 Outdoor Fireplaces - 5516 Sq Ft

Heated S.F.

5,516

Beds

4

Baths

3.5+

Stories

2

Cars

3

Floor Plan

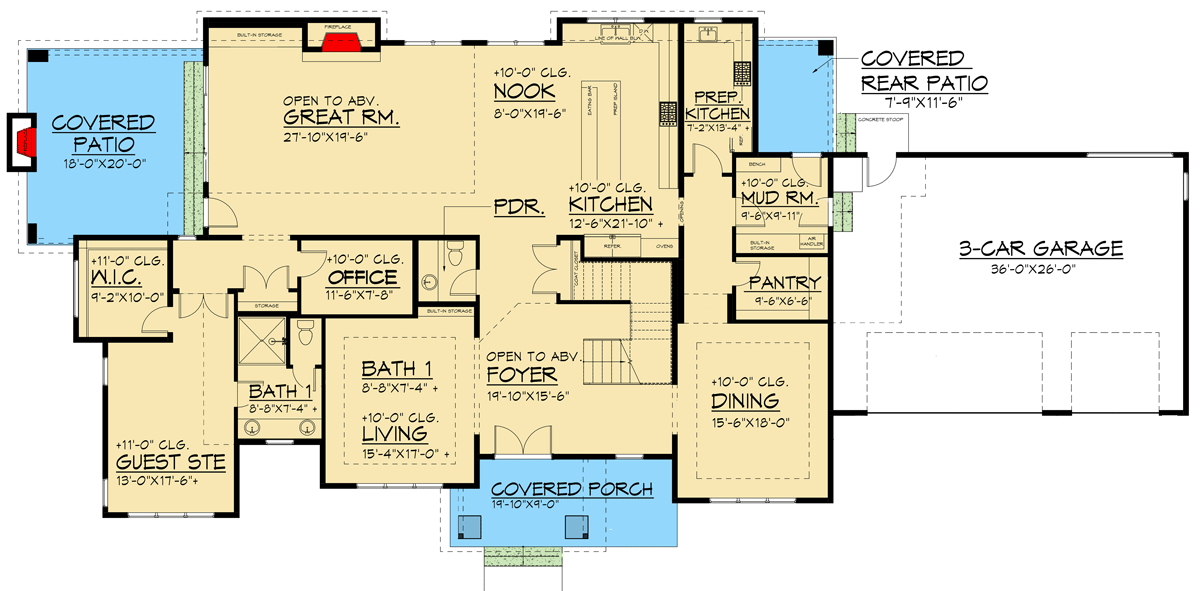

Main Level

floor plan image Main Level

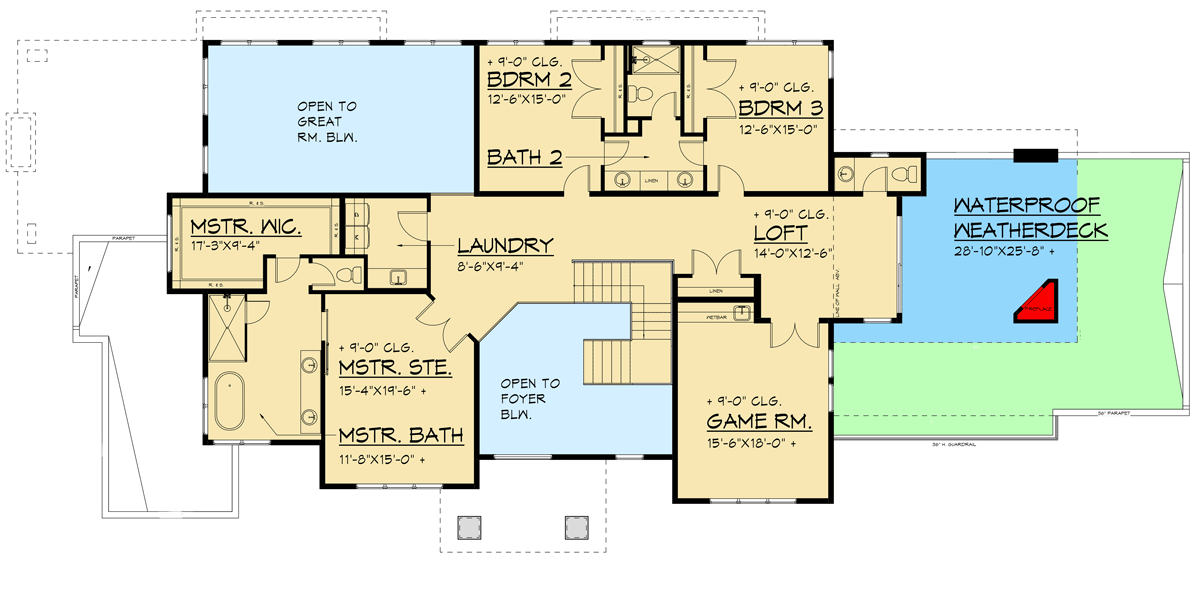

2nd Floor

floor plan image 2nd Floor

Plan Details

This modern house plan gives you 4 beds, 3 full baths and 2 half baths and 5,516 square feet of heated living. A covered patio with fireplace on the main floor and a second one on the second floor covered deck give you two great fresh air spaces to enjoy as well.
Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
We can modify any house plan you see on our site. Learn more about modifications.

What's Included

Cover Sheet with plan info
General Notes - Note: codes will not include local state adopted amendments
Fully dimensions and detailed floor plans
Elevations
Building Cross Section
Roof Plan
Details
Window Schedule
Original Structural plan FOR REFERENCE ONLY

What's Not Included

Architectural or Engineering Stamp - handled locally when required
Site plans - handled locally - handled locally when required
Mechanical Drawings - handled locally when required
Plumbing Drawings - handled locally when required
Electrical Drawings - handled locally when required
Energy Calculations - handled locally when required
Foundation and Framing plans - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

5,516 sq. ft.

1st Floor

3,248 sq. ft.

2nd Floor

2,268 sq. ft.

Porch, Front

199 sq. ft.

Deck

909 sq. ft.

Covered Patio

447 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

114' 6"

Depth

51' 4"

Max Ridge Height

29' 2"

Garage

Type

Attached

Area

985 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Mid Century Modern

Special Features

Bedrooms - Split

Jack & Jill Bath

Laundry - Upstairs

Master Suite - 2nd Floor

Outdoor Fireplace

Two Story Great Room

Plan Collections

Square Footage Breakdown

Total Heated Area

5,516 sq. ft.

1st Floor

3,248 sq. ft.

2nd Floor

2,268 sq. ft.

Porch, Front

199 sq. ft.

Deck

909 sq. ft.

Covered Patio

447 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

114' 6"

Depth

51' 4"

Max Ridge Height

29' 2"

Garage

Type

Attached

Area

985 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Mid Century Modern

Special Features

Bedrooms - Split

Jack & Jill Bath

Laundry - Upstairs

Master Suite - 2nd Floor

Outdoor Fireplace

Two Story Great Room

Plan Collections
