Plan 270073AF
4-Bed Modern House Plan with All Bedrooms Upstairs - 4003 Sq Ft
Heated S.F.
4,003
Beds
4
Baths
4.5
Stories
2
Cars
3
Floor Plan

Plan 270073AF

Main Level
slide image 0
2nd Floor
slide image 1

Plan 270073AF

1-800-854-7852

1-262-521-4596

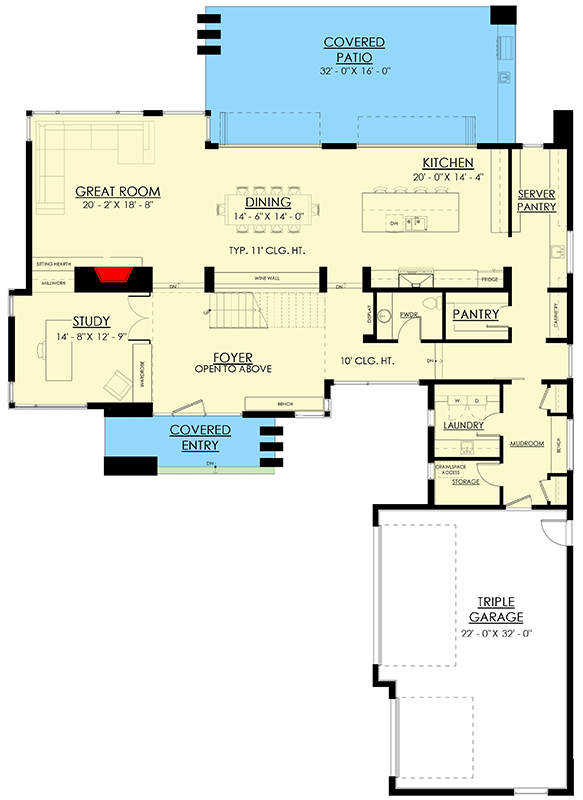

Main Level
floor plan image Main Level

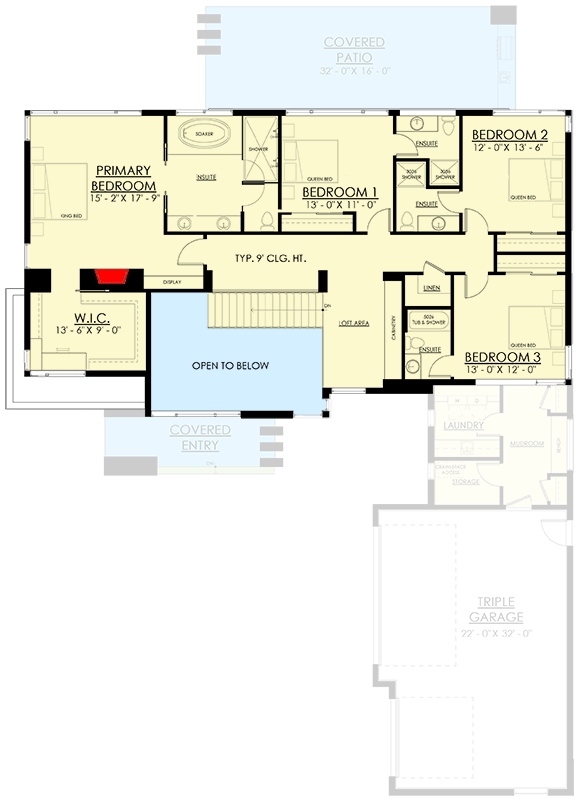

2nd Floor
floor plan image 2nd Floor
Plan Details

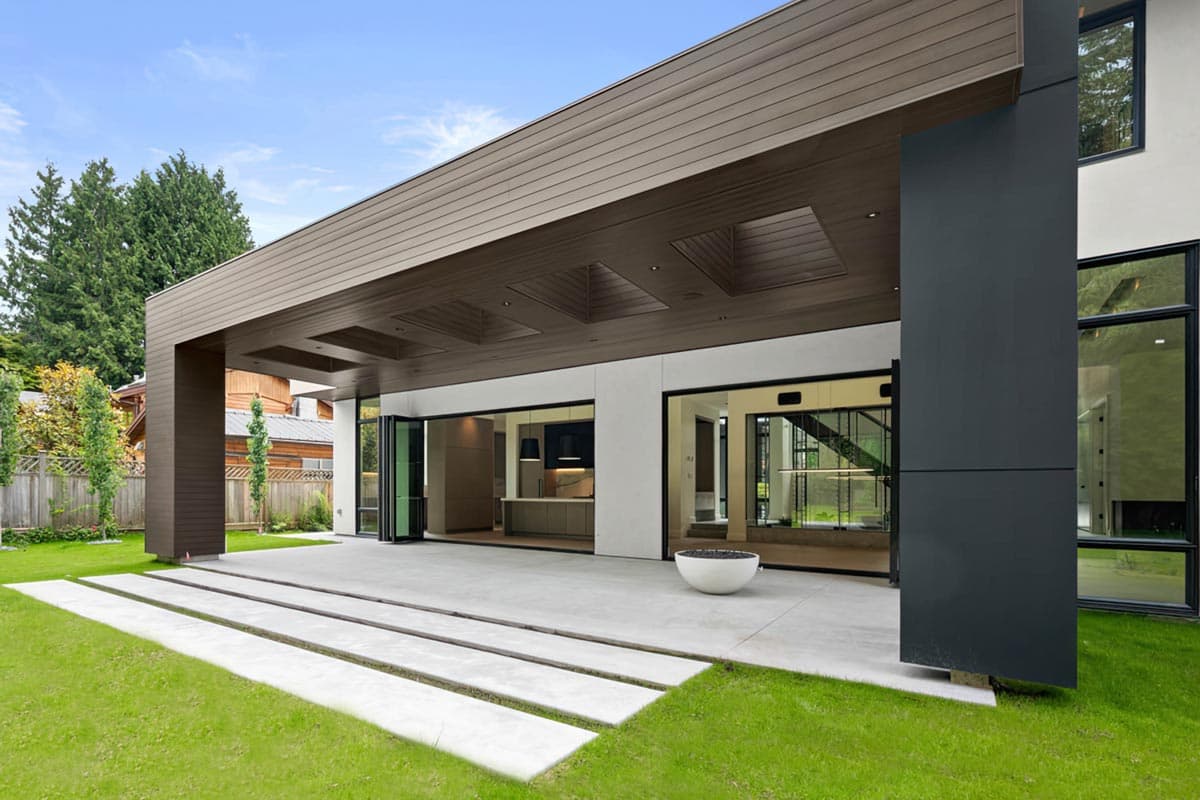

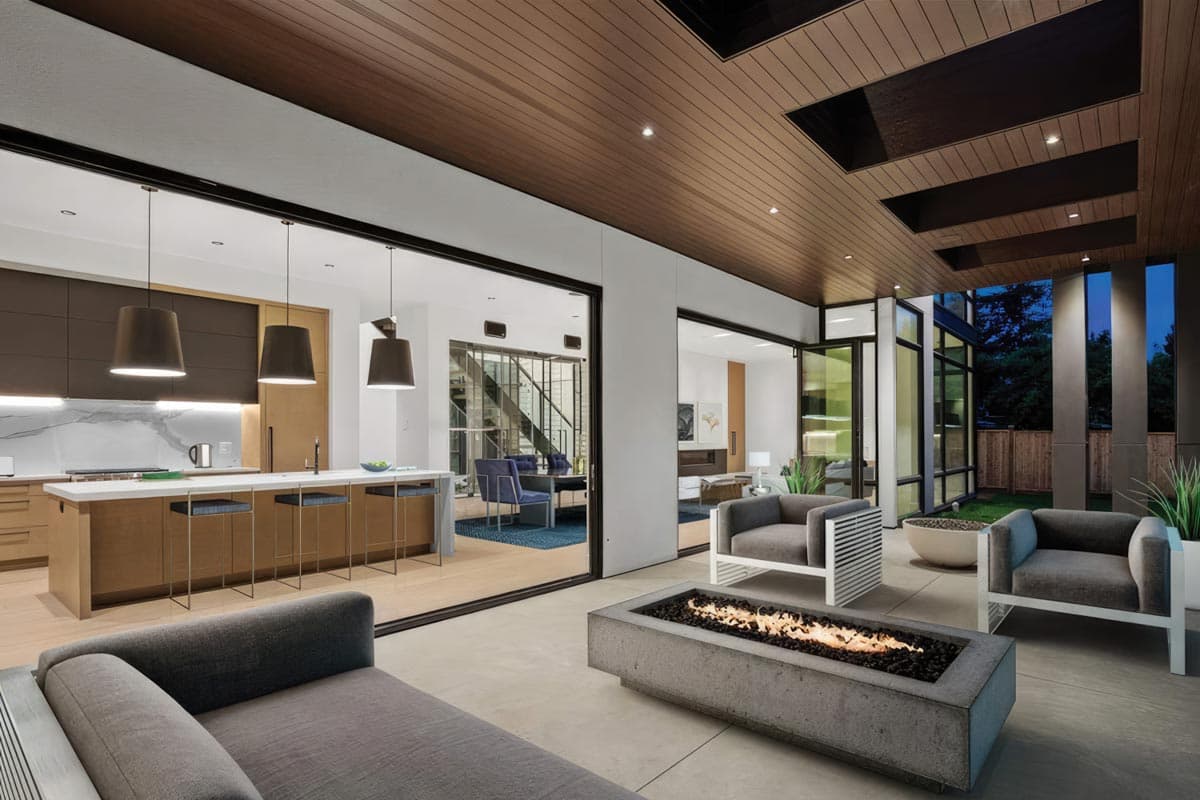

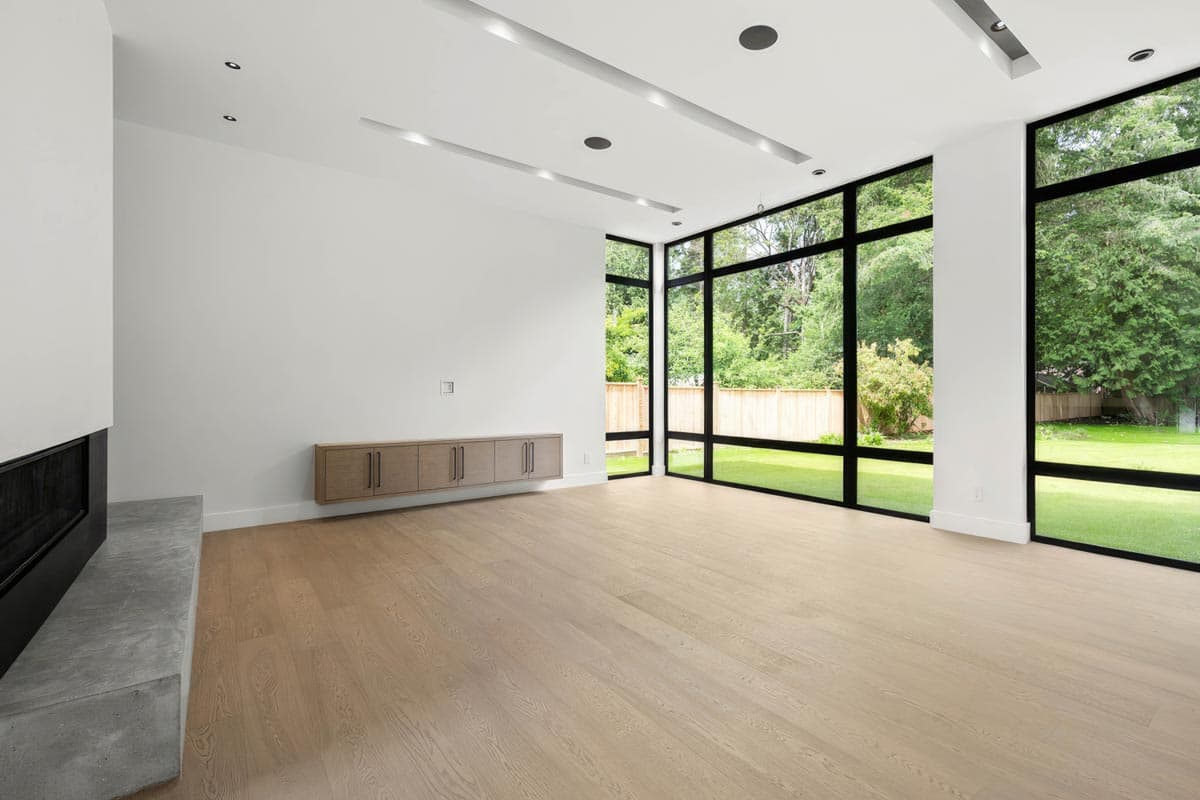

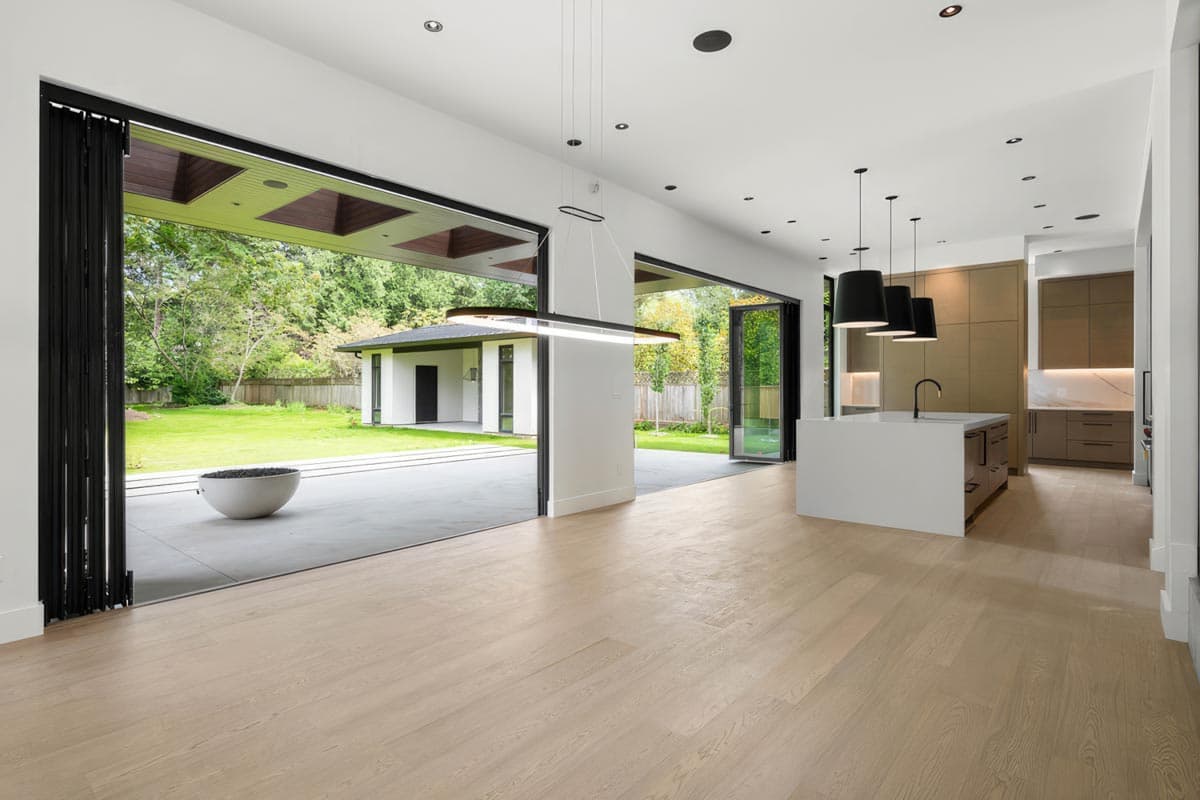

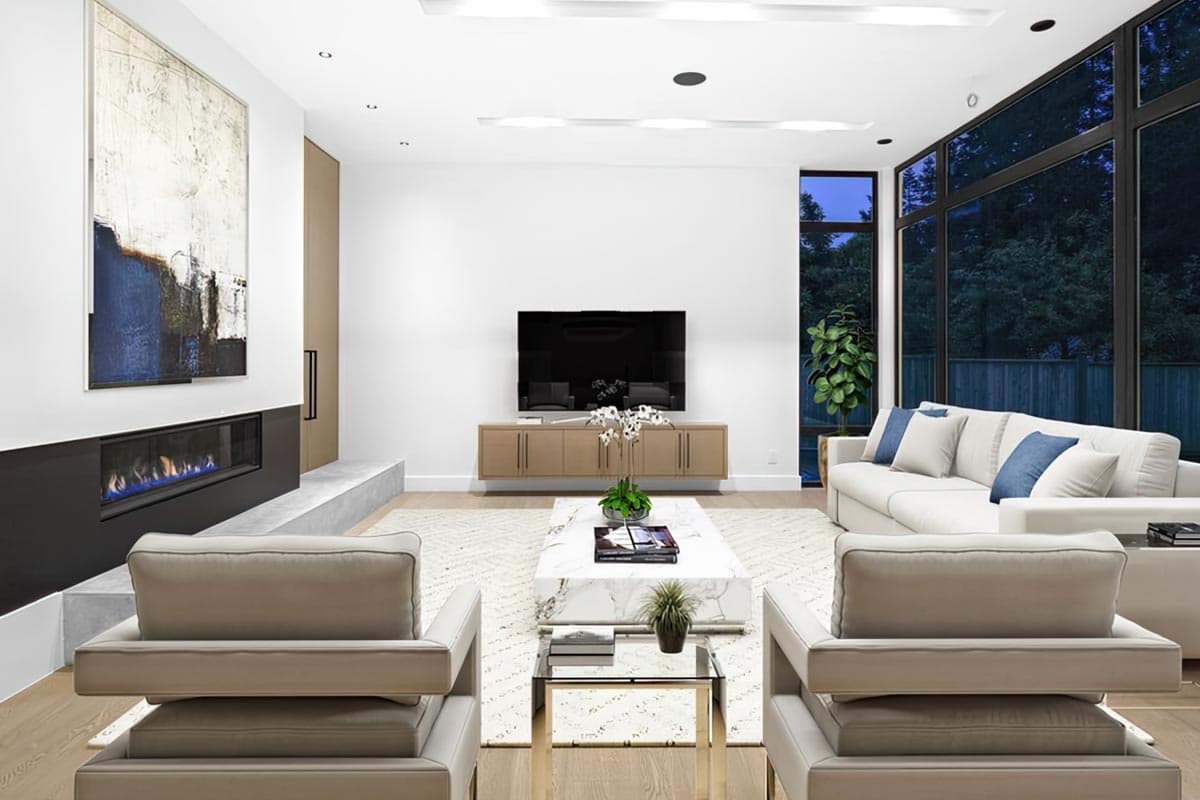

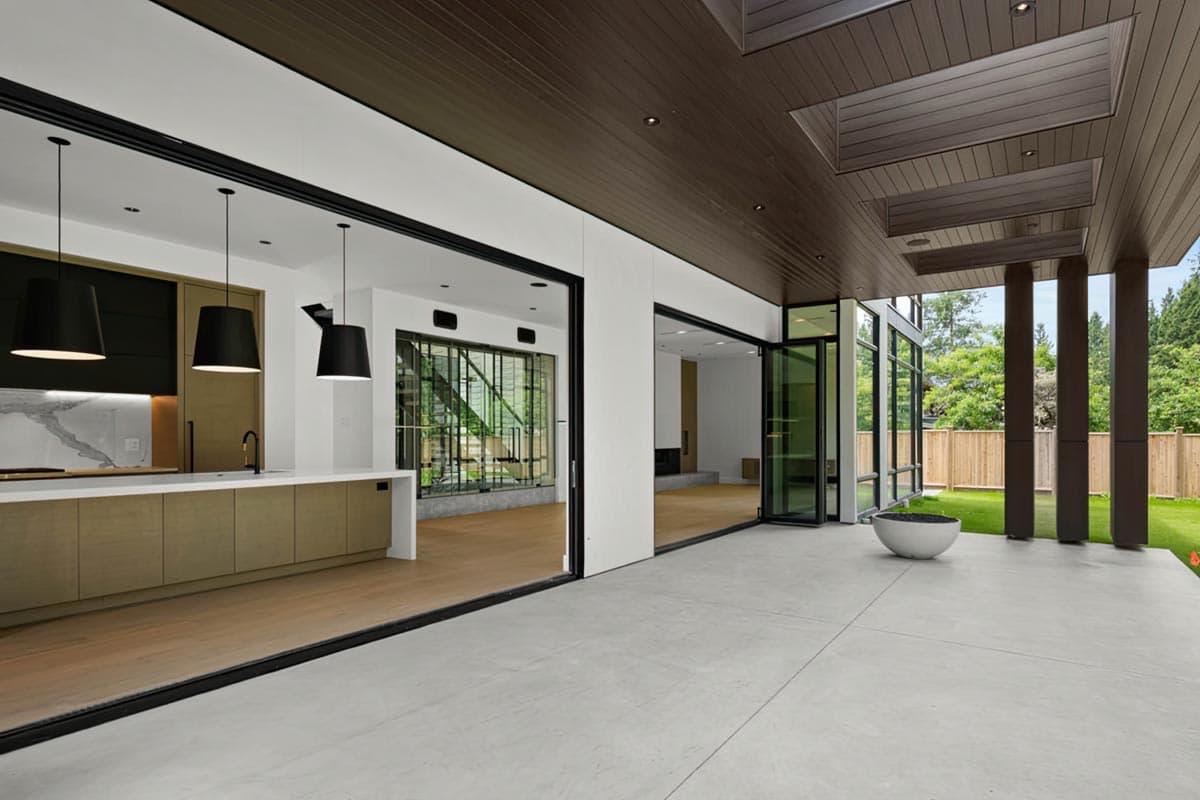

  • Oversized windows allow nature to serve as the art in this 4-Bedroom Modern House Plan, while retractable glass walls provide a seamless flow between the interior and outdoor living spaces.

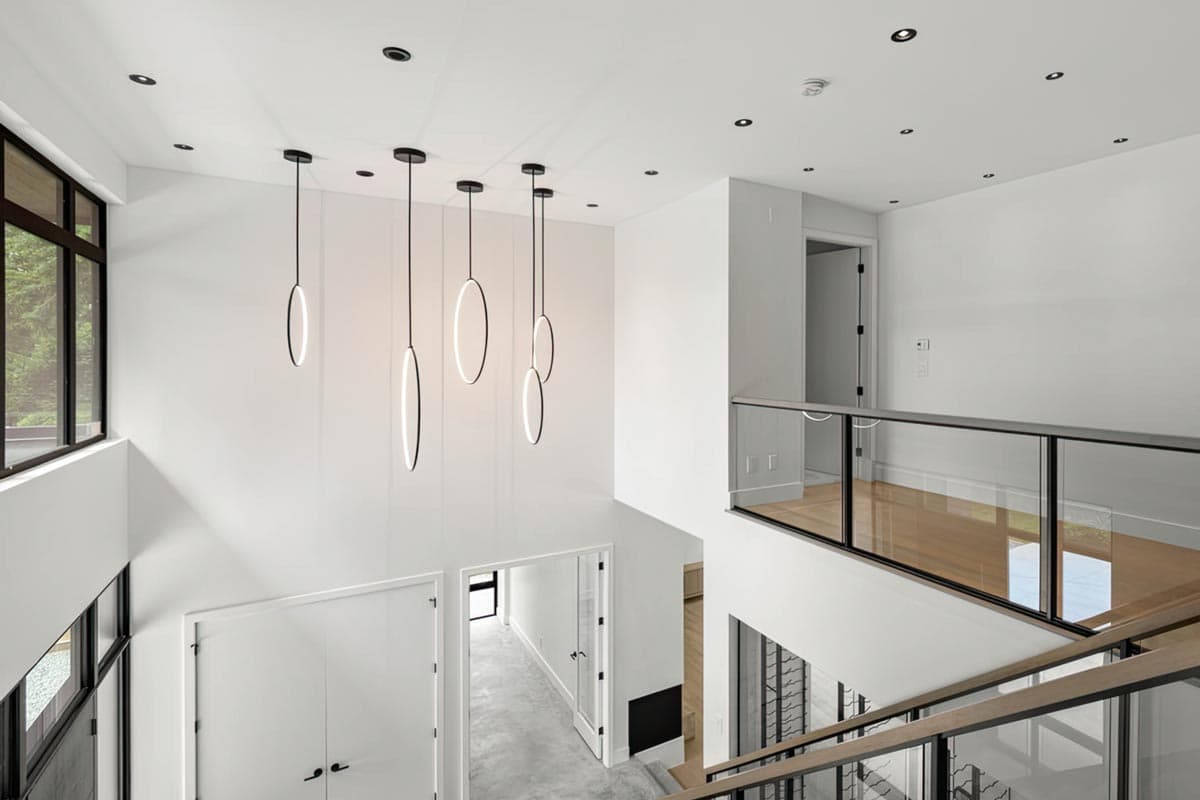

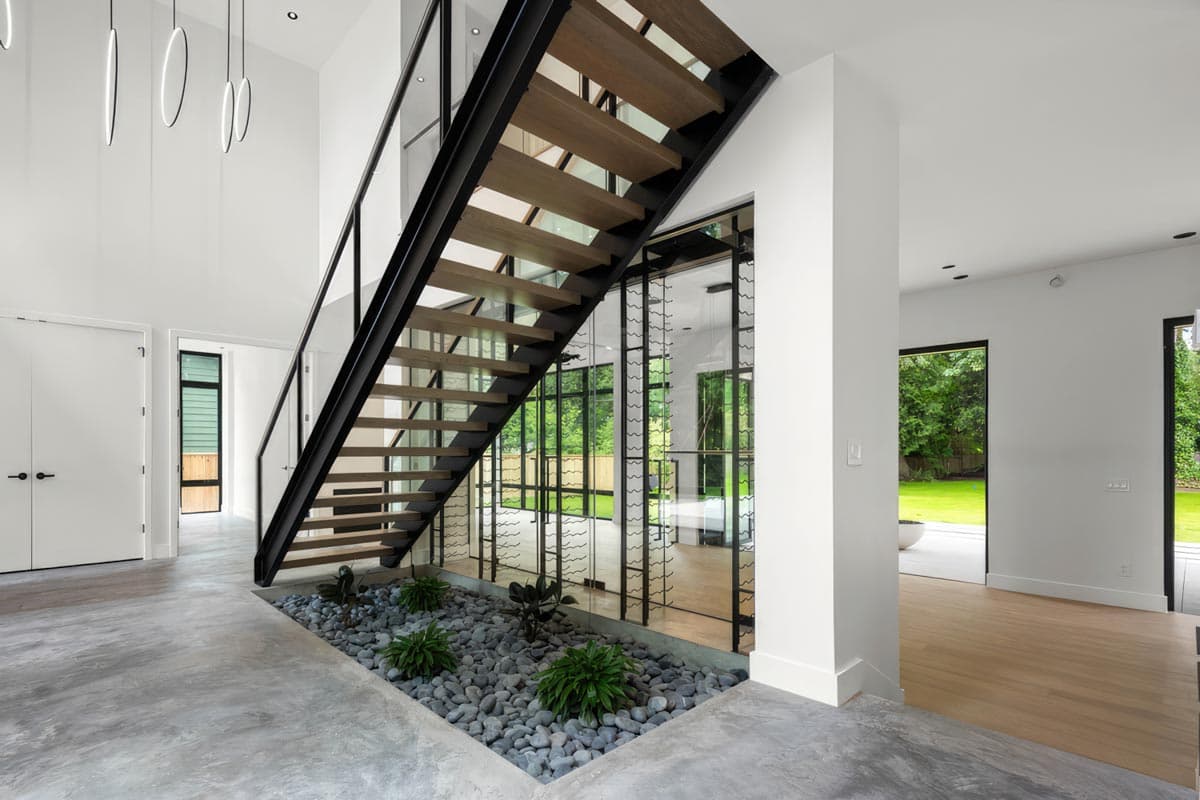

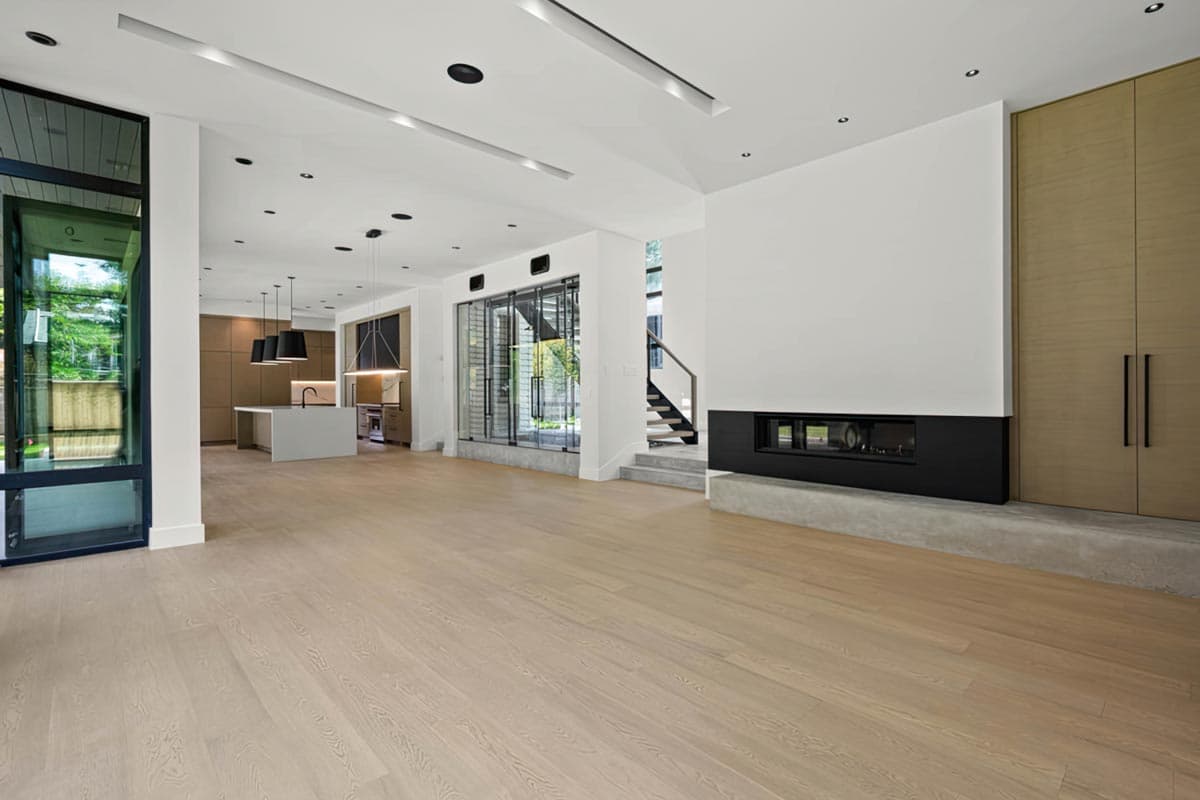

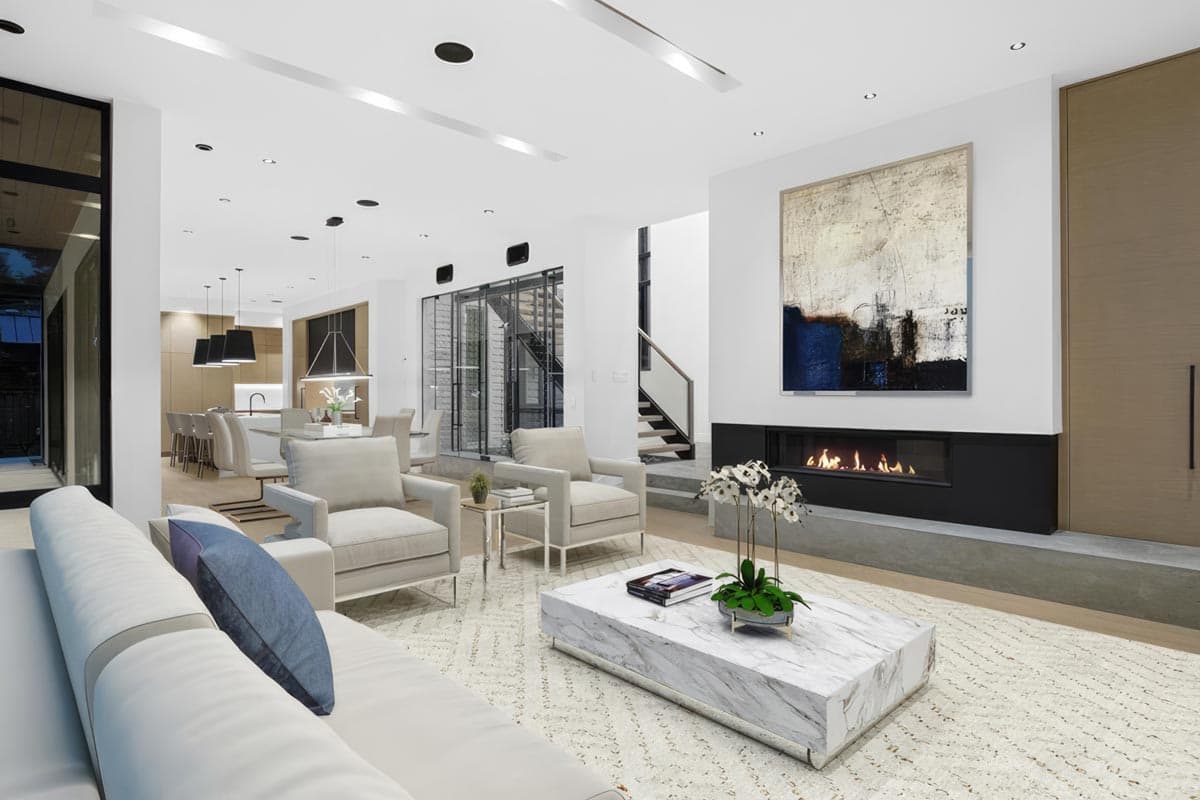

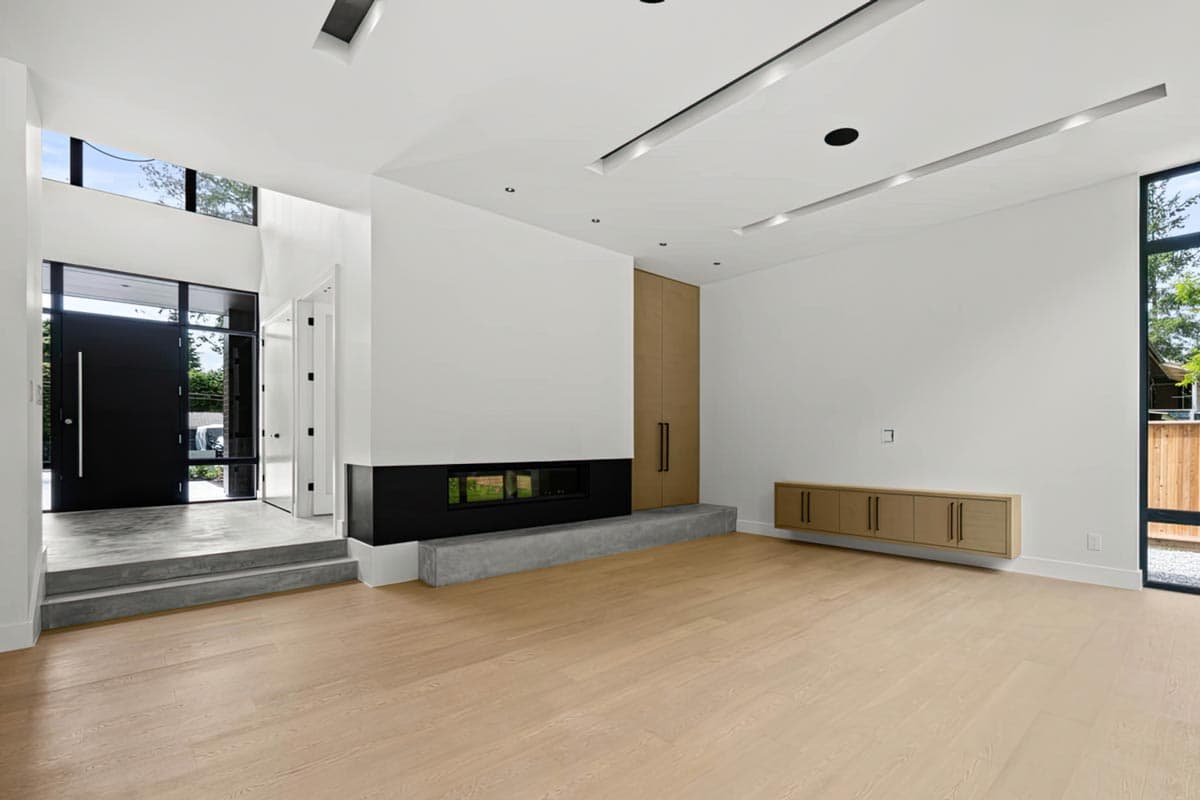

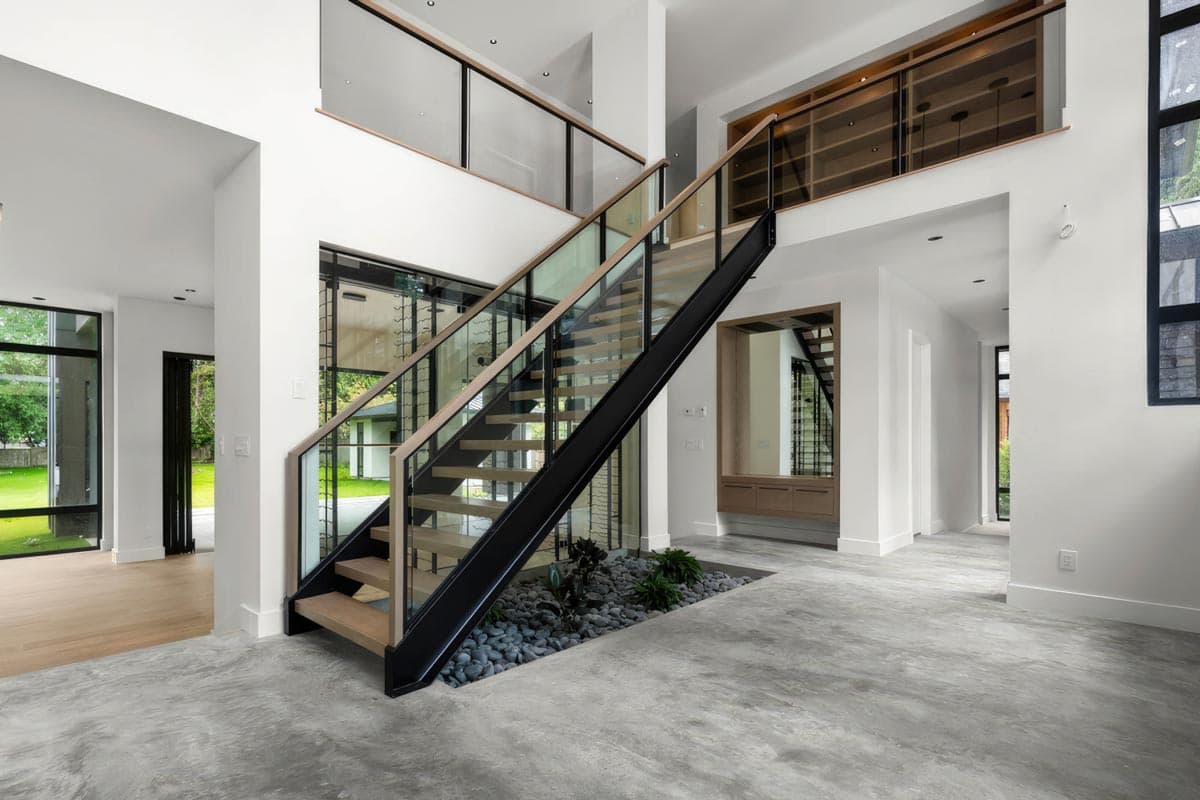

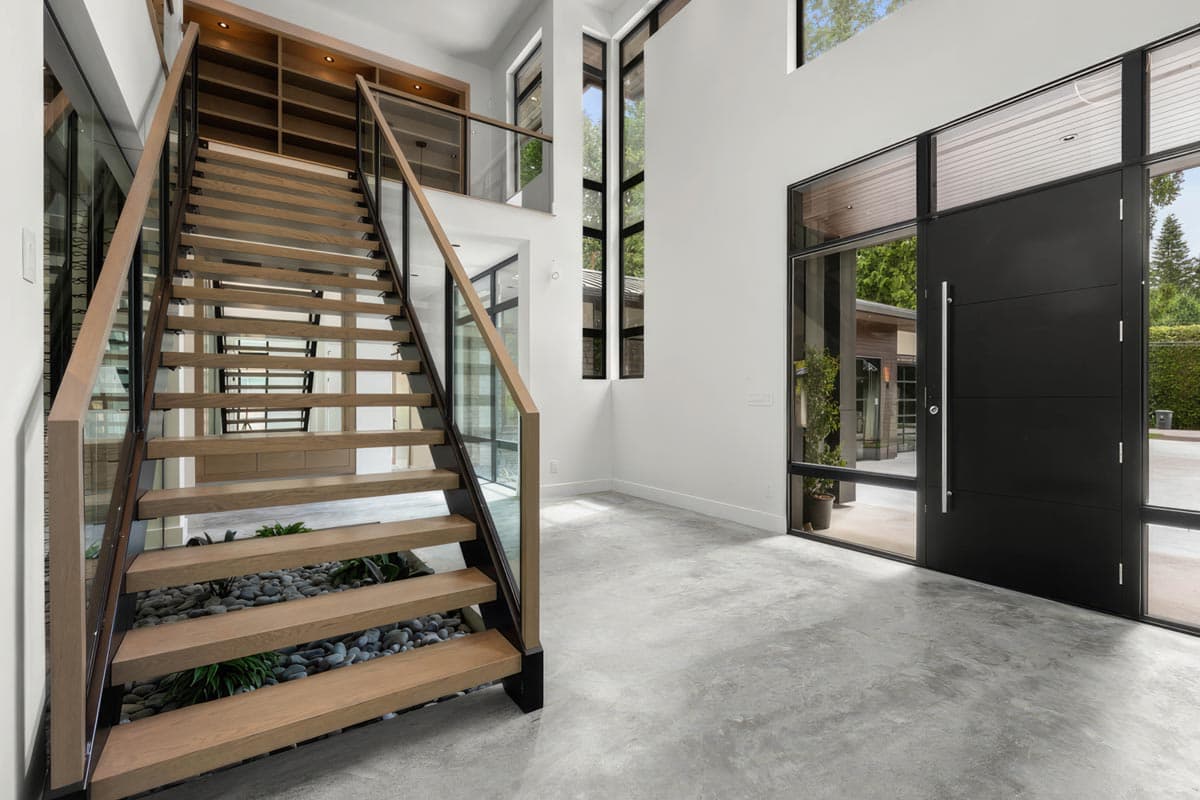

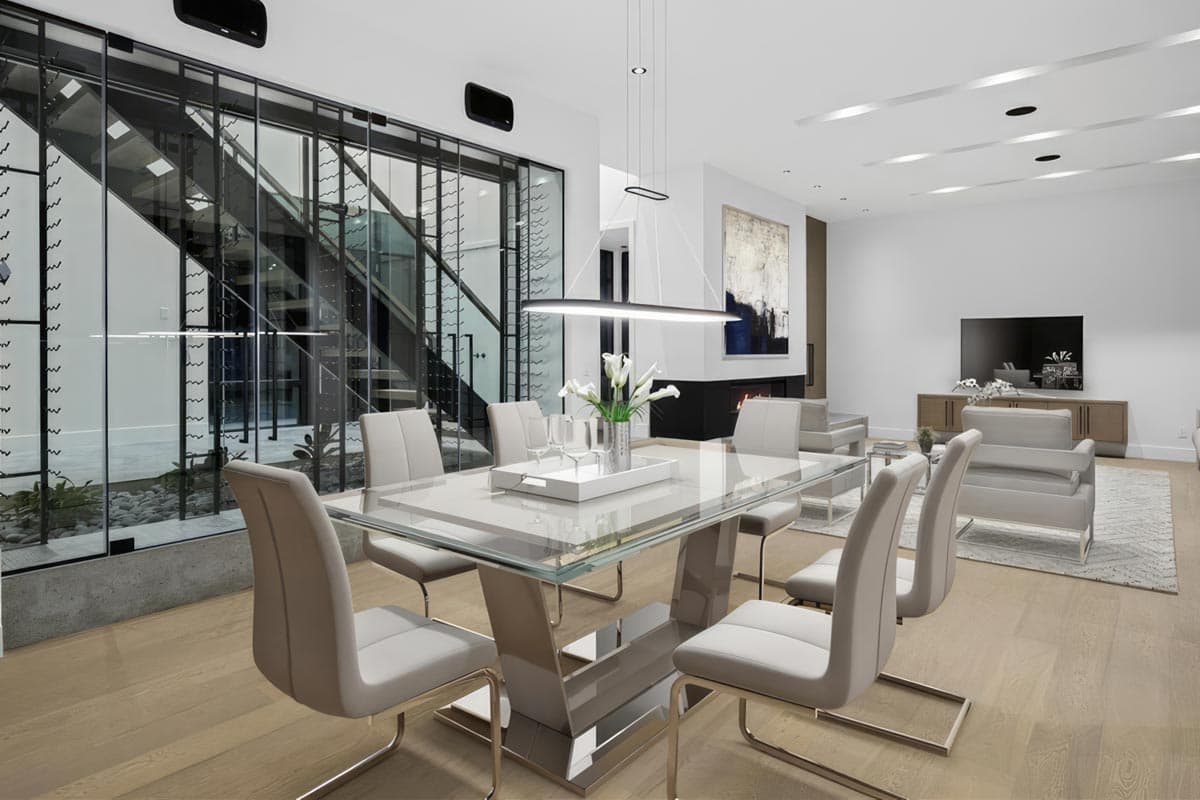

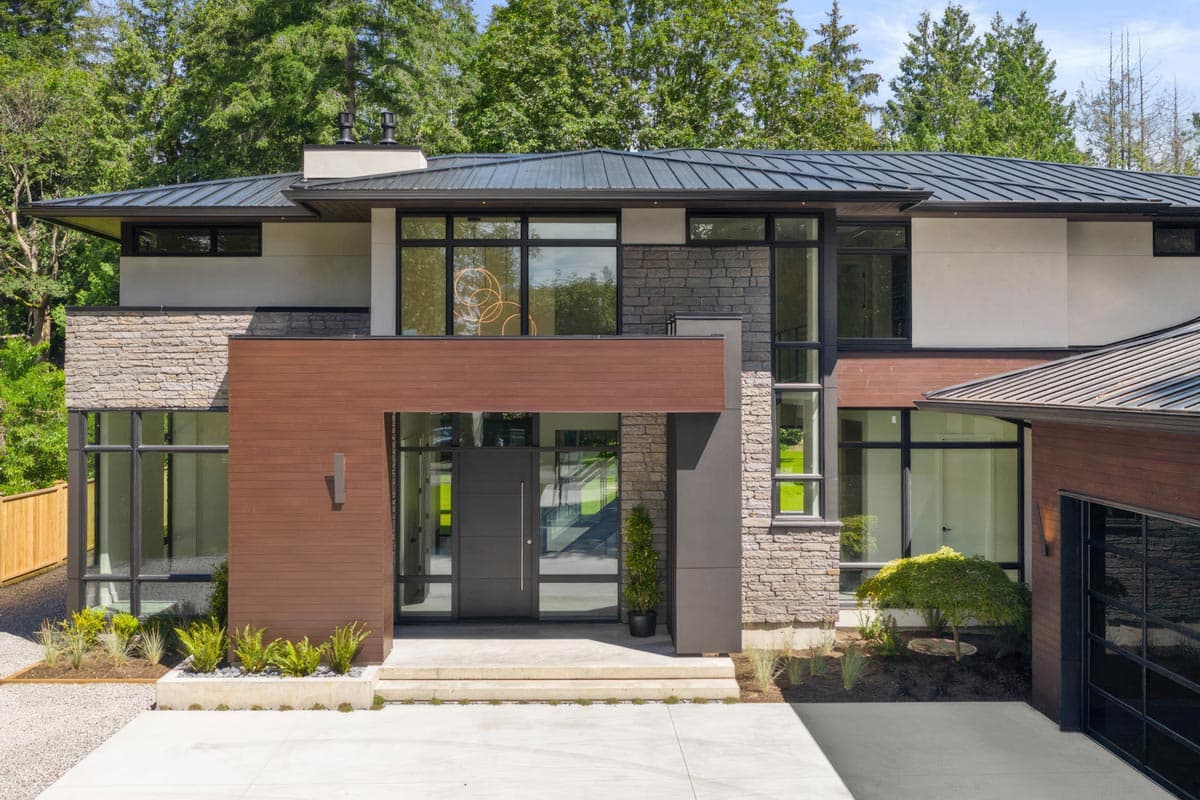

  • A sizable foyer greets you and presents a metal staircase and clear views into the adjacent great room, dining area, and kitchen. To the left, discover a quiet study with builtins and loads of natural light.

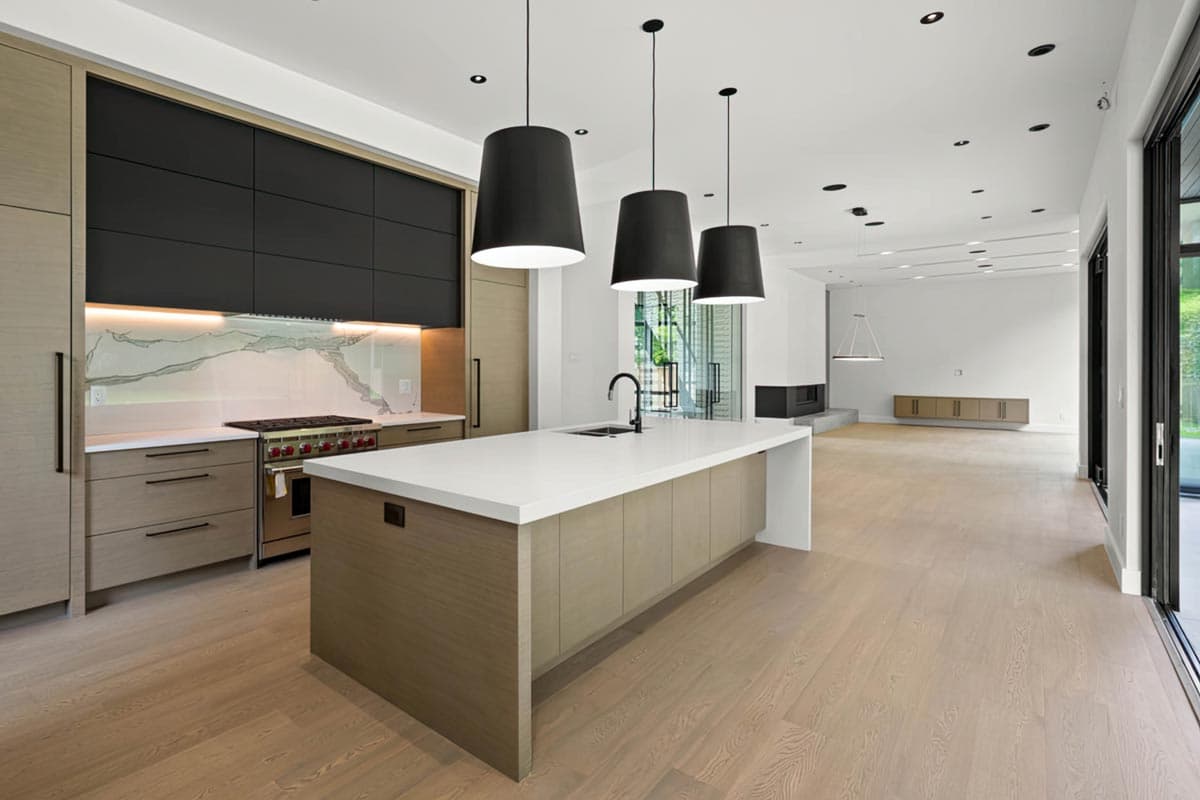

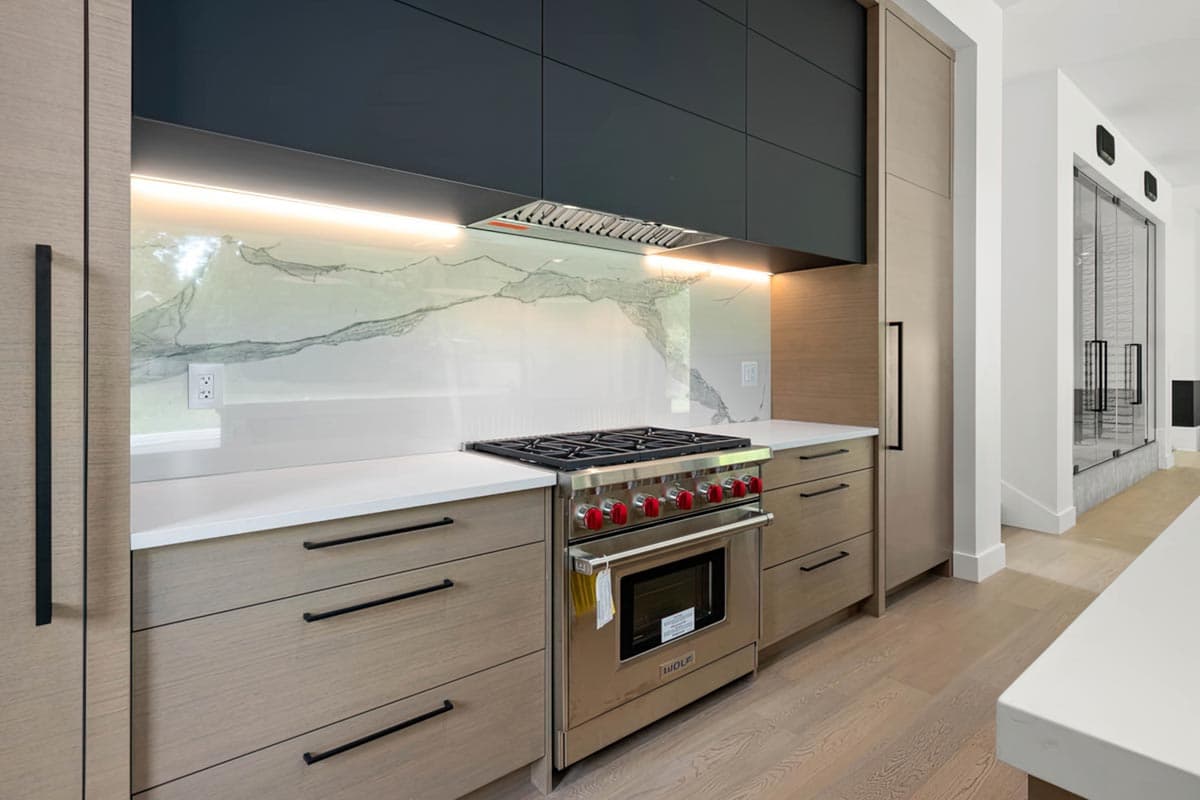

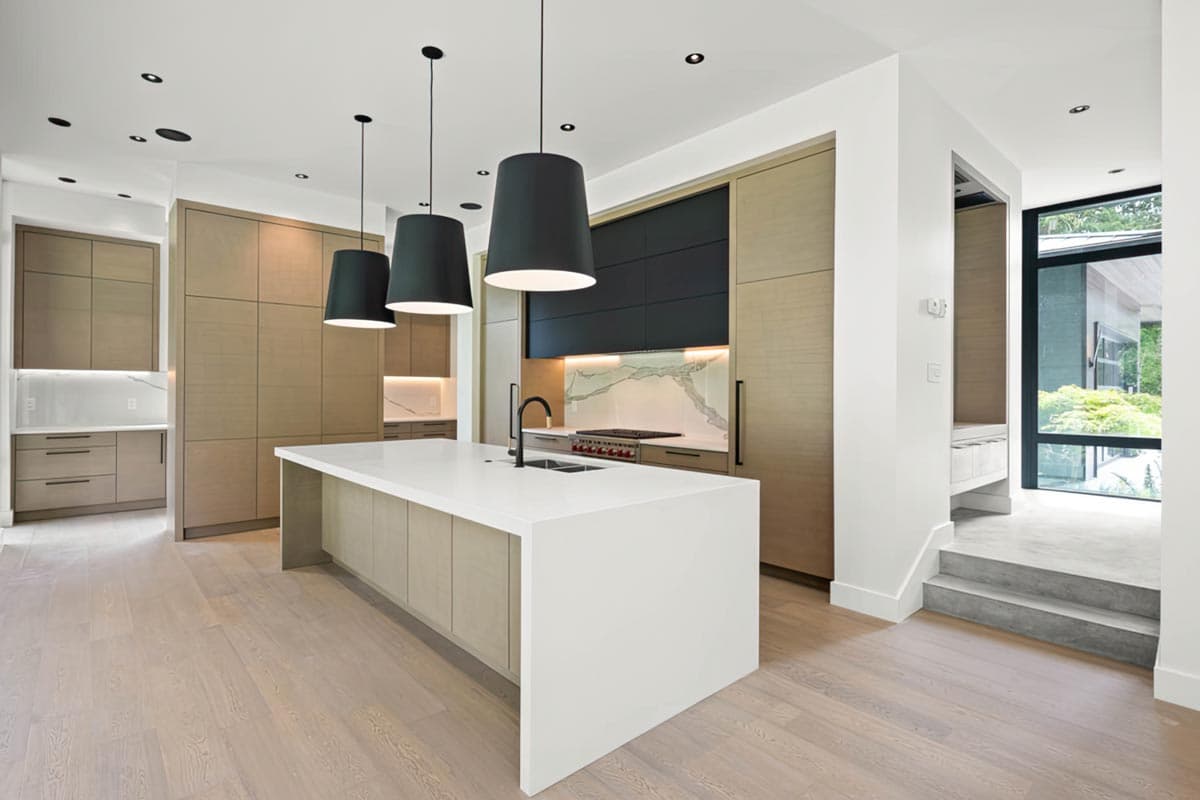

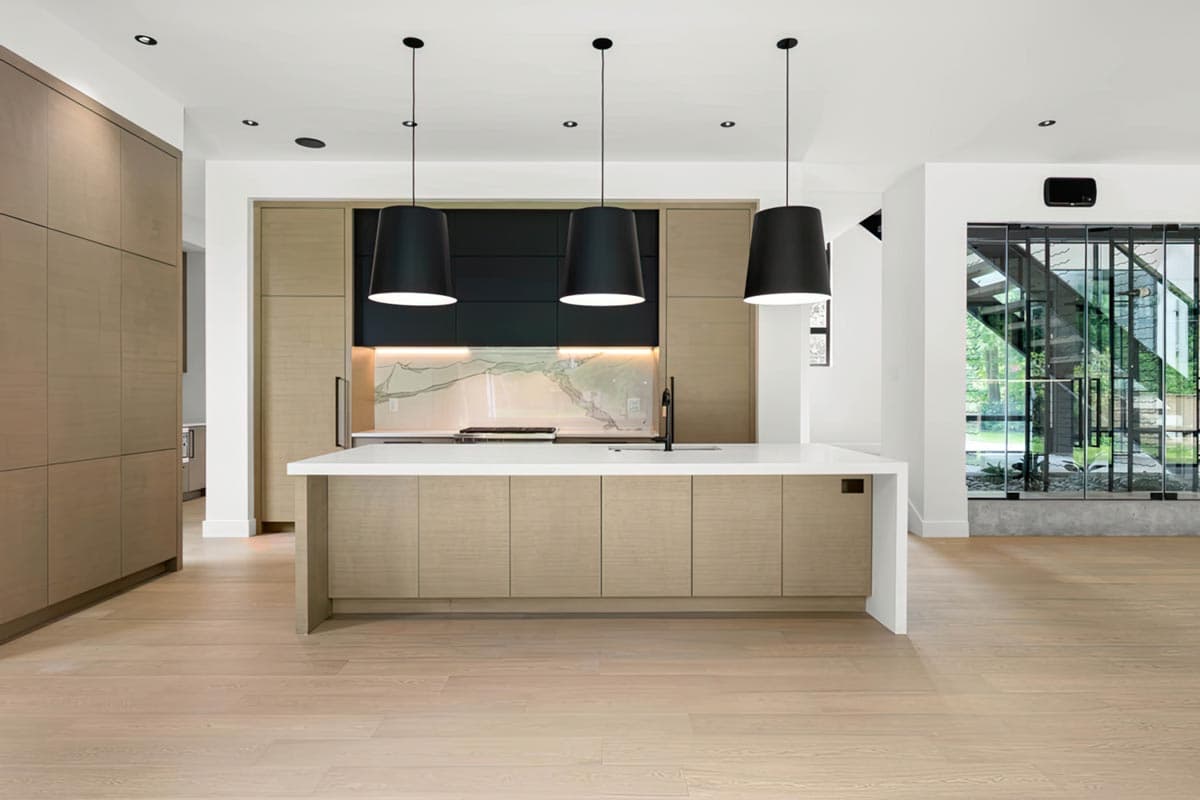

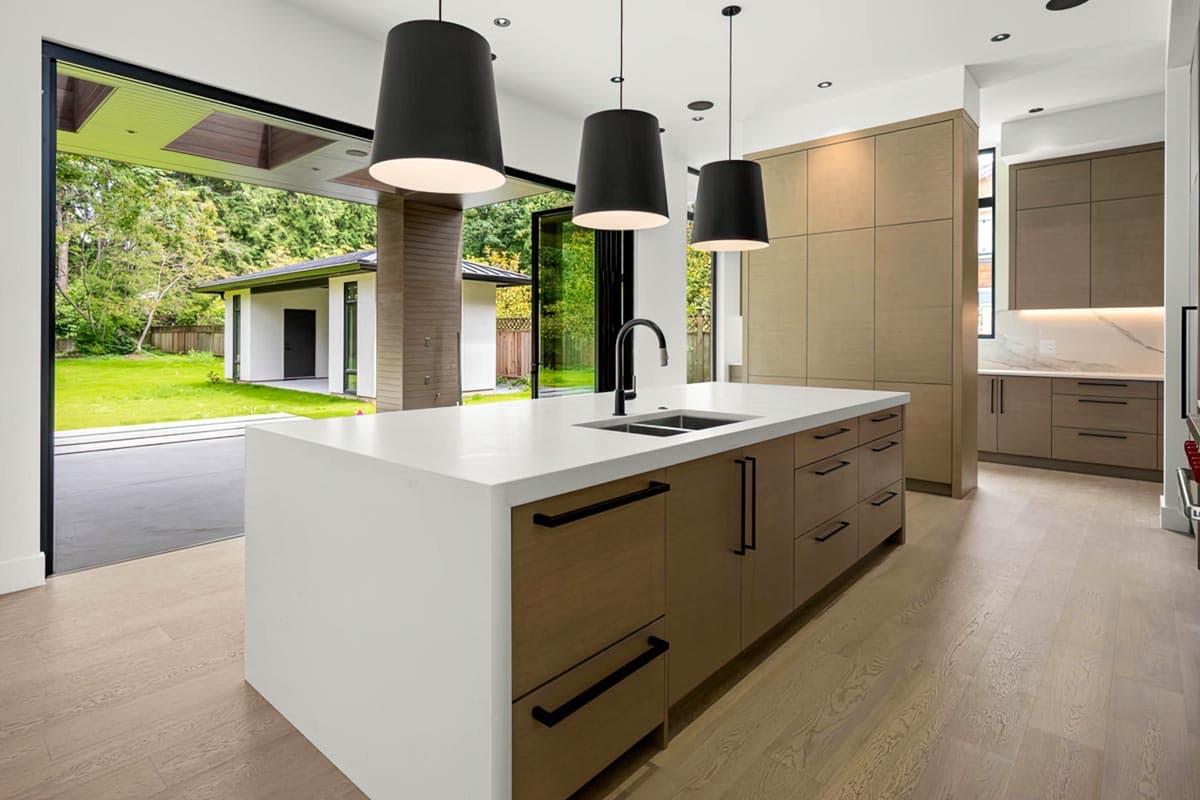

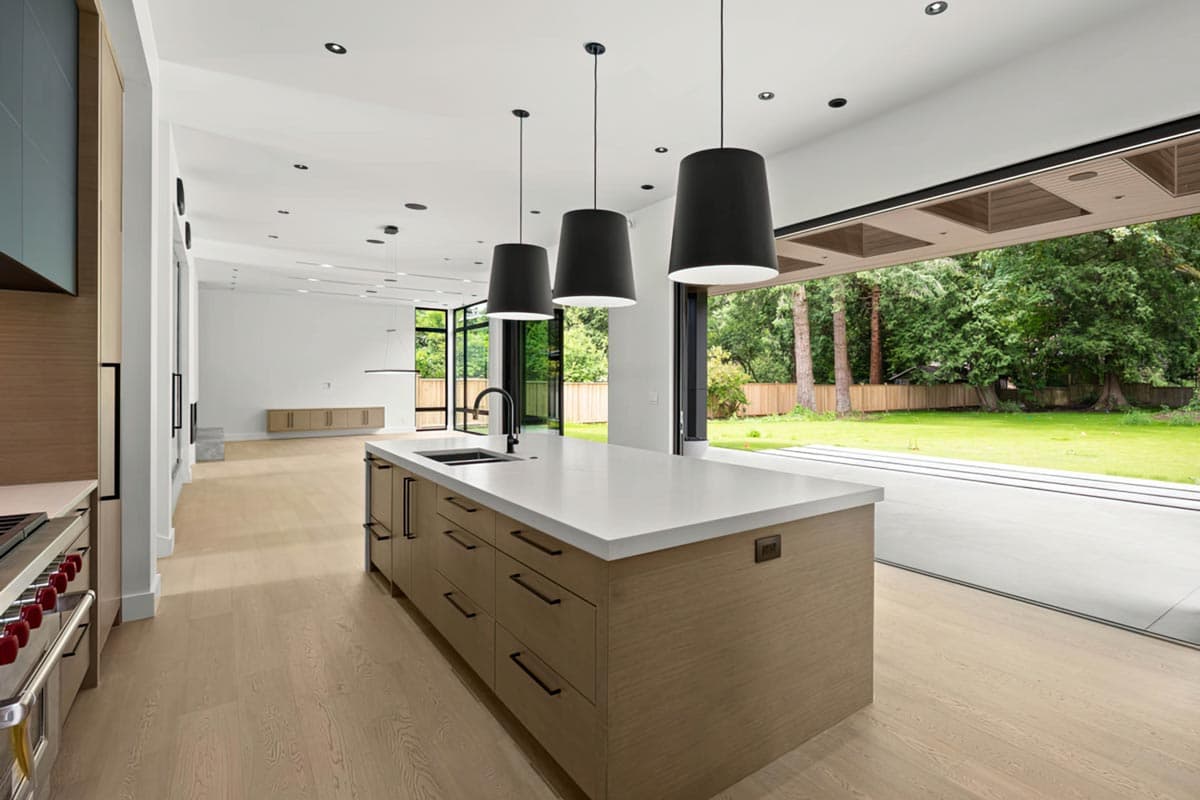

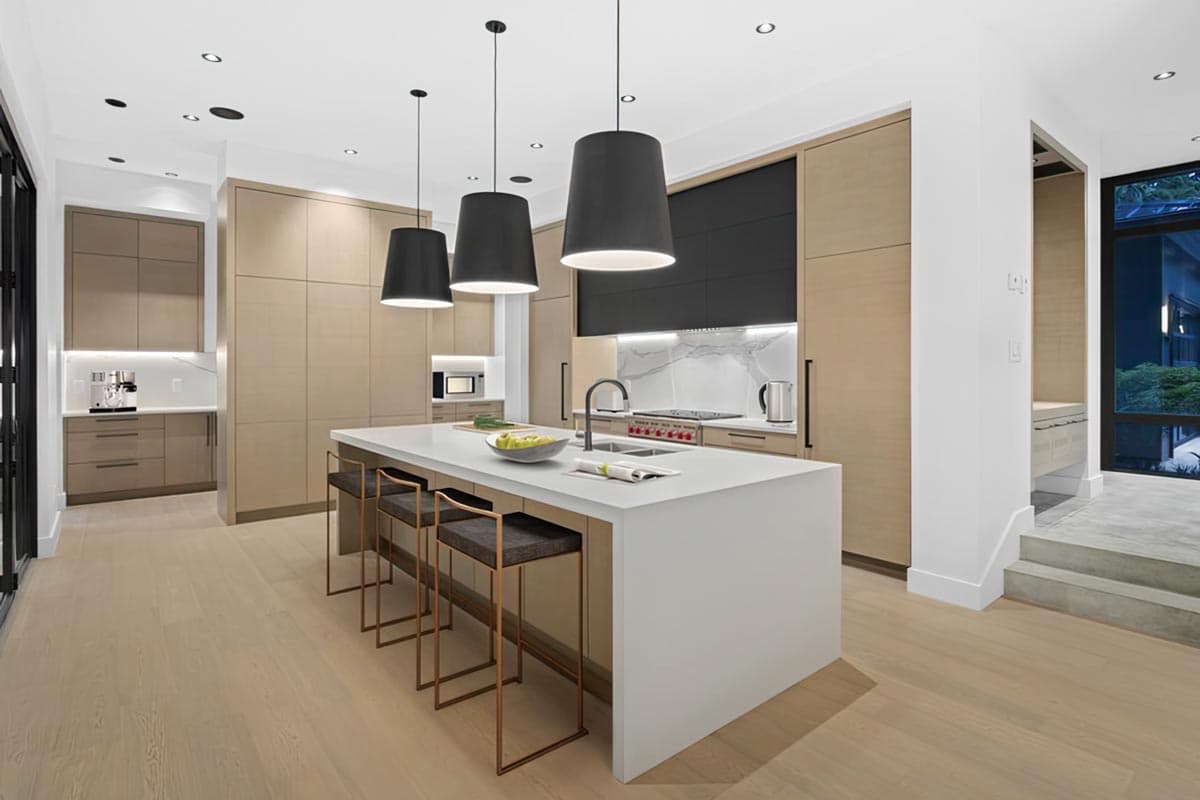

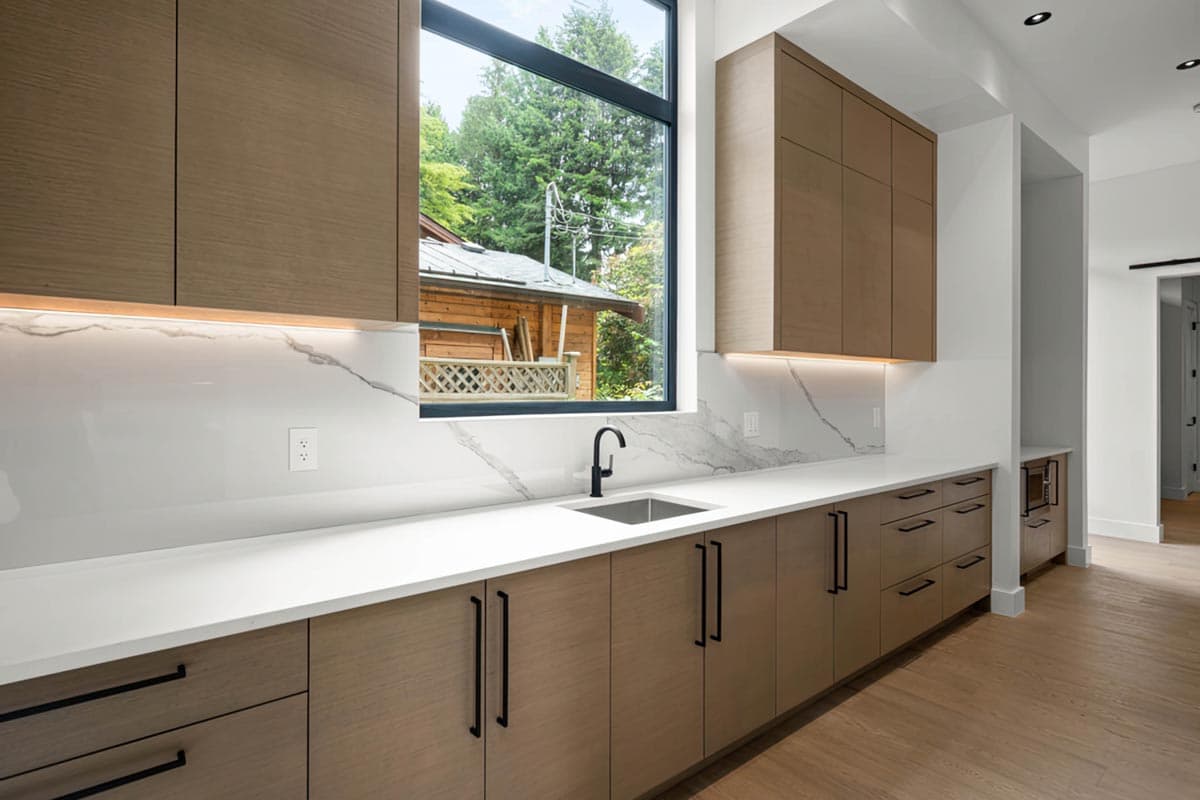

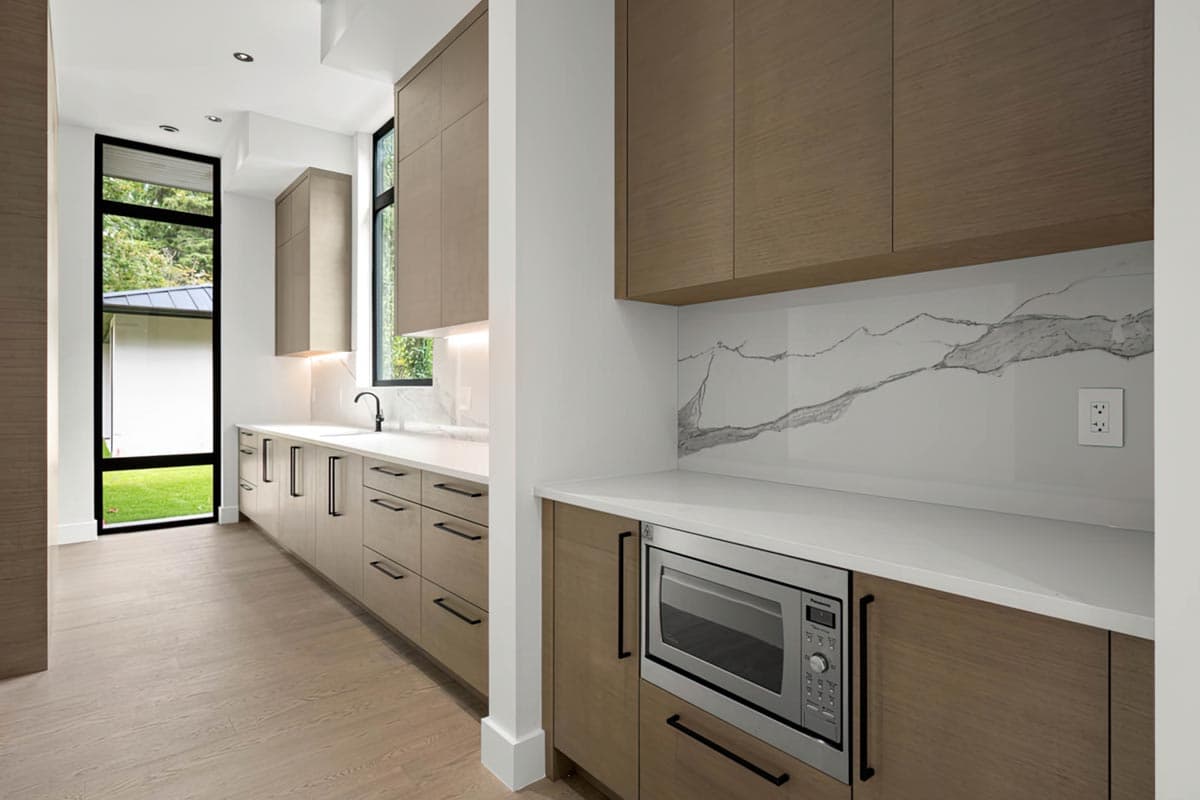

  • The kitchen hosts a large island with a breakfast bar and a nearby server pantry is ideal when entertaining and nearly doubles your workspace.

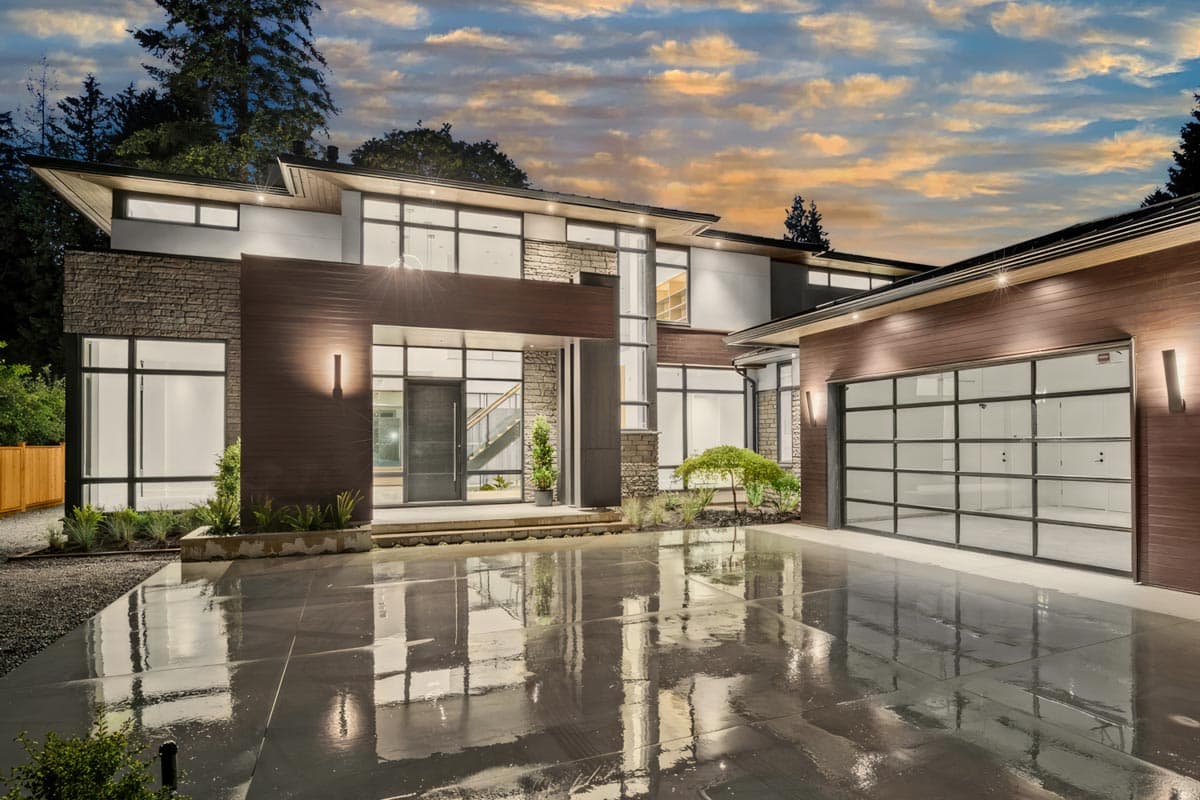

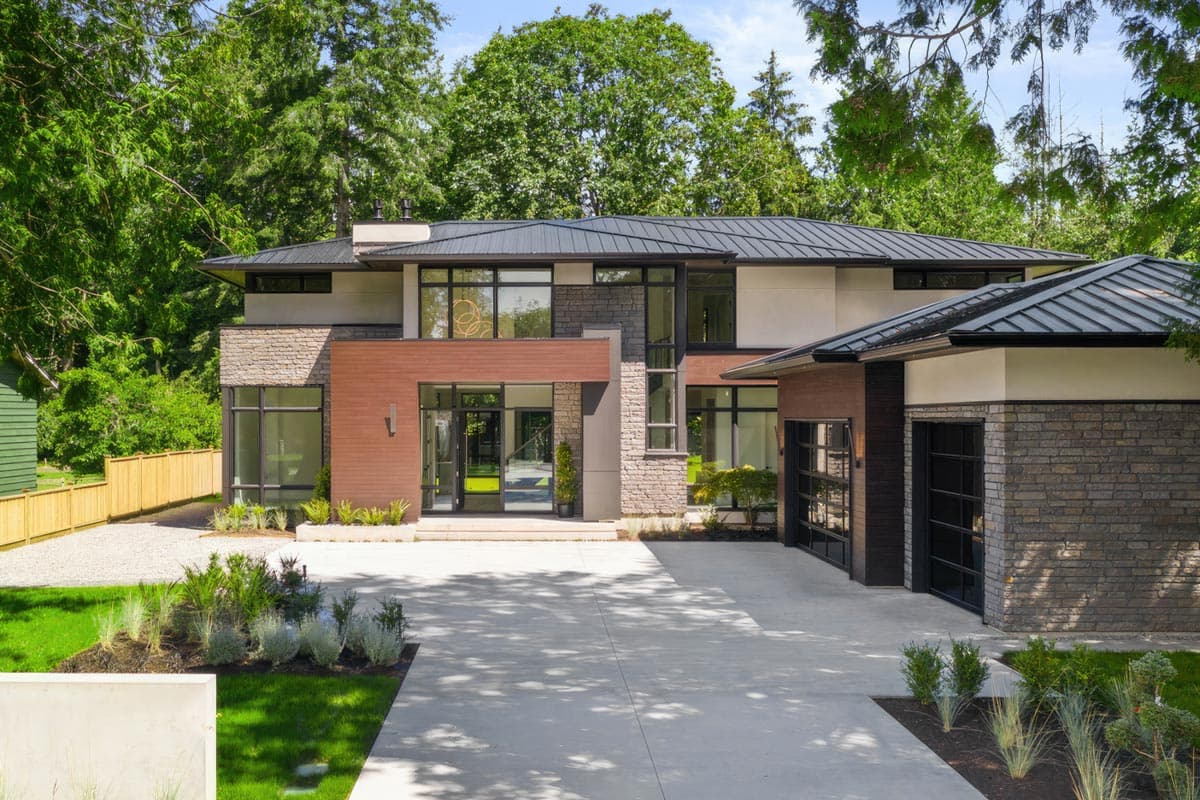

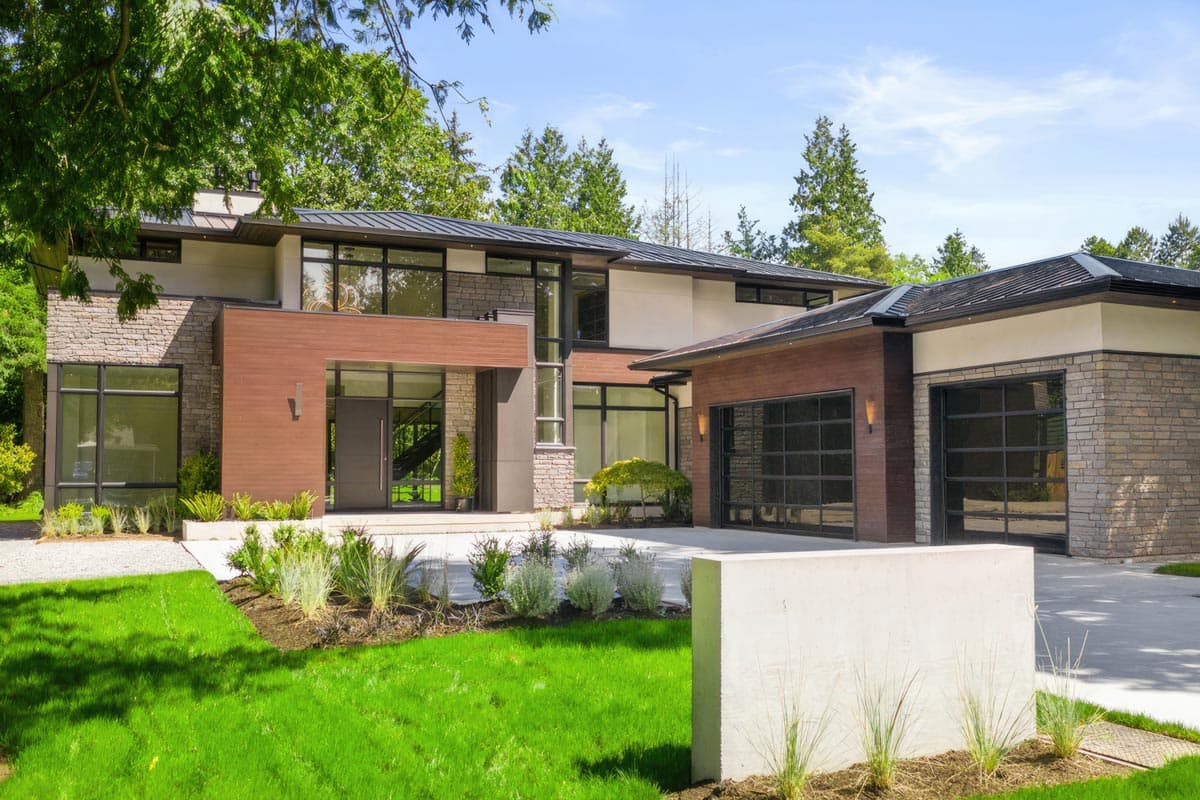

  • The triple garage extends from the front of the home and a barn door conceals the mudroom, laundry room, and dedicated storage space.

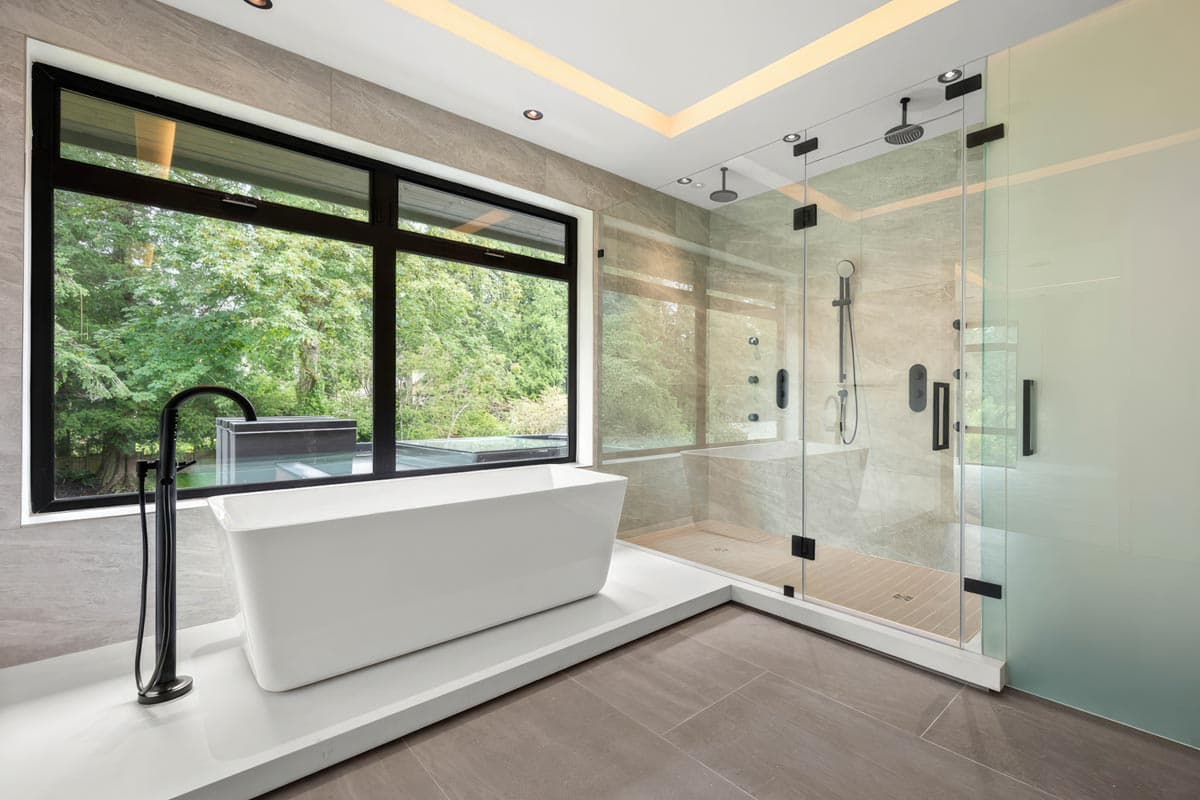

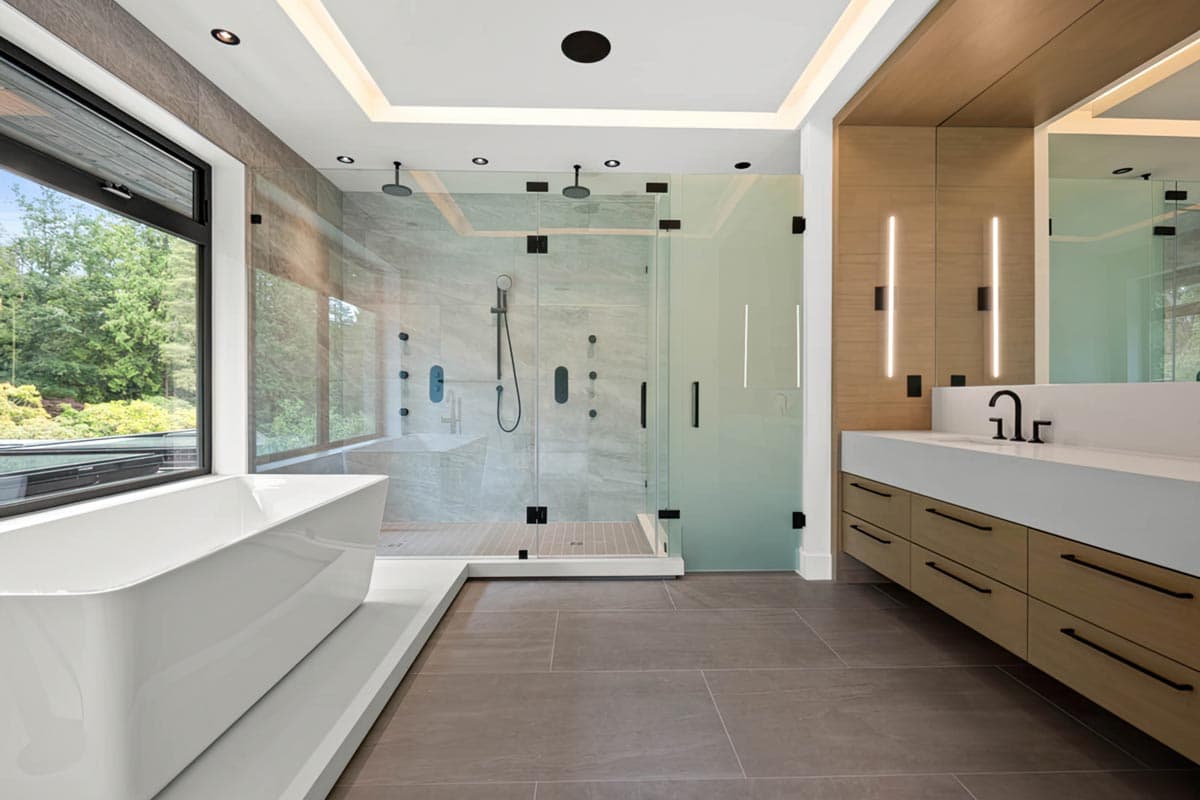

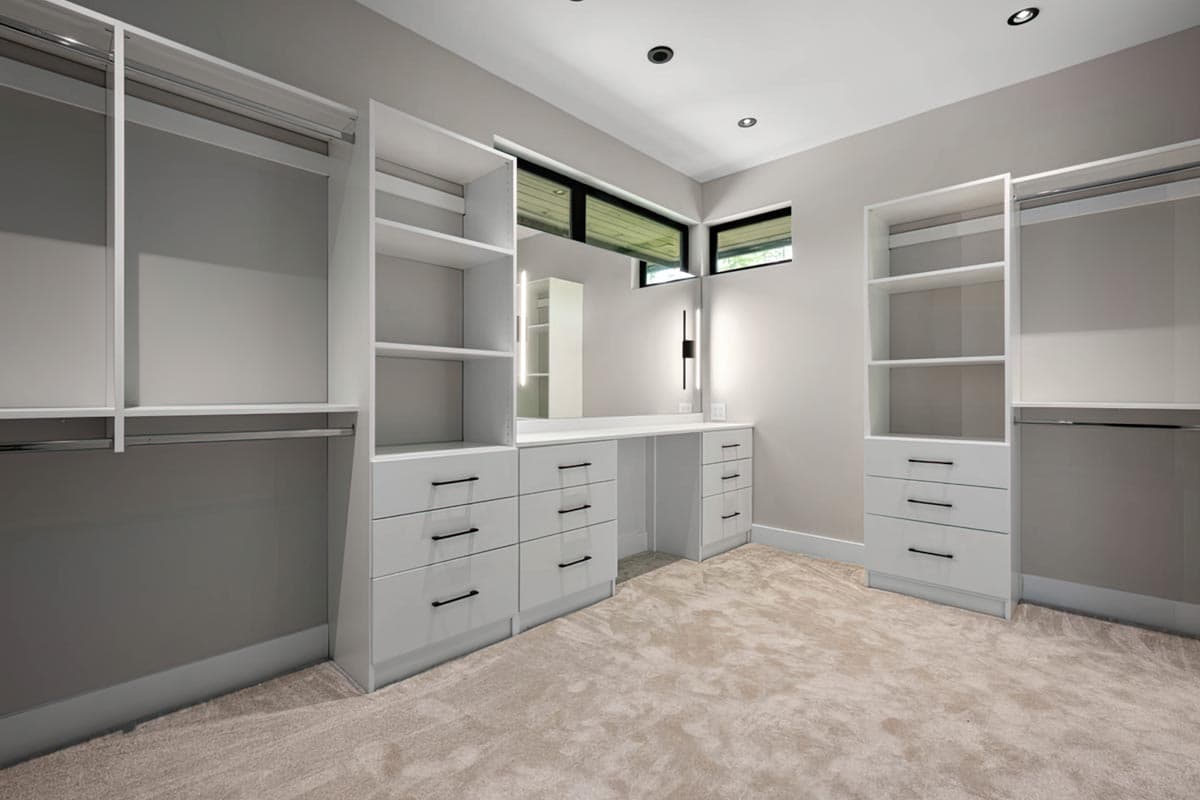

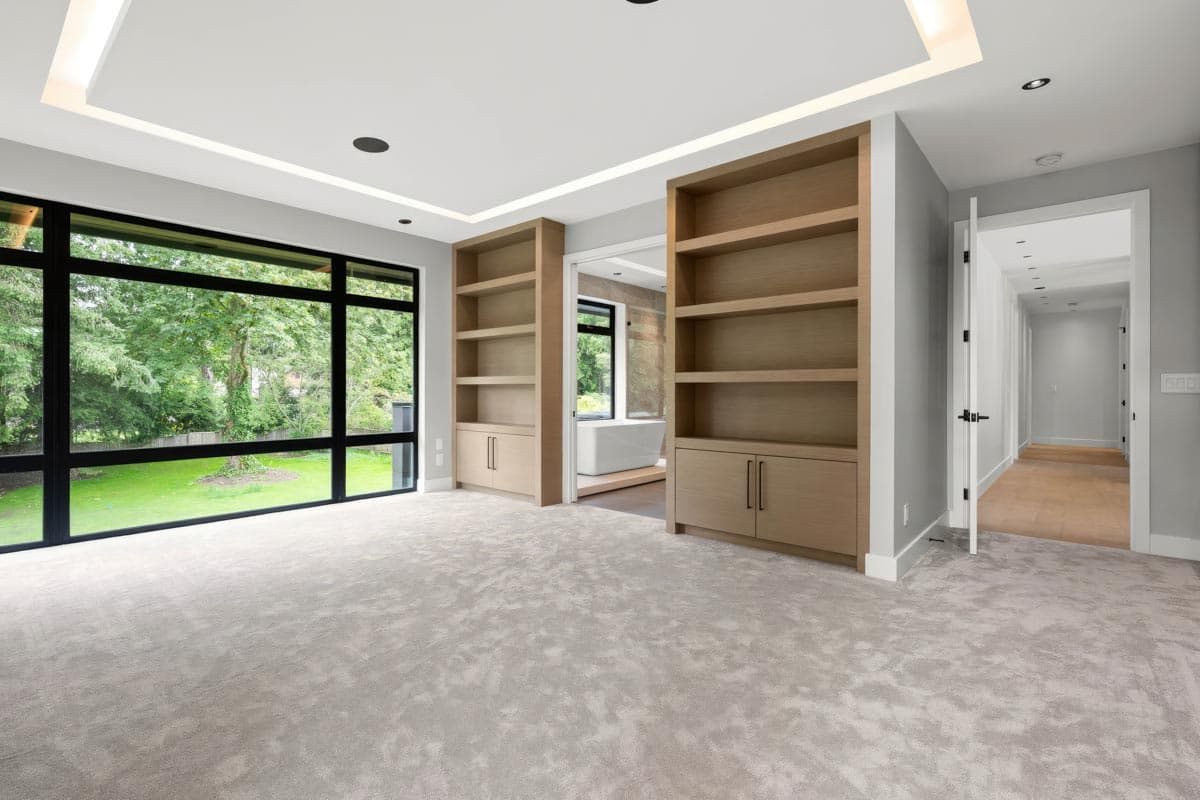

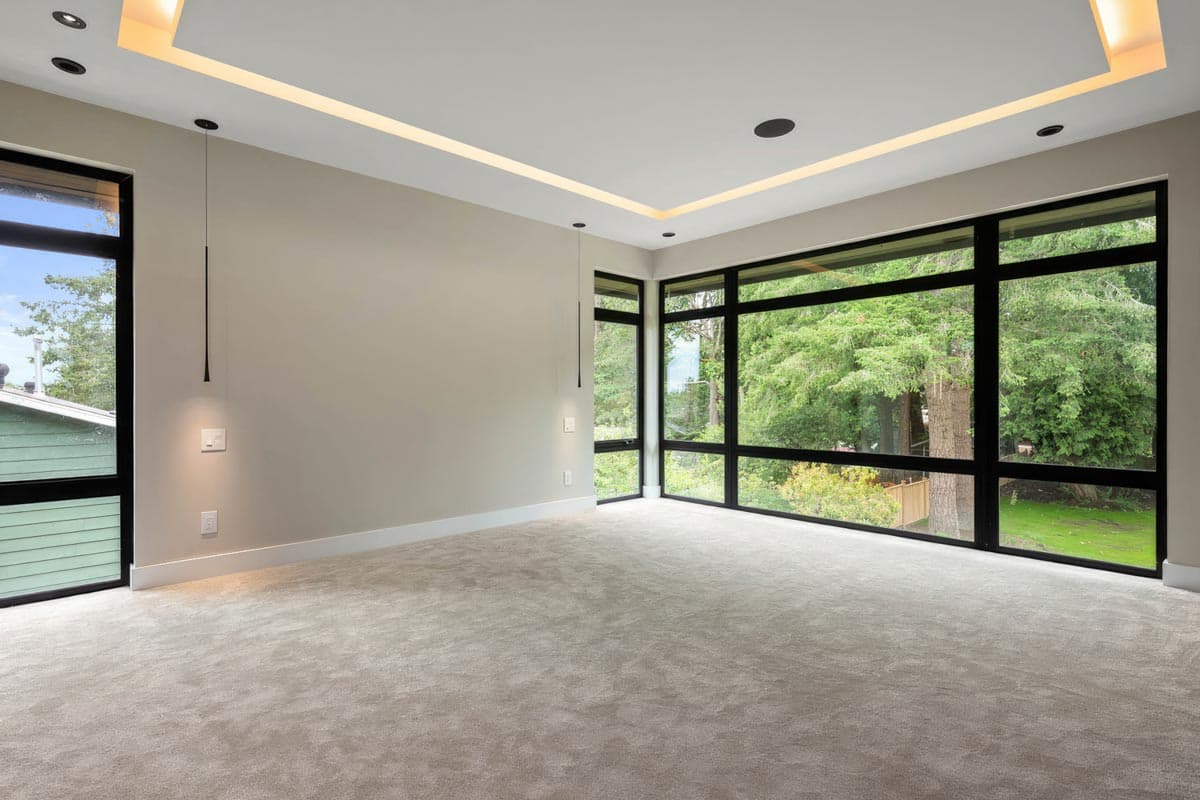

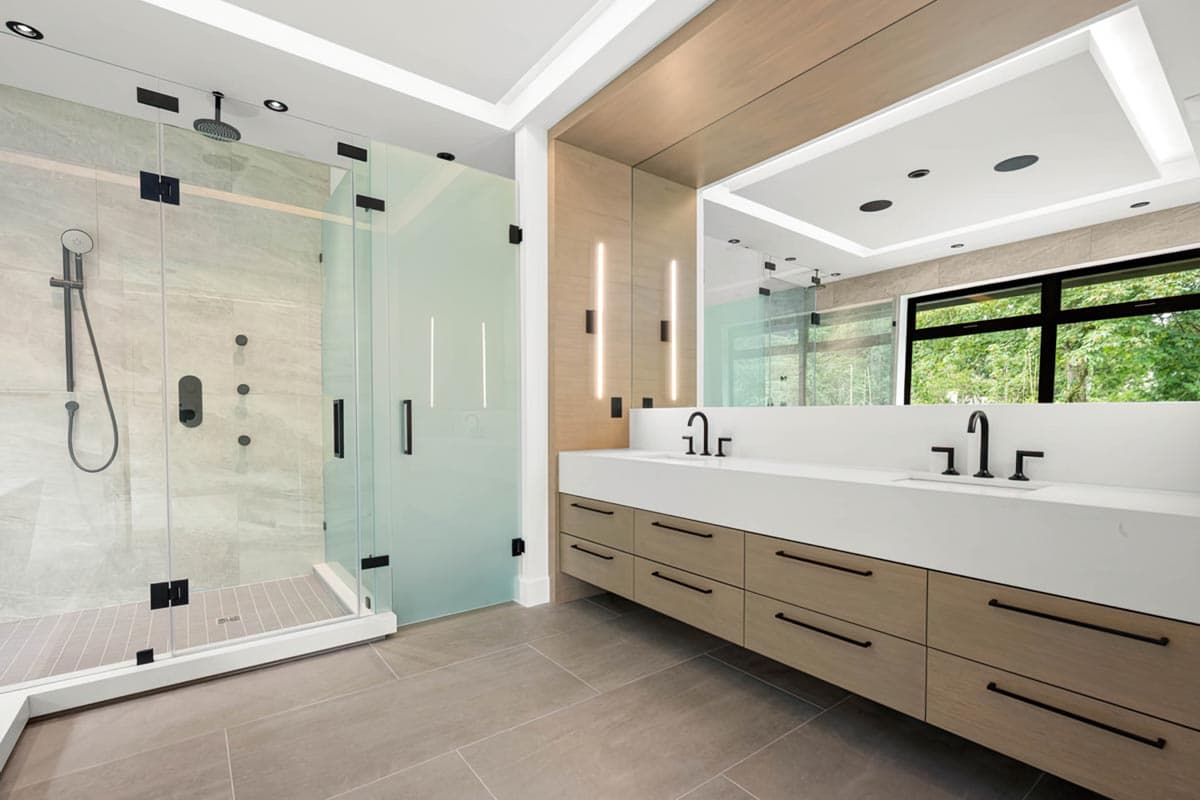

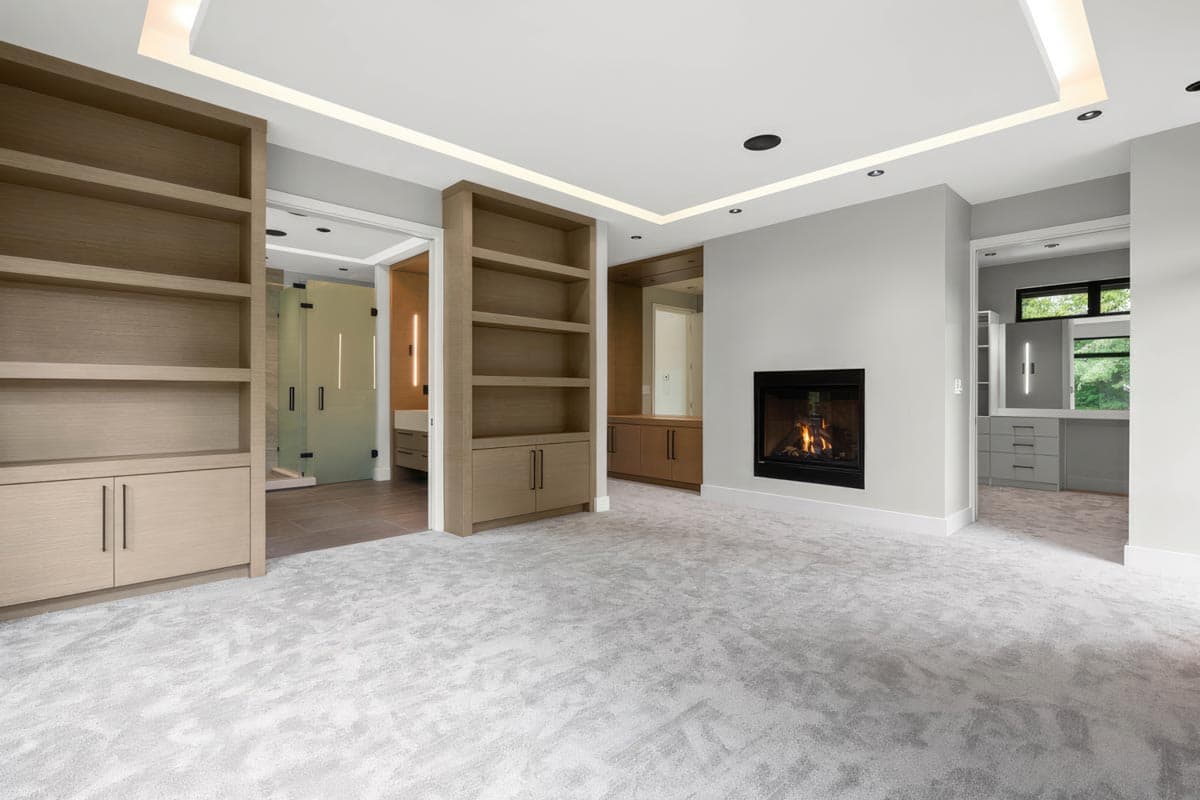

  • Four bedroom suites are located upstairs, including the primary bedroom that boasts a fireplace, walk-in closet with natural light, and 5-fixture bathroom.
What's Included
  • Foundation Plan
  • Floor Plan(s) with Door and Window Opening Sizes
  • Roof Plan showing pitches, valleys, ridges
  • Exterior Elevations
  • Building Section
  • Typical Construction Details/Sections

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Plumbing & Electrical plans
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Framing - layouts with beam sizes and locations
  • Renderings, photography, or marketing imagery
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,003 sq. ft.

1st Floor

2,221 sq. ft.

2nd Floor

1,782 sq. ft.

Porch, Front

133 sq. ft.

Deck

574 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

65' 2"

Depth

91' 4"

Max Ridge Height

28' 1"

Garage

Type

Attached

Area

741 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

9'

Room

Ceiling Type

Height

Entry

11' 0''

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Prairie

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Home Office

Laundry - Main Level

Library/Study

Loft

Master Suite - 2nd Floor

Mudroom

Outdoor Kitchen

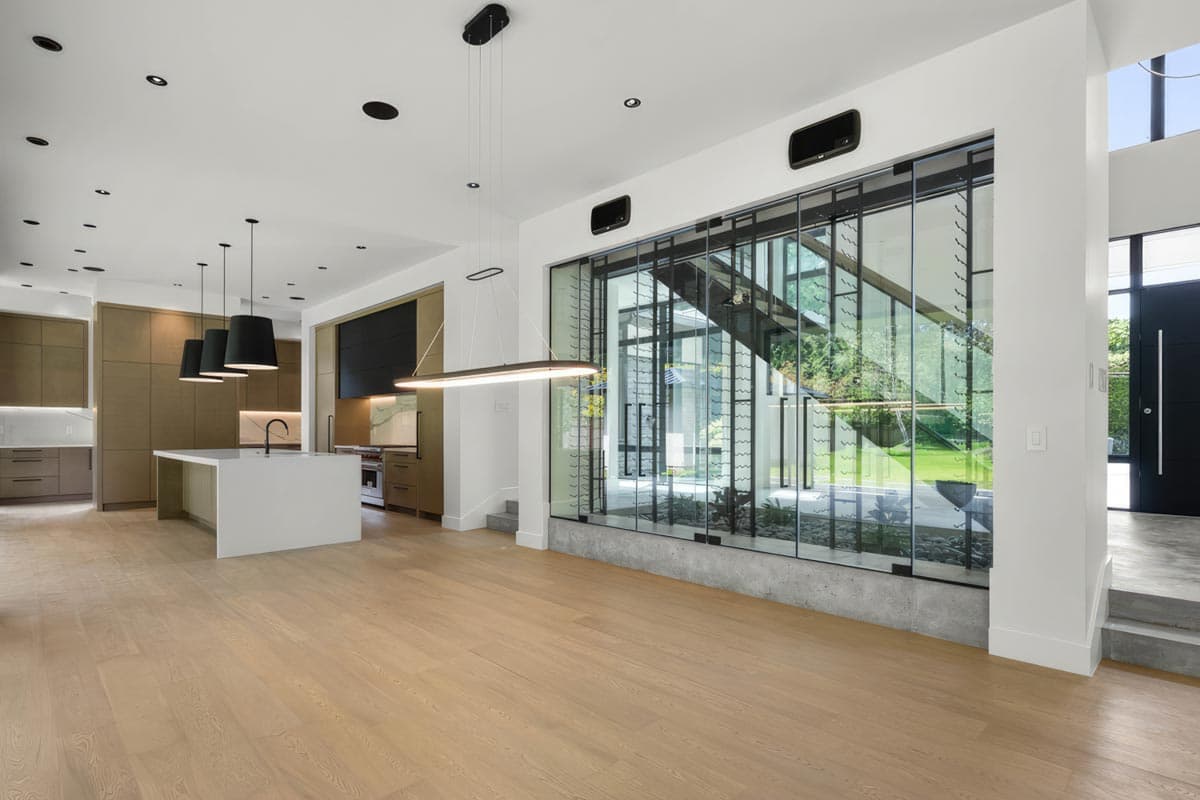

Wine Room

Plan Collections

Canadian House Plans

Photo Gallery
