Plan 23858JD
4-Bed Modern Masterpiece with Rooftop Deck and Drive-Under Garage
Heated S.F.
3,847
Beds
4
Baths
3.5
Stories
2
Cars
2
Photos
Floor Plan

Plan 23858JD

Main Level
slide image 0
2nd Floor
slide image 1
Lower Level
slide image 2

Plan 23858JD

1-800-854-7852

1-262-521-4596

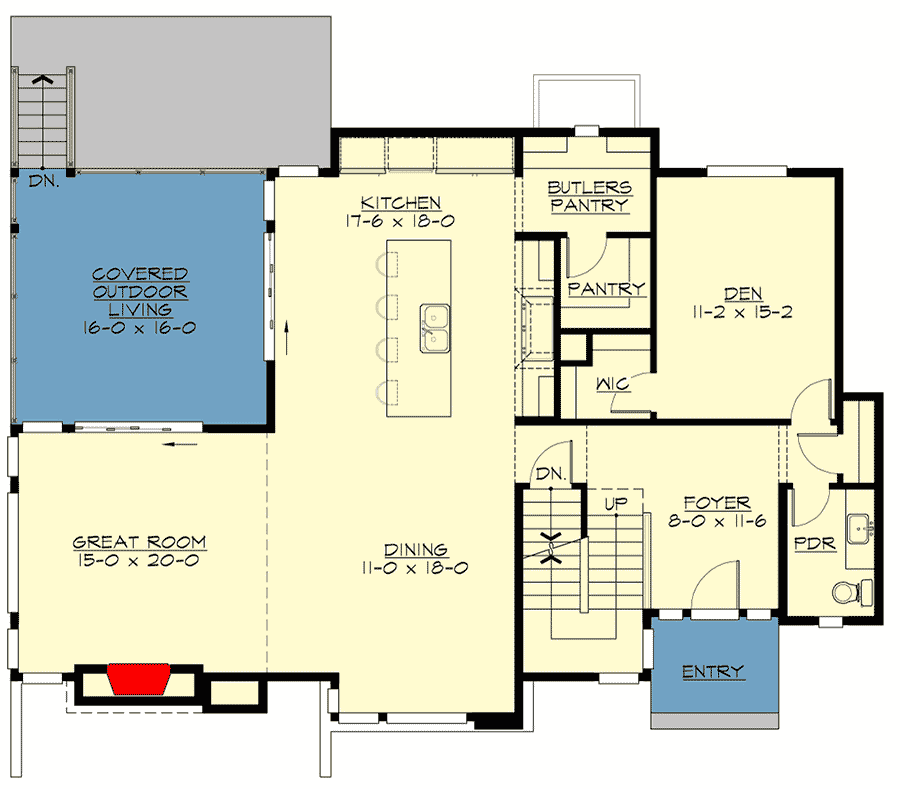

Main Level
floor plan image Main Level

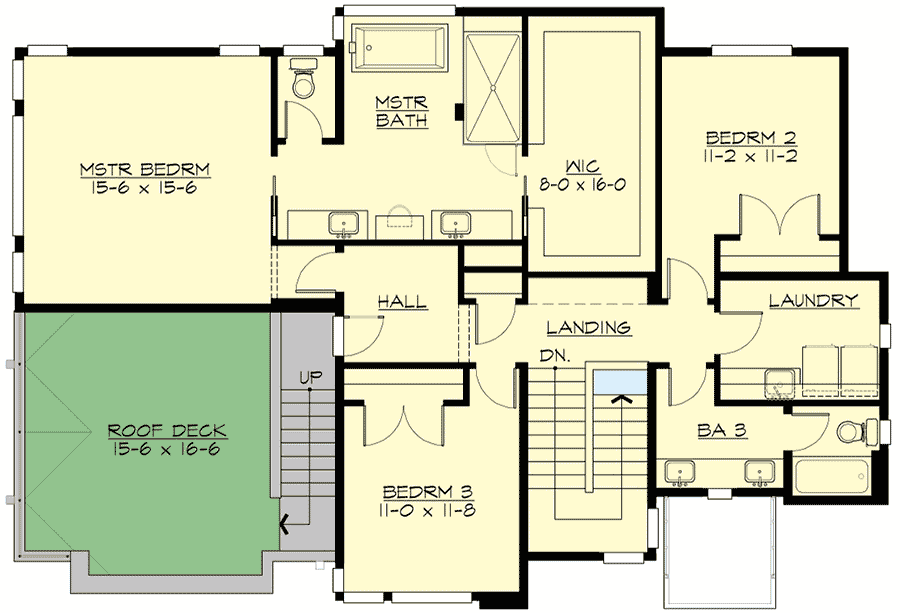

2nd Floor
floor plan image 2nd Floor

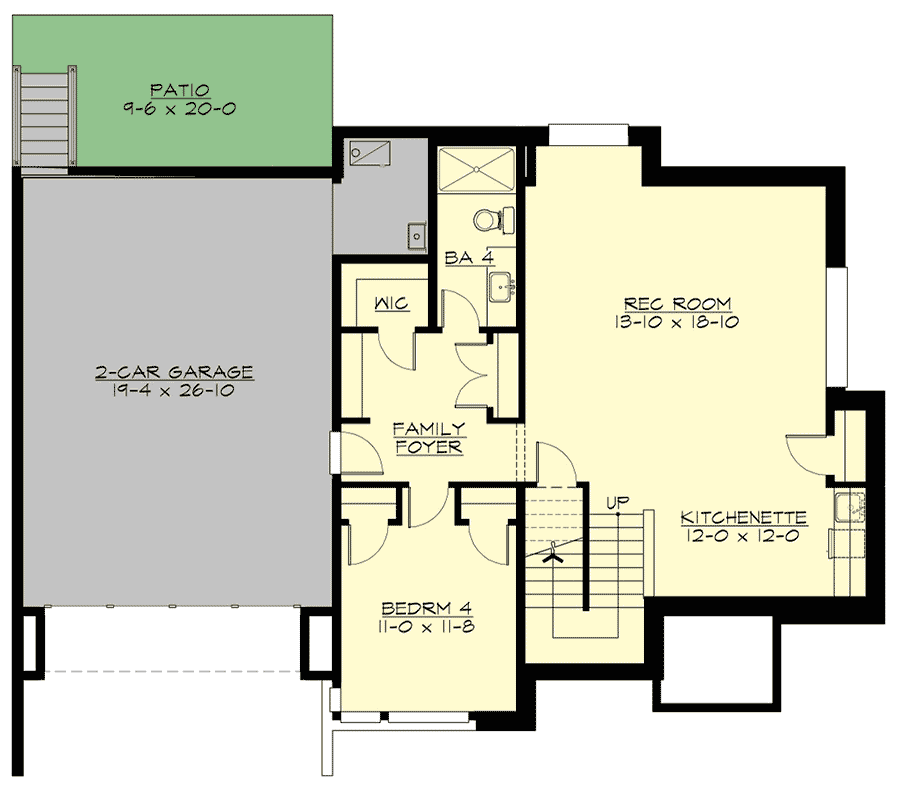

Lower Level
floor plan image Lower Level
Plan Details
  • This 4-bedroom, modern masterpiece of a house plan features three levels, each floor with an outdoor deck or patio.
  • The double garage is located on the lower level, along with a kitchenette in the spacious recreation room, and a fourth bedroom near a full bath.
  • The main level is where you'll find the shared living spaces, primarily open to one another and surrounding a covered porch for an indoor / outdoor lifestyle. The secluded den offers a quieter space to relax and unwind.
  • Three bedrooms reside on the second level, the largest is set aside for the homeowner, and boasts a large bathroom and a walk-in closet. The laundry room is conveniently located down the hall for ease of use.
  • Climb the remaining steps to the rooftop deck and relax beneath the stars at night, or capture some vitamin D during the day.
  • The lower level comes with a kitchenette, bedroom and bath as well as a rec room.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - 23858JD comes to life in Washington!

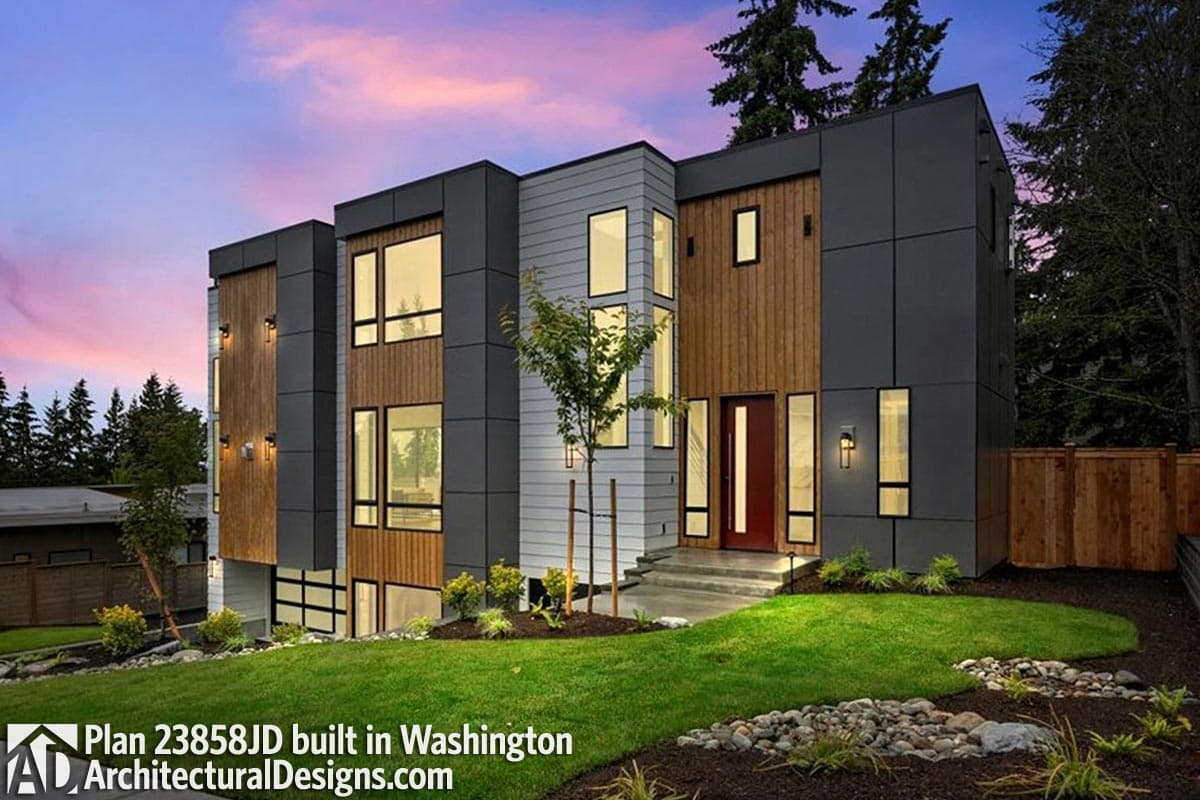

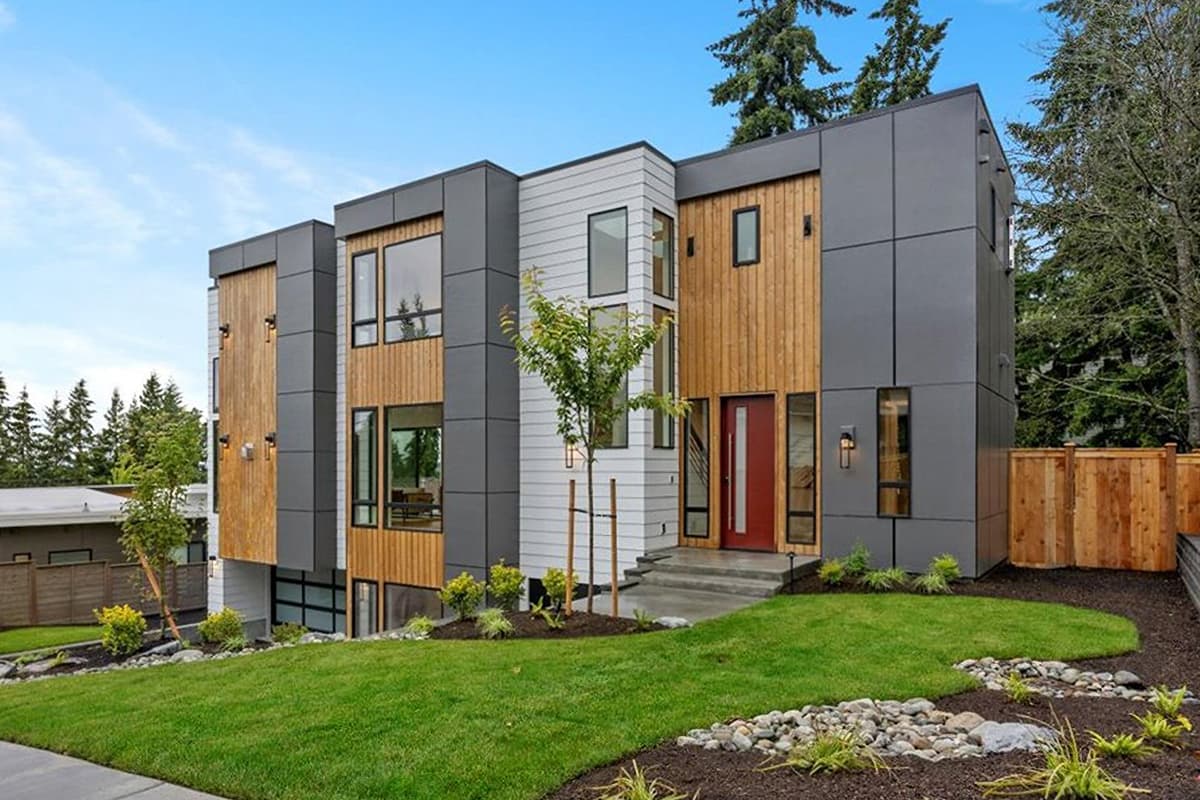

23858JD comes to life in Washington!

34

Photos

What's Included
  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

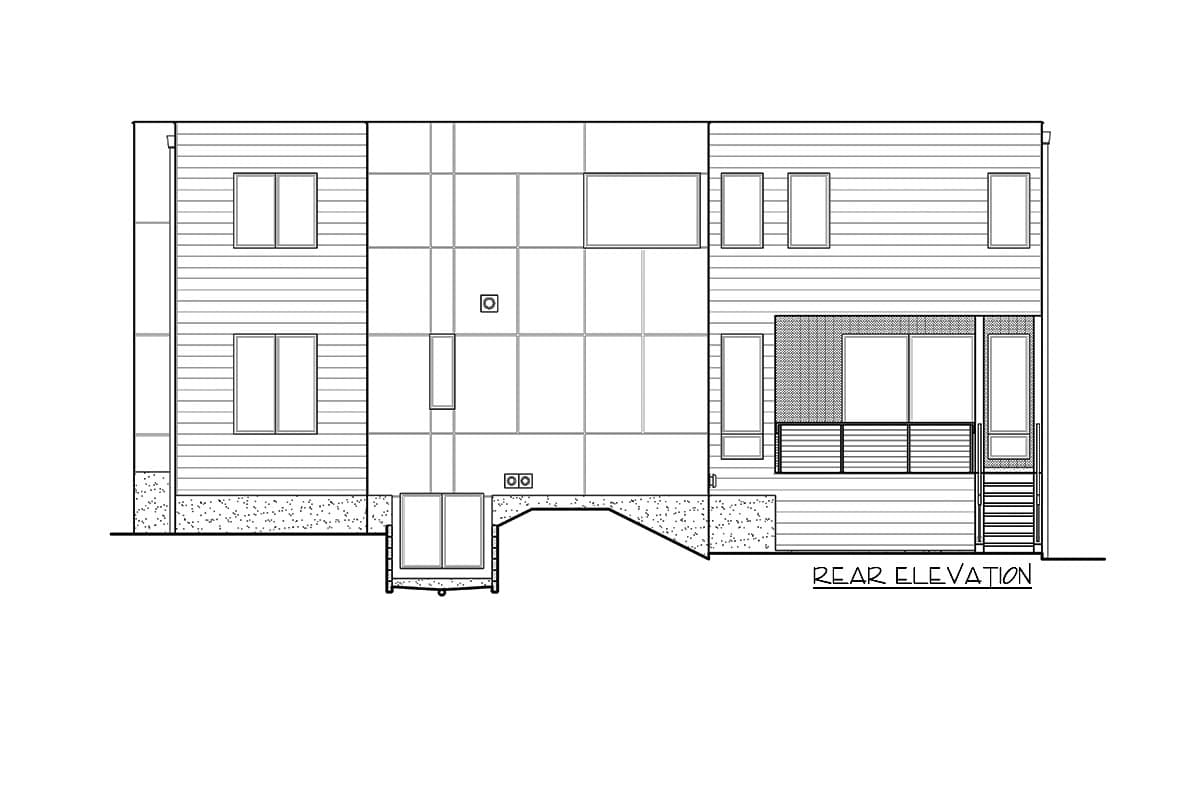

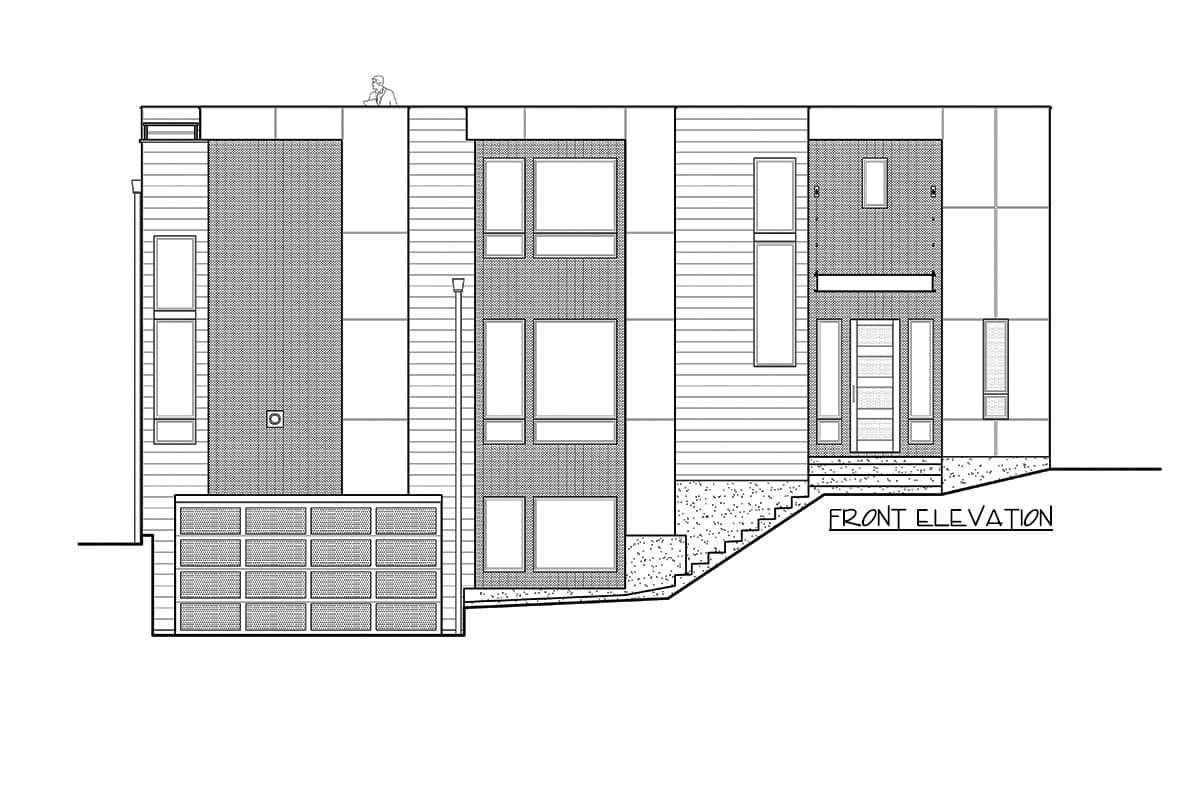

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,847 sq. ft.

Lower Level

1,047 sq. ft.

1st Floor

1,470 sq. ft.

2nd Floor

1,330 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 6"

Depth

37' 6"

Max Ridge Height

21' 0"

Garage

Type

Drive Under

Area

610 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

1 on 12

Framing Type

Truss

Architectural Style

Modern

Northwest

Special Features

Butler Walk-in Pantry

Den

Game/Rec Room

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

3,847 sq. ft.

Lower Level

1,047 sq. ft.

1st Floor

1,470 sq. ft.

2nd Floor

1,330 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 6"

Depth

37' 6"

Max Ridge Height

21' 0"

Garage

Type

Drive Under

Area

610 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

1 on 12

Framing Type

Truss

Architectural Style

Modern

Northwest

Special Features

Butler Walk-in Pantry

Den

Game/Rec Room

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom
