Plan 333024JHB
4-Bed Modern Prairie-Style House Plan with Courtyard - 2761 Sq Ft
Heated S.F.
2,761
Beds
4
Baths
4
Stories
2
Cars
2
Floor Plan

Plan 333024JHB

Main Level
slide image 0
2nd Floor
slide image 1

Plan 333024JHB

1-800-854-7852

1-262-521-4596

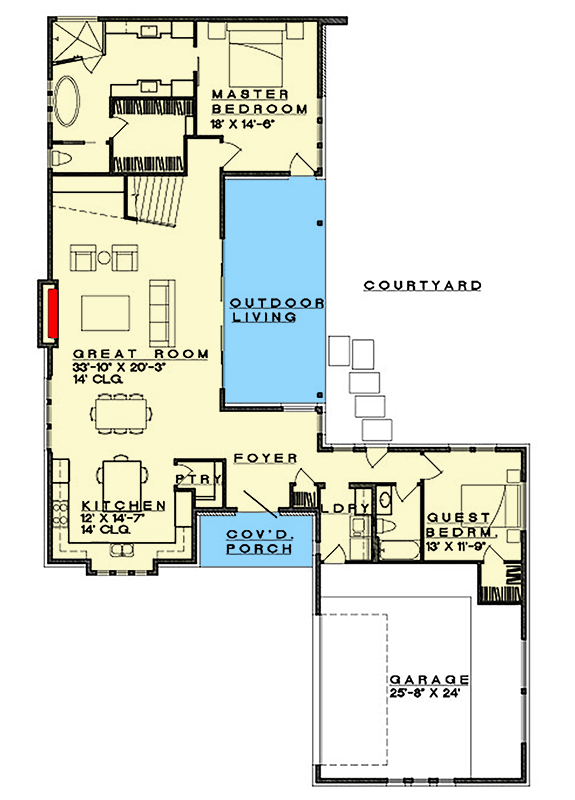

Main Level
floor plan image Main Level

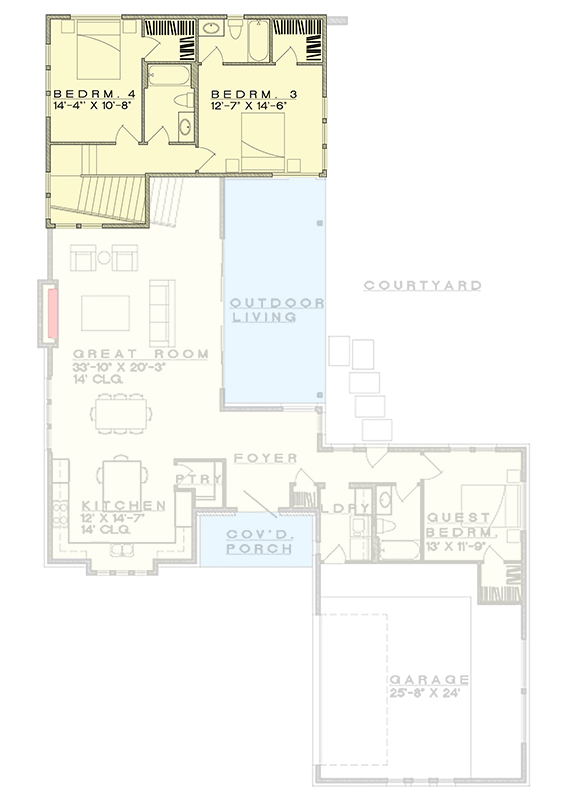

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This modern Prairie-style house plan gives you 4 beds, 4 baths and 2,761 square feet of heated living. The home opens up to a courtyard, so it's easy to step out from the great room when you want to relax outside.
  • The great room is open to the C-shaped kitchen with a double sink set below windows looking front. The open floor plan has a dramatic 14' ceiling.
  • The master bedroom with a big shower and separate tub and lots of windows has access to the outdoor living area while a guest bedroom offers privacy for your visitors. The two remaining bedrooms are on the second floor.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included

  • Cover page with legends & notes
  • Foundation details
  • Floor plan(s) [depending on whether it’s 1 or 2 stories]
  • Dimension plan(s)
  • Front view
  • Right view
  • Left view
  • Rear view
  • Building section(s)
  • Wall section
  • Interior views
  • Electrical plan(s)
  • Roof layout plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,761 sq. ft.

1st Floor

2,165 sq. ft.

2nd Floor

596 sq. ft.

Porch, Front

83 sq. ft.

Porch, Rear

324 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

58' 8"

Depth

91' 11"

Max Ridge Height

25' 8"

Garage

Type

Attached

Area

660 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

Second Floor

10'

Roof Details

Primary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Contemporary

Mid Century Modern

Prairie

Special Features

Bedrooms - Split

Courtyard

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room
