Plan 135258GRA
4-Bed New American House Plan with 2nd Floor Master and Lower Level Expansion - 2784 Sq Ft
Heated S.F.
2,784
Beds
4 - 6
Baths
2.5 - 3.5
Stories
2
Cars
2
Floor Plan

Plan 135258GRA

Main Level
slide image 0
2nd Floor
slide image 1
Optional Finished Lower Level
slide image 2

Plan 135258GRA

1-800-854-7852

1-262-521-4596

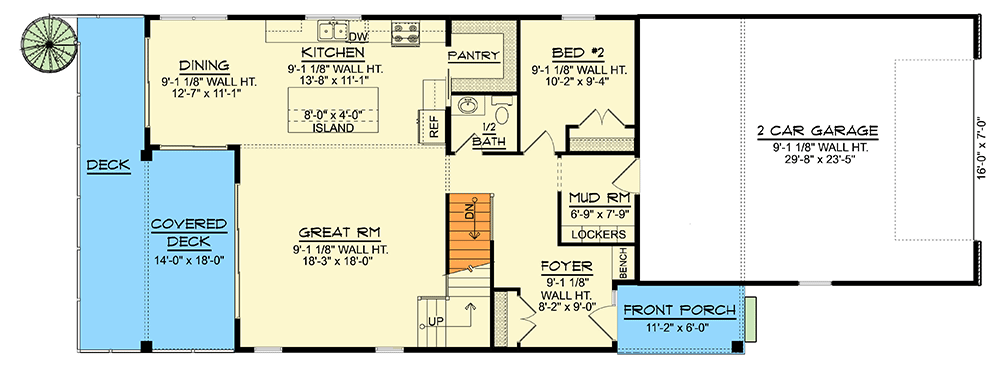

Main Level
floor plan image Main Level
2nd Floor

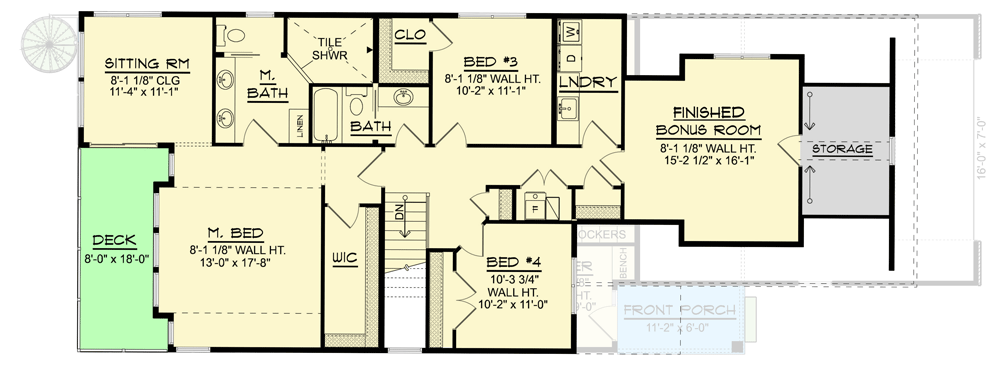

floor plan image 2nd Floor

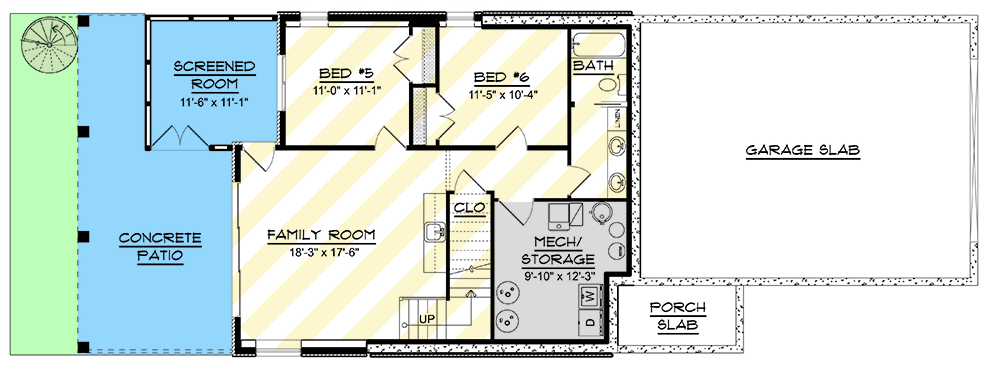

Optional Finished Lower Level
floor plan image Optional Finished Lower Level
Plan Details
  • This 4 bedroom, 2.5 bath New American house plan gives you 2,784 square feet of heated living including the 2nd floor finished bonus room. Add 1,149 square feet of living space with 2 additional bedrooms, a shared full bath and a large family room with a wet bar if you opt to finish the lower level.
  • The guest bedroom on the main level could function as a home office or flex room if needed.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
