Plan 51812HZ

4-Bed New American House Plan with Barn Door Flex Room - 2832 Sq Ft

Heated S.F.

2,832

Beds

4 - 5

Baths

3 - 4

Stories

1

Cars

2

Floor Plan

Main Level

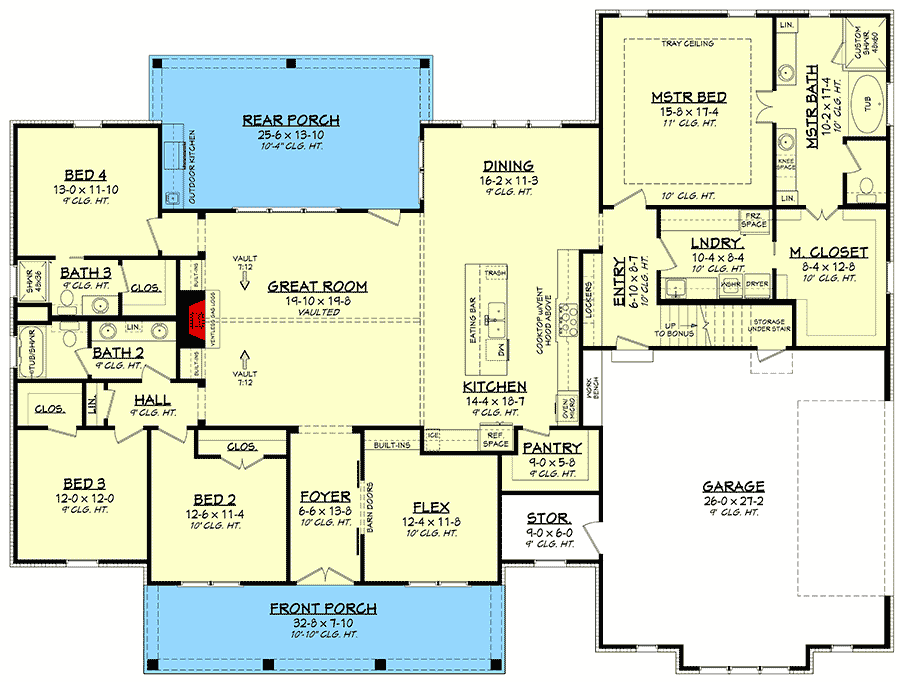

floor plan image Main Level

Optional Bonus Level

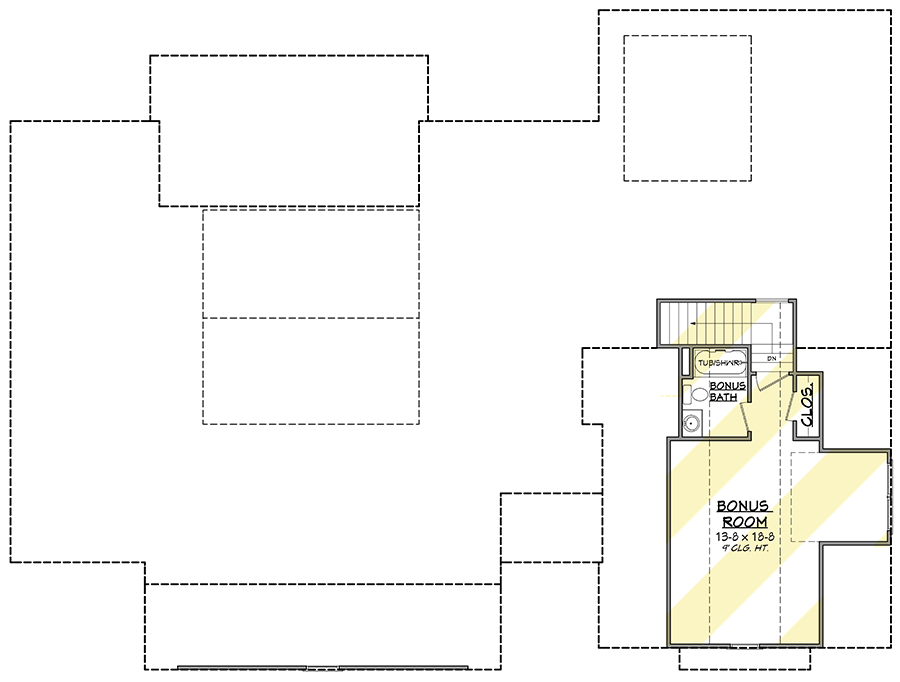

floor plan image Optional Bonus Level

Optional Basement Stairs

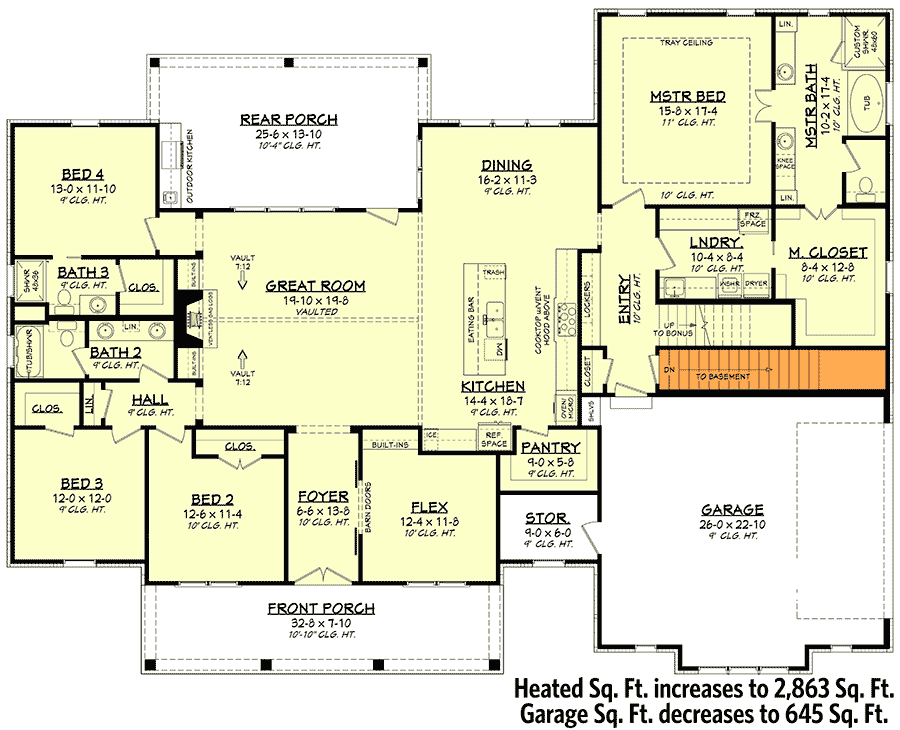

floor plan image Optional Basement Stairs

Plan Details

This New American house plan offers four bedrooms with a private master suite including a spacious master closet with access to the laundry room.
Ten foot ceilings throughout the main living areas create impressive spaces, and the gourmet kitchen with large walk-in pantry is every home cook's dream while covered outdoor kitchen provides additional space for entertaining.
The large front and rear porch creates that country feel and amazing curb appeal.
The design also offers a flex space for that home office or workout room.
The unfinished option bonus room allows for future expansion when needed.

What's Included

This plan includes:

Cover Sheet with abbreviations, rendering, sheet index
Foundation Plan and Details
Detailed first floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Bonus floor plan
Exterior views and other misc notes/ details
Exterior views and other misc notes/ details
Cross Section & Kitchen Cabinet Views
Roof Plan & Span Charts
Electrical Plans & Notes

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may require

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,832 sq. ft.

1st Floor

2,832 sq. ft.

Bonus

439 sq. ft.

Porch, Front

256 sq. ft.

Porch, Rear

340 sq. ft.

Storage

59 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

80' 10"

Depth

60' 6"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

768 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Second Floor

9'

Room

Ceiling Type

Height

Great Room

Vaulted

15' 8''

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Kitchen

Two Story Great Room

Plan Collections

Square Footage Breakdown

Total Heated Area

2,832 sq. ft.

1st Floor

2,832 sq. ft.

Bonus

439 sq. ft.

Porch, Front

256 sq. ft.

Porch, Rear

340 sq. ft.

Storage

59 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

80' 10"

Depth

60' 6"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

768 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Second Floor

9'

Room

Ceiling Type

Height

Great Room

Vaulted

15' 8''

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Kitchen

Two Story Great Room

Plan Collections
