Plan 710030BTZ
4-Bed New American House Plan with Laundry Upstairs
Heated S.F.
2,443
Beds
4
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 710030BTZ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 710030BTZ

1-800-854-7852

1-262-521-4596

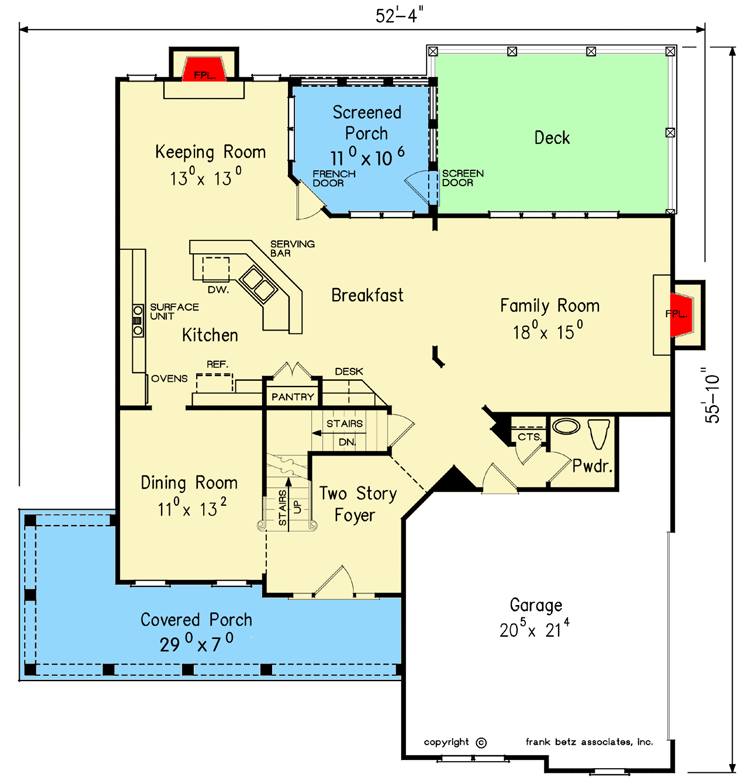

Main Level
floor plan image Main Level

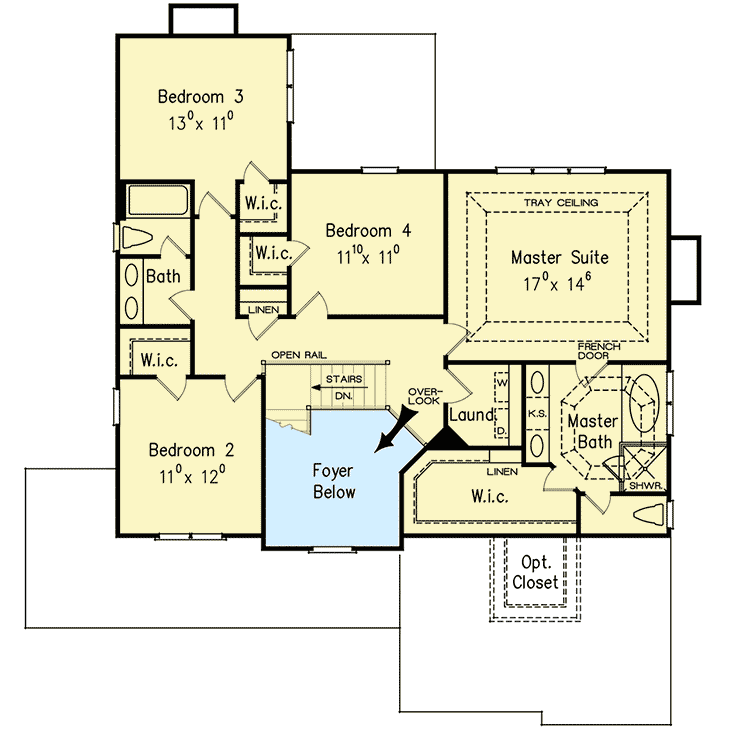

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Timber accented gables and hearty fieldstone give this 4-bed house plan great curb appeal.
  • Inside, you'll find a casual and practical layout. The kitchen overlooks a keeping room with a fireplace, giving families a cozy place to gather.
  • The kitchen has double ovens and a serving bar with casual seating and easy access to the formal dining room as well as the keeping room.
  • A screened porch adjoins the kitchen area, extending the space for outdoor entertaining.
  • The family room is open to the breakfast area allowing for easy traffic flow from one space to the next.
  • All the bedrooms are located on the second floor as well as the laundry. the master suite comes with an option to give you extra walk-in closet space
What's Included

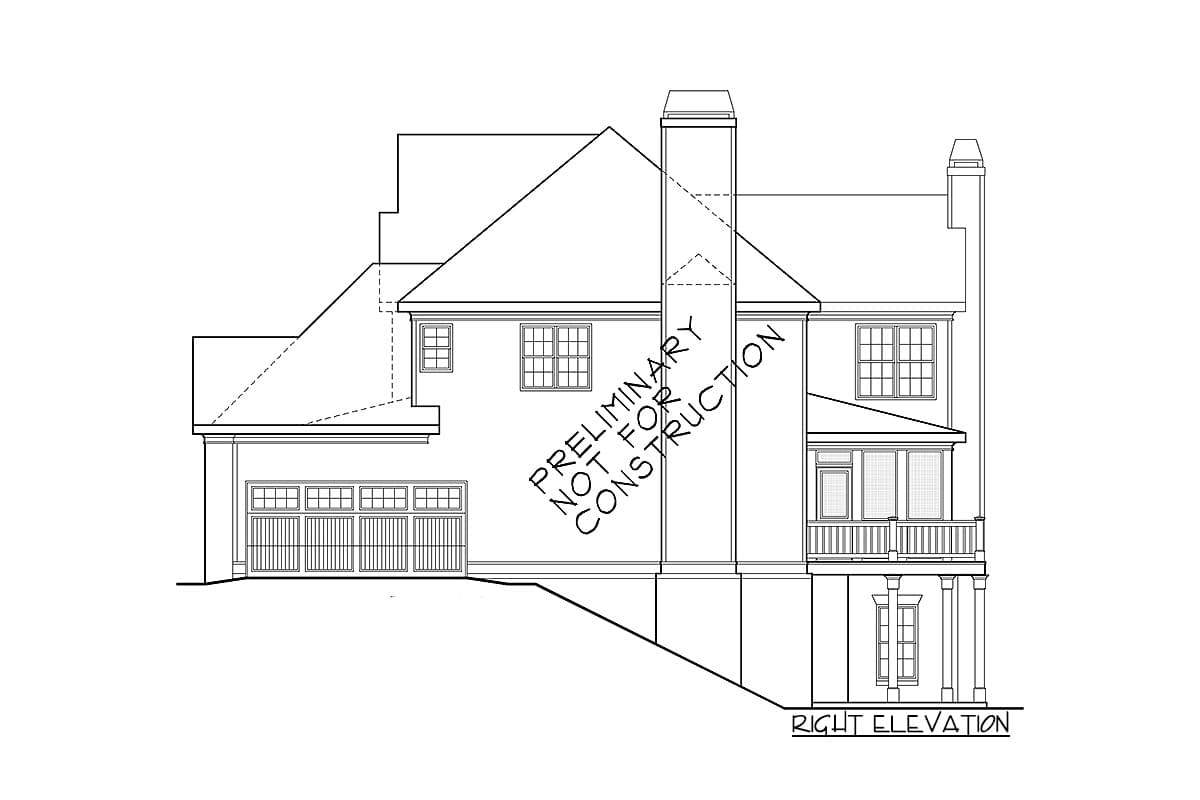

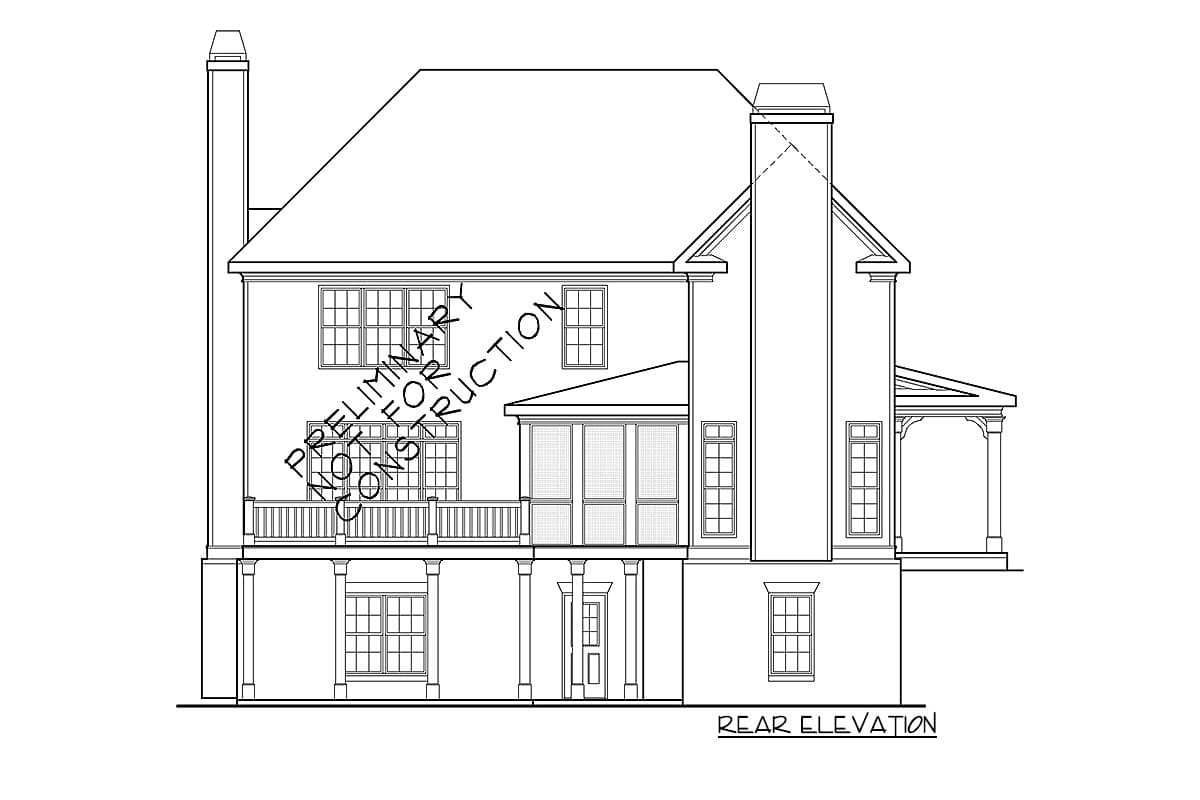

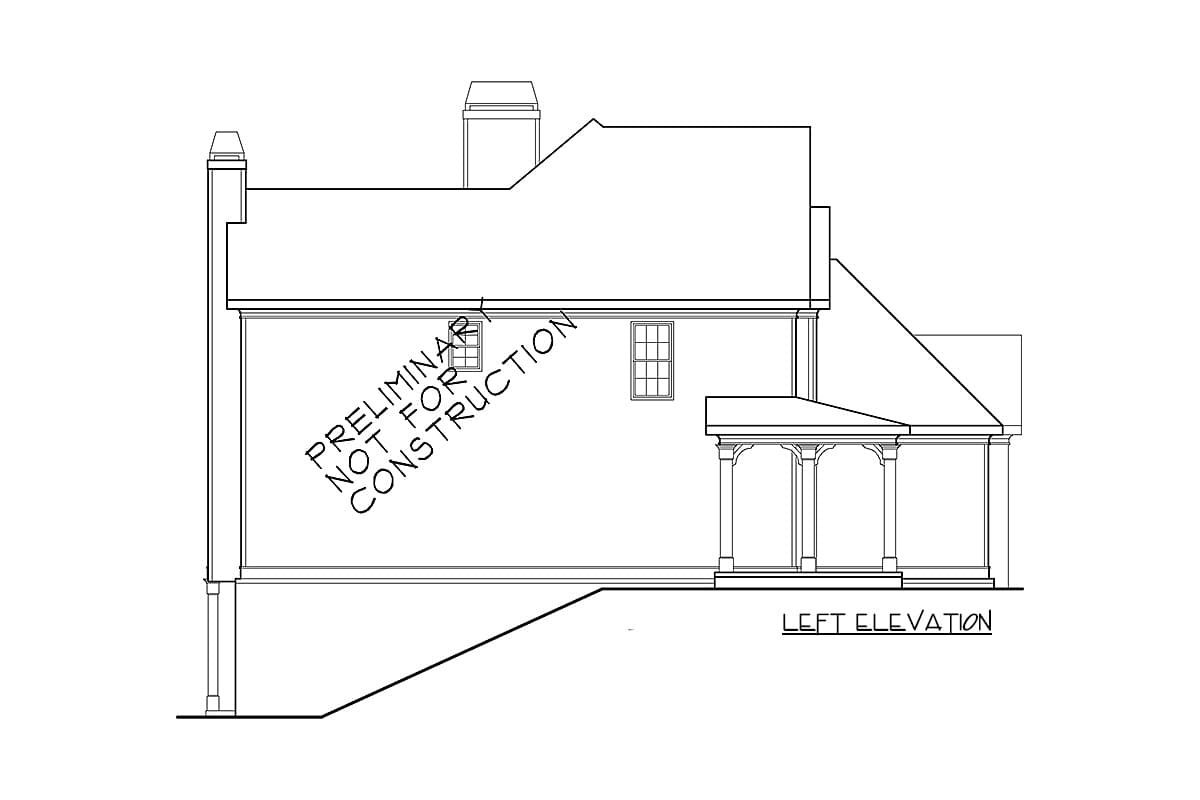

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,443 sq. ft.

1st Floor

1,214 sq. ft.

2nd Floor

1,229 sq. ft.

Basement Unfinished

1,214 sq. ft.

Porch, Front

230 sq. ft.

Porch, Rear

113 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

52' 4"

Depth

55' 10"

Max Ridge Height

31' 4"

Garage

Type

Attached

Area

463 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

New American

Special Features

Formal Dining

Keeping Room

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,443 sq. ft.

1st Floor

1,214 sq. ft.

2nd Floor

1,229 sq. ft.

Basement Unfinished

1,214 sq. ft.

Porch, Front

230 sq. ft.

Porch, Rear

113 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

52' 4"

Depth

55' 10"

Max Ridge Height

31' 4"

Garage

Type

Attached

Area

463 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

New American

Special Features

Formal Dining

Keeping Room

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

Photo Gallery
